◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-31 - THERMOSTAT AND HOUSING ▶
0-31 — THERMOSTAT AND HOUSING (#41951) — 51 parça

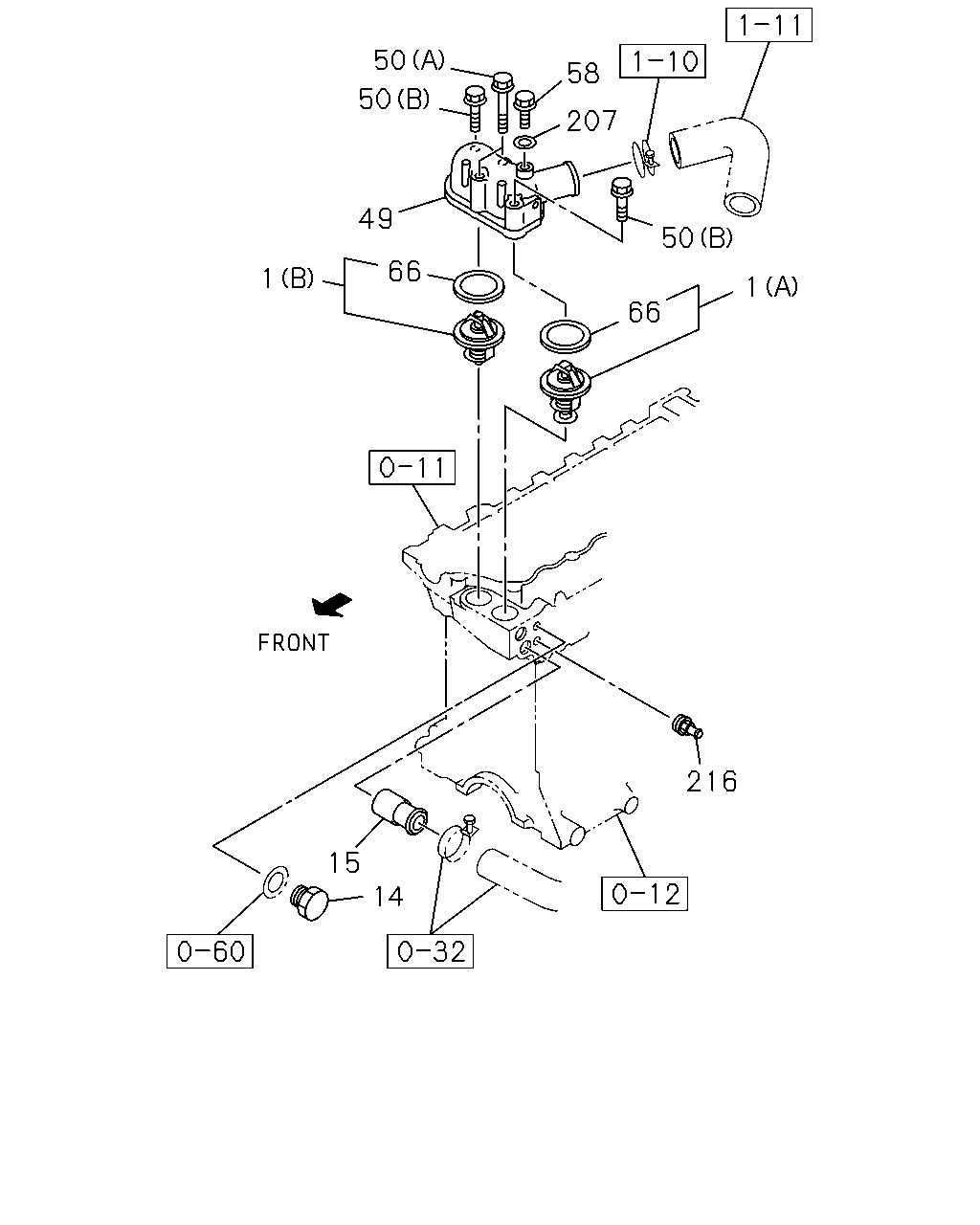

çizim 51005
50 58 50 207 49 50 66 1 1 66 216 15 14
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97167-497-0 01 1 9811-9907 ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97231-889-0 01 1 9908-9911 ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97233-417-0 01 1 9912-0008 ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97263-193-0 01 1 0009-0010 ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97300-789-1 01 1 0011- ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-495-0 01 1 9811-9907 ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41) EXC. CHARGE AIR COOLER<6PL> (B) 85 CELSIUS 		8-97167-495-0 01 1 9811-9907 ●
1 01.246 THERMOSTAT
CHARGE AIR COOLER<6PL> (B) 85 CELSIUS 		8-97167-495-0 01 1 9811-9907 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41) (B) 85 CELSIUS 		8-97167-496-0 01 1 9811-9907 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> (B) 85 CELSIUS 		8-97167-496-0 01 1 9811-9907 ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97231-888-0 01 1 9908-0008 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97263-192-0 01 1 0009-0010 ● ●
1 01.246 THERMOSTAT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-792-1 01 1 0011- ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97231-887-0 01 1 9908-0008 ● ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97263-194-0 01 1 0009-0010 ● ● ●
1 01.246 THERMOSTAT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 85 CELSIUS 		8-97300-787-1 01 1 0011- ● ● ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97167-498-0 01 1 9811-9907 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97231-890-0 01 1 9908-9911 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97233-418-0 01 1 9912-0008 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97263-191-0 01 1 0009-0010 ●
1 01.246 THERMOSTAT
(A) 82 CELSIUS 		8-97300-790-1 01 1 0011- ●
14 01.252 PLUG; SW
TURBOCHARGER(K51) 01.073 PT3/8 		5-09605-005-0 01 1 9811- ●
14 01.252 PLUG; SW
A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> 01.073 PT3/8 		5-09605-005-0 01 1 9811- ●
14 01.252 PLUG; SW
TURBOCHARGER(K51) 04.520 M16X8 PLUG 		9-09661-005-0 01 1 9811- ●
14 01.252 PLUG; SW
04.520 M16X8 PLUG 		9-09661-005-0 01 1 9811- ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 9811- ● ● ●
49 01.153 PIPE; WATER OUTLET 8-97200-620-0 01 1 9811- ● ● ●
50 01.252 BOLT; OUTLET PIPE
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9811- ● ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 9811- ● ● ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 9811- ● ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97167-477-0 01 1 9811-9907 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHARGE AIR COOLER<6PL> 		8-97167-477-0 01 1 9811-9907 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97231-848-0 01 1 9908-0010 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHARGE AIR COOLER<6PL> 		8-97231-848-0 01 1 9908-0010 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97300-793-0 01 1 0011-0112 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHARGE AIR COOLER<6PL> 		8-97300-793-0 01 1 0011-0112 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97300-793-0 01 1 0201- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97300-793-0 01 1 0201- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHARGE AIR COOLER<6PL> 		8-97300-793-0 01 1 0201- ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> 		8-97167-477-0 02 1 9811-9907 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> 		8-97231-848-0 02 1 9908-0010 ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL> 		8-97300-793-0 02 1 0011- ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 9811- ● ● ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET
TURBOCHARGER(K51) 		8-97041-589-3 01 1 9811-0105 ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET 8-97041-589-3 01 1 9811-0105 ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET
TURBOCHARGER(K51) 		8-97041-589-3 01 1 0106-0112 ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET
CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97041-589-3 01 1 0106-0112 ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET
TURBOCHARGER(K51) 		8-97041-589-3 01 1 0201-0212 ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 		8-97041-589-3 01 1 0201-0212 ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET
TURBOCHARGER(K51) 		8-97358-699-0 01 1 0301- ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET
CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 		8-97358-699-0 01 1 0301- ●
