◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#41950) — 10 parça

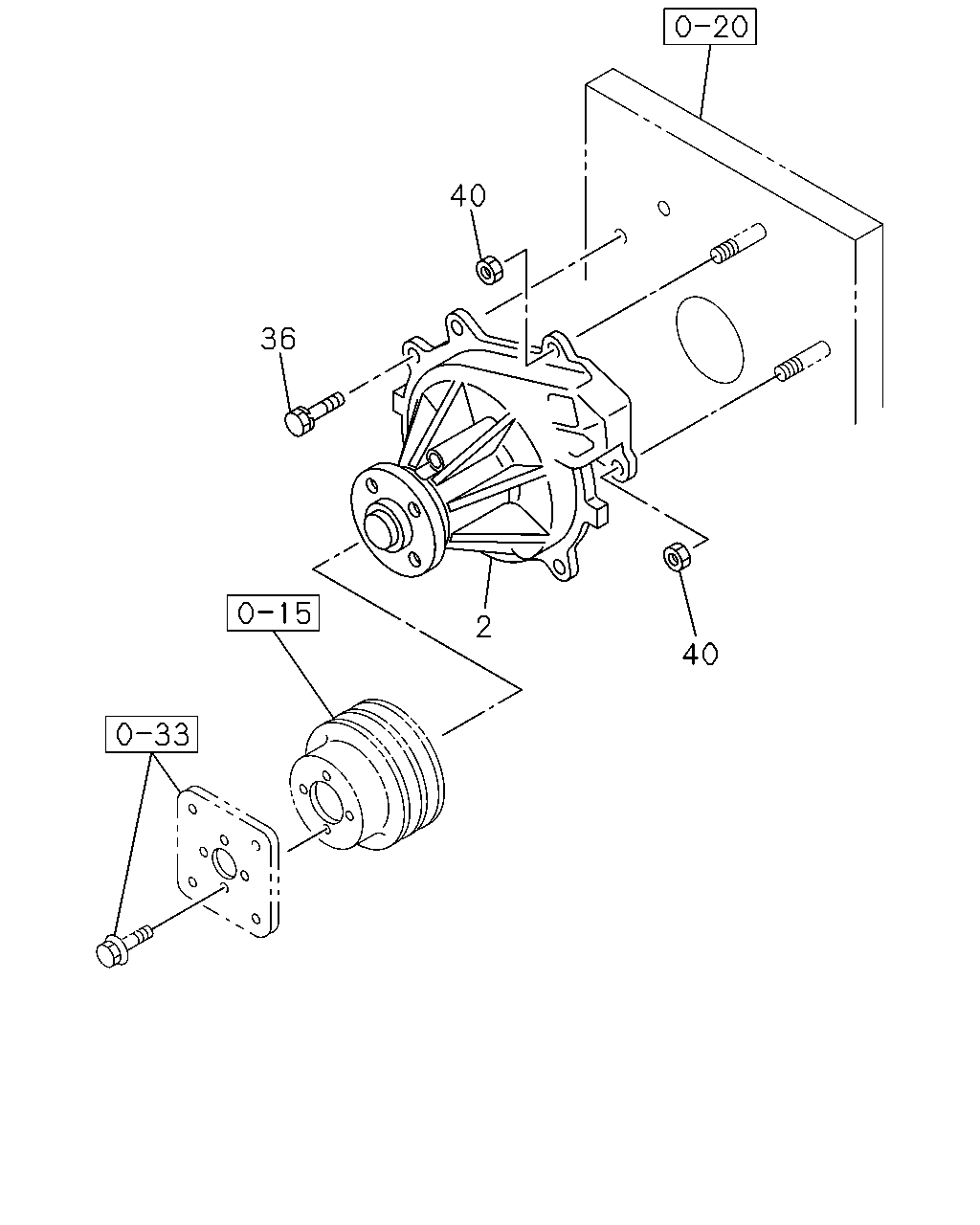

çizim 10005
40 36 2 40
BalonParca AdiParca NoAdetTipApplied Date A B C
2 01.069 PUMP ASM; WATER 8-97109-676-1 01 1 9811-0104 ● ●
2 01.069 PUMP ASM; WATER
EXC. CHARGE AIR COOLER<6PL> 		8-97109-676-1 01 1 9811-0104 ●
2 01.069 PUMP ASM; WATER
10.690 		8-97313-904-0 01 1 0105-0202 ● ●
2 01.069 PUMP ASM; WATER
EXC. CHARGE AIR COOLER<6PL> 10.690 		8-97313-904-0 01 1 0105-0202 ●
2 01.069 PUMP ASM; WATER 8-97333-361-0 01 1 0203- ● ●
2 01.069 PUMP ASM; WATER
EXC. CHARGE AIR COOLER<6PL> 		8-97333-361-0 01 1 0203- ●
2 01.069 PUMP ASM; WATER
CHARGE AIR COOLER<6PL> 		8-97149-237-0 01 1 9811-0104 ●
2 01.069 PUMP ASM; WATER
CHARGE AIR COOLER<6PL> 		8-97314-118-0 01 1 0105- ●
36 00.386 BOLT; WATER PUMP TO C/BL
03.704 M8X40 FLANGE 		0-28680-840-0 06 1 9811- ● ● ●
40 07.874 NUT; WATER PUMP
07.633 M8 FLANGE 		0-91150-108-0 02 1 9811- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
