Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#41947) — 263 parça

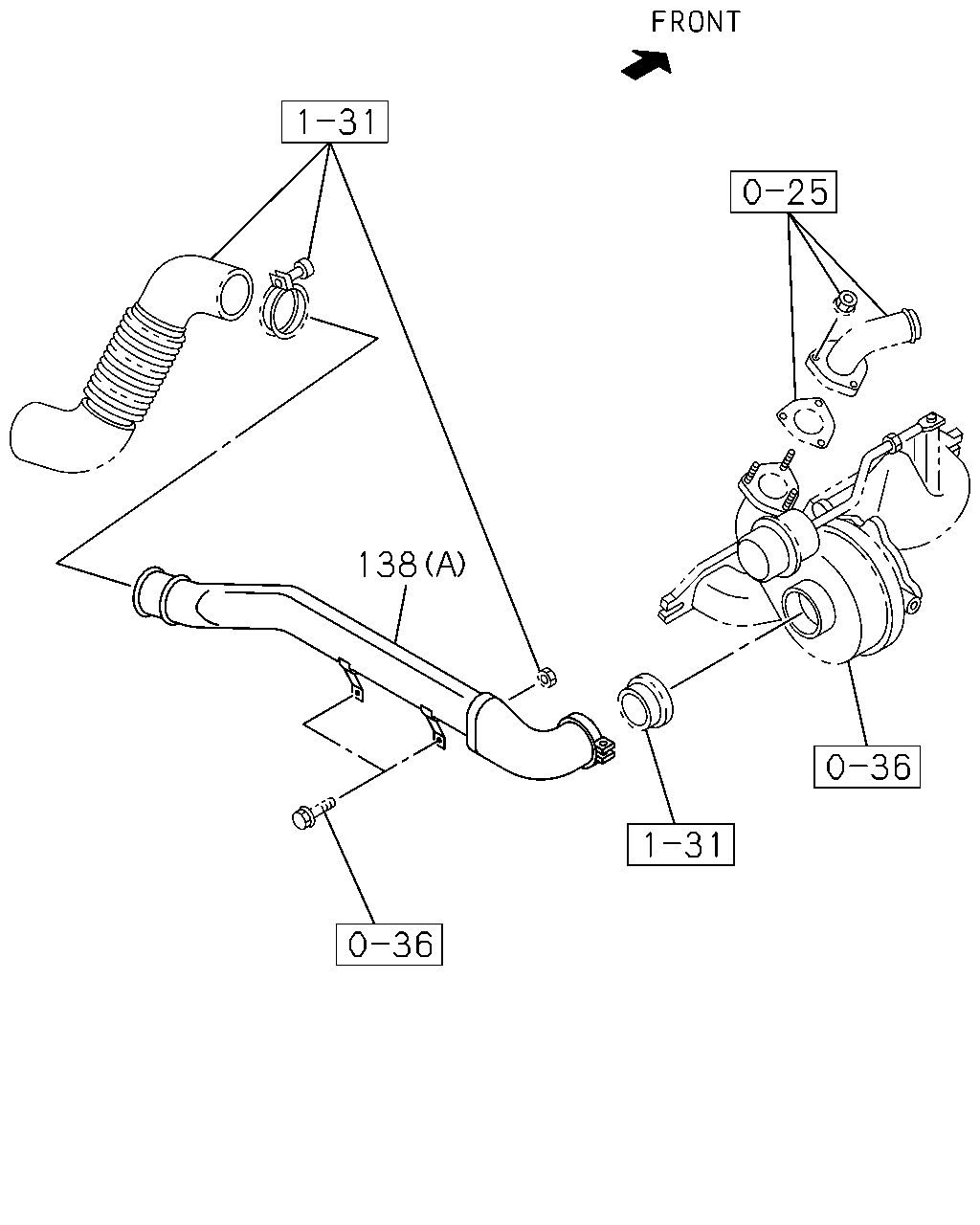

138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
138	03.265 PIPE; INL TURBOCHARGER(K51) (B)	8-97180-566-1	01	1	9811-	●
138	03.265 PIPE; INL TURBOCHARGER(K51) HYDRO MASTER<7LT> (A)	8-97187-359-2	01	1	9811-9812	●
138	03.265 PIPE; INL TURBOCHARGER(K51) HYDRO MASTER<7LT> (A)	8-97222-878-0	01	1	9901-	●
138	03.265 PIPE; INL TURBOCHARGER(K51) EXC. HYDRO MASTER<7LT> (A)	8-97187-358-2	01	1	9811-9812	●
138	03.265 PIPE; INL TURBOCHARGER(K51) EXC. HYDRO MASTER<7LT> (A)	8-97178-748-2	01	1	9901-	●
138	03.265 PIPE; INL SGL CAB(NP*S) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97214-593-0	01	1	9811-0105		●
138	03.265 PIPE; INL SGL CAB(NP*S) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97214-593-0	01	1	0106-0112		●
138	03.265 PIPE; INL	8-97214-593-0	01	1	0201-0201	●		●
138	03.265 PIPE; INL SGL CAB(NP*S) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97214-593-0	01	1	0201-0201		●
138	03.265 PIPE; INL SGL CAB(NP*S) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97214-593-0	01	1	0202-		●
138	03.265 PIPE; INL SGL CAB(NP*S) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97214-594-0	01	1	9811-0105		●
138	03.265 PIPE; INL TURBOCHARGER(K51) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97214-594-0	01	1	0106-		●

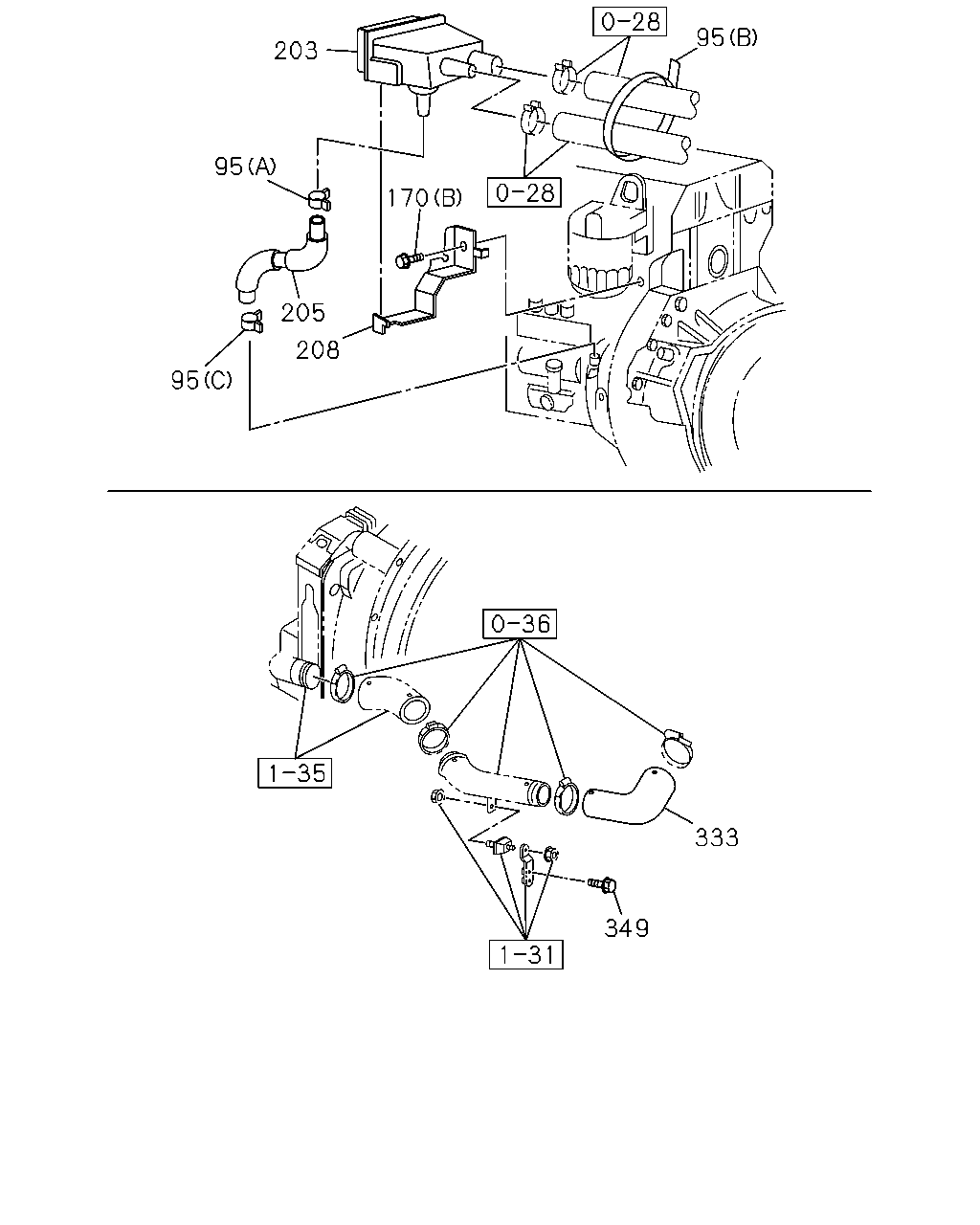

95 203 95 170 205 208 95 333 349

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.407 (A) ID=77-95	1-09707-114-0	01	1	9811-	●
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.407 (B) ID=50-69	8-94316-991-0	02	1	9811-	●
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.407 (C) ID=68-85	8-94320-428-0	01	1	9811-	●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	9811-		●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.163 (A) ID=11	8-94238-570-0	01	1	9811-		●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 01.097 (C) ID=11	8-94238-925-0	01	1	9811-		●
95	03.278 CLIP; RUBBER HOSE EXC. CHARGE AIR COOLER<6PL> 01.219 (B) ID=13	8-94238-571-0	02	1	9811-		●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	9811-		●
170	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9811-		●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	9811-		●
205	01.745 HOSE; OIL DRAIN CHARGE AIR COOLER<6PL>	8-97149-011-1	01	1	9811-		●
205	01.745 HOSE; OIL DRAIN EXC. CHARGE AIR COOLER<6PL>	8-97088-684-1	01	1	9811-		●
208	01.750 BRACKET; CATCH TANK,OIL CHARGE AIR COOLER<6PL>	8-97166-887-0	01	1	9811-		●
208	01.750 BRACKET; CATCH TANK,OIL EXC. CHARGE AIR COOLER<6PL>	8-97094-449-0	01	1	9811-		●
333	03.278 HOSE; RUBBER,INL PIPE TURBOCHARGER(K51) (A)	8-97201-103-1	01	1	9811-	●
333	03.278 HOSE; RUBBER,INL PIPE TURBOCHARGER(K51) (B)	8-97202-285-3	01	1	9811-	●
333	03.278 HOSE; RUBBER,INL PIPE CHARGE AIR COOLER<6PL>	8-97189-631-0	01	1	9811-		●
349	03.417 BOLT; BRKT,INL PIPE CHARGE AIR COOLER<6PL> 04.595 M8X20 FLANGE	0-28480-820-0	04	1	9811-		●

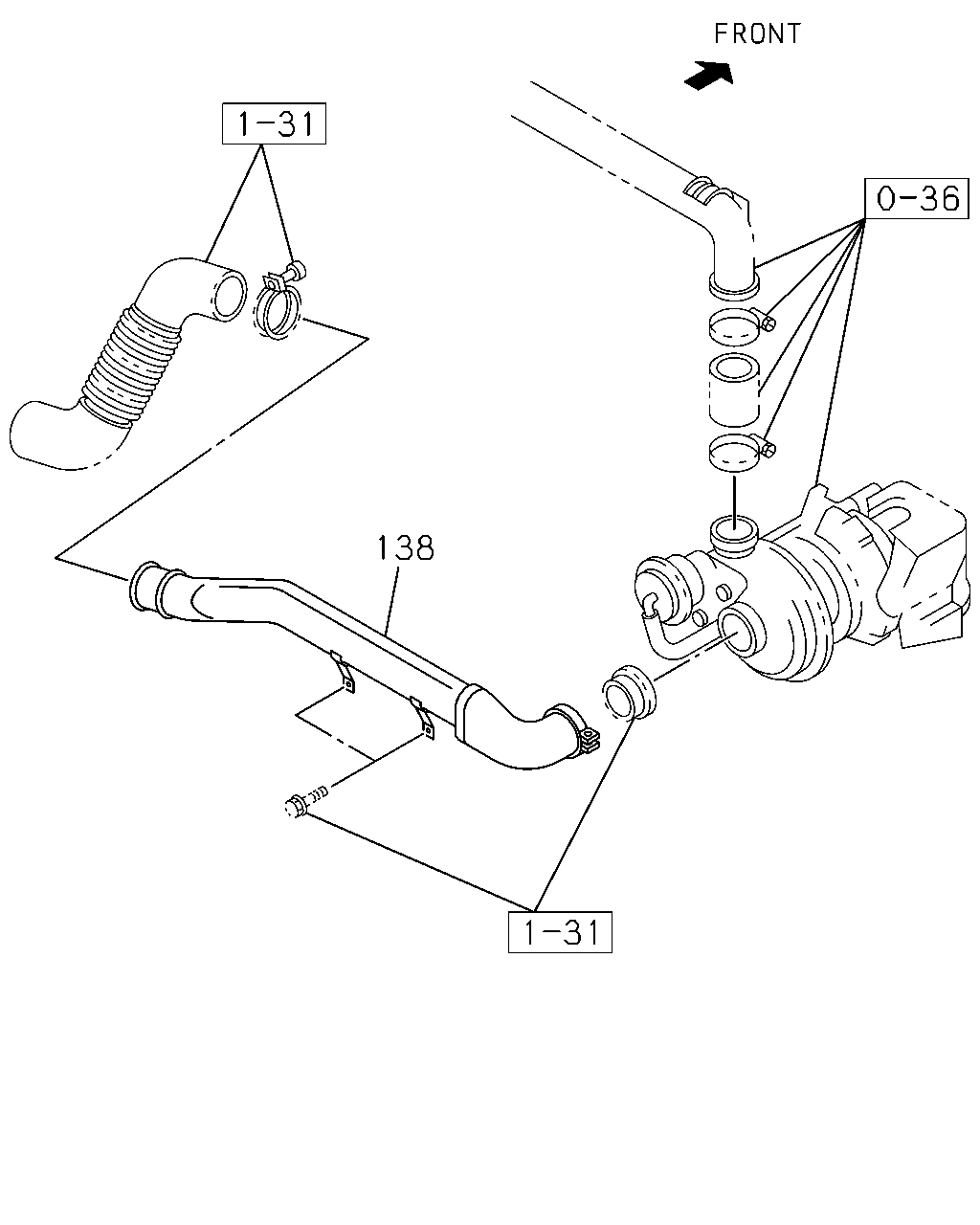

138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
138	03.265 PIPE; INL TURBOCHARGER(K51) (B)	8-97180-566-1	01	1	9811-	●
138	03.265 PIPE; INL TURBOCHARGER(K51) HYDRO MASTER<7LT> (A)	8-97187-359-2	01	1	9811-9812	●
138	03.265 PIPE; INL TURBOCHARGER(K51) HYDRO MASTER<7LT> (A)	8-97222-878-0	01	1	9901-	●
138	03.265 PIPE; INL TURBOCHARGER(K51) EXC. HYDRO MASTER<7LT> (A)	8-97187-358-2	01	1	9811-9812	●
138	03.265 PIPE; INL TURBOCHARGER(K51) EXC. HYDRO MASTER<7LT> (A)	8-97178-748-2	01	1	9901-	●
138	03.265 PIPE; INL SGL CAB(NP*S) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97214-593-0	01	1	9811-0105		●
138	03.265 PIPE; INL SGL CAB(NP*S) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97214-593-0	01	1	0106-0112		●
138	03.265 PIPE; INL	8-97214-593-0	01	1	0201-0201	●		●
138	03.265 PIPE; INL SGL CAB(NP*S) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97214-593-0	01	1	0201-0201		●
138	03.265 PIPE; INL SGL CAB(NP*S) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97214-593-0	01	1	0202-		●
138	03.265 PIPE; INL SGL CAB(NP*S) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97214-594-0	01	1	9811-0105		●
138	03.265 PIPE; INL TURBOCHARGER(K51) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97214-594-0	01	1	0106-		●

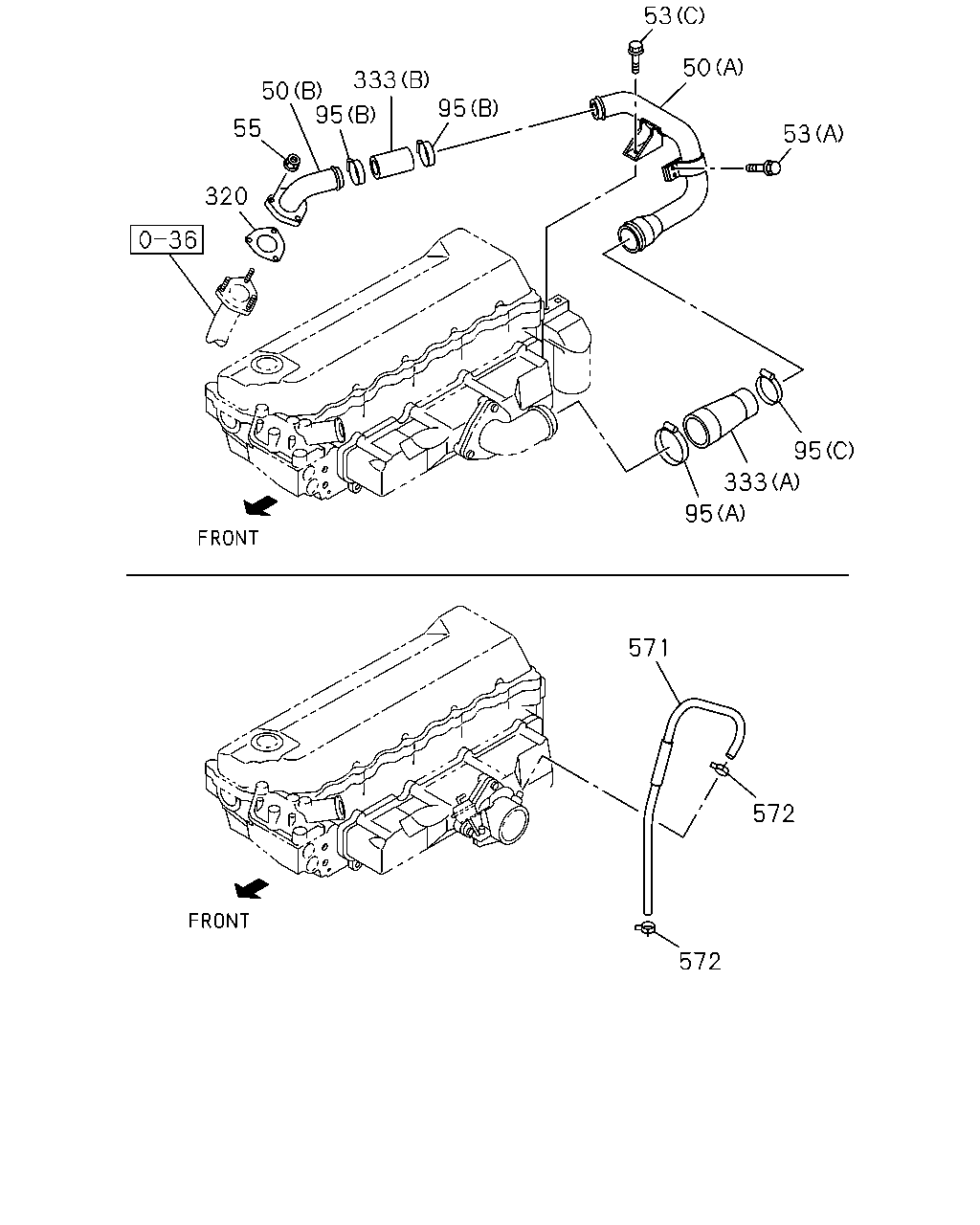

53 50 333 95 50 95 55 53 320 95 333 95 571 572 572

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	03.265 PIPE; INL TURBOCHARGER(K51) (A)	8-97178-735-4	01	1	9811-	●
50	03.265 PIPE; INL TURBOCHARGER(K51) (B)	8-97202-327-2	01	1	9811-	●
53	03.602 BOLT; INL PIPE TURBOCHARGER(K51) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9811-9907	●
53	03.602 BOLT; INL PIPE TURBOCHARGER(K51) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	9908-	●
53	03.602 BOLT; INL PIPE TURBOCHARGER(K51) 04.686 (B) M8X30 FLANGE	0-28680-830-0	02	1	9811-	●
53	03.602 BOLT; INL PIPE TURBOCHARGER(K51) 03.405 (C) M10X25 FLANGE	0-28681-025-0	02	1	9811-	●
55	03.407 NUT; INL PIPE TURBOCHARGER(K51) 01.062 M6 FLANGE	0-91150-206-0	03	1	9811-	●
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.407 (A) ID=77-95	1-09707-114-0	01	1	9811-	●
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.407 (B) ID=50-69	8-94316-991-0	02	1	9811-	●
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.407 (C) ID=68-85	8-94320-428-0	01	1	9811-	●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	9811-		●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.163 (A) ID=11	8-94238-570-0	01	1	9811-		●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 01.097 (C) ID=11	8-94238-925-0	01	1	9811-		●
95	03.278 CLIP; RUBBER HOSE EXC. CHARGE AIR COOLER<6PL> 01.219 (B) ID=13	8-94238-571-0	02	1	9811-		●
320	03.270 GASKET; PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER(K51)	8-97202-328-1	01	1	9811-	●
333	03.278 HOSE; RUBBER,INL PIPE TURBOCHARGER(K51) (A)	8-97201-103-1	01	1	9811-	●
333	03.278 HOSE; RUBBER,INL PIPE TURBOCHARGER(K51) (B)	8-97202-285-3	01	1	9811-	●
333	03.278 HOSE; RUBBER,INL PIPE CHARGE AIR COOLER<6PL>	8-97189-631-0	01	1	9811-		●
571	03.265 HOSE; AIR BOOST TURBOCHARGER(K51) 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	9811-	●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	9811-0112		●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	0201-0207		●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	0208-		●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) L=350	8-97304-609-1	01	1	0106-0207		●
571	03.265 HOSE; AIR BOOST M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> L=350	8-97304-609-1	01	1	0208-		●
571	03.265 HOSE; AIR BOOST EXC. CHARGE AIR COOLER<6PL> 08.962 L=230 SERVICED BY L=3000	0-01254-300-0	01	1	9811-		●
572	03.407 CLIP; BOOST HOSE TURBOCHARGER(K51) 03.145 ID=8	8-94107-762-0	02	1	9811-	●
572	03.407 CLIP; BOOST HOSE 03.163 ID=11	8-94238-570-0	02	1	9811-		●

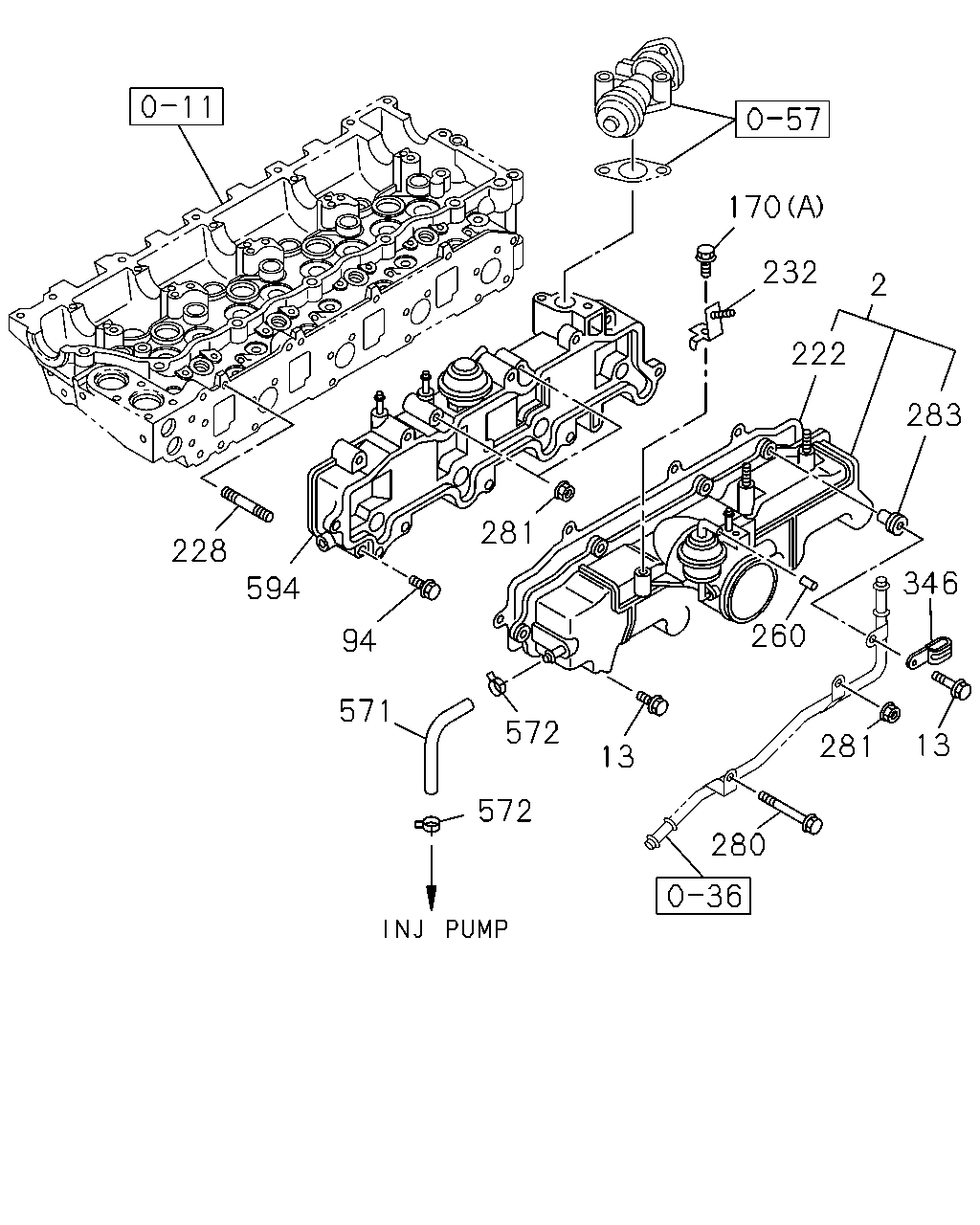

170 232 2 222 283 281 228 346 594 260 94 571 572 13 281 13 572 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	03.407 COVER; INL TURBOCHARGER(K51)	8-97212-454-1	01	1	9811-	●
2	03.407 COVER; INL EXC. TURBOCHARGER(K51)	8-97146-864-2	01	1	9811-	●
2	03.407 COVER; INL	8-97146-864-2	01	1	9811-			●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97190-248-1	01	1	9811-9901		●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97219-653-0	01	1	9902-		●
2	03.407 COVER; INL EXC. CHARGE AIR COOLER<6PL>	8-97074-680-1	01	1	9811-		●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) M8X30 FLANGE	0-28080-830-0	07	1	9811-	●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	07	1	9811-		●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) M8X52 L=68	8-97118-455-0	01	1	9811-	●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER(K51) M8X30 FLANGE	0-28080-830-0	08	1	9811-	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9811-			●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9811-		●
94	02.559 BOLT TURBOCHARGER(K51) 03.275 M8X30 FLANGE	0-28080-830-0	01	1	9811-	●
94	02.559 BOLT EXC. TURBOCHARGER(K51) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9811-	●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9811-			●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.540 M8X45 FLANGE	0-28080-845-0	04	1	9811-		●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.780 M8X50 FLANGE	0-28080-850-0	02	1	9811-		●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	9811-		●
170	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9811-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	9811-	●		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97170-807-0	01	1	9811-9901		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97219-649-0	01	1	9902-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHARGE AIR COOLER<6PL>	8-97074-682-0	01	1	9811-		●
228	03.407 STUD; INL COVER CHARGE AIR COOLER<6PL> M8X84 L=95	8-97181-739-0	02	1	9811-		●
232	03.407 BRACKET; INJ PIPE CHARGE AIR COOLER<6PL>	8-97190-249-0	01	1	9811-		●
260	03.278 CAP; RUBBER EXC. TURBOCHARGER(K51) 01.780 ID=4	8-94217-809-0	01	1	9811-	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9811-		●	●
280	03.403 BOLT; INL COVER CHARGE AIR COOLER<6PL> 09.171 M8X80 FLANGE	0-28080-880-0	01	1	9811-		●
281	03.407 NUT; INL COVER CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-		●
283	03.265 RUBBER EXC. TURBOCHARGER(K51) OD=23	8-97105-689-6	10	1	9811-	●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	9811-			●
283	03.265 RUBBER CHARGE AIR COOLER<6PL> OD=23	8-97105-689-6	09	1	9811-9901		●
283	03.265 RUBBER CHARGE AIR COOLER<6PL> L=18	8-97219-650-0	09	1	9902-		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9811-	●		●
346	02.559 CLIP; ENG HARNESS EXC. CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9811-		●
346	02.559 CLIP; ENG HARNESS CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9811-		●
571	03.265 HOSE; AIR BOOST TURBOCHARGER(K51) 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	9811-	●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	9811-0112		●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	0201-0207		●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	0208-		●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) L=350	8-97304-609-1	01	1	0106-0207		●
571	03.265 HOSE; AIR BOOST M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> L=350	8-97304-609-1	01	1	0208-		●
571	03.265 HOSE; AIR BOOST EXC. CHARGE AIR COOLER<6PL> 08.962 L=230 SERVICED BY L=3000	0-01254-300-0	01	1	9811-		●
572	03.407 CLIP; BOOST HOSE TURBOCHARGER(K51) 03.145 ID=8	8-94107-762-0	02	1	9811-	●
572	03.407 CLIP; BOOST HOSE 03.163 ID=11	8-94238-570-0	02	1	9811-		●
594	03.278 CASE CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97187-617-0	01	1	9811-		●
594	03.278 CASE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97148-948-4	01	1	9811-9911		●
594	03.278 CASE CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF>	8-97230-991-0	01	1	9912-		●

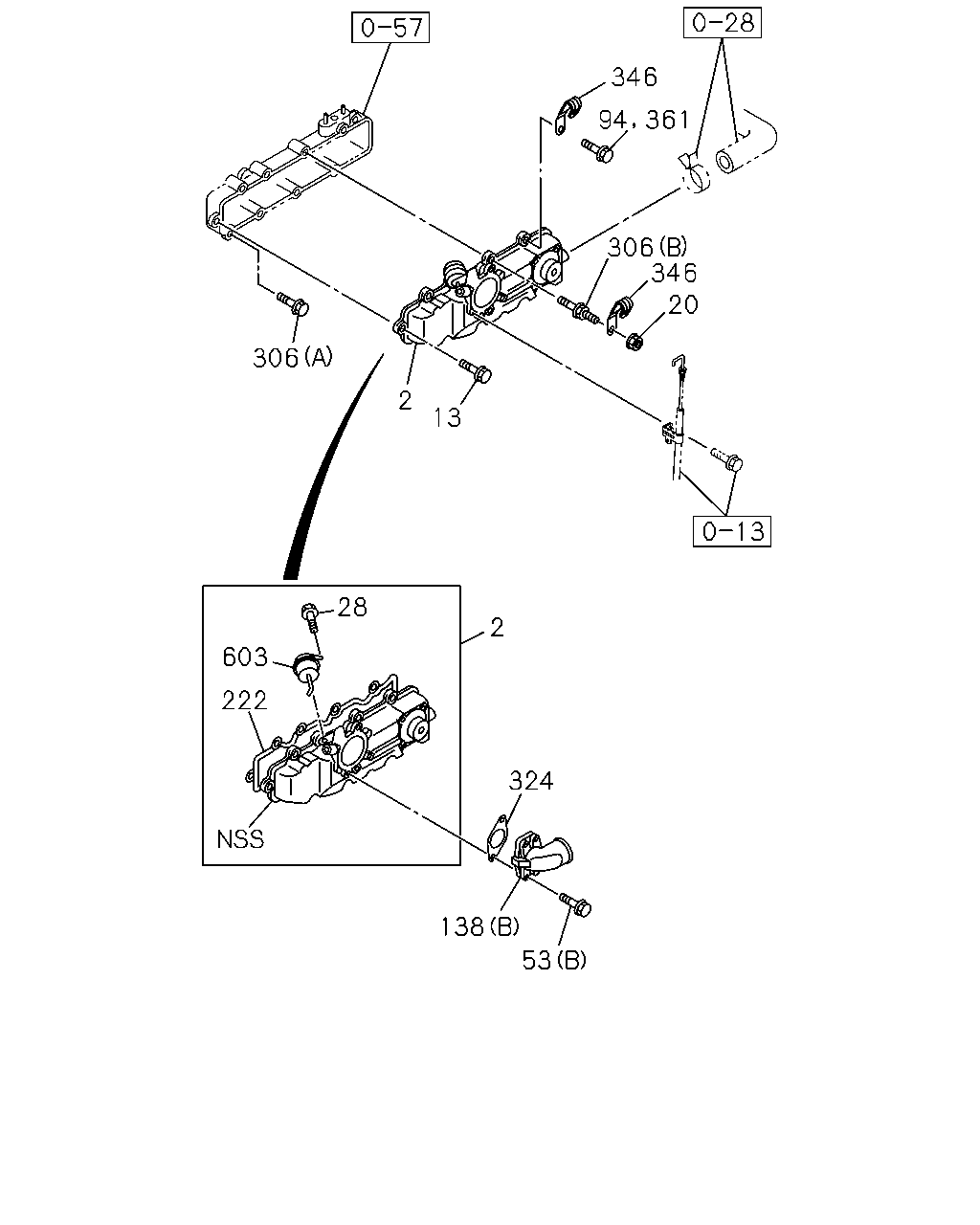

346 306 346 20 306 2 13 28 2 603 222 324 138 53 94 361

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	03.407 COVER; INL TURBOCHARGER(K51)	8-97212-454-1	01	1	9811-	●
2	03.407 COVER; INL EXC. TURBOCHARGER(K51)	8-97146-864-2	01	1	9811-	●
2	03.407 COVER; INL	8-97146-864-2	01	1	9811-			●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97190-248-1	01	1	9811-9901		●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97219-653-0	01	1	9902-		●
2	03.407 COVER; INL EXC. CHARGE AIR COOLER<6PL>	8-97074-680-1	01	1	9811-		●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) M8X30 FLANGE	0-28080-830-0	07	1	9811-	●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	07	1	9811-		●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) M8X52 L=68	8-97118-455-0	01	1	9811-	●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER(K51) M8X30 FLANGE	0-28080-830-0	08	1	9811-	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9811-			●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9811-		●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-	●		●
20	03.275 NUT; INL MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-		●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9811-	●		●
53	03.602 BOLT; INL PIPE TURBOCHARGER(K51) 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	9811-9907	●
53	03.602 BOLT; INL PIPE TURBOCHARGER(K51) 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	9908-	●
53	03.602 BOLT; INL PIPE TURBOCHARGER(K51) 04.686 (B) M8X30 FLANGE	0-28680-830-0	02	1	9811-	●
53	03.602 BOLT; INL PIPE TURBOCHARGER(K51) 03.405 (C) M10X25 FLANGE	0-28681-025-0	02	1	9811-	●
94	02.559 BOLT TURBOCHARGER(K51) 03.275 M8X30 FLANGE	0-28080-830-0	01	1	9811-	●
94	02.559 BOLT EXC. TURBOCHARGER(K51) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9811-	●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9811-			●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.540 M8X45 FLANGE	0-28080-845-0	04	1	9811-		●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.780 M8X50 FLANGE	0-28080-850-0	02	1	9811-		●
138	03.265 PIPE; INL TURBOCHARGER(K51) (B)	8-97180-566-1	01	1	9811-	●
138	03.265 PIPE; INL TURBOCHARGER(K51) HYDRO MASTER<7LT> (A)	8-97187-359-2	01	1	9811-9812	●
138	03.265 PIPE; INL TURBOCHARGER(K51) HYDRO MASTER<7LT> (A)	8-97222-878-0	01	1	9901-	●
138	03.265 PIPE; INL TURBOCHARGER(K51) EXC. HYDRO MASTER<7LT> (A)	8-97187-358-2	01	1	9811-9812	●
138	03.265 PIPE; INL TURBOCHARGER(K51) EXC. HYDRO MASTER<7LT> (A)	8-97178-748-2	01	1	9901-	●
138	03.265 PIPE; INL SGL CAB(NP*S) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97214-593-0	01	1	9811-0105		●
138	03.265 PIPE; INL SGL CAB(NP*S) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97214-593-0	01	1	0106-0112		●
138	03.265 PIPE; INL	8-97214-593-0	01	1	0201-0201	●		●
138	03.265 PIPE; INL SGL CAB(NP*S) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97214-593-0	01	1	0201-0201		●
138	03.265 PIPE; INL SGL CAB(NP*S) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL>,HYDRO BRAKE BOOSTER<7QQ>	8-97214-593-0	01	1	0202-		●
138	03.265 PIPE; INL SGL CAB(NP*S) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97214-594-0	01	1	9811-0105		●
138	03.265 PIPE; INL TURBOCHARGER(K51) HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL>	8-97214-594-0	01	1	0106-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	9811-	●		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97170-807-0	01	1	9811-9901		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97219-649-0	01	1	9902-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHARGE AIR COOLER<6PL>	8-97074-682-0	01	1	9811-		●
306	03.265 BOLT; VLV TURBOCHARGER(K51) (B) M8X85 L=101	8-97118-454-0	01	1	9811-	●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	9811-	●		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER(K51)	8-97180-546-0	01	1	9811-	●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9811-	●		●
346	02.559 CLIP; ENG HARNESS EXC. CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9811-		●
346	02.559 CLIP; ENG HARNESS CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9811-		●
361	03.278 BOLT; CLIP TURBOCHARGER(K51) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9811-	●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	9811-	●		●

346 94 260 346 20 2 306 13 28 131 507 603 222 336 2 229 283 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	03.407 COVER; INL TURBOCHARGER(K51)	8-97212-454-1	01	1	9811-	●
2	03.407 COVER; INL EXC. TURBOCHARGER(K51)	8-97146-864-2	01	1	9811-	●
2	03.407 COVER; INL	8-97146-864-2	01	1	9811-			●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97190-248-1	01	1	9811-9901		●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97219-653-0	01	1	9902-		●
2	03.407 COVER; INL EXC. CHARGE AIR COOLER<6PL>	8-97074-680-1	01	1	9811-		●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) M8X30 FLANGE	0-28080-830-0	07	1	9811-	●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	07	1	9811-		●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) M8X52 L=68	8-97118-455-0	01	1	9811-	●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER(K51) M8X30 FLANGE	0-28080-830-0	08	1	9811-	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9811-			●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9811-		●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-	●		●
20	03.275 NUT; INL MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-		●
28	03.278 BOLT; CHAMBER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9811-	●		●
94	02.559 BOLT TURBOCHARGER(K51) 03.275 M8X30 FLANGE	0-28080-830-0	01	1	9811-	●
94	02.559 BOLT EXC. TURBOCHARGER(K51) 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9811-	●
94	02.559 BOLT 03.275 M8X30 FLANGE	0-28080-830-0	02	1	9811-			●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.540 M8X45 FLANGE	0-28080-845-0	04	1	9811-		●
94	02.559 BOLT CHARGE AIR COOLER<6PL> 01.780 M8X50 FLANGE	0-28080-850-0	02	1	9811-		●
131	03.278 PIPE; PCV,INL EXC. TURBOCHARGER(K51)	8-97102-601-0	01	1	9811-	●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	9811-			●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	9811-	●		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97170-807-0	01	1	9811-9901		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97219-649-0	01	1	9902-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHARGE AIR COOLER<6PL>	8-97074-682-0	01	1	9811-		●
229	03.278 SCREW; VENTILATION VLV EXC. TURBOCHARGER(K51) 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9811-	●
229	03.278 SCREW; VENTILATION VLV 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9811-			●
260	03.278 CAP; RUBBER EXC. TURBOCHARGER(K51) 01.780 ID=4	8-94217-809-0	01	1	9811-	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9811-		●	●
283	03.265 RUBBER EXC. TURBOCHARGER(K51) OD=23	8-97105-689-6	10	1	9811-	●
283	03.265 RUBBER OD=23	8-97105-689-6	10	1	9811-			●
283	03.265 RUBBER CHARGE AIR COOLER<6PL> OD=23	8-97105-689-6	09	1	9811-9901		●
283	03.265 RUBBER CHARGE AIR COOLER<6PL> L=18	8-97219-650-0	09	1	9902-		●
306	03.265 BOLT; VLV TURBOCHARGER(K51) (B) M8X85 L=101	8-97118-454-0	01	1	9811-	●
306	03.265 BOLT; VLV 01.540 (A) M8X45 FLANGE	0-28080-845-0	05	1	9811-	●		●
336	03.415 VALVE; VENTILATION EXC. TURBOCHARGER(K51)	8-97119-887-0	01	1	9811-	●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	9811-			●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9811-	●		●
346	02.559 CLIP; ENG HARNESS EXC. CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9811-		●
346	02.559 CLIP; ENG HARNESS CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9811-		●
507	03.415 ORIFICE EXC. TURBOCHARGER(K51)	8-97088-649-0	01	1	9811-	●
507	03.415 ORIFICE	8-97088-649-0	01	1	9811-			●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	9811-	●		●

203 208 170 95 139 205 95 344 260 346 20 525 445 222 572 2 346 346 20 13 13 525 571 445 572

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	03.407 COVER; INL TURBOCHARGER(K51)	8-97212-454-1	01	1	9811-	●
2	03.407 COVER; INL EXC. TURBOCHARGER(K51)	8-97146-864-2	01	1	9811-	●
2	03.407 COVER; INL	8-97146-864-2	01	1	9811-			●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97190-248-1	01	1	9811-9901		●
2	03.407 COVER; INL CHARGE AIR COOLER<6PL>	8-97219-653-0	01	1	9902-		●
2	03.407 COVER; INL EXC. CHARGE AIR COOLER<6PL>	8-97074-680-1	01	1	9811-		●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) M8X30 FLANGE	0-28080-830-0	07	1	9811-	●
13	03.275 BOLT; INL MANIF EXC. CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	07	1	9811-		●
13	03.275 BOLT; INL MANIF TURBOCHARGER(K51) M8X52 L=68	8-97118-455-0	01	1	9811-	●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER(K51) M8X30 FLANGE	0-28080-830-0	08	1	9811-	●
13	03.275 BOLT; INL MANIF M8X30 FLANGE	0-28080-830-0	08	1	9811-			●
13	03.275 BOLT; INL MANIF CHARGE AIR COOLER<6PL> M8X30 FLANGE	0-28080-830-0	06	1	9811-		●
20	03.275 NUT; INL MANIF 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-	●		●
20	03.275 NUT; INL MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-		●
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.407 (A) ID=77-95	1-09707-114-0	01	1	9811-	●
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.407 (B) ID=50-69	8-94316-991-0	02	1	9811-	●
95	03.278 CLIP; RUBBER HOSE TURBOCHARGER(K51) 03.407 (C) ID=68-85	8-94320-428-0	01	1	9811-	●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.162 (B) L=140	5-09707-031-1	01	1	9811-		●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.163 (A) ID=11	8-94238-570-0	01	1	9811-		●
95	03.278 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 01.097 (C) ID=11	8-94238-925-0	01	1	9811-		●
95	03.278 CLIP; RUBBER HOSE EXC. CHARGE AIR COOLER<6PL> 01.219 (B) ID=13	8-94238-571-0	02	1	9811-		●
139	03.162 BOLT; BRKT FIX EXC. CHARGE AIR COOLER<6PL> 00.662 M8X14 FLANGE	0-28080-814-0	02	1	9811-0001		●
139	03.162 BOLT; BRKT FIX EXC. CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0002-		●
170	03.162 BOLT; BRKT 02.483 (B) M12X20 FLANGE	0-28181-220-0	01	1	9811-		●
170	03.162 BOLT; BRKT CHARGE AIR COOLER<6PL> 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9811-		●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	9811-		●
205	01.745 HOSE; OIL DRAIN CHARGE AIR COOLER<6PL>	8-97149-011-1	01	1	9811-		●
205	01.745 HOSE; OIL DRAIN EXC. CHARGE AIR COOLER<6PL>	8-97088-684-1	01	1	9811-		●
208	01.750 BRACKET; CATCH TANK,OIL CHARGE AIR COOLER<6PL>	8-97166-887-0	01	1	9811-		●
208	01.750 BRACKET; CATCH TANK,OIL EXC. CHARGE AIR COOLER<6PL>	8-97094-449-0	01	1	9811-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	9811-	●		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97170-807-0	01	1	9811-9901		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHARGE AIR COOLER<6PL>	8-97219-649-0	01	1	9902-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. CHARGE AIR COOLER<6PL>	8-97074-682-0	01	1	9811-		●
260	03.278 CAP; RUBBER EXC. TURBOCHARGER(K51) 01.780 ID=4	8-94217-809-0	01	1	9811-	●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	9811-		●	●
344	03.407 BRACKET; INL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97065-482-3	01	1	9811-0008		●
344	03.407 BRACKET; INL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97252-310-0	01	1	0009-0102		●
344	03.407 BRACKET; INL PIPE EXC. CHARGE AIR COOLER<6PL>	8-97289-654-0	01	1	0103-		●
346	02.559 CLIP; ENG HARNESS 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9811-	●		●
346	02.559 CLIP; ENG HARNESS EXC. CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	03	1	9811-		●
346	02.559 CLIP; ENG HARNESS CHARGE AIR COOLER<6PL> 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	04	1	9811-		●
445	03.275 NUT; THROTTLE BODY TO MANIF EXC. CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-		●
525	03.275 STUD; CONT VLV EXC. CHARGE AIR COOLER<6PL> 01.428 (A) M8X20 L=38	8-97021-431-0	02	1	9811-		●
525	03.275 STUD; CONT VLV EXC. CHARGE AIR COOLER<6PL> 03.270 (B)	8-97033-689-0	01	1	9811-		●
571	03.265 HOSE; AIR BOOST TURBOCHARGER(K51) 08.962 L=210 SERVICED BY L=3000	0-04740-300-0	01	1	9811-	●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	9811-0112		●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> EXC. HONG KONG EQUIPMENT(PQ1) 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	0201-0207		●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> EXC. EURO3 SPECIFICATION<NT3> 08.962 L=350 SERVICED BY L=3000	0-01254-300-0	01	1	0208-		●
571	03.265 HOSE; AIR BOOST CHARGE AIR COOLER<6PL> HONG KONG EQUIPMENT(PQ1) L=350	8-97304-609-1	01	1	0106-0207		●
571	03.265 HOSE; AIR BOOST M/T MBP6P(RNC),M/T MZZ6U(RSF) CHARGE AIR COOLER<6PL> EURO3 SPECIFICATION<NT3> L=350	8-97304-609-1	01	1	0208-		●
571	03.265 HOSE; AIR BOOST EXC. CHARGE AIR COOLER<6PL> 08.962 L=230 SERVICED BY L=3000	0-01254-300-0	01	1	9811-		●
572	03.407 CLIP; BOOST HOSE TURBOCHARGER(K51) 03.145 ID=8	8-94107-762-0	02	1	9811-	●
572	03.407 CLIP; BOOST HOSE 03.163 ID=11	8-94238-570-0	02	1	9811-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
