0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#41945) — 89 parça

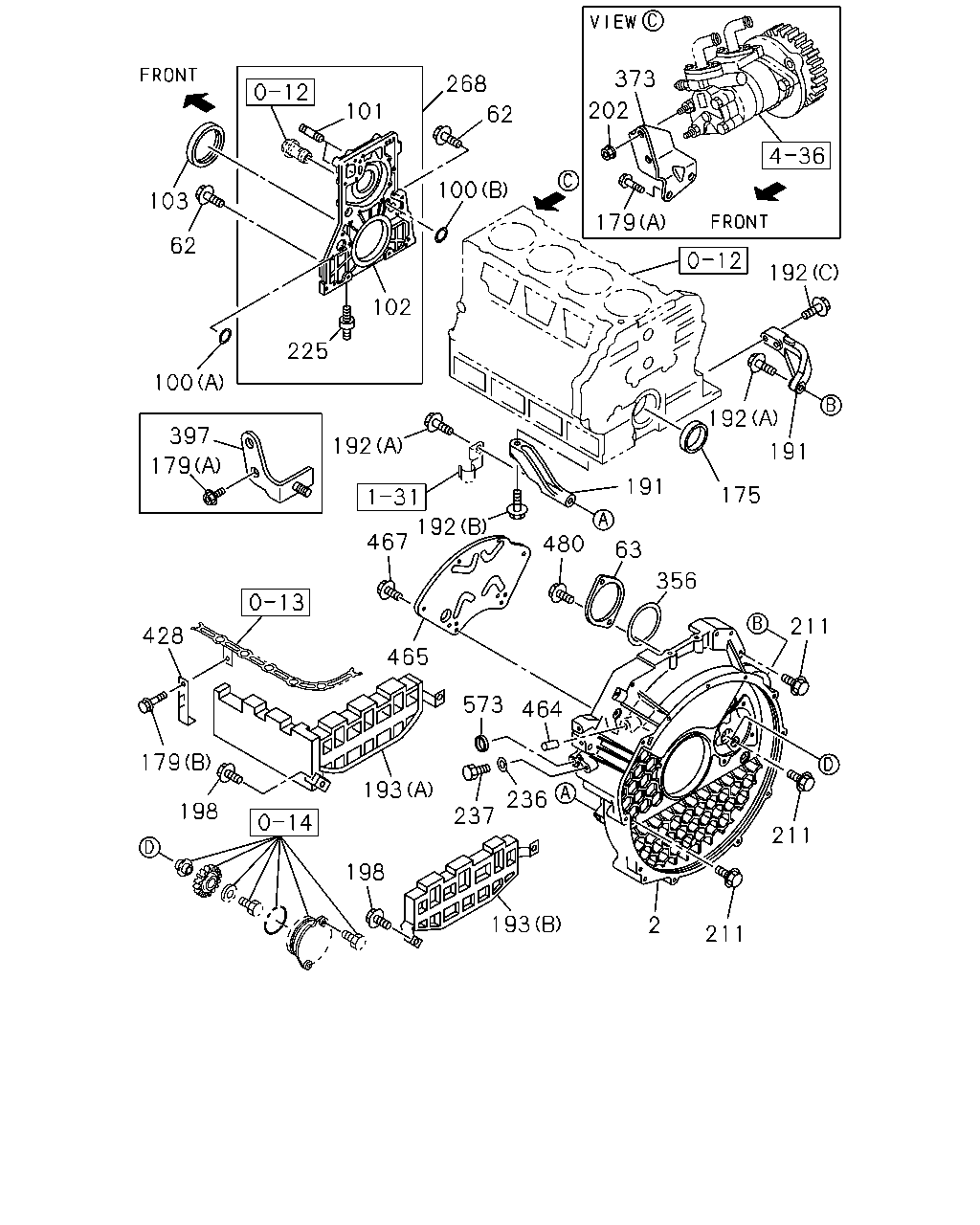

çizim 7904
373 268 202 101 62 100 103 179 62 192 102 225 100 192 397 192 191 179 191 175 192 467 480 63 356 211 428 465 573 464 179 193 236 198 237 211 198 193 2 211
BalonParca AdiParca NoAdetTipApplied Date A B C
2 00.683 HOUSING; FLYWHEEL 8-97112-139-5 01 1 9811-9902 ● ●
2 00.683 HOUSING; FLYWHEEL 8-97223-971-0 01 1 9903-9904 ● ●
2 00.683 HOUSING; FLYWHEEL 8-97223-737-2 01 1 9905-0006 ● ●
2 00.683 HOUSING; FLYWHEEL 8-97241-584-0 01 1 0007- ● ●
2 00.683 HOUSING; FLYWHEEL 8-97181-089-2 01 1 9811-9904 ●
2 00.683 HOUSING; FLYWHEEL 8-97209-886-3 01 1 9905-0012 ●
2 00.683 HOUSING; FLYWHEEL 8-97209-886-3 01 1 0101- ●
62 00.206 BOLT; COVER
02.559 M8X25 FLANGE 		0-28680-825-0 06 1 9811- ● ● ●
62 00.206 BOLT; COVER
02.183 M8X35 FLANGE 		0-28680-835-0 05 1 9811- ● ● ●
62 00.206 BOLT; COVER
01.097 M8X65 FLANGE 		1-09044-072-1 03 1 9811- ● ● ●
63 00.206 COVER; P/S
EXC. POWER STEERING<N40> 		8-97126-392-0 01 1 9811- ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 9811- ● ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 9811- ● ● ●
101 01.073 STUD; WATER PUMP
00.206 M8X18 L=29 		8-97028-541-0 01 1 9811- ● ● ●
101 01.073 STUD; WATER PUMP
01.428 M8X18 L=30 		9-04110-818-0 01 1 9811- ● ● ●
102 00.137 RETAINER; FRT 8-97094-943-3 01 1 9811- ● ●
102 00.137 RETAINER; FRT
EXC. CHARGE AIR COOLER<6PL> 		8-97094-943-3 01 1 9811- ●
102 00.137 RETAINER; FRT
CHARGE AIR COOLER<6PL> 		8-97148-938-1 01 1 9811- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94369-518-0 01 1 9811-0205 ● ● ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97329-780-0 01 1 0206- ● ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94370-637-0 01 1 9811-0205 ● ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97602-379-0 01 1 0206- ● ● ●
179 00.206 BOLT; BRKT
NOISE PACK FOR REGULATION VAR.2<7TF> 08.900 (B) M8X12 FLANGE 		0-28080-812-0 01 1 0202- ●
179 00.206 BOLT; BRKT
ENGINE POWER N-SPEC(7QV) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 9811- ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> CHARGE AIR COOLER<6PL> 00.004 (A) M10X18 FLANGE 		0-28181-018-0 02 1 9811-9811 ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 00.004 (A) M10X18 FLANGE 		0-28181-018-0 02 1 9812- ●
191 00.669 STAY; FLYWHEEL HSG
TURBOCHARGER(K51) 		8-97167-292-0 01 1 9811- ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 9811- ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 9811- ●
192 00.206 BOLT; STAY TO HSG
TURBOCHARGER(K51) 00.685 (A) M12X50 FLANGE 		0-28181-250-0 01 1 9811- ●
192 00.206 BOLT; STAY TO HSG
TURBOCHARGER(K51) (B) M12X100 FLANGE 		0-28181-200-0 01 1 9811- ●
192 00.206 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28181-200-0 01 1 9811- ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28181-250-0 02 1 9811- ●
192 00.206 BOLT; STAY TO HSG
04.510 (C) M10X40 FLANGE 		0-28181-040-0 02 1 9811- ●
193 01.428 SPACER; STAY TO OIL,PAN
NOISE PACK FOR REGULATION VAR.2<7TF> (A) 		8-97259-536-0 01 1 0112-0201 ●
193 01.428 SPACER; STAY TO OIL,PAN
NOISE PACK FOR REGULATION VAR.2<7TF> (B) 		8-97224-867-2 01 1 0202- ●
198 01.428 BOLT; STAY TO OIL PAN
NOISE PACK FOR REGULATION VAR.2<7TF> 02.483 M12X20 FLANGE 		0-28181-220-0 02 1 0112- ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-0209 ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0210- ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> EXC. CHARGE AIR COOLER<6PL> 04.785 M10 FLANGE 		0-91150-110-0 02 1 9812- ●
211 00.669 BOLT; HSG
TURBOCHARGER(K51) M8X20,M8X65 L=90 		8-97200-622-1 02 1 9811- ●
211 00.669 BOLT; HSG
EXC. TURBOCHARGER(K51) M8X65 W/PL WASHER 		8-94388-781-0 02 1 9811- ●
211 00.669 BOLT; HSG
M8X65 W/PL WASHER 		8-94388-781-0 02 1 9811- ●
211 00.669 BOLT; HSG
M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 09 1 9811- ● ●
211 00.669 BOLT; HSG
EXC. POWER STEERING<N40> M14X35 FLANGE 		0-28791-435-0 01 1 9811- ● ●
211 00.669 BOLT; HSG
M10X40 FLANGE 		0-28781-040-0 01 1 9811- ● ● ●
211 00.669 BOLT; HSG
M12X30 FLANGE 		8-97135-419-0 01 1 9811- ● ● ●
211 00.669 BOLT; HSG
M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 9811- ●
225 01.428 STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 04 1 9811-0003 ● ●
225 01.428 STUD; OIL PAN
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 04 1 9811-0003 ●
225 01.428 STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 04 1 0004-0005 ● ●
225 01.428 STUD; OIL PAN
M8X12.8 M8X16.5 L=43.1 W/WASHER&RUBBER 		8-97087-632-2 03 1 0006-0012 ● ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0101-0111 ● ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0112- ● ●
225 01.428 STUD; OIL PAN
HYDRO BRAKE BOOSTER<7QQ> NOISE PACK FOR REGULATION VAR.2<7TF> M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 0112- ●
236 00.669 GASKET; FLYWHEEL HSG
ENGINE POWER N-SPEC(7QV) 01.531 ID=10.2 OD=15.2 		1-09630-083-0 01 1 0004- ●
237 00.686 PLUG; FLYWHEEL HSG
ENGINE POWER N-SPEC(7QV) 01.519 M10X10 		1-09604-074-0 01 1 0004-0004 ●
237 00.686 PLUG; FLYWHEEL HSG
ENGINE POWER N-SPEC(7QV) 04.640 M10X12 FLANGE 		0-28081-012-0 01 1 0005- ●
268 00.206 COVER; FRT
CHARGE AIR COOLER<6PL> NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97258-865-0 01 1 0112- ●
268 00.206 COVER; FRT 8-97074-859-3 01 1 9811-0005 ● ●
268 00.206 COVER; FRT 8-97259-417-0 01 1 0006-0012 ● ●
268 00.206 COVER; FRT 8-97259-416-0 01 1 0101- ● ●
268 00.206 COVER; FRT
CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> 		8-97174-416-1 01 1 9811-0003 ●
268 00.206 COVER; FRT
CHARGE AIR COOLER<6PL> EXC. EURO2 SPECIFICATION<7AF> 		8-97148-937-1 01 1 9811-0003 ●
268 00.206 COVER; FRT
CHARGE AIR COOLER<6PL> 		8-97148-937-1 01 1 0004-0111 ●
268 00.206 COVER; FRT
CHARGE AIR COOLER<6PL> EXC. NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97148-937-1 01 1 0112- ●
268 00.206 COVER; FRT
EXC. CHARGE AIR COOLER<6PL> 		8-97113-768-1 01 1 9811- ●
356 00.207 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. POWER STEERING<N40> 06.673 		8-97101-875-2 01 1 9811- ● ●
373 00.206 BRACKET; PUMP
HYDRO BRAKE BOOSTER<7QQ> 		8-97149-333-0 01 1 9811- ●
397 00.206 BRACKET; CONNECTOR
ENGINE POWER N-SPEC(7QV) 		8-97163-042-0 01 1 9811- ●
428 00.206 BRACKET; SPACER
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97215-647-0 01 1 0202- ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 9811- ● ● ●
465 00.686 PLATE; FLYWHEEL HSG
00.669 		8-94370-384-3 01 1 9811-9904 ● ● ●
465 00.686 PLATE; FLYWHEEL HSG
00.669 		8-94370-384-3 01 1 9905- ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97212-490-0 01 1 9905- ●
467 00.686 BOLT; PLATE
02.500 M6X10 FLANGE 		0-28080-610-0 06 1 9811- ● ● ●
480 00.206 BOLT; COVER
00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0106-0108 ● ●
480 00.206 BOLT; COVER
EXC. CHARGE AIR COOLER<6PL> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0106-0108 ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0109- ● ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 9811-9910 ● ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 00.685 M10X28 FLANGE 		0-28181-028-0 01 1 9911-0006 ● ●
480 00.206 BOLT; COVER
00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0007- ● ●
480 00.206 BOLT; COVER
EXC. CHARGE AIR COOLER<6PL> 00.685 M10X28 FLANGE 		0-28181-028-0 02 1 0007- ●
480 00.206 BOLT; COVER
EXC. POWER STEERING<N40> 02.042 M10X32 FLANGE 		0-28181-032-0 01 1 9911-0006 ● ●
573 00.206 CUP; SEALING
00.034 OD=19 		8-94150-231-0 01 1 9905-0004 ● ● ●
573 00.206 CUP; SEALING
00.034 OD=19 		8-94150-231-0 01 1 0005-0105 ● ●
573 00.206 CUP; SEALING
EXC. CHARGE AIR COOLER<6PL> 00.034 OD=19 		8-94150-231-0 01 1 0005-0105 ●
573 00.206 CUP; SEALING
00.034 OD=19 		8-94150-231-0 01 1 0106- ● ● ●
573 00.206 CUP; SEALING
CHARGE AIR COOLER<6PL> 00.034 OD=19 		8-94150-231-0 02 1 9909-0105 ●
