0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#41944) — 102 parça

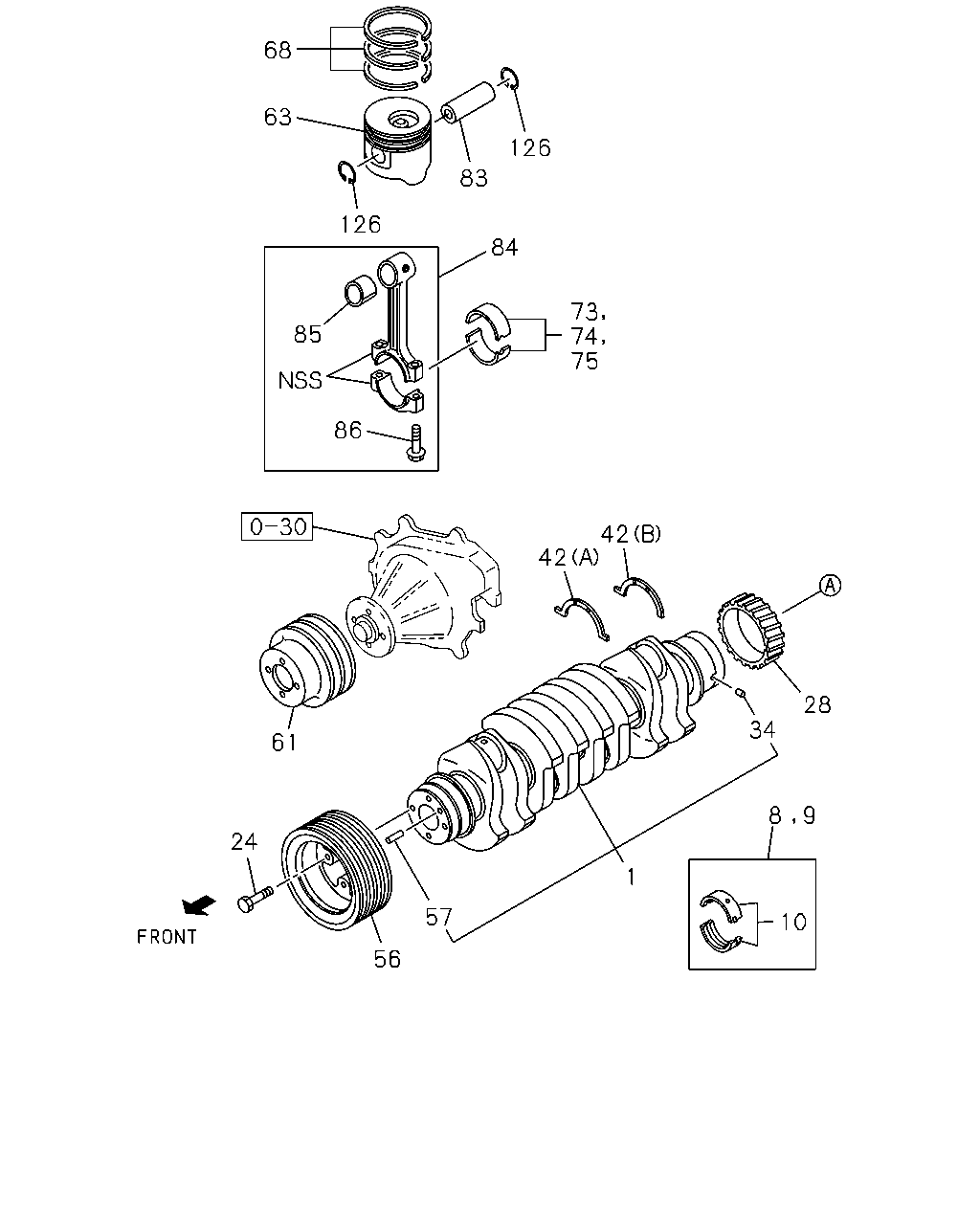

çizim 48287
68 63 126 83 126 84 73 74 75 85 86 42 42 28 34 61 8 9 24 1 57 10 56
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.646 CRANKSHAFT 8-97112-981-2 01 1 9811- ● ●
1 00.646 CRANKSHAFT 8-97165-483-0 01 1 9811-0212 ●
1 00.646 CRANKSHAFT 8-97352-534-2 01 1 0301- ●
8 00.094 METAL KIT; CRANKSHAFT,U/S=0.25 5-87310-546-0 01 1 9811- ● ●
9 00.094 METAL KIT; CRANKSHAFT,U/S=0.50 5-87310-547-0 01 1 9811- ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97045-915-0 05 1 9811-9904 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97219-456-0 05 1 9905- ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97045-916-0 05 1 9811-9904 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97219-457-0 05 1 9905- ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97045-917-0 05 1 9811-9904 ● ● ●
10 00.094 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97219-458-0 05 1 9905- ● ● ●
24 00.659 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 9811- ● ● ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97110-040-4 01 1 9811-9902 ● ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97109-626-1 01 1 9903- ● ●
28 00.728 GEAR; CR/SHF
Z=42 		8-97110-041-4 01 1 9811-9902 ●
28 00.728 GEAR; CR/SHF
Z=42 		8-94394-342-4 01 1 9903- ●
34 00.738 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 9811- ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 9811- ● ● ●
42 00.095 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 9811- ● ● ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97222-031-0 01 1 0106-0210 ● ● ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97088-478-4 01 1 0211-0211 ● ● ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97088-478-3 01 1 9811-9812 ● ● ●
56 00.659 PULLEY; CR/SHF DAMPER
4-GROOVE 		8-97222-031-3 01 1 9901- ● ● ●
57 00.662 PIN; PULLEY
08.939 OD=8 L=16 		9-08150-816-0 02 1 9811-0212 ● ● ●
57 00.662 PIN; PULLEY
08.939 OD=8 L=20 		9-08160-820-0 02 1 0301- ● ● ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-1 01 1 9811-9903 ● ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-97174-757-2 01 1 9904- ● ● ●
61 00.659 PULLEY; FAN DRIVE
2-GROOVE 		8-94389-413-1 01 1 9811-9903 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. TURBOCHARGER(K51) NON GRADE 		8-97219-032-0 04 1 9811- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER(K51) NON GRADE 		8-97183-666-0 04 1 9811- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97183-667-0 04 1 9811-0006 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-97176-657-2 04 1 0007- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX 		8-97183-664-0 04 1 9811-9910 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX 		8-97233-129-0 04 1 9911-0012 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=AX 		8-97251-696-0 04 1 0101- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX 		8-97183-665-0 04 1 9811-9910 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX 		8-97233-130-0 04 1 9911-0012 ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> GRADE=CX 		8-97251-697-0 04 1 0101- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=AX 		8-97176-652-1 04 1 9811- ●
63 00.629 PISTON
ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> GRADE=CX 		8-97176-653-1 04 1 9811- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. TURBOCHARGER(K51) 		8-97219-054-0 04 1 9905-9911 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97219-054-0 04 1 9912- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EXC. TURBOCHARGER(K51) 		8-97105-867-0 04 1 9811-9911 ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-97109-462-0 04 1 9811- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. CHARGE AIR COOLER<6PL> 		8-97166-992-1 04 1 9811- ●
68 00.643 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. EXC. CHARGE AIR COOLER<6PL> 		8-97078-779-1 04 1 9811- ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97045-800-0 04 1 9811- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-97045-801-0 04 1 9811- ● ●
73 00.616 METAL SET; CONN ROD,STANDARD
GREEN 		8-94395-757-0 04 1 9811- ●
73 00.616 METAL SET; CONN ROD,STANDARD
YELLOW 		8-97131-186-0 04 1 9811- ●
74 00.616 METAL SET; CONN ROD,U/S=0.25 8-97175-127-0 04 1 9811- ● ●
75 00.616 METAL SET; CONN ROD,U/S=0.50 8-97175-128-0 04 1 9811- ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-1 04 1 9811- ● ●
83 00.636 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-731-1 04 1 9811- ●
84 00.603 ROD ASM; CONN 8-97135-032-1 04 1 9811- ● ●
84 00.603 ROD ASM; CONN 8-94399-661-2 04 1 9811- ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 04 1 9811- ● ●
85 00.613 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94394-613-0 04 1 9811- ●
86 00.623 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 9811- ● ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94318-798-2 08 1 9811- ● ●
126 00.639 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		1-09587-081-1 08 1 9811- ●

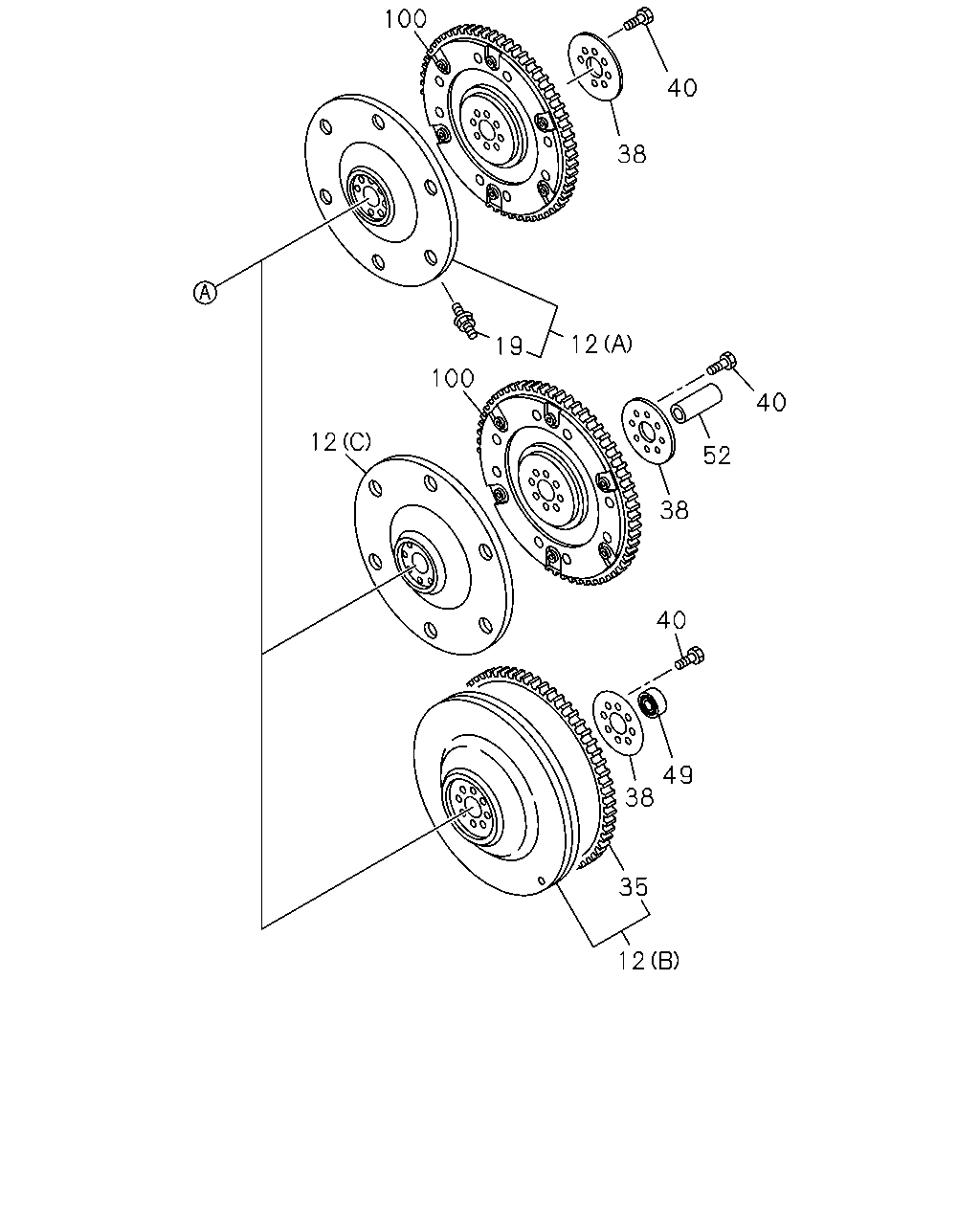

çizim 48582
100 40 38 12 19 100 40 12 52 38 40 49 38 35 12
BalonParca AdiParca NoAdetTipApplied Date A B C
12 00.666 FLYWHEEL
A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) (A) 		8-97213-760-2 01 1 9904- ●
12 00.666 FLYWHEEL
A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51) (C) 		8-97027-933-2 01 1 9811- ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> (B) 		8-97169-129-2 01 1 9811-9903 ● ●
12 00.666 FLYWHEEL
CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) (B) 		8-97169-129-2 01 1 9811-9903 ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> (B) 		8-97115-782-0 01 1 9904- ● ●
12 00.666 FLYWHEEL
CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) (B) 		8-97115-782-0 01 1 9904- ●
12 00.666 FLYWHEEL
CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) (C) 		8-97170-778-0 01 1 9811-0003 ●
12 00.666 FLYWHEEL
A/T 4 SPEED-AISIN(RNJ) (C) 		8-97170-778-1 01 1 0004- ●
12 00.666 FLYWHEEL
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> (B) 		8-97166-516-0 01 1 9811- ●
12 00.666 FLYWHEEL
CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) (B) 		8-97166-516-0 01 1 9811- ●
19 00.659 POINTER; TIMING
A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) 		8-97213-778-0 01 1 9904- ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> Z=138 		8-97169-134-0 01 1 9811-9903 ● ●
35 00.673 GEAR; RING
CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) Z=138 		8-97169-134-0 01 1 9811-9903 ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> Z=138 		8-97046-366-0 01 1 9811-9903 ●
35 00.673 GEAR; RING
CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) Z=138 		8-97046-366-0 01 1 9811-9903 ●
35 00.673 GEAR; RING
FLOOR REMOTE SHIFT<M11> Z=138 		8-97046-366-0 01 1 9904- ● ● ●
38 00.862 WASHER; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51) 00.669 		8-97013-377-1 01 1 9811- ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> 00.669 		8-94310-615-0 01 1 9811- ● ●
38 00.862 WASHER; FLYWHEEL
CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 00.669 		8-94310-615-0 01 1 9811- ●
38 00.862 WASHER; FLYWHEEL
CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) 		8-97170-830-0 01 1 9811-9903 ●
38 00.862 WASHER; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) 		8-97170-830-0 01 1 9904-0003 ●
38 00.862 WASHER; FLYWHEEL
A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> 		8-97170-830-0 01 1 9904-0003 ●
38 00.862 WASHER; FLYWHEEL
A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 		8-97170-830-1 01 1 0004- ●
38 00.862 WASHER; FLYWHEEL
CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) 		8-97170-830-1 01 1 0004- ●
38 00.862 WASHER; FLYWHEEL
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> ID=55 OD=110 		8-94397-496-1 01 1 9811- ●
38 00.862 WASHER; FLYWHEEL
CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) ID=55 OD=110 		8-94397-496-1 01 1 9811- ●
40 00.669 BOLT; FLYWHEEL
FLOOR REMOTE SHIFT<M11> M16X42 		8-97178-013-0 08 1 9811- ● ● ●
40 00.669 BOLT; FLYWHEEL
A/T 4 SPEED-JATCO(RMK),A/T 4 SPEED-AISIN(RNJ) M16X51 		8-94334-870-1 08 1 9811- ● ●
49 00.669 BEARING; PILOT
FLOOR REMOTE SHIFT<M11> 00.649 		8-97031-741-0 01 1 9811- ● ●
49 00.669 BEARING; PILOT
CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 00.649 		8-97031-741-0 01 1 9811- ●
49 00.669 BEARING; PILOT
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97166-589-0 01 1 9811-0111 ●
49 00.669 BEARING; PILOT
CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97166-589-0 01 1 9811-0111 ●
49 00.669 BEARING; PILOT
FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97258-239-0 01 1 0112- ●
49 00.669 BEARING; PILOT
CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 		8-97258-239-0 01 1 0112- ●
52 00.669 SLEEVE; CONV PILOT
A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51) 		8-97026-319-1 01 1 9811- ●
100 00.666 PLATE; FLEX
A/T 4 SPEED-JATCO(RMK) EXC. TURBOCHARGER(K51) 		8-97046-365-2 01 1 9811- ●
100 00.666 PLATE; FLEX
CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) 		8-97170-780-0 01 1 9811-9903 ●
100 00.666 PLATE; FLEX
A/T 4 SPEED-JATCO(RMK) TURBOCHARGER(K51) 		8-97170-780-0 01 1 9904-0003 ●
100 00.666 PLATE; FLEX
A/T 4 SPEED-AISIN(RNJ) CHARGE AIR COOLER<6PL> 		8-97170-780-0 01 1 9904-0003 ●
100 00.666 PLATE; FLEX
A/T 4 SPEED-JATCO(RMK) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> TURBOCHARGER(K51) 		8-97170-780-1 01 1 0004- ●
100 00.666 PLATE; FLEX
CHARGE AIR COOLER<6PL> A/T 4 SPEED-AISIN(RNJ) 		8-97170-780-1 01 1 0004- ●
