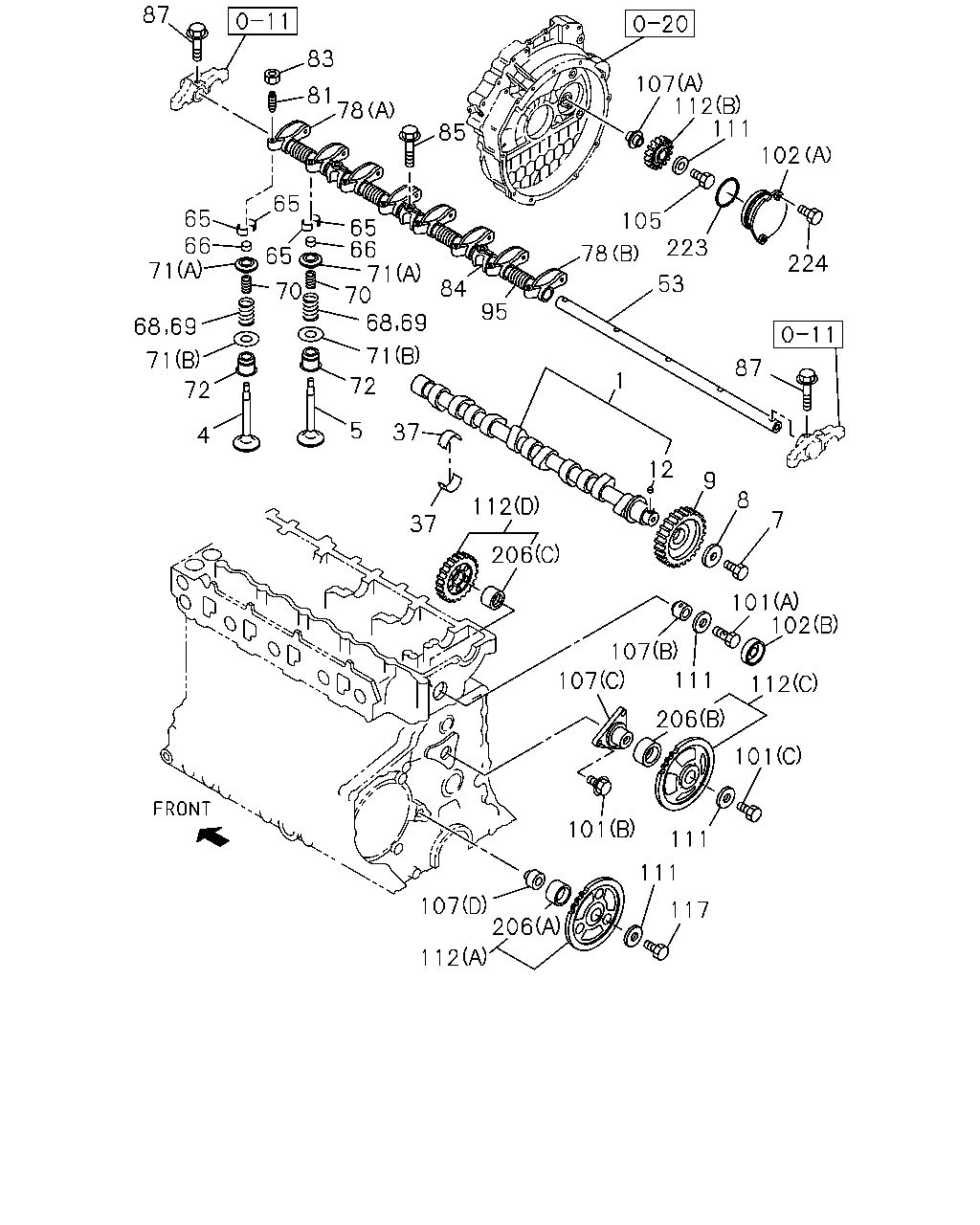

0-14 — CAMSHAFT AND VALVE (#41943) — 97 parça

87 85 83 107 112 111 81 78 102 65 65 66 105 223 65 66 71 70 78 65 70 224 71 53 84 95 71 71 87 1 72 72 5 37 4 12 9 8 112 7 37 206 101 102 107 111 107 112 206 101 101 111 111 107 117 206 112 68 69 68 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	00.519 CAMSHAFT	8-97077-829-0	01	1	9811-	●	●
1	00.519 CAMSHAFT	8-97077-830-0	01	1	9811-			●
4	00.296 VALVE; INL	8-97171-398-0	04	1	9811-	●	●
4	00.296 VALVE; INL	8-97033-864-2	04	1	9811-			●
5	00.297 VALVE; EXH	8-97171-399-0	04	1	9811-	●	●
5	00.297 VALVE; EXH CHARGE AIR COOLER<6PL>	8-97189-114-0	04	1	9811-9912			●
5	00.297 VALVE; EXH CHARGE AIR COOLER<6PL>	8-97234-613-0	04	1	0001-0008			●
5	00.297 VALVE; EXH CHARGE AIR COOLER<6PL>	8-97219-509-2	04	1	0009-			●
5	00.297 VALVE; EXH EXC. CHARGE AIR COOLER<6PL>	8-97019-337-1	04	1	9811-			●
7	00.738 BOLT; CM/SHF GEAR 08.900 M14X40	9-92061-440-0	01	1	9811-0204	●	●	●
7	00.738 BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0205-	●	●	●
8	00.738 WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	9811-	●	●	●
9	00.736 GEAR; CM/SHF TURBOCHARGER(K51) Z=35	8-97094-440-2	01	1	9811-	●
9	00.736 GEAR; CM/SHF CHARGE AIR COOLER<6PL> Z=35	8-97094-440-2	01	1	9811-			●
9	00.736 GEAR; CM/SHF EXC. TURBOCHARGER(K51) Z=70 OD=208.6	8-97088-057-2	01	1	9811-	●
9	00.736 GEAR; CM/SHF Z=70 OD=208.6	8-97088-057-2	01	1	9811-		●
9	00.736 GEAR; CM/SHF EXC. CHARGE AIR COOLER<6PL> Z=70 OD=208.6	8-97088-057-2	01	1	9811-			●
12	00.738 KEY; CAM GEAR SET	8-94399-487-0	01	1	9811-	●	●	●
37	00.539 METAL; CM/SHF	8-97112-638-0	10	1	9811-0209	●	●	●
37	00.539 METAL; CM/SHF B=16	8-97356-939-0	10	1	0210-	●	●	●
53	00.353 SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	9811-	●	●	●
53	00.353 SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	9811-	●	●	●
65	00.310 COLLAR; SPLIT	5-12565-006-0	16	1	9811-	●	●	●
66	00.303 CAP; VLV STEM END	8-97188-300-0	08	1	9811-0106	●	●	●
66	00.303 CAP; VLV STEM END	8-94396-015-2	08	1	0107-	●	●	●
68	00.303 SPRING; VLV ID=28.5	8-97023-559-0	08	1	9811-	●	●
69	00.303 SPRING; VLV,OUTER EXHAUST MARK GREEN	8-97120-905-0	04	1	9811-			●
69	00.303 SPRING; VLV,OUTER INLET MARK PINK	8-97120-912-0	04	1	9811-			●
70	00.303 SPRING; VLV,INNER EXHAUST MARK GREEN	8-97120-899-0	04	1	9811-			●
70	00.303 SPRING; VLV,INNER INLET MARK PINK	8-97120-911-0	04	1	9811-			●
71	00.309 SEAT; SPR (A) OD=38	8-94385-029-2	08	1	9811-	●	●	●
71	00.309 SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	9811-	●	●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	9811-	●	●	●
78	00.333 ARM; ROCKER (B) JBK	8-97014-258-2	04	1	9811-	●	●	●
78	00.333 ARM; ROCKER (A) JBK	8-97074-614-1	04	1	9811-	●	●	●
78	00.333 ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	9811-	●	●	●
78	00.333 ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	9811-	●	●	●
81	00.429 SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	9811-	●	●	●
83	00.787 NUT; ADJ SCREW,LK 06.822 M10	9-09111-410-0	08	1	9811-	●	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	9811-	●	●	●
84	00.349 BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	9811-	●	●	●
85	00.349 BOLT; BRKT OR M10X62 FLANGE	8-94393-131-0	03	1	9811-	●	●	●
85	00.349 BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	9811-	●	●	●
87	00.349 BOLT; ROCKER SHAFT 03.415 M8X35 FLANGE	0-28080-835-0	02	1	9811-	●	●	●
95	00.376 SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	9811-	●	●	●
95	00.376 SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	9811-	●	●	●
101	00.724 BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	9811-	●	●	●
101	00.724 BOLT; THRUST COLLAR (B) M8X14	8-97073-782-0	03	1	9811-0203	●	●	●
101	00.724 BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0204-	●	●	●
101	00.724 BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	9811-	●	●	●
102	00.724 COVER; IDLE GEAR (A)	8-94334-681-1	01	1	9811-	●	●	●
102	00.724 COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	9811-	●	●	●
105	00.724 BOLT; IDLE GEAR SHAFT POWER STEERING<N40> 08.900 M14X60	9-91666-460-0	01	1	9811-	●	●
105	00.724 BOLT; IDLE GEAR SHAFT 08.900 M14X60	9-91666-460-0	01	1	9811-			●
107	00.724 SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-0	01	1	9811-	●	●
107	00.724 SHAFT; IDLE GEAR (A)	8-94334-682-0	01	1	9811-			●
107	00.724 SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	9811-	●	●	●
107	00.724 SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	9811-	●	●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97189-244-0	01	1	9811-0203	●	●	●
107	00.724 SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0204-	●	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-1	03	1	9811-	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR EXC. CHARGE AIR COOLER<6PL> ID=14.5 OD=46	8-97209-728-1	03	1	9811-			●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-1	01	1	9811-	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL> ID=14.5 OD=46	8-97209-728-1	01	1	9811-			●
111	00.724 COLLAR; THRUST,IDLE GEAR CHARGE AIR COOLER<6PL> ID=14.5 OD=46	8-97209-728-1	04	1	9811-0207			●
111	00.724 COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-1	04	1	0208-	●	●
111	00.724 COLLAR; THRUST,IDLE GEAR CHARGE AIR COOLER<6PL> ID=14.5 OD=46	8-97209-728-1	04	1	0208-			●
111	00.724 COLLAR; THRUST,IDLE GEAR M/T MZZ6U(RSF) EXC. CHARGE AIR COOLER<6PL> ID=14.5 OD=46	8-97209-728-1	04	1	0208-			●
112	00.724 GEAR; IDLE TURBOCHARGER(K51) (A) Z=72-30	8-97094-544-1	01	1	9811-9902	●
112	00.724 GEAR; IDLE TURBOCHARGER(K51) (A) Z=72-30	8-97227-074-0	01	1	9903-	●
112	00.724 GEAR; IDLE TURBOCHARGER(K51) (C) Z=61	8-97094-546-1	01	1	9811-	●
112	00.724 GEAR; IDLE TURBOCHARGER(K51) (D) Z=41	8-97112-607-0	01	1	9811-	●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> (D) Z=41	8-97112-607-0	01	1	9811-			●
112	00.724 GEAR; IDLE EXC. TURBOCHARGER(K51) (C) Z=122	8-97088-053-1	01	1	9811-	●
112	00.724 GEAR; IDLE (C) Z=122	8-97088-053-1	01	1	9811-		●
112	00.724 GEAR; IDLE EXC. CHARGE AIR COOLER<6PL> (C) Z=122	8-97088-053-1	01	1	9811-			●
112	00.724 GEAR; IDLE EXC. TURBOCHARGER(K51) (D) Z=82	8-97088-055-1	01	1	9811-	●
112	00.724 GEAR; IDLE (D) Z=82	8-97088-055-1	01	1	9811-		●
112	00.724 GEAR; IDLE EXC. CHARGE AIR COOLER<6PL> (D) Z=82	8-97088-055-1	01	1	9811-			●
112	00.724 GEAR; IDLE EXC. TURBOCHARGER(K51) (A) Z=72-60	8-97114-602-1	01	1	9811-9902	●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97114-602-1	01	1	9811-9902		●
112	00.724 GEAR; IDLE EXC. CHARGE AIR COOLER<6PL> (A) Z=72-60	8-97114-602-1	01	1	9811-9902			●
112	00.724 GEAR; IDLE EXC. TURBOCHARGER(K51) (A) Z=72-60	8-97227-213-0	01	1	9903-	●
112	00.724 GEAR; IDLE (A) Z=72-60	8-97227-213-0	01	1	9903-		●
112	00.724 GEAR; IDLE EXC. CHARGE AIR COOLER<6PL> (A) Z=72-60	8-97227-213-0	01	1	9903-			●
112	00.724 GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-0	01	1	9811-	●	●
112	00.724 GEAR; IDLE (B) Z=34	8-97120-005-0	01	1	9811-			●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> (C) Z=61	8-94393-439-3	01	1	9811-			●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> (A) Z=72-30	8-97212-794-0	01	1	9811-9902			●
112	00.724 GEAR; IDLE CHARGE AIR COOLER<6PL> (A) Z=72-30	8-97223-189-0	01	1	9903-			●
117	00.662 BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	9811-	●	●	●
206	00.724 BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	9811-	●	●	●
206	00.724 BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	9811-	●	●	●
206	00.724 BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	9811-	●	●	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). 04.854 ID=105.6	1-09623-247-0	01	1	9811-0211	●	●	●
223	00.724 GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0212-	●	●	●
224	00.724 BOLT; COVER 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9811-	●	●	●
