◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#41942) — 109 parça

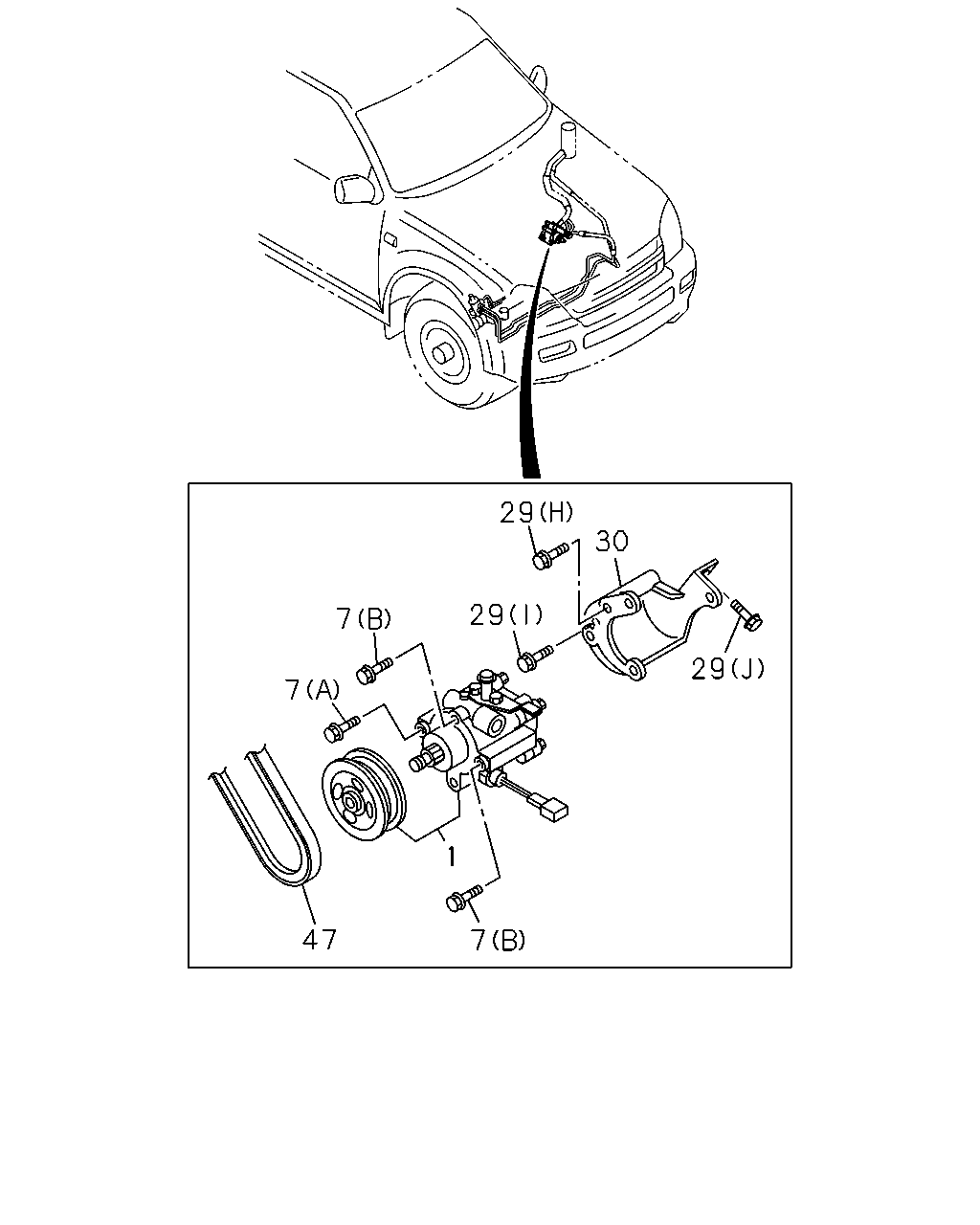

çizim 10301
29 30 29 7 29 7 1 47 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JH1-TC ENG(RDM) POWER STEERING<N40> 		8-97214-995-1 01 1 0211- ● ● ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6VE1 ENG(RJQ) POWER STEERING<N40> 		8-97234-963-1 01 1 0211- ● ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. C24SE ENG(LG1) POWER STEERING<N40> 		8-97214-994-1 01 1 0211- ● ●
7 09.181 BOLT; OIL PUMP,P/S
6VE1 ENG(RJQ) (A) M10X100 FLANGE 		0-28051-000-0 01 1 0211- ● ● ● ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
6VE1 ENG(RJQ) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0211- ● ● ● ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
C24SE ENG(LG1) POWER STEERING<N40> 02.277 (C) M10X90 FLANGE 		0-28051-090-0 01 1 0211- ● ●
7 09.181 BOLT; OIL PUMP,P/S
C24SE ENG(LG1) POWER STEERING<N40> 01.531 (D) M8X20 FLANGE 		0-28650-820-0 02 1 0211- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) POWER STEERING<N40> 02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0211- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) POWER STEERING<N40> (B) M10X25 FLANGE 		0-28051-025-0 02 1 0211- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) POWER STEERING<N40> 04.104 (C) M10X60 W/LK WASHER 		0-50041-060-0 01 1 0211- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) POWER STEERING<N40> (D) M8X60 W/LK WASHER 		0-50540-860-0 01 1 0211- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) POWER STEERING<N40> (E) M10X28 W/LK WASHER 		8-97943-080-0 03 1 0211- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) (F) M8X30 W/LK WASHER 		0-50540-830-0 01 1 0211- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) (G) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0211- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
6VE1 ENG(RJQ) 03.278 (H) M8X100 FLANGE 		0-28080-800-0 01 1 0211- ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
6VE1 ENG(RJQ) 03.330 (I) M10X60 FLANGE 		0-28181-060-0 01 1 0211- ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
6VE1 ENG(RJQ) 16.545 (J) M8X40 FLANGE 		0-28690-840-0 02 1 0211- ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
C24SE ENG(LG1) (K) 		8-11081-925-0 02 1 0211- ● ●
30 06.672 BRACKET; FLEX HOSE
6VE1 ENG(RJQ) 		8-97941-396-1 01 1 0211- ● ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) L=1451 MITSUBOSHI 		1-13671-301-0 01 1 0211- ● ● ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
6VE1 ENG(RJQ) EXC. AIR CONDITIONER MANUAL CONT(C60) L=2038 		8-97130-561-0 01 1 0211- ● ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
C24SE ENG(LG1) POWER STEERING<N40> L=960.5 		8-92063-695-0 01 1 0211- ● ●

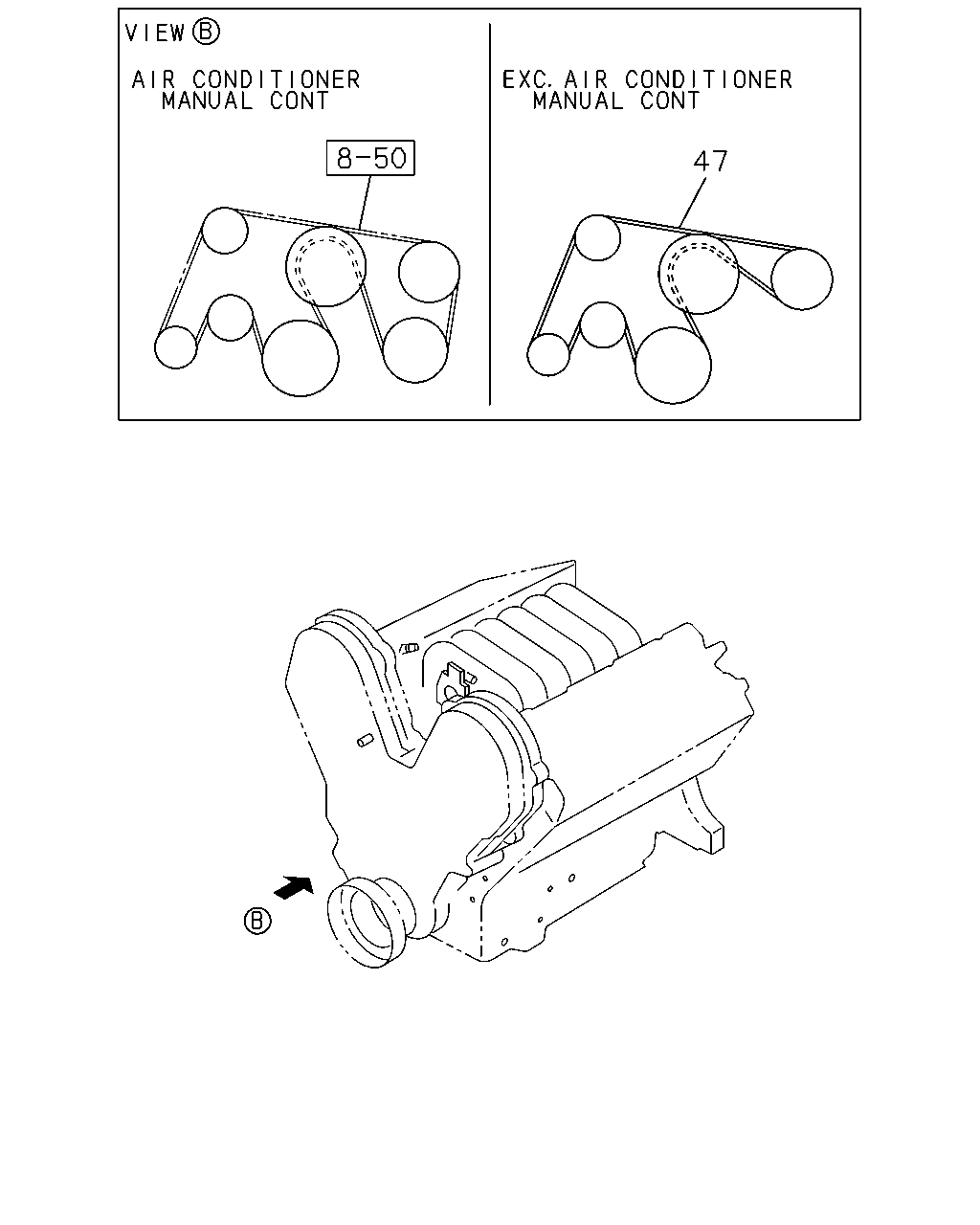

çizim 50431
47
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
47 01.066 BELT; P/S PUMP
4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) L=1451 MITSUBOSHI 		1-13671-301-0 01 1 0211- ● ● ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
6VE1 ENG(RJQ) EXC. AIR CONDITIONER MANUAL CONT(C60) L=2038 		8-97130-561-0 01 1 0211- ● ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
C24SE ENG(LG1) POWER STEERING<N40> L=960.5 		8-92063-695-0 01 1 0211- ● ●

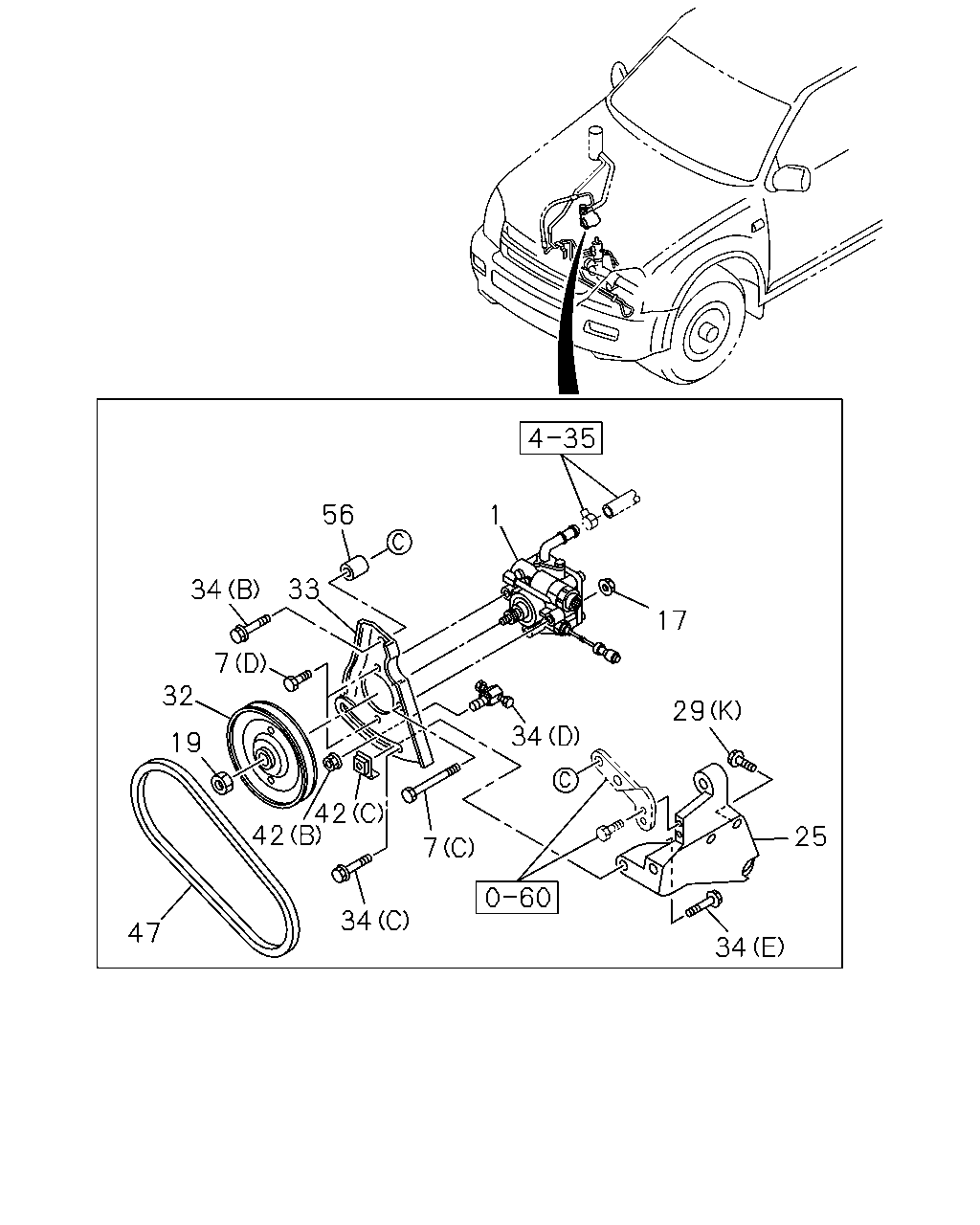

çizim 50432
56 1 33 34 17 7 32 29 34 19 42 42 25 7 34 47 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JH1-TC ENG(RDM) POWER STEERING<N40> 		8-97214-995-1 01 1 0211- ● ● ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6VE1 ENG(RJQ) POWER STEERING<N40> 		8-97234-963-1 01 1 0211- ● ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. C24SE ENG(LG1) POWER STEERING<N40> 		8-97214-994-1 01 1 0211- ● ●
7 09.181 BOLT; OIL PUMP,P/S
6VE1 ENG(RJQ) (A) M10X100 FLANGE 		0-28051-000-0 01 1 0211- ● ● ● ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
6VE1 ENG(RJQ) 06.216 (B) M8X25 FLANGE 		0-28650-825-0 02 1 0211- ● ● ● ● ● ● ●
7 09.181 BOLT; OIL PUMP,P/S
C24SE ENG(LG1) POWER STEERING<N40> 02.277 (C) M10X90 FLANGE 		0-28051-090-0 01 1 0211- ● ●
7 09.181 BOLT; OIL PUMP,P/S
C24SE ENG(LG1) POWER STEERING<N40> 01.531 (D) M8X20 FLANGE 		0-28650-820-0 02 1 0211- ● ●
17 06.606 NUT; POWER STRG PUMP
4JH1-TC ENG(RDM) POWER STEERING<N40> 01.540 M8 FLANGE 		0-91180-208-0 01 1 0211- ● ● ● ● ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
C24SE ENG(LG1) POWER STEERING<N40> 04.085 M10 FLANGE 		0-91180-210-0 01 1 0211- ● ●
19 07.874 NUT; PULLEY,OIL PUMP
C24SE ENG(LG1) POWER STEERING<N40> M12 FLANGE 		8-97245-668-0 01 1 0211- ● ●
25 06.606 BRACKET; P/S PUMP
4JH1-TC ENG(RDM) POWER STEERING<N40> 		8-97941-415-0 01 1 0211- ● ● ● ● ● ● ● ●
25 06.606 BRACKET; P/S PUMP
C24SE ENG(LG1) 		8-92063-351-0 01 1 0211- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) POWER STEERING<N40> 02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0211- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) POWER STEERING<N40> (B) M10X25 FLANGE 		0-28051-025-0 02 1 0211- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) POWER STEERING<N40> 04.104 (C) M10X60 W/LK WASHER 		0-50041-060-0 01 1 0211- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) POWER STEERING<N40> (D) M8X60 W/LK WASHER 		0-50540-860-0 01 1 0211- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) POWER STEERING<N40> (E) M10X28 W/LK WASHER 		8-97943-080-0 03 1 0211- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) (F) M8X30 W/LK WASHER 		0-50540-830-0 01 1 0211- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) (G) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0211- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
6VE1 ENG(RJQ) 03.278 (H) M8X100 FLANGE 		0-28080-800-0 01 1 0211- ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
6VE1 ENG(RJQ) 03.330 (I) M10X60 FLANGE 		0-28181-060-0 01 1 0211- ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
6VE1 ENG(RJQ) 16.545 (J) M8X40 FLANGE 		0-28690-840-0 02 1 0211- ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
C24SE ENG(LG1) (K) 		8-11081-925-0 02 1 0211- ● ●
32 06.665 PULLEY; IDLER,P/S
4JH1-TC ENG(RDM) POWER STEERING<N40> (A) 		8-97942-187-0 01 1 0211- ● ● ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97112-740-0 01 1 0211- ● ● ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
C24SE ENG(LG1) POWER STEERING<N40> 		8-97214-996-0 01 1 0211- ● ●
33 06.655 PLATE; ADJ,P/S
C24SE ENG(LG1) POWER STEERING<N40> 		8-92066-087-1 01 1 0211- ● ●
34 09.181 BOLT; ADJ PLATE
4JH1-TC ENG(RDM) POWER STEERING<N40> (A) M10X70 		0-20801-070-0 01 1 0211- ● ● ● ● ● ● ● ●
34 09.181 BOLT; ADJ PLATE
C24SE ENG(LG1) POWER STEERING<N40> (B) M10X45 FLANGE 		0-28151-045-0 01 1 0211- ● ●
34 09.181 BOLT; ADJ PLATE
C24SE ENG(LG1) POWER STEERING<N40> (C) M10X22 FLANGE 		8-11083-820-0 01 1 0211- ● ●
34 09.181 BOLT; ADJ PLATE
C24SE ENG(LG1) POWER STEERING<N40> 06.672 (D) 		8-92064-382-2 01 1 0211- ● ●
34 09.181 BOLT; ADJ PLATE
C24SE ENG(LG1) POWER STEERING<N40> 00.683 (E) M10X55 FLANGE 		8-94399-863-1 01 1 0211- ● ●
42 06.672 NUT; ADJ PLATE
4JH1-TC ENG(RDM) POWER STEERING<N40> 01.540 (A) M8 FLANGE 		0-91180-208-0 01 1 0211- ● ● ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
C24SE ENG(LG1) POWER STEERING<N40> (B) M10 FLANGE 		0-91280-210-0 01 1 0211- ● ●
42 06.672 NUT; ADJ PLATE
C24SE ENG(LG1) POWER STEERING<N40> (C) M10 		8-92064-322-0 01 1 0211- ● ●
47 01.066 BELT; P/S PUMP
4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) L=1451 MITSUBOSHI 		1-13671-301-0 01 1 0211- ● ● ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
6VE1 ENG(RJQ) EXC. AIR CONDITIONER MANUAL CONT(C60) L=2038 		8-97130-561-0 01 1 0211- ● ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
C24SE ENG(LG1) POWER STEERING<N40> L=960.5 		8-92063-695-0 01 1 0211- ● ●
56 06.672 PIECE; DIST,BRKT
C24SE ENG(LG1) POWER STEERING<N40> 		8-92066-088-0 01 1 0211- ● ●

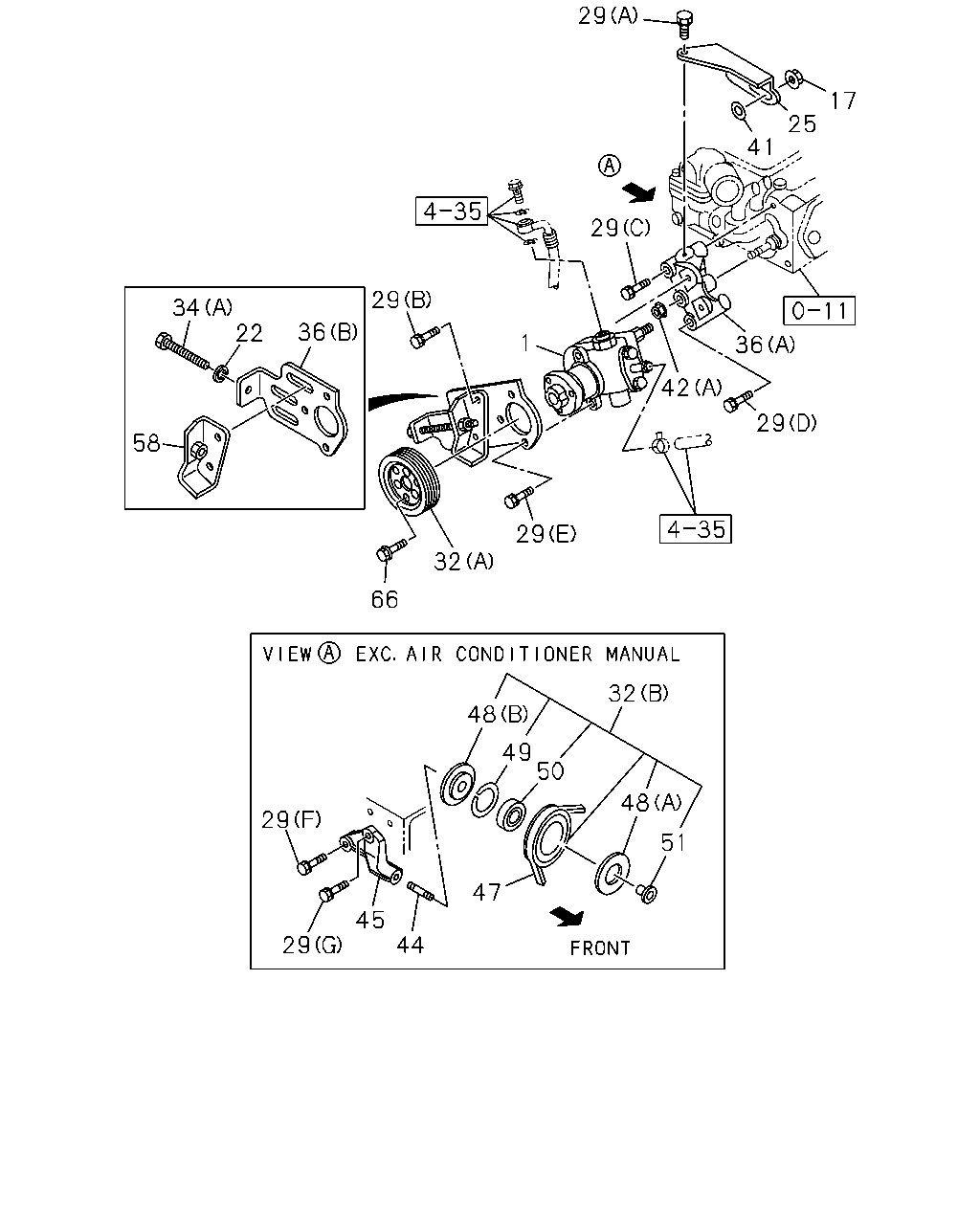

çizim 50541
29 17 25 41 29 29 34 22 36 1 36 42 29 58 29 32 66 32 48 49 50 48 29 51 47 45 29 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 4JH1-TC ENG(RDM) POWER STEERING<N40> 		8-97214-995-1 01 1 0211- ● ● ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6VE1 ENG(RJQ) POWER STEERING<N40> 		8-97234-963-1 01 1 0211- ● ● ● ● ● ● ●
1 06.605 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. C24SE ENG(LG1) POWER STEERING<N40> 		8-97214-994-1 01 1 0211- ● ●
17 06.606 NUT; POWER STRG PUMP
4JH1-TC ENG(RDM) POWER STEERING<N40> 01.540 M8 FLANGE 		0-91180-208-0 01 1 0211- ● ● ● ● ● ● ● ●
17 06.606 NUT; POWER STRG PUMP
C24SE ENG(LG1) POWER STEERING<N40> 04.085 M10 FLANGE 		0-91180-210-0 01 1 0211- ● ●
22 06.606 WASHER; LK,OIL PUMP,P/S
4JH1-TC ENG(RDM) POWER STEERING<N40> 00.002 ID=10.2 		9-09150-510-0 01 1 0211- ● ● ● ● ● ● ● ●
25 06.606 BRACKET; P/S PUMP
4JH1-TC ENG(RDM) POWER STEERING<N40> 		8-97941-415-0 01 1 0211- ● ● ● ● ● ● ● ●
25 06.606 BRACKET; P/S PUMP
C24SE ENG(LG1) 		8-92063-351-0 01 1 0211- ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) POWER STEERING<N40> 02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0211- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) POWER STEERING<N40> (B) M10X25 FLANGE 		0-28051-025-0 02 1 0211- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) POWER STEERING<N40> 04.104 (C) M10X60 W/LK WASHER 		0-50041-060-0 01 1 0211- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) POWER STEERING<N40> (D) M8X60 W/LK WASHER 		0-50540-860-0 01 1 0211- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) POWER STEERING<N40> (E) M10X28 W/LK WASHER 		8-97943-080-0 03 1 0211- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) (F) M8X30 W/LK WASHER 		0-50540-830-0 01 1 0211- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) (G) M10X35 W/LK WASHER 		0-50541-035-0 01 1 0211- ● ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
6VE1 ENG(RJQ) 03.278 (H) M8X100 FLANGE 		0-28080-800-0 01 1 0211- ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
6VE1 ENG(RJQ) 03.330 (I) M10X60 FLANGE 		0-28181-060-0 01 1 0211- ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
6VE1 ENG(RJQ) 16.545 (J) M8X40 FLANGE 		0-28690-840-0 02 1 0211- ● ● ● ● ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
C24SE ENG(LG1) (K) 		8-11081-925-0 02 1 0211- ● ●
32 06.665 PULLEY; IDLER,P/S
4JH1-TC ENG(RDM) POWER STEERING<N40> (A) 		8-97942-187-0 01 1 0211- ● ● ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97112-740-0 01 1 0211- ● ● ● ● ● ● ● ●
32 06.665 PULLEY; IDLER,P/S
C24SE ENG(LG1) POWER STEERING<N40> 		8-97214-996-0 01 1 0211- ● ●
34 09.181 BOLT; ADJ PLATE
4JH1-TC ENG(RDM) POWER STEERING<N40> (A) M10X70 		0-20801-070-0 01 1 0211- ● ● ● ● ● ● ● ●
34 09.181 BOLT; ADJ PLATE
C24SE ENG(LG1) POWER STEERING<N40> (B) M10X45 FLANGE 		0-28151-045-0 01 1 0211- ● ●
34 09.181 BOLT; ADJ PLATE
C24SE ENG(LG1) POWER STEERING<N40> (C) M10X22 FLANGE 		8-11083-820-0 01 1 0211- ● ●
34 09.181 BOLT; ADJ PLATE
C24SE ENG(LG1) POWER STEERING<N40> 06.672 (D) 		8-92064-382-2 01 1 0211- ● ●
34 09.181 BOLT; ADJ PLATE
C24SE ENG(LG1) POWER STEERING<N40> 00.683 (E) M10X55 FLANGE 		8-94399-863-1 01 1 0211- ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4JH1-TC ENG(RDM) POWER STEERING<N40> (A) 		8-97941-414-0 01 1 0211- ● ● ● ● ● ● ● ●
36 06.606 BRACKET; PLATE,P/S PUMP
4JH1-TC ENG(RDM) POWER STEERING<N40> (B) 		8-97942-483-0 01 1 0211- ● ● ● ● ● ● ● ●
41 06.168 WASHER; PL,BRKT
4JH1-TC ENG(RDM) POWER STEERING<N40> 03.275 ID=8.5 OD=22 T=4 		9-09851-649-0 01 1 0211- ● ● ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
4JH1-TC ENG(RDM) POWER STEERING<N40> 01.540 (A) M8 FLANGE 		0-91180-208-0 01 1 0211- ● ● ● ● ● ● ● ●
42 06.672 NUT; ADJ PLATE
C24SE ENG(LG1) POWER STEERING<N40> (B) M10 FLANGE 		0-91280-210-0 01 1 0211- ● ●
42 06.672 NUT; ADJ PLATE
C24SE ENG(LG1) POWER STEERING<N40> (C) M10 		8-92064-322-0 01 1 0211- ● ●
44 06.665 STUD; IDLER PULLEY
4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.275 M10X25 L=40 		9-04411-025-0 01 1 0211- ● ● ● ● ● ● ● ●
45 06.655 BRACKET; IDLE PULLEY,P/S
4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94449-652-0 01 1 0211- ● ● ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) L=1451 MITSUBOSHI 		1-13671-301-0 01 1 0211- ● ● ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
6VE1 ENG(RJQ) EXC. AIR CONDITIONER MANUAL CONT(C60) L=2038 		8-97130-561-0 01 1 0211- ● ● ● ● ● ● ●
47 01.066 BELT; P/S PUMP
C24SE ENG(LG1) POWER STEERING<N40> L=960.5 		8-92063-695-0 01 1 0211- ● ●
48 06.665 COVER; IDLER
4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97092-819-0 01 1 0211- ● ● ● ● ● ● ● ●
48 06.665 COVER; IDLER
4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) 09.181 (A) 		9-13669-603-0 01 1 0211- ● ● ● ● ● ● ● ●
49 06.665 RING; SNAP,IDLER
4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94175-036-0 01 1 0211- ● ● ● ● ● ● ● ●
50 06.665 BEARING; IDLER
4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94251-052-0 01 1 0211- ● ● ● ● ● ● ● ●
51 06.665 NUT; IDLER
4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97092-813-0 01 1 0211- ● ● ● ● ● ● ● ●
58 06.655 SLIDER; BELT ADJ,P/S OIL PUMP
4JH1-TC ENG(RDM) POWER STEERING<N40> 		8-97941-329-0 01 1 0211- ● ● ● ● ● ● ● ●
66 06.672 BOLT; PULLEY
4JH1-TC ENG(RDM) POWER STEERING<N40> 02.343 M8X12 FLANGE 		0-28050-812-0 03 1 0211- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
