Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#41941) — 168 parça

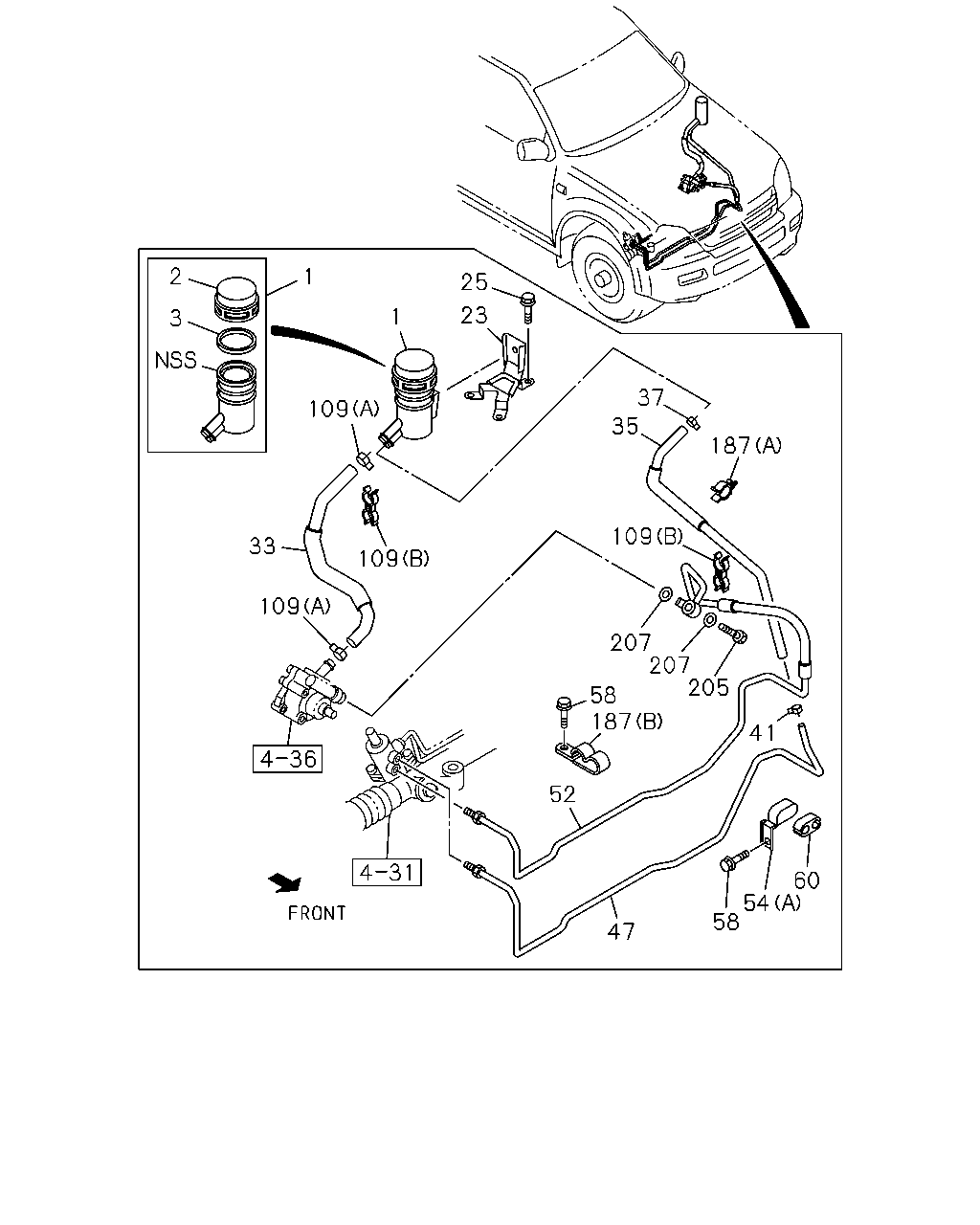

2 109 1 3 1 37 35 361 109 23 187 25 33 205 207 109 207 41 58 54 54 60 60 52 58 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.635 TANK ASM; OIL,P/S POWER STEERING<N40>	8-97234-350-0	01	1	0211-	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S POWER STEERING<N40>	8-97349-476-0	01	1	0211-	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S POWER STEERING<N40>	8-97349-477-0	01	1	0211-	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) POWER STEERING<N40>	8-97234-380-1	01	1	0211-	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S C24SE ENG(LG1) POWER STEERING<N40>	8-97234-383-0	01	1	0211-			●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0211-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JH1-TC ENG(RDM) POWER STEERING<N40>	8-97940-825-0	01	1	0211-0304	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JH1-TC ENG(RDM) POWER STEERING<N40>	8-97943-682-0	01	1	0305-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 6VE1 ENG(RJQ) POWER STEERING<N40>	8-97234-510-0	01	1	0211-	●	●	●	●	●		●	●
33	06.672 HOSE; RUBBER,POWER STRG C24SE ENG(LG1) POWER STEERING<N40>	8-97940-824-0	01	1	0211-			●	●
35	06.671 HOSE; RETURN,P/S TANK 4JH1-TC ENG(RDM) POWER STEERING<N40>	8-97234-899-2	01	1	0211-	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 6VE1 ENG(RJQ) POWER STEERING<N40>	8-97315-642-1	01	1	0211-	●	●	●	●	●		●	●
35	06.671 HOSE; RETURN,P/S TANK C24SE ENG(LG1) POWER STEERING<N40>	8-97234-900-0	01	1	0211-			●	●
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> 01.240 ID=16	8-94392-924-0	01	1	0211-	●	●	●	●	●	●	●	●
41	06.672 CLIP; HOSE,P/S POWER STEERING<N40> 01.240 ID=16	8-94392-924-0	01	1	0211-	●	●	●	●	●	●	●	●
47	06.671 PIPE; RETURN 4JH1-TC ENG(RDM) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97234-426-3	01	1	0211-	●	●	●	●
47	06.671 PIPE; RETURN 4JH1-TC ENG(RDM)	8-97234-426-3	01	1	0211-					●	●	●	●
47	06.671 PIPE; RETURN 4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97234-422-3	01	1	0211-	●	●	●	●
47	06.671 PIPE; RETURN 6VE1 ENG(RJQ) POWER STEERING<N40>	8-97234-489-2	01	1	0211-	●	●	●	●	●		●	●
47	06.671 PIPE; RETURN C24SE ENG(LG1) POWER STEERING<N40>	8-97234-429-2	01	1	0211-0306			●	●
47	06.671 PIPE; RETURN C24SE ENG(LG1) POWER STEERING<N40>	8-97943-473-0	01	1	0307-			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JH1-TC ENG(RDM) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97234-495-2	01	1	0211-0211	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JH1-TC ENG(RDM)	8-97234-495-2	01	1	0211-0211					●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JH1-TC ENG(RDM) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97943-283-0	01	1	0212-	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JH1-TC ENG(RDM)	8-97943-283-0	01	1	0212-					●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97234-494-2	01	1	0211-0211	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97943-282-0	01	1	0212-	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 6VE1 ENG(RJQ) POWER STEERING<N40>	8-97234-491-1	01	1	0211-0211	●	●	●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 6VE1 ENG(RJQ) POWER STEERING<N40>	8-97943-279-0	01	1	0212-	●	●	●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV C24SE ENG(LG1) POWER STEERING<N40>	8-97234-492-0	01	1	0211-0211			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV C24SE ENG(LG1) POWER STEERING<N40>	8-97943-280-0	01	1	0212-0306			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV C24SE ENG(LG1) POWER STEERING<N40>	8-97943-480-0	01	1	0307-			●	●
54	06.672 CLIP; OIL PIPE C24SE ENG(LG1),4JH1-TC ENG(RDM) POWER STEERING<N40> (B)	8-97164-013-2	01	1	0211-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE POWER STEERING<N40> (A)	8-97026-703-0	01	1	0211-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0211-	●	●	●	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	0211-	●	●	●	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN C24SE ENG(LG1),4JH1-TC ENG(RDM) POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	0211-	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0211-0304	●	●		●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0211-0304	●	●		●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE SINGLE CAB LONG(TF**SF) (A) ID=21	8-94242-034-0	02	1	0211-0304			●
109	06.672 CLIP; RUBBER HOSE 4X2 SINGLE CAB EXTRA LONG(TFB*SK) POWER STEERING<N40> (A) ID=21	8-94242-034-0	02	1	0211-0304			●
109	06.672 CLIP; RUBBER HOSE SINGLE CAB LONG(TF**SF) (A) ID=21	8-94242-034-0	02	1	0211-0304			●
109	06.672 CLIP; RUBBER HOSE 4X2 SINGLE CAB EXTRA LONG(TFB*SK) POWER STEERING<N40> (A) ID=21	8-94242-034-0	02	1	0211-0304			●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0305-	●	●		●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0305-	●	●		●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE SINGLE CAB LONG(TF**SF) (A) ID=21	8-94242-034-0	01	1	0305-			●
109	06.672 CLIP; RUBBER HOSE 4X2 SINGLE CAB EXTRA LONG(TFB*SK) POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	0305-			●
109	06.672 CLIP; RUBBER HOSE SINGLE CAB LONG(TF**SF) (A) ID=21	8-94242-034-0	01	1	0305-			●
109	06.672 CLIP; RUBBER HOSE 4X2 SINGLE CAB EXTRA LONG(TFB*SK) POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	0305-			●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=17.5 & 21	8-97177-580-0	01	1	0211-	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 6VE1 ENG(RJQ) POWER STEERING<N40> (B) ID=17.5 & 21	8-97177-580-0	01	1	0211-	●	●	●	●	●		●	●
187	03.162 CLIP; P/S OIL PIPE 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) POWER STEERING<N40> 06.672 (A) ID=17	8-94382-792-1	01	1	0211-	●	●	●	●	●	●	●	●
187	03.162 CLIP; P/S OIL PIPE 6VE1 ENG(RJQ) POWER STEERING<N40> 04.866 (B) ID=11X2 L=16	1-09700-820-0	01	1	0211-	●	●	●	●	●		●	●
187	03.162 CLIP; P/S OIL PIPE C24SE ENG(LG1) POWER STEERING<N40> 06.672 (A) ID=17	8-94382-792-1	02	1	0211-			●	●
205	06.673 BOLT; EYE,FLEX HOSE,P/S POWER STEERING<N40> M16X28	8-97245-666-0	01	1	0211-	●	●	●	●	●	●	●	●
207	06.673 GASKET; FLEX HOSE,P/S PUMP POWER STEERING<N40> 01.252 ID=16.2 OD=24	9-09571-416-0	02	1	0211-	●	●	●	●	●	●	●	●

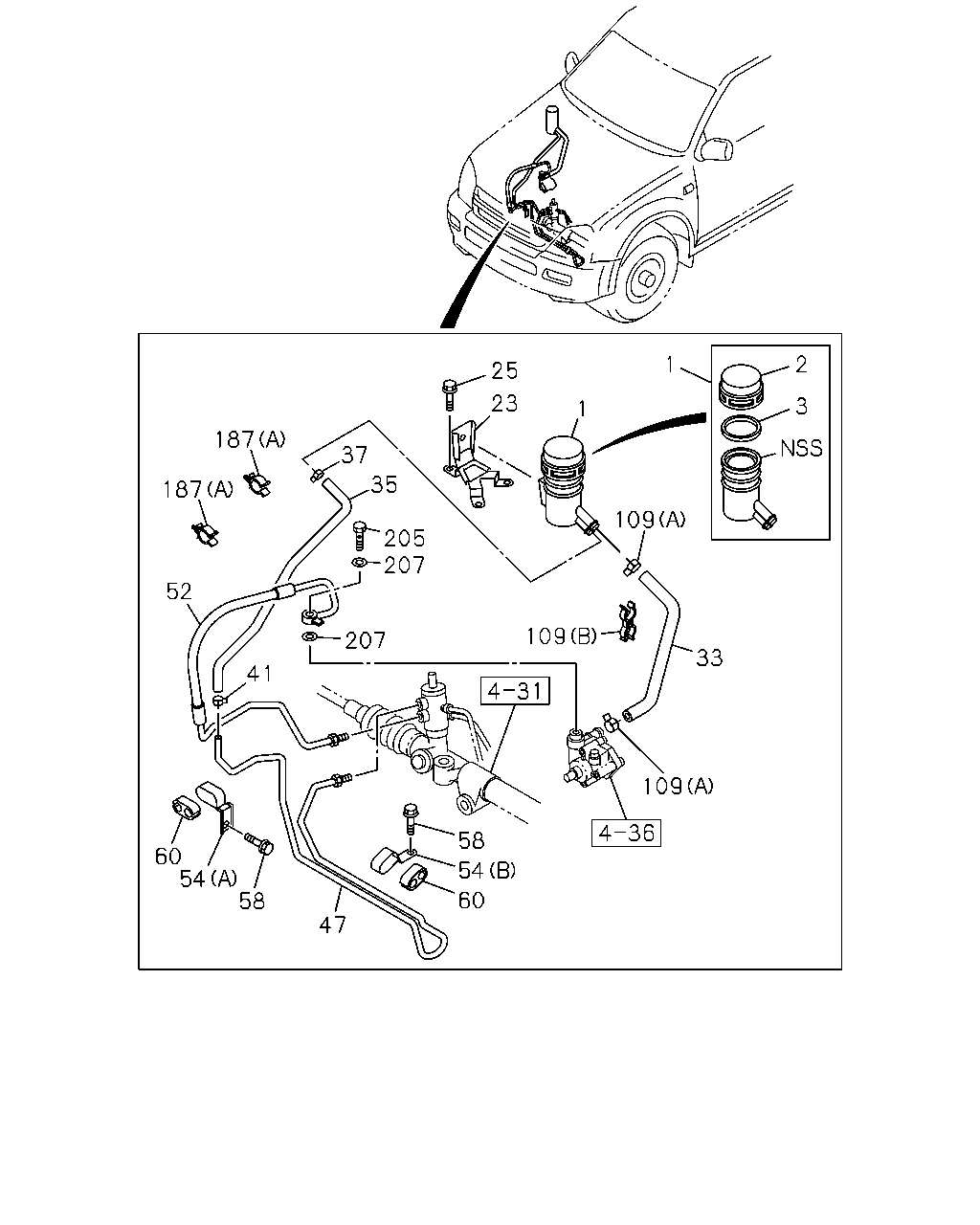

2 1 25 23 1 3 37 35 109 187 109 33 109 109 207 207 205 58 187 41 52 60 54 58 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.635 TANK ASM; OIL,P/S POWER STEERING<N40>	8-97234-350-0	01	1	0211-	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S POWER STEERING<N40>	8-97349-476-0	01	1	0211-	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S POWER STEERING<N40>	8-97349-477-0	01	1	0211-	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) POWER STEERING<N40>	8-97234-380-1	01	1	0211-	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S C24SE ENG(LG1) POWER STEERING<N40>	8-97234-383-0	01	1	0211-			●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0211-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JH1-TC ENG(RDM) POWER STEERING<N40>	8-97940-825-0	01	1	0211-0304	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JH1-TC ENG(RDM) POWER STEERING<N40>	8-97943-682-0	01	1	0305-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 6VE1 ENG(RJQ) POWER STEERING<N40>	8-97234-510-0	01	1	0211-	●	●	●	●	●		●	●
33	06.672 HOSE; RUBBER,POWER STRG C24SE ENG(LG1) POWER STEERING<N40>	8-97940-824-0	01	1	0211-			●	●
35	06.671 HOSE; RETURN,P/S TANK 4JH1-TC ENG(RDM) POWER STEERING<N40>	8-97234-899-2	01	1	0211-	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 6VE1 ENG(RJQ) POWER STEERING<N40>	8-97315-642-1	01	1	0211-	●	●	●	●	●		●	●
35	06.671 HOSE; RETURN,P/S TANK C24SE ENG(LG1) POWER STEERING<N40>	8-97234-900-0	01	1	0211-			●	●
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> 01.240 ID=16	8-94392-924-0	01	1	0211-	●	●	●	●	●	●	●	●
41	06.672 CLIP; HOSE,P/S POWER STEERING<N40> 01.240 ID=16	8-94392-924-0	01	1	0211-	●	●	●	●	●	●	●	●
47	06.671 PIPE; RETURN 4JH1-TC ENG(RDM) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97234-426-3	01	1	0211-	●	●	●	●
47	06.671 PIPE; RETURN 4JH1-TC ENG(RDM)	8-97234-426-3	01	1	0211-					●	●	●	●
47	06.671 PIPE; RETURN 4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97234-422-3	01	1	0211-	●	●	●	●
47	06.671 PIPE; RETURN 6VE1 ENG(RJQ) POWER STEERING<N40>	8-97234-489-2	01	1	0211-	●	●	●	●	●		●	●
47	06.671 PIPE; RETURN C24SE ENG(LG1) POWER STEERING<N40>	8-97234-429-2	01	1	0211-0306			●	●
47	06.671 PIPE; RETURN C24SE ENG(LG1) POWER STEERING<N40>	8-97943-473-0	01	1	0307-			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JH1-TC ENG(RDM) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97234-495-2	01	1	0211-0211	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JH1-TC ENG(RDM)	8-97234-495-2	01	1	0211-0211					●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JH1-TC ENG(RDM) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97943-283-0	01	1	0212-	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JH1-TC ENG(RDM)	8-97943-283-0	01	1	0212-					●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97234-494-2	01	1	0211-0211	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97943-282-0	01	1	0212-	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 6VE1 ENG(RJQ) POWER STEERING<N40>	8-97234-491-1	01	1	0211-0211	●	●	●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 6VE1 ENG(RJQ) POWER STEERING<N40>	8-97943-279-0	01	1	0212-	●	●	●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV C24SE ENG(LG1) POWER STEERING<N40>	8-97234-492-0	01	1	0211-0211			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV C24SE ENG(LG1) POWER STEERING<N40>	8-97943-280-0	01	1	0212-0306			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV C24SE ENG(LG1) POWER STEERING<N40>	8-97943-480-0	01	1	0307-			●	●
54	06.672 CLIP; OIL PIPE C24SE ENG(LG1),4JH1-TC ENG(RDM) POWER STEERING<N40> (B)	8-97164-013-2	01	1	0211-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE POWER STEERING<N40> (A)	8-97026-703-0	01	1	0211-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0211-	●	●	●	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	0211-	●	●	●	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN C24SE ENG(LG1),4JH1-TC ENG(RDM) POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	0211-	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0211-0304	●	●		●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0211-0304	●	●		●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE SINGLE CAB LONG(TF**SF) (A) ID=21	8-94242-034-0	02	1	0211-0304			●
109	06.672 CLIP; RUBBER HOSE 4X2 SINGLE CAB EXTRA LONG(TFB*SK) POWER STEERING<N40> (A) ID=21	8-94242-034-0	02	1	0211-0304			●
109	06.672 CLIP; RUBBER HOSE SINGLE CAB LONG(TF**SF) (A) ID=21	8-94242-034-0	02	1	0211-0304			●
109	06.672 CLIP; RUBBER HOSE 4X2 SINGLE CAB EXTRA LONG(TFB*SK) POWER STEERING<N40> (A) ID=21	8-94242-034-0	02	1	0211-0304			●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0305-	●	●		●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0305-	●	●		●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE SINGLE CAB LONG(TF**SF) (A) ID=21	8-94242-034-0	01	1	0305-			●
109	06.672 CLIP; RUBBER HOSE 4X2 SINGLE CAB EXTRA LONG(TFB*SK) POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	0305-			●
109	06.672 CLIP; RUBBER HOSE SINGLE CAB LONG(TF**SF) (A) ID=21	8-94242-034-0	01	1	0305-			●
109	06.672 CLIP; RUBBER HOSE 4X2 SINGLE CAB EXTRA LONG(TFB*SK) POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	0305-			●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=17.5 & 21	8-97177-580-0	01	1	0211-	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 6VE1 ENG(RJQ) POWER STEERING<N40> (B) ID=17.5 & 21	8-97177-580-0	01	1	0211-	●	●	●	●	●		●	●
187	03.162 CLIP; P/S OIL PIPE 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) POWER STEERING<N40> 06.672 (A) ID=17	8-94382-792-1	01	1	0211-	●	●	●	●	●	●	●	●
187	03.162 CLIP; P/S OIL PIPE 6VE1 ENG(RJQ) POWER STEERING<N40> 04.866 (B) ID=11X2 L=16	1-09700-820-0	01	1	0211-	●	●	●	●	●		●	●
187	03.162 CLIP; P/S OIL PIPE C24SE ENG(LG1) POWER STEERING<N40> 06.672 (A) ID=17	8-94382-792-1	02	1	0211-			●	●
205	06.673 BOLT; EYE,FLEX HOSE,P/S POWER STEERING<N40> M16X28	8-97245-666-0	01	1	0211-	●	●	●	●	●	●	●	●
207	06.673 GASKET; FLEX HOSE,P/S PUMP POWER STEERING<N40> 01.252 ID=16.2 OD=24	9-09571-416-0	02	1	0211-	●	●	●	●	●	●	●	●

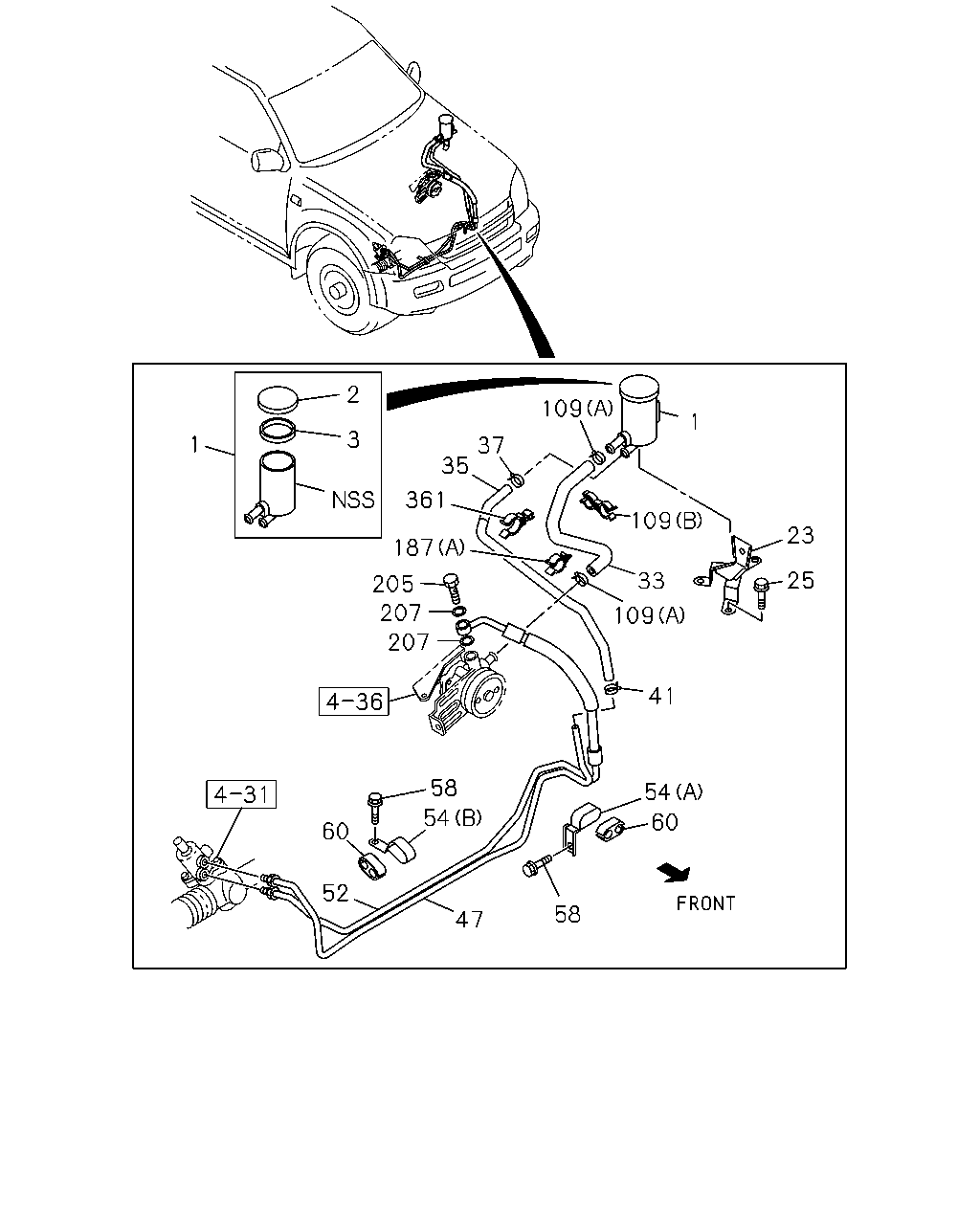

2 1 25 23 3 1 187 37 35 187 109 205 207 52 109 207 33 41 109 58 60 54 54 58 60 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.635 TANK ASM; OIL,P/S POWER STEERING<N40>	8-97234-350-0	01	1	0211-	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S POWER STEERING<N40>	8-97349-476-0	01	1	0211-	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S POWER STEERING<N40>	8-97349-477-0	01	1	0211-	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) POWER STEERING<N40>	8-97234-380-1	01	1	0211-	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S C24SE ENG(LG1) POWER STEERING<N40>	8-97234-383-0	01	1	0211-			●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0211-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JH1-TC ENG(RDM) POWER STEERING<N40>	8-97940-825-0	01	1	0211-0304	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JH1-TC ENG(RDM) POWER STEERING<N40>	8-97943-682-0	01	1	0305-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 6VE1 ENG(RJQ) POWER STEERING<N40>	8-97234-510-0	01	1	0211-	●	●	●	●	●		●	●
33	06.672 HOSE; RUBBER,POWER STRG C24SE ENG(LG1) POWER STEERING<N40>	8-97940-824-0	01	1	0211-			●	●
35	06.671 HOSE; RETURN,P/S TANK 4JH1-TC ENG(RDM) POWER STEERING<N40>	8-97234-899-2	01	1	0211-	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 6VE1 ENG(RJQ) POWER STEERING<N40>	8-97315-642-1	01	1	0211-	●	●	●	●	●		●	●
35	06.671 HOSE; RETURN,P/S TANK C24SE ENG(LG1) POWER STEERING<N40>	8-97234-900-0	01	1	0211-			●	●
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> 01.240 ID=16	8-94392-924-0	01	1	0211-	●	●	●	●	●	●	●	●
41	06.672 CLIP; HOSE,P/S POWER STEERING<N40> 01.240 ID=16	8-94392-924-0	01	1	0211-	●	●	●	●	●	●	●	●
47	06.671 PIPE; RETURN 4JH1-TC ENG(RDM) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97234-426-3	01	1	0211-	●	●	●	●
47	06.671 PIPE; RETURN 4JH1-TC ENG(RDM)	8-97234-426-3	01	1	0211-					●	●	●	●
47	06.671 PIPE; RETURN 4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97234-422-3	01	1	0211-	●	●	●	●
47	06.671 PIPE; RETURN 6VE1 ENG(RJQ) POWER STEERING<N40>	8-97234-489-2	01	1	0211-	●	●	●	●	●		●	●
47	06.671 PIPE; RETURN C24SE ENG(LG1) POWER STEERING<N40>	8-97234-429-2	01	1	0211-0306			●	●
47	06.671 PIPE; RETURN C24SE ENG(LG1) POWER STEERING<N40>	8-97943-473-0	01	1	0307-			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JH1-TC ENG(RDM) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97234-495-2	01	1	0211-0211	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JH1-TC ENG(RDM)	8-97234-495-2	01	1	0211-0211					●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JH1-TC ENG(RDM) POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97943-283-0	01	1	0212-	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JH1-TC ENG(RDM)	8-97943-283-0	01	1	0212-					●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97234-494-2	01	1	0211-0211	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JH1-TC ENG(RDM) POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97943-282-0	01	1	0212-	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 6VE1 ENG(RJQ) POWER STEERING<N40>	8-97234-491-1	01	1	0211-0211	●	●	●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 6VE1 ENG(RJQ) POWER STEERING<N40>	8-97943-279-0	01	1	0212-	●	●	●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV C24SE ENG(LG1) POWER STEERING<N40>	8-97234-492-0	01	1	0211-0211			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV C24SE ENG(LG1) POWER STEERING<N40>	8-97943-280-0	01	1	0212-0306			●	●
52	06.673 HOSE; FLEX,P/S CONT VLV C24SE ENG(LG1) POWER STEERING<N40>	8-97943-480-0	01	1	0307-			●	●
54	06.672 CLIP; OIL PIPE C24SE ENG(LG1),4JH1-TC ENG(RDM) POWER STEERING<N40> (B)	8-97164-013-2	01	1	0211-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE POWER STEERING<N40> (A)	8-97026-703-0	01	1	0211-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0211-	●	●	●	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	0211-	●	●	●	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN C24SE ENG(LG1),4JH1-TC ENG(RDM) POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	0211-	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0211-0304	●	●		●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0211-0304	●	●		●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE SINGLE CAB LONG(TF**SF) (A) ID=21	8-94242-034-0	02	1	0211-0304			●
109	06.672 CLIP; RUBBER HOSE 4X2 SINGLE CAB EXTRA LONG(TFB*SK) POWER STEERING<N40> (A) ID=21	8-94242-034-0	02	1	0211-0304			●
109	06.672 CLIP; RUBBER HOSE SINGLE CAB LONG(TF**SF) (A) ID=21	8-94242-034-0	02	1	0211-0304			●
109	06.672 CLIP; RUBBER HOSE 4X2 SINGLE CAB EXTRA LONG(TFB*SK) POWER STEERING<N40> (A) ID=21	8-94242-034-0	02	1	0211-0304			●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0305-	●	●		●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0305-	●	●		●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE SINGLE CAB LONG(TF**SF) (A) ID=21	8-94242-034-0	01	1	0305-			●
109	06.672 CLIP; RUBBER HOSE 4X2 SINGLE CAB EXTRA LONG(TFB*SK) POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	0305-			●
109	06.672 CLIP; RUBBER HOSE SINGLE CAB LONG(TF**SF) (A) ID=21	8-94242-034-0	01	1	0305-			●
109	06.672 CLIP; RUBBER HOSE 4X2 SINGLE CAB EXTRA LONG(TFB*SK) POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	0305-			●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=17.5 & 21	8-97177-580-0	01	1	0211-	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 6VE1 ENG(RJQ) POWER STEERING<N40> (B) ID=17.5 & 21	8-97177-580-0	01	1	0211-	●	●	●	●	●		●	●
187	03.162 CLIP; P/S OIL PIPE 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) POWER STEERING<N40> 06.672 (A) ID=17	8-94382-792-1	01	1	0211-	●	●	●	●	●	●	●	●
187	03.162 CLIP; P/S OIL PIPE 6VE1 ENG(RJQ) POWER STEERING<N40> 04.866 (B) ID=11X2 L=16	1-09700-820-0	01	1	0211-	●	●	●	●	●		●	●
187	03.162 CLIP; P/S OIL PIPE C24SE ENG(LG1) POWER STEERING<N40> 06.672 (A) ID=17	8-94382-792-1	02	1	0211-			●	●
205	06.673 BOLT; EYE,FLEX HOSE,P/S POWER STEERING<N40> M16X28	8-97245-666-0	01	1	0211-	●	●	●	●	●	●	●	●
207	06.673 GASKET; FLEX HOSE,P/S PUMP POWER STEERING<N40> 01.252 ID=16.2 OD=24	9-09571-416-0	02	1	0211-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
