0-36A — TURBOCHARGER SYSTEM (#4194) — 119 parça

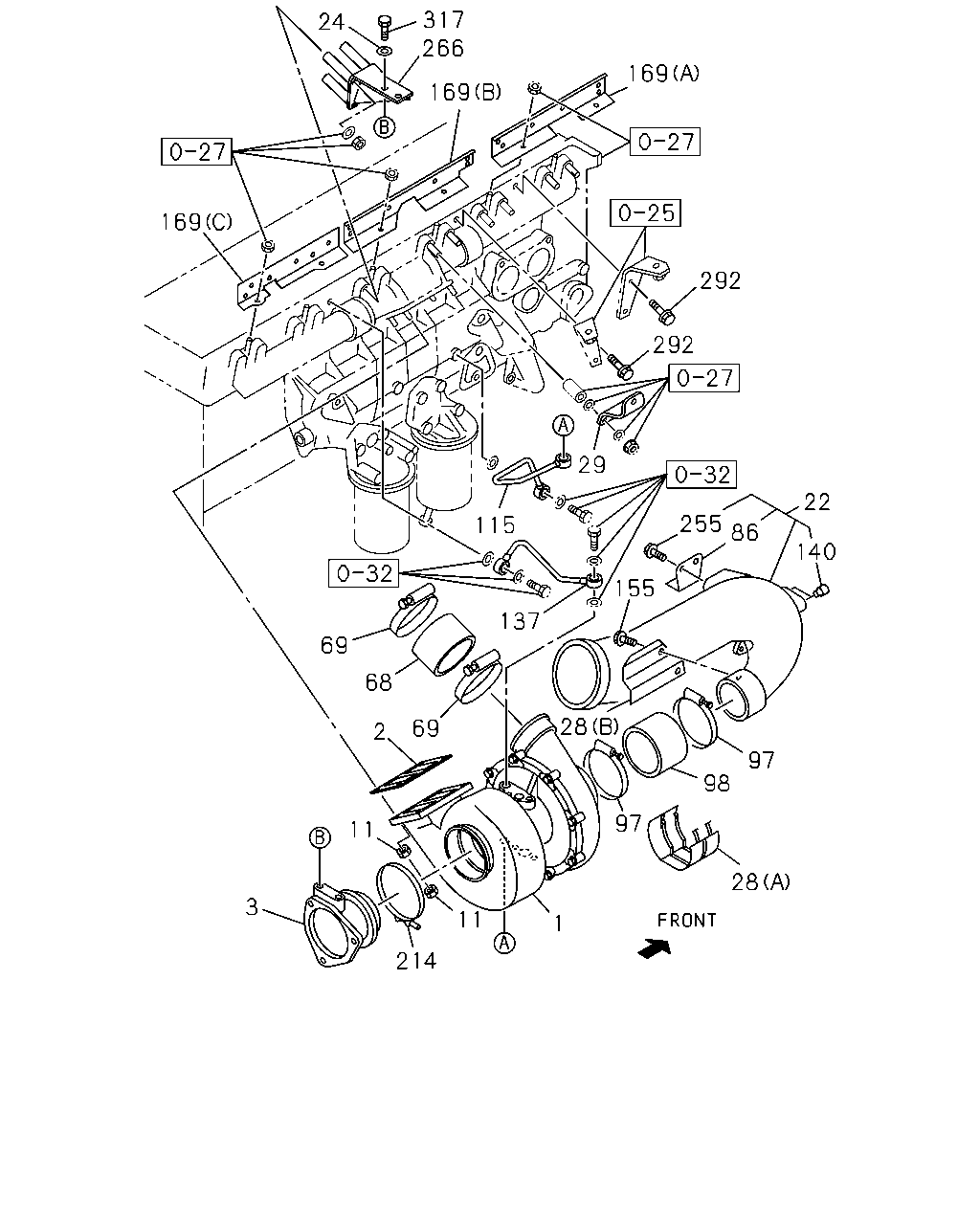

çizim 39772
317 266 24 169 169 169 292 292 29 22 255 86 115 140 155 137 69 68 28 69 2 97 98 97 11 28 3 11 1 214
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-342-1 01 1 9603-9901 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-342-1 01 1 9902-9904 ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-342-4 01 1 9905- ● ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-290-2 01 1 9902- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-372-1 01 1 9905- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		1-14400-328-3 01 1 9910- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-103-0 01 1 9603-9604 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-187-0 01 1 9605-9901 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-187-0 01 1 9902-9904 ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-187-0 01 1 9905-9909 ● ● ● ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-187-0 01 1 9910- ● ● ● ● ●
3 PIPE; EXH,TURBOCHARGER 1-14144-542-1 01 1 9603-9901 ●
3 PIPE; EXH,TURBOCHARGER 1-14144-542-1 01 1 9902-9904 ● ●
3 PIPE; EXH,TURBOCHARGER 1-14144-542-1 01 1 9905-9909 ● ● ● ●
3 PIPE; EXH,TURBOCHARGER 1-14144-542-1 01 1 9910- ● ● ● ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 9603-9901 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 9902-9904 ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 04 1 9905- ● ● ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 9905-9909 ●
11 NUT; TURBOCHARGER
M10 		1-09420-005-0 08 1 9910- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-14134-084-1 01 1 9603-9901 ●
22 DUCT; INL,ACL TO TURBOCHARGER
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-14134-084-1 01 1 9902-9904 ●
22 DUCT; INL,ACL TO TURBOCHARGER
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-14134-084-1 01 1 9905-9909 ● ● ●
22 DUCT; INL,ACL TO TURBOCHARGER
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-14134-084-1 01 1 9910- ● ● ● ● ●
22 DUCT; INL,ACL TO TURBOCHARGER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-14134-083-1 01 1 9603-9901 ●
22 DUCT; INL,ACL TO TURBOCHARGER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-14134-083-1 01 1 9902-9904 ● ●
22 DUCT; INL,ACL TO TURBOCHARGER
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-14134-083-1 01 1 9905- ● ● ● ●
24 WASHER; PL,PIPE 1-09500-007-0 02 1 9603-9901 ●
24 WASHER; PL,PIPE 1-09500-007-0 02 1 9902-9904 ● ●
24 WASHER; PL,PIPE 1-09500-007-0 02 1 9905-9909 ● ● ● ●
24 WASHER; PL,PIPE 1-09500-007-0 02 1 9910- ● ● ● ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(A) 		1-14181-244-0 01 1 9603-9901 ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(A) 		1-14181-244-0 01 1 9902-9904 ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(A) 		1-14181-244-0 01 1 9905-9909 ● ● ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(A) 		1-14181-244-0 01 1 9910- ● ● ● ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(B) 		1-14181-272-0 01 1 9603-9901 ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(B) 		1-14181-272-0 01 1 9902-9904 ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(B) 		1-14181-272-0 01 1 9905-9909 ● ● ● ●
28 PROTECTOR; HEAT,HOSE,AIR DUCT
(B) 		1-14181-272-0 01 1 9910- ● ● ● ● ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-350-1 01 1 9603-9604 ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-392-0 01 1 9605-9901 ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-392-0 01 1 9902-9904 ● ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-392-0 01 1 9905-9909 ● ● ● ●
29 BRACKET; INL PIPE,ACL TO TURBOCHARGER 1-14119-392-0 01 1 9910- ● ● ● ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09360-917-0 01 1 9603-9901 ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09360-917-0 01 1 9902-9904 ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09360-917-0 01 1 9905-9909 ● ● ● ●
68 HOSE; RUBBER,TURBOCHARGER TO INL COVER 1-09360-917-0 01 1 9910- ● ● ● ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=77-95 		1-09707-114-0 02 1 9603-9901 ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=77-95 		1-09707-114-0 02 1 9902-9904 ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=77-95 		1-09707-114-0 02 1 9905-9909 ● ● ● ●
69 CLIP; RUBBER HOSE,TURBOCHARGER
ID=77-95 		1-09707-114-0 02 1 9910- ● ● ● ● ●
86 BRACKET; INL PIPE 1-14119-361-0 01 1 9603-9901 ●
86 BRACKET; INL PIPE 1-14119-361-0 01 1 9902-9904 ● ●
86 BRACKET; INL PIPE 1-14119-361-0 01 1 9905-9909 ● ● ● ●
86 BRACKET; INL PIPE 1-14119-361-0 01 1 9910- ● ● ● ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-116 		1-09707-144-0 02 1 9603-9901 ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-116 		1-09707-144-0 02 1 9902-9904 ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-116 		1-09707-144-0 02 1 9905-9909 ● ● ● ●
97 CLIP; HOSE,TURBOCHARGER,INL
ID=87-116 		1-09707-144-0 02 1 9910- ● ● ● ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=89 L=80 		1-09360-356-1 01 1 9603-9901 ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=89 L=80 		1-09360-356-1 01 1 9902-9904 ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=89 L=80 		1-09360-356-1 01 1 9905-9909 ● ● ● ●
98 HOSE; RUBBER,TURBOCHARGER OUTLET
ID=89 L=80 		1-09360-356-1 01 1 9910- ● ● ● ● ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13721-504-0 01 1 9603-9603 ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13721-686-0 01 1 9603-9901 ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13721-686-0 01 1 9902-9904 ● ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13721-686-0 01 1 9905-9909 ● ● ● ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13721-686-0 01 1 9910-0011 ● ● ● ● ●
115 PIPE; WATER,TURBOCHARGER OUT 1-13721-605-0 01 1 0012- ● ● ● ● ●
137 PIPE; WATER,TURBOCHARGER IN 1-13721-651-0 01 1 9603-9901 ●
137 PIPE; WATER,TURBOCHARGER IN 1-13721-651-0 01 1 9902-9904 ● ●
137 PIPE; WATER,TURBOCHARGER IN 1-13721-651-0 01 1 9905-9909 ● ● ● ●
137 PIPE; WATER,TURBOCHARGER IN 1-13721-651-0 01 1 9910-0011 ● ● ● ● ●
137 PIPE; WATER,TURBOCHARGER IN 1-13721-506-2 01 1 0012- ● ● ● ● ●
140 PIPE; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-14119-228-1 02 1 9603-9901 ●
140 PIPE; AIR PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-14119-228-1 01 1 9902-9904 ● ●
140 PIPE; AIR PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-14119-228-1 01 1 9905- ● ● ● ●
140 PIPE; AIR PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-14119-228-1 01 1 9603-9901 ●
140 PIPE; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-14119-228-1 02 1 9902-9904 ●
140 PIPE; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-14119-228-1 02 1 9905-9909 ● ● ●
140 PIPE; AIR PIPE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-14119-228-1 02 1 9910- ● ● ● ● ●
155 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 02 1 9603-9901 ●
155 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 02 1 9902-9904 ● ●
155 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 02 1 9905-9909 ● ● ● ●
155 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 02 1 9910- ● ● ● ● ●
169 PROTECTOR; HEAT,HD COVER
(A) 		1-14181-301-1 01 1 9603-9901 ●
169 PROTECTOR; HEAT,HD COVER
(A) 		1-14181-301-1 01 1 9902-9904 ● ●
169 PROTECTOR; HEAT,HD COVER
(A) 		1-14181-301-1 01 1 9905-9909 ● ● ● ●
169 PROTECTOR; HEAT,HD COVER
(A) 		1-14181-301-1 01 1 9910- ● ● ● ● ●
169 PROTECTOR; HEAT,HD COVER
(B) 		1-14181-302-1 01 1 9603-9901 ●
169 PROTECTOR; HEAT,HD COVER
(B) 		1-14181-302-1 01 1 9902-9904 ● ●
169 PROTECTOR; HEAT,HD COVER
(B) 		1-14181-302-1 01 1 9905-9909 ● ● ● ●
169 PROTECTOR; HEAT,HD COVER
(B) 		1-14181-302-1 01 1 9910- ● ● ● ● ●
169 PROTECTOR; HEAT,HD COVER
(C) 		1-14181-303-1 01 1 9603-9712 ●
169 PROTECTOR; HEAT,HD COVER
(C) 		1-14181-320-0 01 1 9801-9901 ●
169 PROTECTOR; HEAT,HD COVER
(C) 		1-14181-320-0 01 1 9902-9904 ● ●
169 PROTECTOR; HEAT,HD COVER
(C) 		1-14181-320-0 01 1 9905-9909 ● ● ● ●
169 PROTECTOR; HEAT,HD COVER
(C) 		1-14181-320-0 01 1 9910- ● ● ● ● ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 1-09709-094-1 01 1 9603-9901 ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 1-09709-094-1 01 1 9902-9904 ● ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 1-09709-094-1 01 1 9905-9909 ● ● ● ●
214 BAND; "V",TURBOCHARGER TO EXH PIPE 1-09709-094-1 01 1 9910- ● ● ● ● ●
255 BOLT; INL PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 9603-9901 ●
255 BOLT; INL PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 9902-9904 ● ●
255 BOLT; INL PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 9905-9909 ● ● ● ●
255 BOLT; INL PIPE
M10X20 FLANGE 		0-28181-020-0 02 1 9910- ● ● ● ● ●
266 BRACKET; EXH PIPE 1-14149-195-0 01 1 9603-9901 ●
266 BRACKET; EXH PIPE 1-14149-195-0 01 1 9902-9904 ● ●
266 BRACKET; EXH PIPE 1-14149-195-0 01 1 9905-9909 ● ● ● ●
266 BRACKET; EXH PIPE 1-14149-195-0 01 1 9910- ● ● ● ● ●
292 BOLT; BRKT TO CYL HD
M10X16 FLANGE 		0-28181-016-0 04 1 9603-9901 ●
292 BOLT; BRKT TO CYL HD
M10X16 FLANGE 		0-28181-016-0 04 1 9902-9904 ● ●
292 BOLT; BRKT TO CYL HD
M10X16 FLANGE 		0-28181-016-0 04 1 9905-9909 ● ● ● ●
292 BOLT; BRKT TO CYL HD
M10X16 FLANGE 		0-28181-016-0 04 1 9910- ● ● ● ● ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 9603-9901 ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 9902-9904 ● ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 9905-9909 ● ● ● ●
317 BOLT; EXH PIPE
M10X20 		1-09020-073-2 02 1 9910- ● ● ● ● ●
