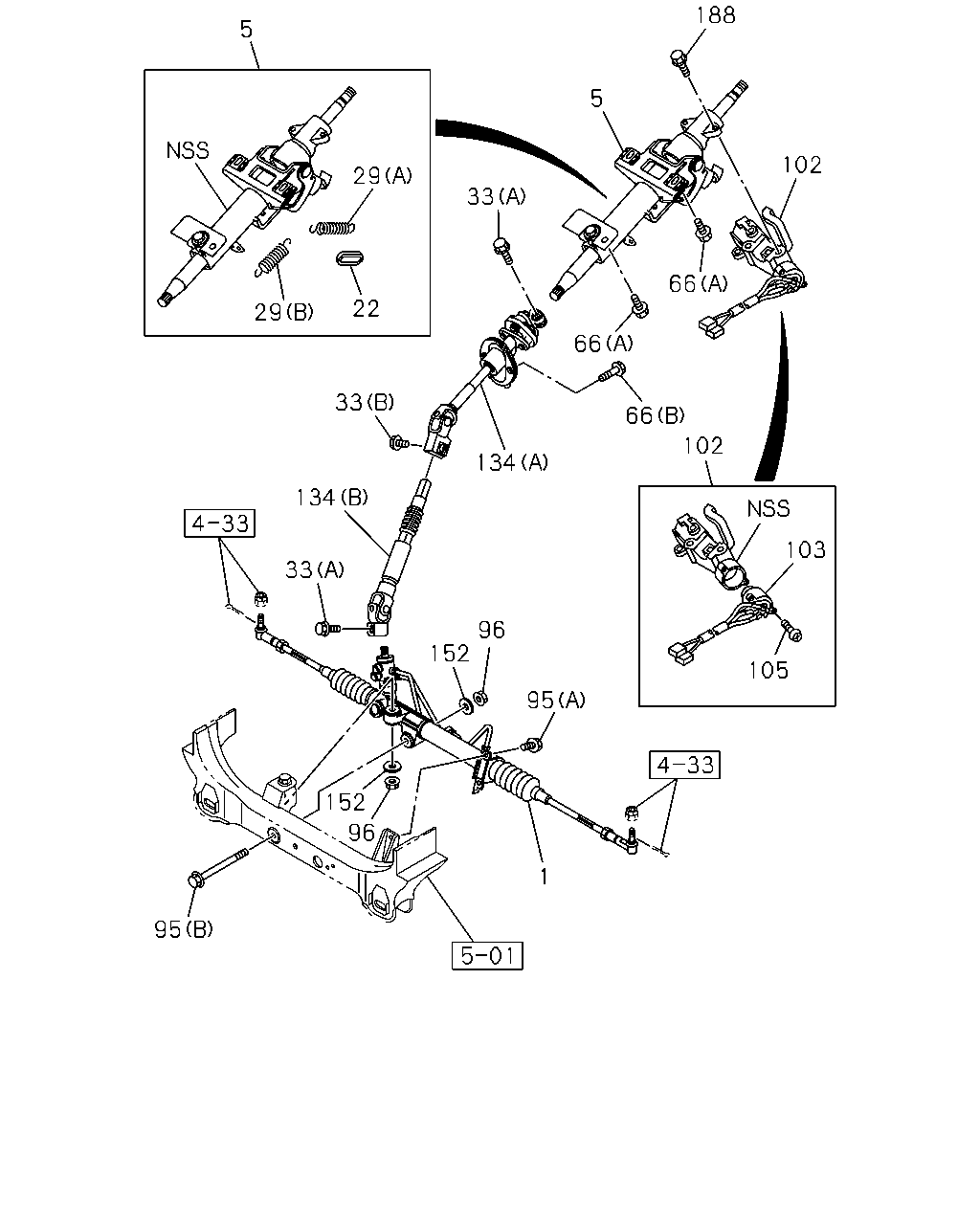

4-31 — STEERING COLUMN AND SHAFT (#41939) — 96 parça

188 5 5 102 29 33 66 22 29 66 33 66 102 134 134 103 33 96 152 105 95 152 96 1 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97234-441-3	01	1	0211-0305	●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97234-441-3	01	1	0211-0305					●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97943-521-0	01	1	0306-	●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97943-521-0	01	1	0306-					●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97234-440-3	01	1	0211-0305	●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97943-520-0	01	1	0306-	●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. MANUAL STEERING<N51>	8-97234-444-2	01	1	0211-			●
5	06.518 COLUMN; STRG	8-97349-946-0	01	1	0211-	●	●				●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97349-946-0	01	1	0211-			●	●	●		●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97349-947-0	01	1	0211-			●	●	●		●	●
22	06.525 BUSHING; STRG COLUMN	8-97349-938-0	01	1	0211-	●	●				●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33>	8-97349-938-0	01	1	0211-			●	●	●		●	●
29	06.514 SPRING; COLUMN (A)	8-97349-937-0	01	1	0211-	●	●				●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (A)	8-97349-937-0	01	1	0211-			●	●	●		●	●
29	06.514 SPRING; COLUMN (B)	8-97349-939-0	01	1	0211-	●	●				●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (B)	8-97349-939-0	01	1	0211-			●	●	●		●	●
33	06.525 BOLT; STRG SHAFT TO UNIT HIGH RIDE SUSPENSION(7YC) (A) M8X35 FLANGE	8-97249-320-0	01	1	0211-	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE	8-97249-320-0	01	1	0211-					●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97322-411-0	01	1	0211-	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE	8-97249-320-0	02	1	0211-	●	●	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0211-	●	●	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN (B)	8-97249-319-1	02	1	0211-	●	●	●	●	●	●	●	●
95	06.509 BOLT; STRG UNIT (A) M12X30 FLANGE	0-28661-230-0	02	1	0211-	●	●	●	●	●	●	●	●
95	06.509 BOLT; STRG UNIT (B) M16X195 W/PL WASHER	8-97245-661-0	01	1	0211-	●	●	●	●	●	●	●	●
96	06.509 NUT; STRG UNIT M16	0-91110-516-0	02	1	0211-	●	●	●	●	●	●	●	●
102	06.500 LOCK ASM; STRG	8-97349-942-0	01	1	0211-	●	●	●	●	●	●	●	●
103	02.188 SWITCH; IGNITION	8-97350-072-0	01	1	0211-	●	●	●	●	●	●	●	●
105	06.500 SCREW; IGN SW	8-97349-945-0	02	1	0211-	●	●	●	●	●	●	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97358-236-0	01	1	0303-0305	●	●	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97943-548-0	01	1	0306-0306	●	●	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97943-687-0	01	1	0306-	●	●	●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (C)	8-97234-439-1	01	1	0211-0305	●	●	●	●
134	06.524 SHAFT; STRG,2ND (C)	8-97234-439-1	01	1	0211-0305					●	●	●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (C)	8-97943-553-0	01	1	0306-0306	●	●	●	●
134	06.524 SHAFT; STRG,2ND (C)	8-97943-553-0	01	1	0306-0306					●	●	●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (C)	8-97943-692-0	01	1	0306-	●	●	●	●
134	06.524 SHAFT; STRG,2ND (C)	8-97943-692-0	01	1	0306-					●	●	●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (D)	8-97256-548-2	01	1	0211-0302	●	●	●	●
134	06.524 SHAFT; STRG,2ND (D)	8-97256-548-2	01	1	0211-0302					●	●	●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (D)	8-97358-237-0	01	1	0303-	●	●	●	●
134	06.524 SHAFT; STRG,2ND (D)	8-97358-237-0	01	1	0303-					●	●	●	●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97214-657-3	01	1	0211-0302	●	●	●	●
134	06.524 SHAFT; STRG,2ND MANUAL STEERING<N51> (A)	8-97214-657-3	01	1	0303-0305			●
134	06.524 SHAFT; STRG,2ND MANUAL STEERING<N51> (A)	8-97943-551-0	01	1	0306-0306			●
134	06.524 SHAFT; STRG,2ND MANUAL STEERING<N51> (A)	8-97943-690-0	01	1	0306-			●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97256-547-0	01	1	0211-	●	●	●	●
152	00.796 WASHER; LK,STRG UNIT ID=16.5 OD=45	8-97249-436-0	02	1	0211-	●	●	●	●	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING	8-97349-941-0	02	1	0211-	●	●	●	●	●	●	●	●

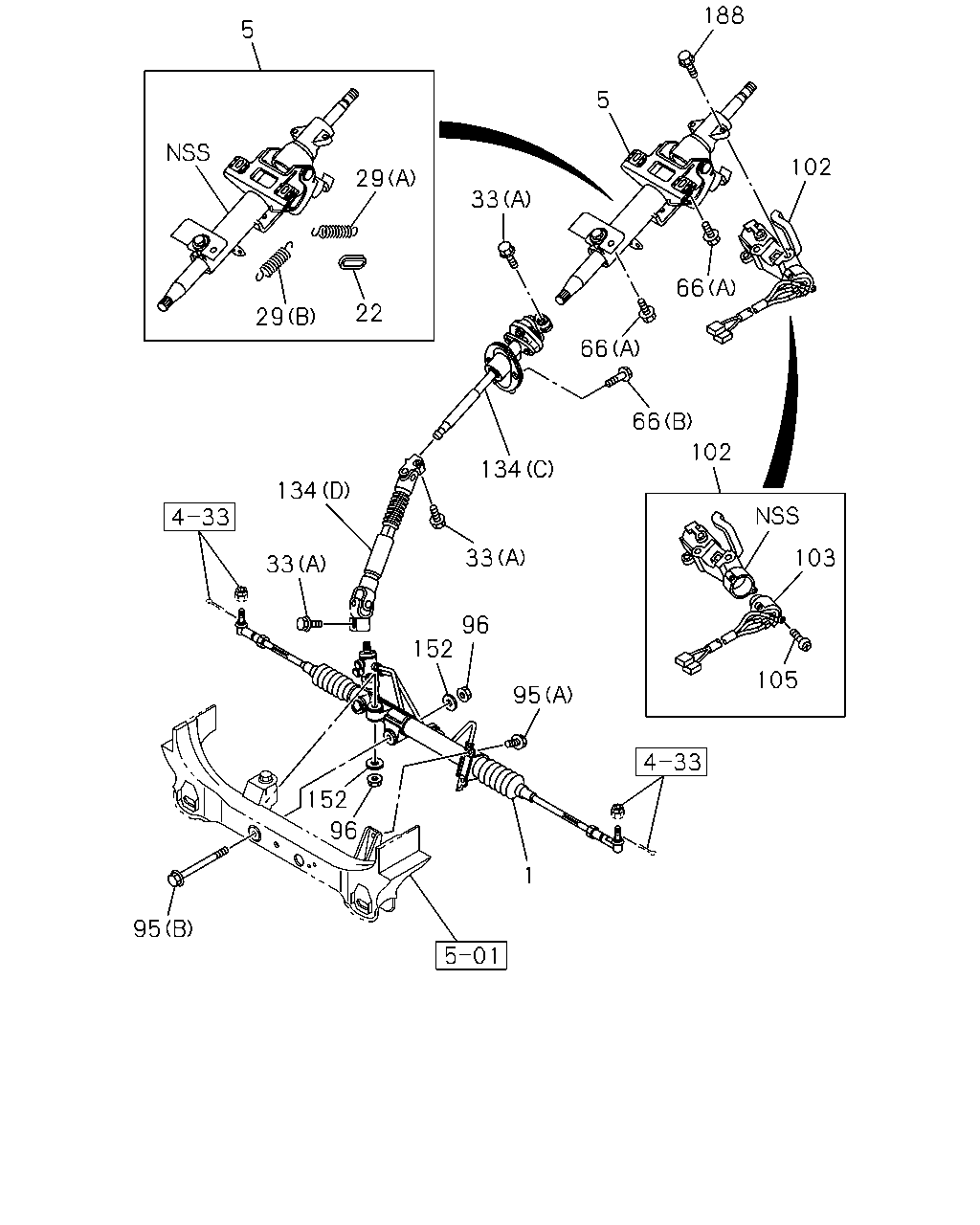

188 5 5 102 29 33 66 22 29 66 66 102 134 134 103 33 33 96 152 105 95 152 96 1 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97234-441-3	01	1	0211-0305	●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97234-441-3	01	1	0211-0305					●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> HIGH RIDE SUSPENSION(7YC)	8-97943-521-0	01	1	0306-	●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97943-521-0	01	1	0306-					●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97234-440-3	01	1	0211-0305	●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC)	8-97943-520-0	01	1	0306-	●	●	●	●
1	06.508 STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. MANUAL STEERING<N51>	8-97234-444-2	01	1	0211-			●
5	06.518 COLUMN; STRG	8-97349-946-0	01	1	0211-	●	●				●
5	06.518 COLUMN; STRG TILT STEERING<N33>	8-97349-946-0	01	1	0211-			●	●	●		●	●
5	06.518 COLUMN; STRG EXC. TILT STEERING<N33>	8-97349-947-0	01	1	0211-			●	●	●		●	●
22	06.525 BUSHING; STRG COLUMN	8-97349-938-0	01	1	0211-	●	●				●
22	06.525 BUSHING; STRG COLUMN TILT STEERING<N33>	8-97349-938-0	01	1	0211-			●	●	●		●	●
29	06.514 SPRING; COLUMN (A)	8-97349-937-0	01	1	0211-	●	●				●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (A)	8-97349-937-0	01	1	0211-			●	●	●		●	●
29	06.514 SPRING; COLUMN (B)	8-97349-939-0	01	1	0211-	●	●				●
29	06.514 SPRING; COLUMN TILT STEERING<N33> (B)	8-97349-939-0	01	1	0211-			●	●	●		●	●
33	06.525 BOLT; STRG SHAFT TO UNIT HIGH RIDE SUSPENSION(7YC) (A) M8X35 FLANGE	8-97249-320-0	01	1	0211-	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE	8-97249-320-0	01	1	0211-					●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97322-411-0	01	1	0211-	●	●	●	●
33	06.525 BOLT; STRG SHAFT TO UNIT (A) M8X35 FLANGE	8-97249-320-0	02	1	0211-	●	●	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN 03.403 (A) M8X30 FLANGE	0-28650-830-0	04	1	0211-	●	●	●	●	●	●	●	●
66	06.514 BOLT; STRG COLUMN (B)	8-97249-319-1	02	1	0211-	●	●	●	●	●	●	●	●
95	06.509 BOLT; STRG UNIT (A) M12X30 FLANGE	0-28661-230-0	02	1	0211-	●	●	●	●	●	●	●	●
95	06.509 BOLT; STRG UNIT (B) M16X195 W/PL WASHER	8-97245-661-0	01	1	0211-	●	●	●	●	●	●	●	●
96	06.509 NUT; STRG UNIT M16	0-91110-516-0	02	1	0211-	●	●	●	●	●	●	●	●
102	06.500 LOCK ASM; STRG	8-97349-942-0	01	1	0211-	●	●	●	●	●	●	●	●
103	02.188 SWITCH; IGNITION	8-97350-072-0	01	1	0211-	●	●	●	●	●	●	●	●
105	06.500 SCREW; IGN SW	8-97349-945-0	02	1	0211-	●	●	●	●	●	●	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97358-236-0	01	1	0303-0305	●	●	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97943-548-0	01	1	0306-0306	●	●	●	●
134	06.524 SHAFT; STRG,2ND POWER STEERING<N40> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97943-687-0	01	1	0306-	●	●	●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (C)	8-97234-439-1	01	1	0211-0305	●	●	●	●
134	06.524 SHAFT; STRG,2ND (C)	8-97234-439-1	01	1	0211-0305					●	●	●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (C)	8-97943-553-0	01	1	0306-0306	●	●	●	●
134	06.524 SHAFT; STRG,2ND (C)	8-97943-553-0	01	1	0306-0306					●	●	●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (C)	8-97943-692-0	01	1	0306-	●	●	●	●
134	06.524 SHAFT; STRG,2ND (C)	8-97943-692-0	01	1	0306-					●	●	●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (D)	8-97256-548-2	01	1	0211-0302	●	●	●	●
134	06.524 SHAFT; STRG,2ND (D)	8-97256-548-2	01	1	0211-0302					●	●	●	●
134	06.524 SHAFT; STRG,2ND HIGH RIDE SUSPENSION(7YC) (D)	8-97358-237-0	01	1	0303-	●	●	●	●
134	06.524 SHAFT; STRG,2ND (D)	8-97358-237-0	01	1	0303-					●	●	●	●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97214-657-3	01	1	0211-0302	●	●	●	●
134	06.524 SHAFT; STRG,2ND MANUAL STEERING<N51> (A)	8-97214-657-3	01	1	0303-0305			●
134	06.524 SHAFT; STRG,2ND MANUAL STEERING<N51> (A)	8-97943-551-0	01	1	0306-0306			●
134	06.524 SHAFT; STRG,2ND MANUAL STEERING<N51> (A)	8-97943-690-0	01	1	0306-			●
134	06.524 SHAFT; STRG,2ND EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97256-547-0	01	1	0211-	●	●	●	●
152	00.796 WASHER; LK,STRG UNIT ID=16.5 OD=45	8-97249-436-0	02	1	0211-	●	●	●	●	●	●	●	●
188	06.500 BOLT; TORQUE,STEERING	8-97349-941-0	02	1	0211-	●	●	●	●	●	●	●	●
