4-30 — STEERING WHEEL AND COWL (#41938) — 28 parça

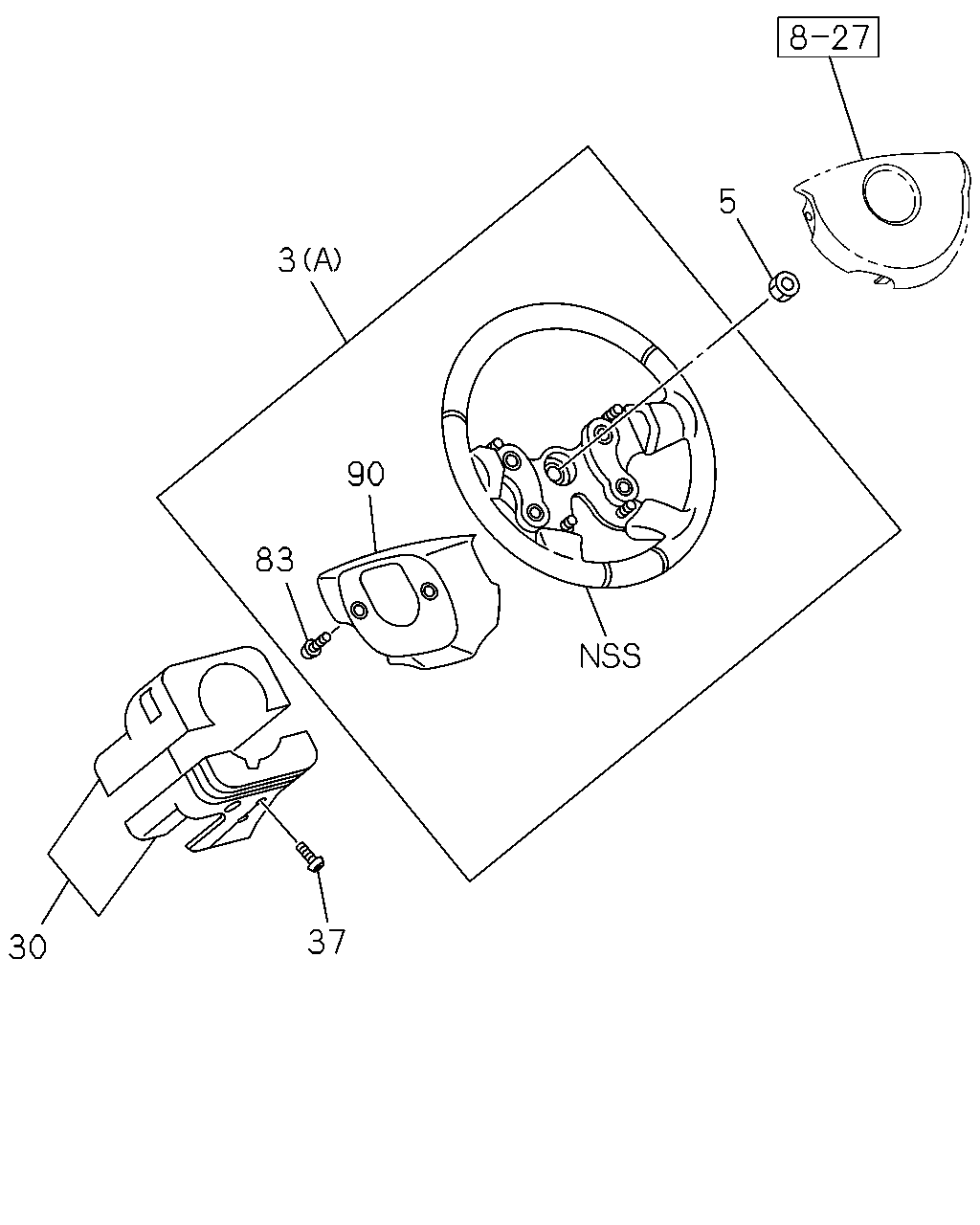

çizim 10427
5 3 90 83 37 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 06.513 WHEEL; STRG
AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97294-057-1 01 1 0211- ● ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER & PASSENGER(AK5) DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY 		8-97294-057-1 01 1 0211- ● ● ●
3 06.513 WHEEL; STRG
EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97294-059-1 01 1 0211- ● ● ● ● ●
3 06.513 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97294-059-1 01 1 0211- ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> (A) DARK GRAY 		8-97390-772-2 01 1 0211- ● ● ●
3 06.513 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97390-773-1 01 1 0211- ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER 		8-94455-487-1 01 1 0211- ● ● ● ● ● ● ● ●
30 06.518 COWL; STEERING
DARK GRAY 		8-97294-054-1 01 1 0211- ● ● ● ● ● ● ● ●
37 06.518 SCREW; STRG COWL UPR
M4X12 W/PL WASHER 		9-03900-412-0 03 1 0211- ● ● ● ● ● ● ● ●
83 06.514 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER(AK5) 		8-97350-038-0 02 1 0211- ● ● ● ● ● ● ● ●
83 06.514 SCREW; LWR COVER TO WHEEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97350-037-0 04 1 0211- ● ● ● ● ● ● ● ●
90 06.578 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97394-463-0 01 1 0211- ● ● ● ● ● ● ● ●
90 06.578 COVER ASM; STRG WHEEL,LWR
EXC. AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97394-464-0 01 1 0211- ● ● ● ● ● ● ● ●

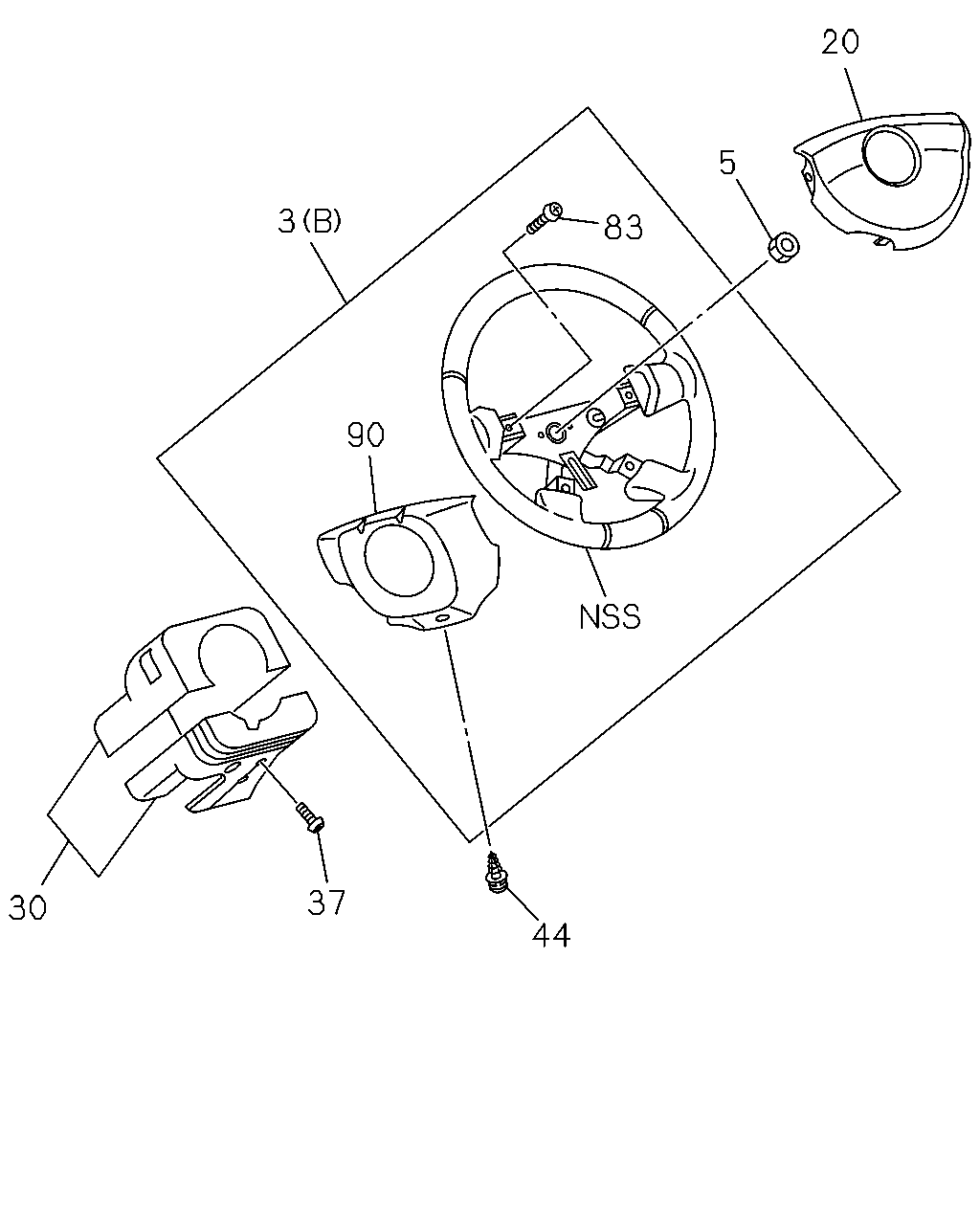

çizim 51424
20 5 3 83 90 37 30 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
3 06.513 WHEEL; STRG
AIR BAG DRIVER & PASSENGER(AK5) (A) DARK GRAY 		8-97294-057-1 01 1 0211- ● ● ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER & PASSENGER(AK5) DELUXE STEERING WHEEL URETHANE<N30> (A) DARK GRAY 		8-97294-057-1 01 1 0211- ● ● ●
3 06.513 WHEEL; STRG
EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97294-059-1 01 1 0211- ● ● ● ● ●
3 06.513 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97294-059-1 01 1 0211- ● ● ●
3 06.513 WHEEL; STRG
AIR BAG DRIVER & PASSENGER(AK5) STEERING WHEEL LEATHER<NP5> (A) DARK GRAY 		8-97390-772-2 01 1 0211- ● ● ●
3 06.513 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) DARK GRAY 		8-97390-773-1 01 1 0211- ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER 		8-94455-487-1 01 1 0211- ● ● ● ● ● ● ● ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97392-407-0 01 1 0211- ● ● ● ● ● ● ● ●
30 06.518 COWL; STEERING
DARK GRAY 		8-97294-054-1 01 1 0211- ● ● ● ● ● ● ● ●
37 06.518 SCREW; STRG COWL UPR
M4X12 W/PL WASHER 		9-03900-412-0 03 1 0211- ● ● ● ● ● ● ● ●
44 06.514 SCREW; STRG COWL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 06.512 M5X19 W/LK&PL WASHER 		8-94104-815-1 01 1 0211- ● ● ● ● ● ● ● ●
83 06.514 SCREW; LWR COVER TO WHEEL
AIR BAG DRIVER & PASSENGER(AK5) 		8-97350-038-0 02 1 0211- ● ● ● ● ● ● ● ●
83 06.514 SCREW; LWR COVER TO WHEEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97350-037-0 04 1 0211- ● ● ● ● ● ● ● ●
90 06.578 COVER ASM; STRG WHEEL,LWR
AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97394-463-0 01 1 0211- ● ● ● ● ● ● ● ●
90 06.578 COVER ASM; STRG WHEEL,LWR
EXC. AIR BAG DRIVER & PASSENGER(AK5) DARK GRAY 		8-97394-464-0 01 1 0211- ● ● ● ● ● ● ● ●
