Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#41937) — 169 parça

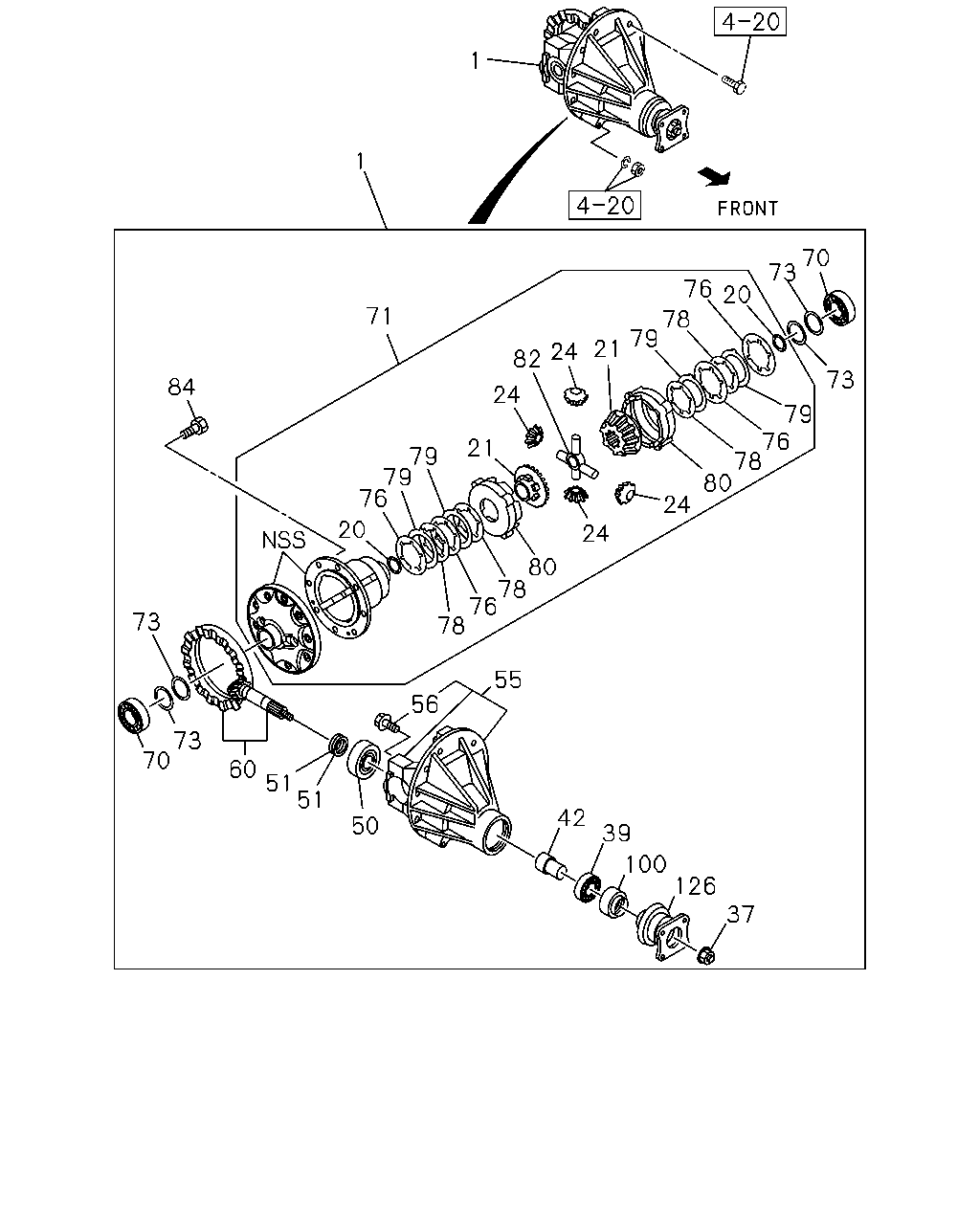

1 1 70 73 76 20 71 78 79 21 24 82 73 84 24 79 76 78 80 21 79 79 76 24 20 24 80 78 76 78 73 55 56 73 70 60 51 51 42 50 39 100 126 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<G80> 41/10	8-97240-917-0	01	1	0211-	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80> 41/10	8-97240-916-0	01	1	0211-	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) LIMITED SLIP DIFF<G80> 41/9	8-97240-919-0	01	1	0211-	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) EXC. LIMITED SLIP DIFF<G80> 41/9	8-97217-145-0	01	1	0211-	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) LIMITED SLIP DIFF<G80> 43/10	8-97240-918-0	01	1	0211-				●
1	05.505 DRIVE ASM; FINAL,RR 43/10	8-97240-918-0	01	1	0211-					●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97240-918-0	01	1	0211-								●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) EXC. LIMITED SLIP DIFF<G80> 43/10	8-97217-144-0	01	1	0211-				●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<G80> 43/9	8-97240-921-0	01	1	0211-				●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97240-921-0	01	1	0211-								●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<G80> 43/9	8-97240-920-0	01	1	0211-				●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.60	8-94365-187-0	02	1	0211-	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.60	8-94365-187-0	02	1	0211-					●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.70	8-94365-188-0	02	1	0211-	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.70	8-94365-188-0	02	1	0211-					●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.50	8-94453-935-0	02	1	0211-	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.50	8-94453-935-0	02	1	0211-					●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.80	8-97066-412-0	02	1	0211-	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.80	8-97066-412-0	02	1	0211-					●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=0.80	8-94435-343-0	02	1	0211-	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=0.90	8-94435-344-0	02	1	0211-	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.10	8-94435-345-0	02	1	0211-	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.20	8-94435-346-0	02	1	0211-	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.30	8-94435-347-0	02	1	0211-	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.00	9-41562-602-0	02	1	0211-	●	●	●	●
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF<G80>	8-97200-286-0	02	1	0211-	●	●	●	●
21	05.528 GEAR; SIDE,DIFF	8-97200-286-0	02	1	0211-					●	●	●	●
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<G80> Z=18	8-97226-763-0	02	1	0211-	●	●	●	●
24	05.526 GEAR; PINION,DIFF LIMITED SLIP DIFF<G80>	8-97200-285-0	04	1	0211-	●	●	●	●
24	05.526 GEAR; PINION,DIFF	8-97200-285-0	04	1	0211-					●	●	●	●
24	05.526 GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<G80> Z=10	8-97226-762-0	02	1	0211-	●	●	●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	0211-	●	●	●	●	●	●	●	●
39	05.484 BEARING; FINAL PINION NSK	9-00093-078-0	01	1	0211-	●	●	●	●	●	●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97035-399-0	01	1	0211-	●	●	●	●	●	●	●	●
50	05.447 BEARING; FINAL PINION NSK	8-94435-342-0	01	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=1.94	8-94435-356-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=1.96	8-94435-357-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=1.98	8-94435-358-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.00	8-94435-359-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.02	8-94435-360-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.04	8-94435-361-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.06	8-94435-362-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.08	8-94435-363-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.10	8-94435-364-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.12	8-94435-365-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.14	8-94435-366-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.16	8-94435-367-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.18	8-94435-368-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.20	8-94435-369-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.22	8-94435-370-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.24	8-94435-371-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.26	8-94435-372-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.28	8-94435-373-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.30	8-94435-374-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.32	8-94435-375-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.34	8-94435-376-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.36	8-94435-377-0	AR	1	0211-	●	●	●	●	●	●	●	●
55	05.505 CARRIER; DIFF	8-97240-889-0	01	1	0211-	●	●	●	●	●	●	●	●
56	05.506 BOLT; BRG CAP 05.387 M12X75	8-94435-341-0	04	1	0211-	●	●	●	●	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97302-922-0	01	1	0211-	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97087-826-0	01	1	0211-	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97302-925-0	01	1	0211-				●				●
60	05.529 GEAR SET; FINAL DRIVE,RR 43/10	8-97302-925-0	01	1	0211-					●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97039-242-1	01	1	0211-				●				●
70	05.536 BEARING; DIFF CAGE NSK	8-94435-355-0	02	1	0211-	●	●	●	●	●	●	●	●
70	05.536 BEARING; DIFF CAGE JTEKT	8-94452-449-1	02	1	0211-	●	●	●	●	●	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<G80>	8-97062-971-1	01	1	0211-	●	●	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-97062-971-1	01	1	0211-					●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.12	8-94435-348-0	AR	1	0211-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.15	8-94435-349-0	AR	1	0211-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.18	8-94435-350-0	AR	1	0211-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.25	8-94435-351-0	AR	1	0211-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.30	8-94435-352-0	AR	1	0211-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.50	8-94435-353-0	AR	1	0211-	●	●	●	●	●	●	●	●
76	05.511 DISC; BEVEL LIMITED SLIP DIFF<G80>	8-97096-209-0	04	1	0211-	●	●	●	●
76	05.511 DISC; BEVEL	8-97096-209-0	04	1	0211-					●	●	●	●
78	05.511 DISC; FRICTION LIMITED SLIP DIFF<G80>	8-94453-937-0	04	1	0211-	●	●	●	●
78	05.511 DISC; FRICTION	8-94453-937-0	04	1	0211-					●	●	●	●
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<G80> T=1.85	8-94365-189-0	04	1	0211-	●	●	●	●
79	05.511 PLATE; FRICTION T=1.85	8-94365-189-0	04	1	0211-					●	●	●	●
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<G80> T=1.75	8-94453-936-0	04	1	0211-	●	●	●	●
79	05.511 PLATE; FRICTION T=1.75	8-94453-936-0	04	1	0211-					●	●	●	●
80	05.511 RING; PRESSURE LIMITED SLIP DIFF<G80>	8-94453-931-0	02	1	0211-	●	●	●	●
80	05.511 RING; PRESSURE	8-94453-931-0	02	1	0211-					●	●	●	●
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<G80>	8-94453-932-0	01	1	0211-	●	●	●	●
82	05.517 SPIDER; DIFF PINION	8-94453-932-0	01	1	0211-					●	●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR M10X18.5	8-97038-064-0	12	1	0211-	●	●	●	●	●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION NOK	8-94408-084-1	01	1	0211-	●	●	●	●	●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION TKK	8-94408-085-1	01	1	0211-	●	●	●	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION	8-97217-146-0	01	1	0211-	●	●	●	●	●	●	●	●

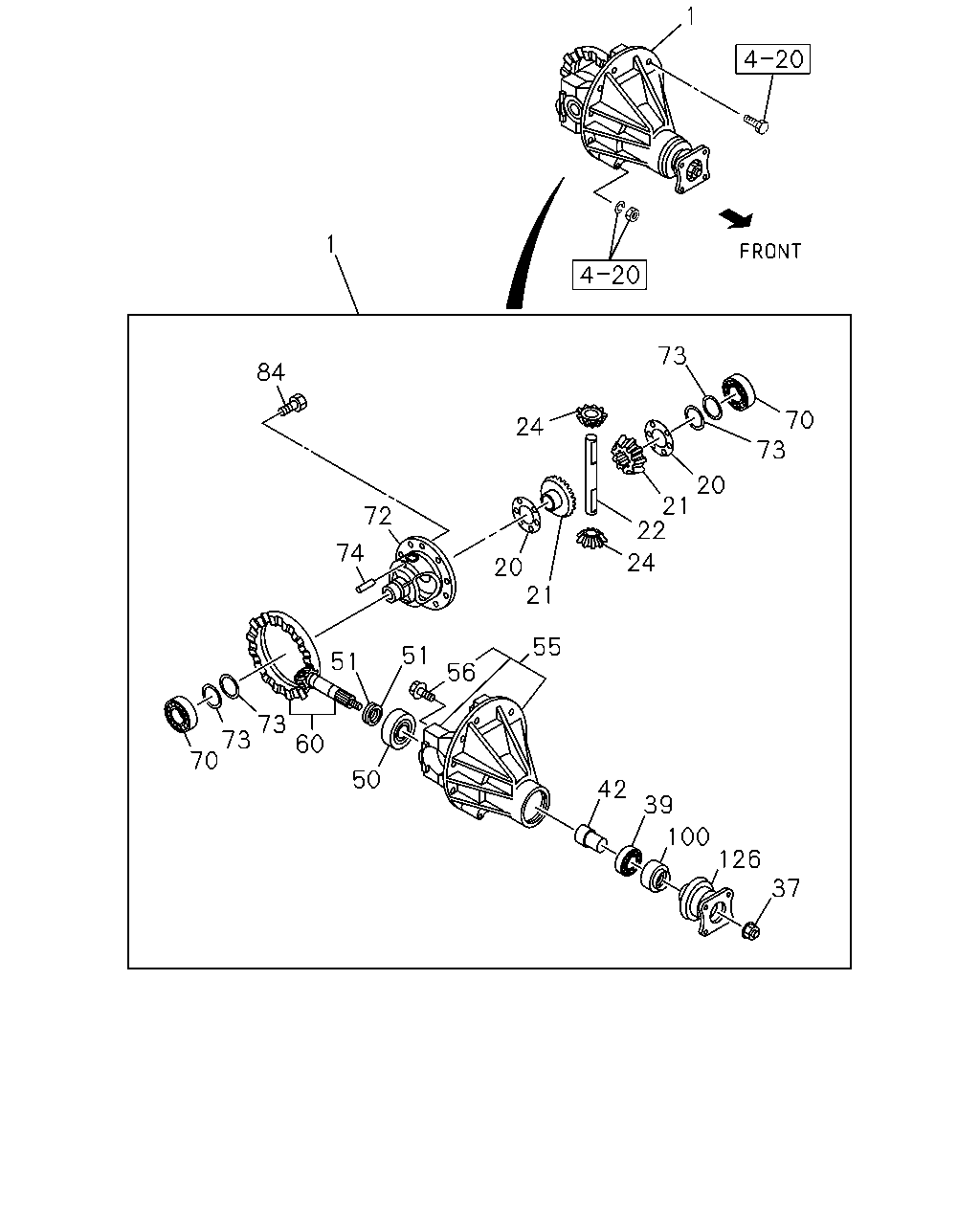

1 1 73 84 70 73 24 20 21 22 72 74 24 20 21 55 51 51 56 73 73 60 70 50 42 39 100 126 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<G80> 41/10	8-97240-917-0	01	1	0211-	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80> 41/10	8-97240-916-0	01	1	0211-	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) LIMITED SLIP DIFF<G80> 41/9	8-97240-919-0	01	1	0211-	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) EXC. LIMITED SLIP DIFF<G80> 41/9	8-97217-145-0	01	1	0211-	●	●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) LIMITED SLIP DIFF<G80> 43/10	8-97240-918-0	01	1	0211-				●
1	05.505 DRIVE ASM; FINAL,RR 43/10	8-97240-918-0	01	1	0211-					●	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97240-918-0	01	1	0211-								●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) EXC. LIMITED SLIP DIFF<G80> 43/10	8-97217-144-0	01	1	0211-				●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<G80> 43/9	8-97240-921-0	01	1	0211-				●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97240-921-0	01	1	0211-								●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/9(S2J) EXC. LIMITED SLIP DIFF<G80> 43/9	8-97240-920-0	01	1	0211-				●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.60	8-94365-187-0	02	1	0211-	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.60	8-94365-187-0	02	1	0211-					●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.70	8-94365-188-0	02	1	0211-	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.70	8-94365-188-0	02	1	0211-					●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.50	8-94453-935-0	02	1	0211-	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.50	8-94453-935-0	02	1	0211-					●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.80	8-97066-412-0	02	1	0211-	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.80	8-97066-412-0	02	1	0211-					●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=0.80	8-94435-343-0	02	1	0211-	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=0.90	8-94435-344-0	02	1	0211-	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.10	8-94435-345-0	02	1	0211-	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.20	8-94435-346-0	02	1	0211-	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.30	8-94435-347-0	02	1	0211-	●	●	●	●
20	05.543 WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.00	9-41562-602-0	02	1	0211-	●	●	●	●
21	05.528 GEAR; SIDE,DIFF LIMITED SLIP DIFF<G80>	8-97200-286-0	02	1	0211-	●	●	●	●
21	05.528 GEAR; SIDE,DIFF	8-97200-286-0	02	1	0211-					●	●	●	●
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<G80> Z=18	8-97226-763-0	02	1	0211-	●	●	●	●
22	05.520 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<G80>	8-94435-308-1	01	1	0211-	●	●	●	●
24	05.526 GEAR; PINION,DIFF LIMITED SLIP DIFF<G80>	8-97200-285-0	04	1	0211-	●	●	●	●
24	05.526 GEAR; PINION,DIFF	8-97200-285-0	04	1	0211-					●	●	●	●
24	05.526 GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<G80> Z=10	8-97226-762-0	02	1	0211-	●	●	●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	0211-	●	●	●	●	●	●	●	●
39	05.484 BEARING; FINAL PINION NSK	9-00093-078-0	01	1	0211-	●	●	●	●	●	●	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE	8-97035-399-0	01	1	0211-	●	●	●	●	●	●	●	●
50	05.447 BEARING; FINAL PINION NSK	8-94435-342-0	01	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=1.94	8-94435-356-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=1.96	8-94435-357-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=1.98	8-94435-358-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.00	8-94435-359-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.02	8-94435-360-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.04	8-94435-361-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.06	8-94435-362-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.08	8-94435-363-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.10	8-94435-364-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.12	8-94435-365-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.14	8-94435-366-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.16	8-94435-367-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.18	8-94435-368-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.20	8-94435-369-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.22	8-94435-370-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.24	8-94435-371-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.26	8-94435-372-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.28	8-94435-373-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.30	8-94435-374-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.32	8-94435-375-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.34	8-94435-376-0	AR	1	0211-	●	●	●	●	●	●	●	●
51	05.586 SHIM; PINION,FINAL DRIVE T=2.36	8-94435-377-0	AR	1	0211-	●	●	●	●	●	●	●	●
55	05.505 CARRIER; DIFF	8-97240-889-0	01	1	0211-	●	●	●	●	●	●	●	●
56	05.506 BOLT; BRG CAP 05.387 M12X75	8-94435-341-0	04	1	0211-	●	●	●	●	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97302-922-0	01	1	0211-	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97087-826-0	01	1	0211-	●	●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97302-925-0	01	1	0211-				●				●
60	05.529 GEAR SET; FINAL DRIVE,RR 43/10	8-97302-925-0	01	1	0211-					●	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/9(S2J) 43/9	8-97039-242-1	01	1	0211-				●				●
70	05.536 BEARING; DIFF CAGE NSK	8-94435-355-0	02	1	0211-	●	●	●	●	●	●	●	●
70	05.536 BEARING; DIFF CAGE JTEKT	8-94452-449-1	02	1	0211-	●	●	●	●	●	●	●	●
72	05.510 CAGE; DIFF EXC. LIMITED SLIP DIFF<G80>	8-94325-448-0	01	1	0211-	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.12	8-94435-348-0	AR	1	0211-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.15	8-94435-349-0	AR	1	0211-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.18	8-94435-350-0	AR	1	0211-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.25	8-94435-351-0	AR	1	0211-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.30	8-94435-352-0	AR	1	0211-	●	●	●	●	●	●	●	●
73	05.537 SHIM; DIFF SIDE BRG T=0.50	8-94435-353-0	AR	1	0211-	●	●	●	●	●	●	●	●
74	05.518 PIN; LK,CROSS PIN EXC. LIMITED SLIP DIFF<G80> OD=5 L=35	9-09878-096-0	01	1	0211-	●	●	●	●
84	05.531 BOLT; FINAL DRIVE GEAR M10X18.5	8-97038-064-0	12	1	0211-	●	●	●	●	●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION NOK	8-94408-084-1	01	1	0211-	●	●	●	●	●	●	●	●
100	05.469 SEAL; OIL,FINAL PINION TKK	8-94408-085-1	01	1	0211-	●	●	●	●	●	●	●	●
126	05.545 COUPLING; DRIVING PINION	8-97217-146-0	01	1	0211-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
