4-20 — REAR AXLE CASE AND SHAFT (#41936) — 78 parça

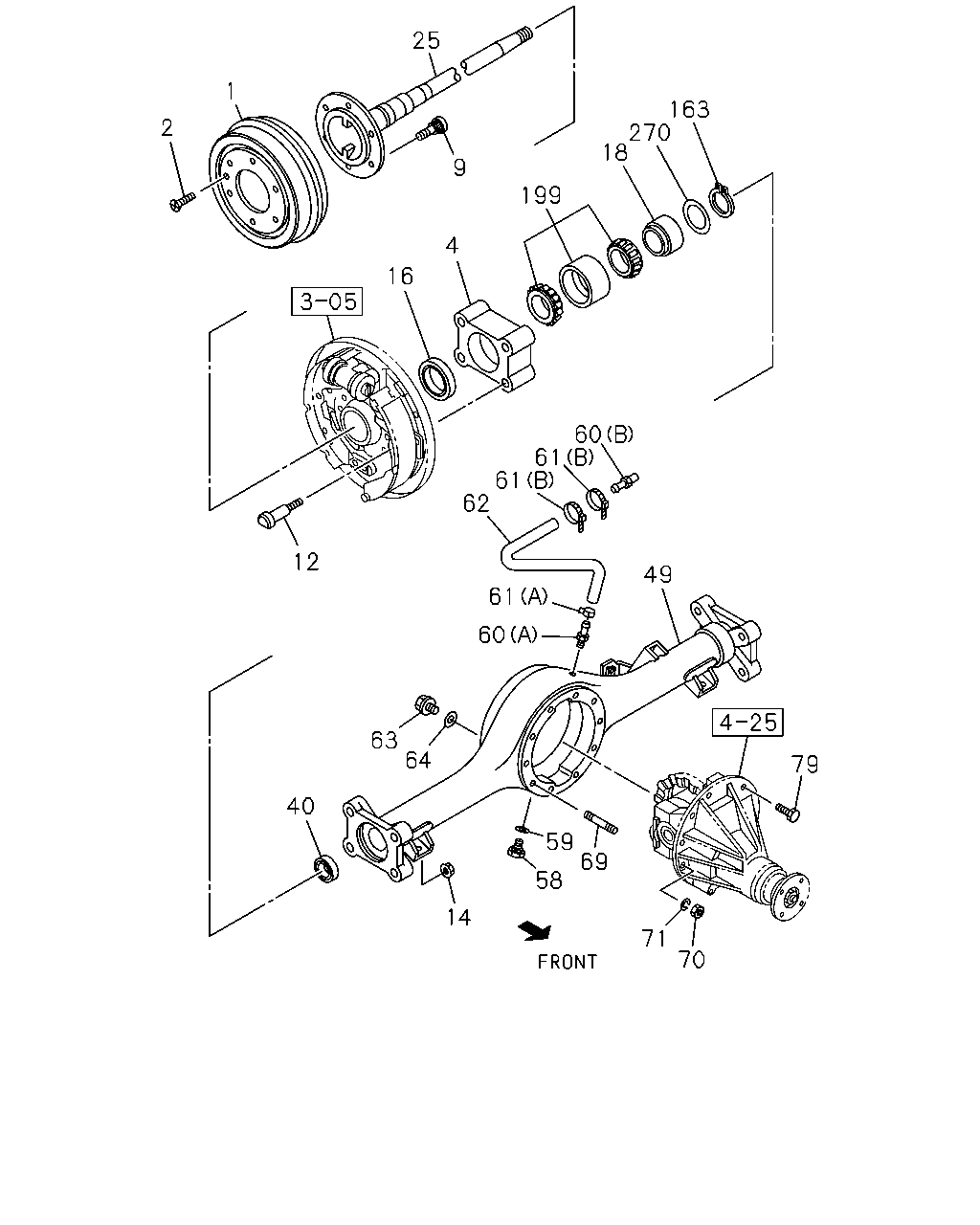

çizim 49990
25 1 163 270 18 2 9 199 4 16 60 61 61 62 12 49 61 60 63 64 79 40 59 69 58 14 71 70
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 05.809 DRUM; BRK,RR
HIGH RIDE SUSPENSION(7YC) 		8-97238-630-1 02 1 0211-0211 ● ● ● ●
1 05.809 DRUM; BRK,RR 8-97238-630-1 02 1 0211-0211 ● ● ● ●
1 05.809 DRUM; BRK,RR
HIGH RIDE SUSPENSION(7YC) 		8-97360-506-0 02 1 0212- ● ● ● ●
1 05.809 DRUM; BRK,RR 8-97360-506-0 02 1 0212- ● ● ● ●
1 05.809 DRUM; BRK,RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-629-0 02 1 0211-0211 ● ● ● ●
1 05.809 DRUM; BRK,RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97360-505-0 02 1 0212- ● ● ● ●
2 05.812 BOLT; BRK DRUM
M6X16 CK-HEAD 		9-03090-616-0 02 1 0211- ● ● ● ● ● ● ● ●
4 05.816 HOLDER; BRG,AXLE SHAFT
FINAL GEAR RATIO 43/9(S2J) ANTI LOCK BRAKE SYSTEM<JE5> EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE SUSPENSION(7YC) 		8-97216-780-1 04 1 0211-0301 ●
4 05.816 HOLDER; BRG,AXLE SHAFT
FINAL GEAR RATIO 43/10(S7C) ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97216-780-1 04 1 0211-0301 ●
4 05.816 HOLDER; BRG,AXLE SHAFT
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J) LIMITED SLIP DIFF<G80> ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97216-780-1 04 1 0211-0301 ●
4 05.816 HOLDER; BRG,AXLE SHAFT
HIGH RIDE SUSPENSION(7YC) 		8-97216-781-1 02 1 0211-0301 ● ● ● ●
4 05.816 HOLDER; BRG,AXLE SHAFT 8-97216-781-1 02 1 0211-0301 ● ● ● ●
4 05.816 HOLDER; BRG,AXLE SHAFT
HIGH RIDE SUSPENSION(7YC) 		8-97216-781-1 04 1 0302- ● ● ● ●
4 05.816 HOLDER; BRG,AXLE SHAFT 8-97216-781-1 04 1 0302- ● ● ● ●
4 05.816 HOLDER; BRG,AXLE SHAFT
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97216-780-1 02 1 0211-0301 ● ●
4 05.816 HOLDER; BRG,AXLE SHAFT
SINGLE CAB LONG(TF**SF) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97216-780-1 02 1 0211-0301 ●
4 05.816 HOLDER; BRG,AXLE SHAFT
4X2 SINGLE CAB EXTRA LONG(TFB*SK) FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97216-780-1 02 1 0211-0301 ●
4 05.816 HOLDER; BRG,AXLE SHAFT
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM<JE5> EXC. LIMITED SLIP DIFF<G80>,HIGH RIDE SUSPENSION(7YC) 		8-97216-780-1 02 1 0211-0301 ●
4 05.816 HOLDER; BRG,AXLE SHAFT
FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<G80> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97216-780-1 02 1 0211-0301 ●
4 05.816 HOLDER; BRG,AXLE SHAFT
FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO43/10(S7C) LIMITED SLIP DIFF<G80> EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) 		8-97216-780-1 02 1 0211-0301 ●
4 05.816 HOLDER; BRG,AXLE SHAFT
EXC. LIMITED SLIP DIFF<G80>,ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSPENSION(7YC) 		8-97216-780-1 02 1 0211-0301 ●
4 05.816 HOLDER; BRG,AXLE SHAFT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97216-780-1 04 1 0302- ● ● ● ●
9 05.812 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD 		8-97213-870-0 12 1 0211- ● ● ● ● ● ● ● ●
12 05.816 BOLT; BRG HOLDER TO CASE
LOWER 		8-97216-806-0 04 1 0211-0306 ● ● ● ● ● ● ● ●
12 05.816 BOLT; BRG HOLDER TO CASE
UPPER 		8-97216-807-0 04 1 0211-0306 ● ● ● ● ● ● ● ●
12 05.816 BOLT; BRG HOLDER TO CASE 8-97354-886-0 08 1 0307- ● ● ● ● ● ● ● ●
14 05.816 NUT; BRG HOLDER TO CASE
M12 FLANGE 		0-91180-212-0 08 1 0211- ● ● ● ● ● ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER 8-97216-792-0 02 1 0211- ● ● ● ● ● ● ● ●
18 05.822 RETAINER; RR AXLE 8-97239-868-0 02 1 0211- ● ● ● ● ●
18 05.822 RETAINER; RR AXLE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97239-868-0 02 1 0211- ● ● ●
18 05.822 RETAINER; RR AXLE
ANTI LOCK BRAKE SYSTEM<JE5> 		8-97216-753-0 02 1 0211- ● ● ●
25 05.420 SHAFT; AXLE,RR
HIGH RIDE SUSPENSION(7YC) 		8-97216-796-1 02 1 0211- ● ● ● ●
25 05.420 SHAFT; AXLE,RR 8-97216-796-1 02 1 0211- ● ● ● ●
25 05.420 SHAFT; AXLE,RR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97216-793-1 02 1 0211- ● ● ● ●
40 05.387 SEAL; OIL,REAR AXLE 8-97323-297-0 02 1 0211- ● ● ● ● ● ● ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6) EXC. LIMITED SLIP DIFF<G80>,ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSP ENSION(7YC) 		8-97239-858-2 01 1 0302-0302 ● ● ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6) EXC. LIMITED SLIP DIFF<G80>,ANTI LOCK BRAKE SYSTEM<JE5>,HIGH RIDE SUSP ENSION(7YC) 		8-97943-325-1 01 1 0302- ● ● ● ●
49 05.387 CASE; RR AXLE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) 		8-97239-858-2 01 1 0211-0301 ● ● ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) 		8-97239-858-2 02 1 0302-0302 ● ● ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6) LIMITED SLIP DIFF<G80> EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) 		8-97239-858-2 02 1 0302-0302 ● ● ●
49 05.387 CASE; RR AXLE
4X2 SINGLE CAB EXTRA LONG(TFB*SK) FINAL GEAR RATIO 41/9(HC6) LIMITED SLIP DIFF<G80> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97239-858-2 02 1 0302-0302 ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/9(S2J),FINAL GEAR RATIO 43/10(S7C) EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) 		8-97239-858-4 01 1 0303- ● ● ● ●
49 05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/9(HC6) LIMITED SLIP DIFF<G80> EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) 		8-97239-858-4 01 1 0303- ● ● ●
49 05.387 CASE; RR AXLE
4X2 SINGLE CAB EXTRA LONG(TFB*SK) FINAL GEAR RATIO 41/9(HC6) LIMITED SLIP DIFF<G80> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97239-858-4 01 1 0303- ●
49 05.387 CASE; RR AXLE
HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97239-861-2 01 1 0211-0301 ● ● ● ●
49 05.387 CASE; RR AXLE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97239-861-2 01 1 0211-0301 ● ● ● ●
49 05.387 CASE; RR AXLE
HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97239-861-2 02 1 0302-0302 ● ● ● ●
49 05.387 CASE; RR AXLE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97239-861-2 02 1 0302-0302 ● ● ● ●
49 05.387 CASE; RR AXLE
HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97239-861-4 01 1 0303- ● ● ● ●
49 05.387 CASE; RR AXLE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97239-861-4 01 1 0303- ● ● ● ●
49 05.387 CASE; RR AXLE
ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97216-748-3 01 1 0211-0301 ●
49 05.387 CASE; RR AXLE
ANTI LOCK BRAKE SYSTEM<JE5> 		8-97216-748-3 01 1 0211-0301 ● ●
49 05.387 CASE; RR AXLE
ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97216-748-3 02 1 0302-0302 ●
49 05.387 CASE; RR AXLE
ANTI LOCK BRAKE SYSTEM<JE5> 		8-97216-748-3 02 1 0302-0302 ● ●
49 05.387 CASE; RR AXLE
ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97216-748-5 01 1 0303- ●
49 05.387 CASE; RR AXLE
ANTI LOCK BRAKE SYSTEM<JE5> 		8-97216-748-5 01 1 0303- ● ●
49 05.387 CASE; RR AXLE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97216-747-3 01 1 0211-0301 ●
49 05.387 CASE; RR AXLE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97216-747-3 02 1 0302-0302 ●
49 05.387 CASE; RR AXLE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97216-747-5 01 1 0303- ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 0211- ● ● ● ● ● ● ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 0211- ● ● ● ● ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
(A) L=37 		8-94226-849-1 01 1 0211- ● ● ● ● ● ● ● ●
60 05.387 BREATHER; RR AXLE CASE
(B) 		8-97228-909-0 01 1 0211- ● ● ● ● ● ● ● ●
61 05.387 CLIP; BREATHER HOSE,RR AXLE
02.587 (B) L=112 		8-94232-618-0 02 1 0211- ● ● ● ● ● ● ● ●
61 05.387 CLIP; BREATHER HOSE,RR AXLE
03.163 (A) ID=11 		8-94238-570-0 01 1 0211- ● ● ● ● ● ● ● ●
62 05.387 HOSE; RUBBER,BREATHER,RR AXLE
08.962 L=540 SERVICED BY L=3000 		0-04750-300-0 01 1 0211- ● ● ● ● ● ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE 8-97307-059-1 01 1 0211- ● ● ● ● ● ● ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 0211- ● ● ● ● ● ● ● ●
69 05.387 STUD; AXLE CASE
05.398 M10X31 L=43 		9-09630-011-1 02 1 0211- ● ● ● ● ● ● ● ●
70 05.387 NUT; CARRIER
00.833 M10 		0-91110-510-0 02 1 0211- ● ● ● ● ● ● ● ●
71 05.389 WASHER; LK,FINAL DRIVE SETTING
00.002 ID=10.2 		9-09150-610-0 02 1 0211- ● ● ● ● ● ● ● ●
79 05.387 BOLT; COVER TO CASE
M10X30 W/LK WASHER 		0-50561-030-0 07 1 0211- ● ● ● ● ● ● ● ●
79 05.387 BOLT; COVER TO CASE
M10X90 W/LK WASHER 		0-50561-090-0 01 1 0211- ● ● ● ● ● ● ● ●
163 05.422 RING; SNAP,AXLE SHAFT
ID=38.5 T=2.00 		9-09952-253-0 AR 1 0302- ● ● ● ● ● ● ● ●
163 05.422 RING; SNAP,AXLE SHAFT
ID=38.5 T=1.75 		9-09180-042-0 AR 1 0211- ● ● ● ● ● ● ● ●
199 05.855 BEARING; RR AXLE 8-97216-797-0 04 1 0211-0306 ● ● ● ● ● ● ● ●
199 05.855 BEARING; RR AXLE 8-97216-797-1 02 1 0307- ● ● ● ● ● ● ● ●
270 05.855 SHIM; RETAINER
05.537 T=0.24 		9-41519-109-0 AR 1 0302- ● ● ● ● ● ● ● ●
