4-12 — FRONT DRIVE SHAFT (#41933) — 69 parça

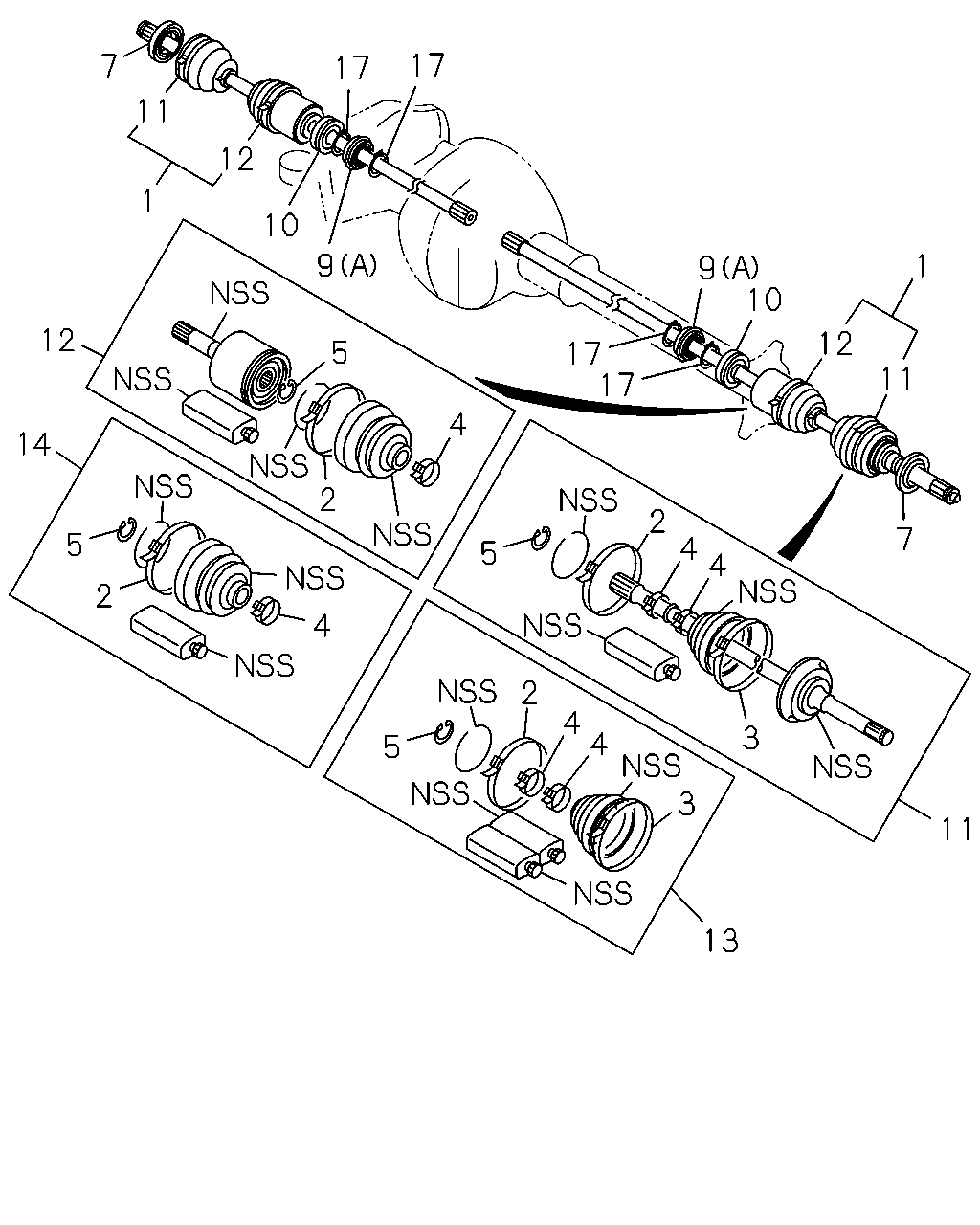

17 7 17 11 12 1 10 9 1 9 10 12 12 5 17 17 11 4 14 2 2 4 4 7 5 5 2 4 2 4 4 3 3 5 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	06.055 SHAFT ASM; FRT DRIVE	8-97215-697-1	02	1	0211-0302	●	●	●	●
1	06.055 SHAFT ASM; FRT DRIVE	8-97360-046-0	02	1	0303-	●	●	●	●
2	06.061 BAND; "A",FRT DRIVE SHAFT	8-97349-960-0	02	1	0211-	●	●	●	●
3	06.061 BAND; "B",FRT DRIVE SHAFT	8-97349-959-0	02	1	0211-	●	●	●	●
4	06.061 BAND; "C",FRT DRIVE SHAFT	8-97222-152-0	04	1	0211-	●	●	●	●
5	06.061 RING; RET,FRT DRIVE SHAFT	8-97131-402-0	02	1	0211-	●	●	●	●
7	06.061 SEAL; DUST,DRIVE SHAFT	8-97123-692-0	02	1	0211-	●	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER (A)	8-94407-724-0	02	1	0211-	●	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER (B)	8-97101-878-0	01	1	0211-	●	●	●	●
10	06.061 SEAL; OIL,AXLE SHAFT,INNER	8-94366-610-0	02	1	0211-	●	●	●	●
11	06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA	8-97349-952-1	02	1	0211-	●	●	●	●
12	06.060 JOINT ASM	8-97349-953-0	02	1	0211-	●	●	●	●
13	06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF	8-97349-955-0	02	1	0211-	●	●	●	●
14	06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF	8-97349-956-0	02	1	0211-	●	●	●	●
17	06.061 RING; SNAP,DRIVE SHAFT TO TRANS 04.416 ID=27.9	9-09180-030-0	04	1	0211-	●	●	●	●

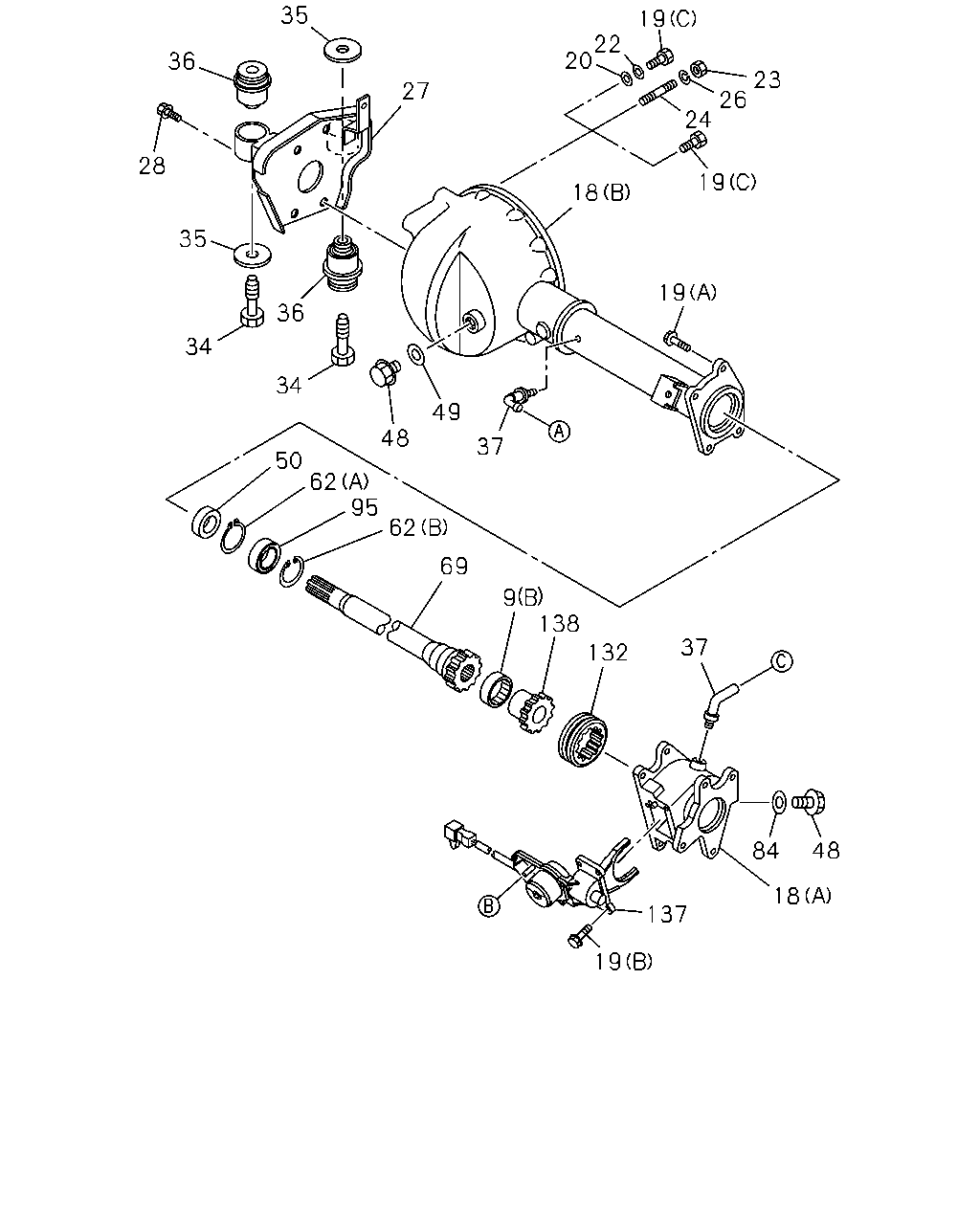

35 19 22 20 36 23 26 24 27 28 19 18 35 19 36 34 34 49 48 37 50 62 95 62 69 9 138 37 132 84 48 18 137 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	06.056 BEARING; AXLE SHAFT,INNER (A)	8-94407-724-0	02	1	0211-	●	●	●	●
9	06.056 BEARING; AXLE SHAFT,INNER (B)	8-97101-878-0	01	1	0211-	●	●	●	●
18	06.008 CASE; FRT AXLE (A)	8-97081-658-3	01	1	0211-	●	●	●	●
18	06.008 CASE; FRT AXLE (B)	8-97239-627-0	01	1	0211-	●	●	●	●
19	06.156 BOLT; FRT AXLE 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0302-	●	●	●	●
19	06.156 BOLT; FRT AXLE 06.056 (A) M12X22 FLANGE	0-28081-222-0	04	1	0211-	●	●	●	●
19	06.156 BOLT; FRT AXLE 02.183 (B) M8X35 FLANGE	0-28680-835-0	04	1	0211-0301	●	●	●	●
19	06.156 BOLT; FRT AXLE 02.183 (B) M8X35 FLANGE	0-28680-835-0	03	1	0302-	●	●	●	●
19	06.156 BOLT; FRT AXLE (C) M8X25 W/LK WASHER	8-97093-664-1	06	1	0211-	●	●	●	●
19	06.156 BOLT; FRT AXLE (C) M8X30 W/LK WASHER	8-97093-665-1	02	1	0211-	●	●	●	●
19	06.156 BOLT; FRT AXLE (C) M8X90 W/LK WASHER	8-97093-666-1	02	1	0211-	●	●	●	●
20	06.156 GASKET; AXLE CASE 05.398 ID=8.2 OD=14.0 T=1.0	9-09571-408-0	01	1	0211-	●	●	●	●
22	06.056 WASHER; PL,AXLE CASE 00.206 ID=8.4	9-09164-508-0	01	1	0211-	●	●	●	●
23	06.056 NUT; FRT AXLE 00.002 M8	9-09110-508-0	02	1	0211-	●	●	●	●
24	06.056 STUD; CASE,FRT AXLE 03.901 M8X25 L=37	9-04110-825-0	02	1	0211-	●	●	●	●
26	06.056 WASHER; LK,CASE,FRT AXLE 00.002 ID=8.2	9-09150-608-0	02	1	0211-	●	●	●	●
27	06.056 BRACKET; AXLE CASE	8-97364-324-0	01	1	0211-	●	●	●	●
27	06.056 BRACKET; AXLE CASE	8-97364-325-0	01	1	0211-	●	●	●	●
28	06.056 BOLT; BRKT TO AXLE CASE M12X22 FLANGE	0-28081-222-0	08	1	0211-	●	●	●	●
34	06.008 BOLT; FRT AXLE MTG M14X85 FLANGE	8-97259-306-0	04	1	0211-	●	●	●	●
35	06.008 WASHER; FRT AXLE MTG ID=14.2 OD=50	8-94419-772-0	04	1	0211-	●	●	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG	8-97331-901-0	02	1	0211-0302	●	●	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG	8-97364-319-0	02	1	0303-	●	●	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG	8-97331-902-0	02	1	0211-0302	●	●	●	●
36	06.008 BUSHING; RUBBER,FRT AXLE MTG	8-97364-323-0	02	1	0303-	●	●	●	●
37	06.008 BREATHER; FRT AXLE CASE	8-94226-943-0	02	1	0211-	●	●	●	●
48	05.400 PLUG; DRAIN,AXLE CASE 04.103 M20X10.5	9-09662-005-0	02	1	0211-	●	●	●	●
49	05.400 GASKET; DRAIN PLUG ID=20 OD=30	8-94462-734-0	01	1	0211-	●	●	●	●
50	06.061 SEAL; OIL,SHAFT,FRT AXLE	8-97084-507-0	01	1	0211-	●	●	●	●
62	06.061 RING; SNAP,AXLE SHAFT 08.934 (A) ID=37.0	9-09180-040-0	01	1	0211-	●	●	●	●
62	06.061 RING; SNAP,AXLE SHAFT 01.105 (B) ID=57.9	9-09180-162-0	01	1	0211-	●	●	●	●
69	06.055 SHAFT; AXLE,FRT INNER	8-97188-174-1	01	1	0211-	●	●	●	●
84	06.326 GASKET; PLUG,OIL FILLER 05.400 ID=20 OD=30	8-94462-734-0	01	1	0211-	●	●	●	●
95	06.008 BEARING; AXLE SHAFT,FRT	8-97103-392-0	01	1	0211-	●	●	●	●
132	06.008 SLEEVE; RUBBER,HOSE	8-97130-567-1	01	1	0211-	●	●	●	●
137	06.008 ACTUATOR; AXLE	8-97259-525-2	01	1	0211-0301	●	●	●	●
137	06.008 ACTUATOR; AXLE	8-97356-763-1	01	1	0302-0305	●	●	●	●
137	06.008 ACTUATOR; AXLE	8-97367-959-0	01	1	0306-	●	●	●	●
138	06.008 GEAR; CLUTCH Z=17	8-97134-857-1	01	1	0211-	●	●	●	●

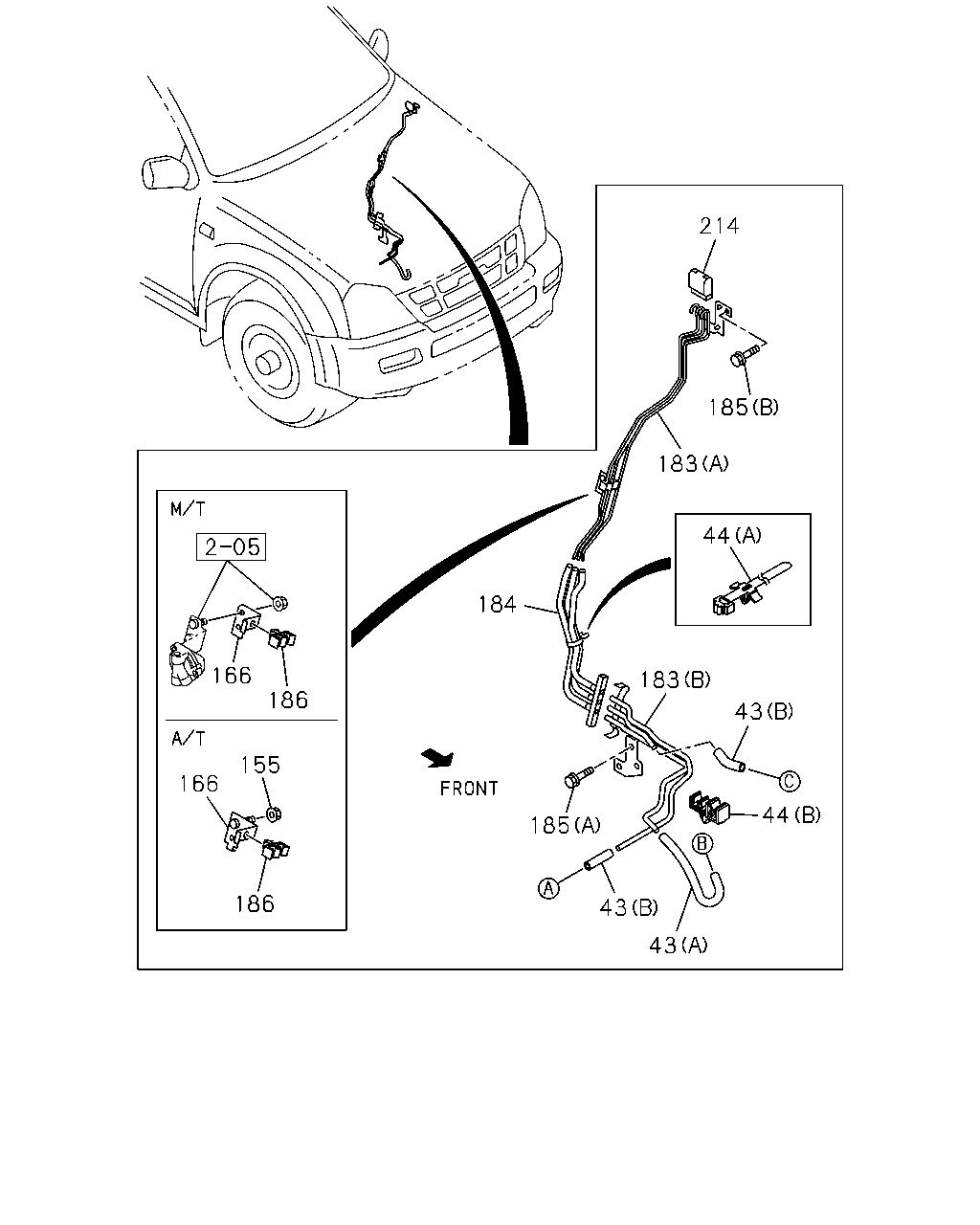

214 185 183 44 184 166 183 186 43 155 166 44 185 186 43 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
43	06.008 HOSE; RUBBER,AIR BREATHER 08.962 (A) L=200 SERVICED BY L=3000	0-04740-300-0	01	1	0211-	●	●	●	●
43	06.008 HOSE; RUBBER,AIR BREATHER 08.962 (B) L=50 SERVICED BY L=3000	0-04750-300-0	02	1	0211-	●	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 02.559 (A) L=170.3	1-09987-182-0	01	1	0211-	●	●	●	●
44	06.008 CLIP; AIR BREATHER HOSE 04.686 (B)	8-94442-883-1	01	1	0211-	●	●	●	●
155	06.008 NUT; BRKT A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 01.062 M6 FLANGE	0-91180-106-0	01	1	0211-				●
166	06.008 BRACKET; CLIP	8-97236-435-0	01	1	0211-	●	●	●
166	06.008 BRACKET; CLIP M/T MUA 5 SPEED 5G(RSP)	8-97236-435-0	01	1	0211-				●
166	06.008 BRACKET; CLIP A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK)	8-97259-780-0	01	1	0211-				●
183	06.008 PIPE; BREATHER (A)	8-97236-856-2	01	1	0211-	●	●	●	●
183	06.008 PIPE; BREATHER (B)	8-97250-343-1	01	1	0211-	●	●	●	●
184	06.008 HOSE; BREATHER	8-97250-344-1	01	1	0211-	●	●	●	●
185	06.008 BOLT; PIPE,BREATHER 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0211-	●	●	●	●
185	06.008 BOLT; PIPE,BREATHER 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0211-	●	●	●	●
186	06.008 CLIP; HOSE,BREATHER ID=4.76X2	8-97249-905-0	01	1	0211-	●	●	●	●
214	06.008 COVER; BREATHER	8-97261-746-0	01	1	0211-	●	●	●	●
