◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#41932) — 98 parça

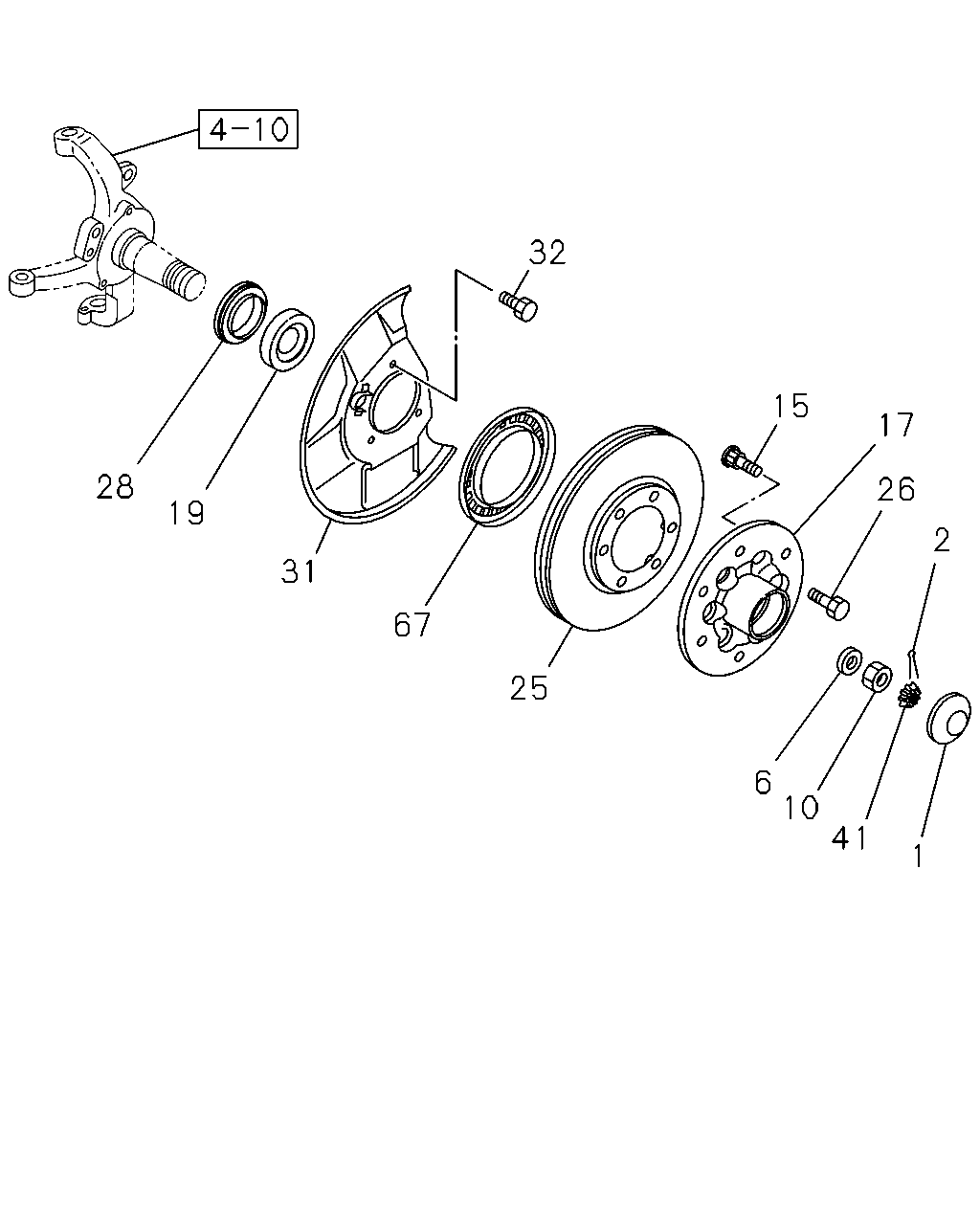

çizim 49425
32 15 17 28 26 19 2 31 67 25 6 10 41 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 06.330 CAP; HUB,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-94173-314-2 02 1 0211- ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-94173-314-2 02 1 0211- ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		9-42313-080-1 02 1 0211- ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
EXC. HIGH RIDE SUSPENSION(7YC) 09.023 OD=3.7 L=30 		9-08114-030-0 02 1 0211- ● ● ● ●
6 05.812 WASHER; LK,FRT HUB
HIGH RIDE SUSPENSION(7YC) T=1.8 OD=65 		8-94442-398-0 02 1 0211- ● ● ● ●
6 05.812 WASHER; LK,FRT HUB
T=1.8 OD=65 		8-94442-398-0 02 1 0211- ● ● ● ●
6 05.812 WASHER; LK,FRT HUB
EXC. HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35 		8-94256-973-0 02 1 0211- ● ● ● ●
10 05.812 NUT; FRT HUB BRG
EXC. HIGH RIDE SUSPENSION(7YC) M18 		8-94243-927-1 02 1 0211- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M12X37.5 		8-97213-871-0 12 1 0211- ● ● ● ● ● ● ● ●
17 06.307 HUB; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97238-419-0 02 1 0211- ● ● ● ●
17 06.307 HUB; FRT AXLE 8-97238-419-0 02 1 0211- ● ● ● ●
17 06.307 HUB; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-417-1 02 1 0211- ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 06.314 NSK 		8-94258-819-0 02 1 0211- ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
06.314 NSK 		8-94258-819-0 02 1 0211- ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) NSK 		8-94242-683-0 02 1 0211- ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-97238-273-0 02 1 0211-0211 ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97238-273-0 02 1 0211-0211 ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-97360-678-0 02 1 0211- ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97360-678-0 02 1 0211- ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97308-868-0 02 1 0211- ● ● ● ●
26 05.812 BOLT; BRK,DISC TO HUB 8-97318-614-0 12 1 0211- ● ● ● ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
HIGH RIDE SUSPENSION(7YC) 06.308 		8-94407-711-0 02 1 0211- ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
06.308 		8-94407-711-0 02 1 0211- ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
EXC. HIGH RIDE SUSPENSION(7YC) 		8-94433-718-0 02 1 0211- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) 		8-97238-288-0 01 1 0211- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) 		8-97238-287-0 01 1 0211- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97327-614-0 01 1 0211- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97327-614-0 01 1 0211- ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-97327-614-0 01 1 0211- ● ●
31 04.665 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97327-613-0 01 1 0211- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97327-613-0 01 1 0211- ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-97327-613-0 01 1 0211- ● ●
31 04.665 COVER; DUST,FRT BRAKE
ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97327-612-0 01 1 0211- ●
31 04.665 COVER; DUST,FRT BRAKE
ANTI LOCK BRAKE SYSTEM<JE5> 		8-97327-612-0 01 1 0211- ● ●
31 04.665 COVER; DUST,FRT BRAKE
ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97327-611-0 01 1 0211- ●
31 04.665 COVER; DUST,FRT BRAKE
ANTI LOCK BRAKE SYSTEM<JE5> 		8-97327-611-0 01 1 0211- ● ●
31 04.665 COVER; DUST,FRT BRAKE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-286-0 01 1 0211- ●
31 04.665 COVER; DUST,FRT BRAKE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-285-0 01 1 0211- ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
EXC. HIGH RIDE SUSPENSION(7YC) M8X10 W/LK WASHER 		8-97025-916-0 06 1 0211-0211 ● ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
HIGH RIDE SUSPENSION(7YC) M8X10 W/LK WASHER 		8-97943-023-0 06 1 0211-0211 ● ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER 		8-97943-023-0 06 1 0211-0211 ● ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER 		8-97943-023-0 06 1 0211- ● ● ● ● ● ● ● ●
41 05.812 RETAINER; NUT,FRT HUB
EXC. HIGH RIDE SUSPENSION(7YC) 		8-94243-928-1 02 1 0211- ● ● ● ●
67 05.811 ROTOR; SENSOR
ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97238-280-0 02 1 0211- ●
67 05.811 ROTOR; SENSOR
ANTI LOCK BRAKE SYSTEM<JE5> 		8-97238-280-0 02 1 0211- ● ●
67 05.811 ROTOR; SENSOR
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-278-0 02 1 0211- ●

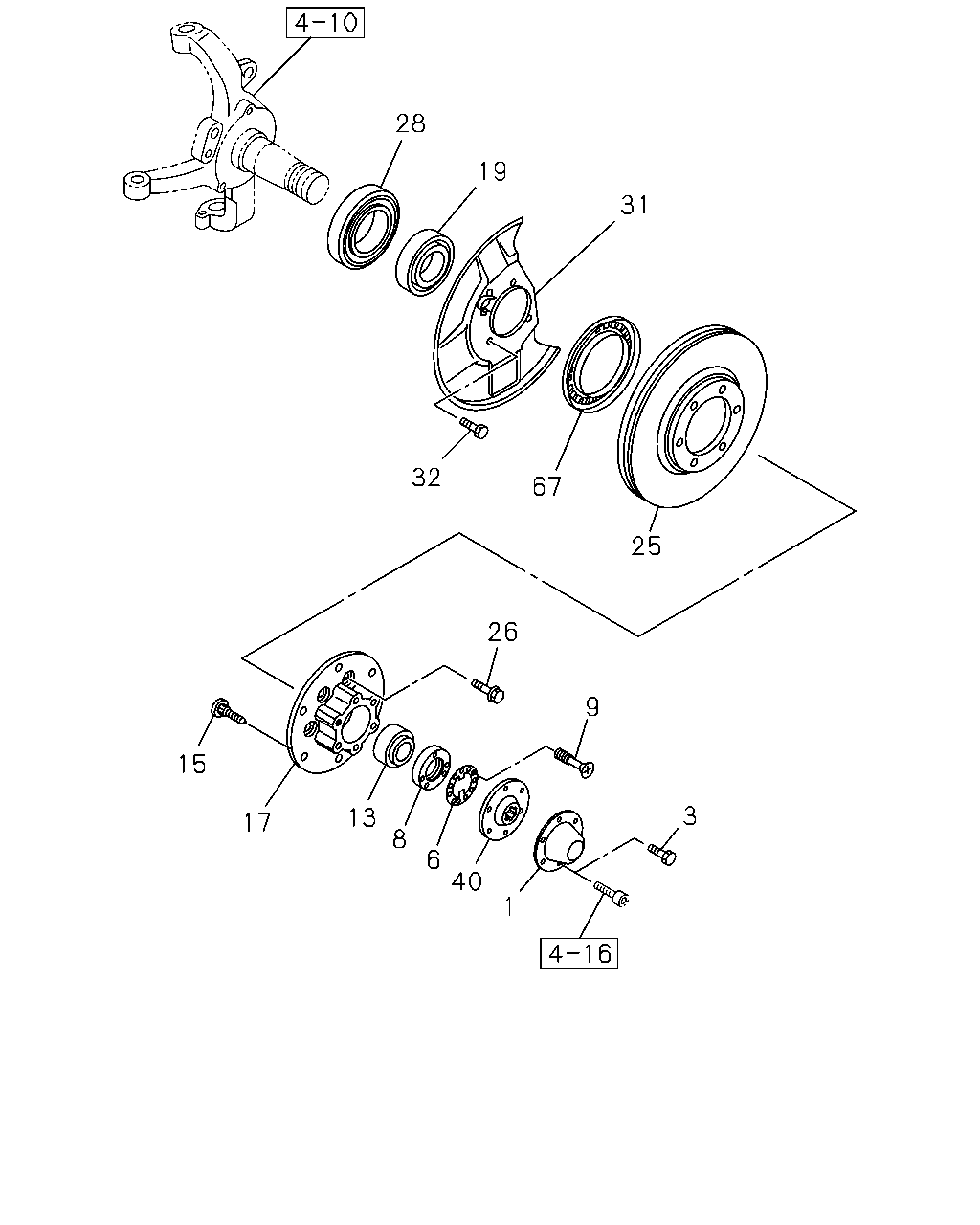

çizim 51139
28 19 31 32 67 25 26 9 15 3 13 17 8 6 40 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 06.330 CAP; HUB,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-94173-314-2 02 1 0211- ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-94173-314-2 02 1 0211- ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		9-42313-080-1 02 1 0211- ● ● ● ●
3 06.330 BOLT; HUB CAP,FRT WHEEL
HIGH RIDE SUSPENSION(7YC) 00.002 M10X20 		9-02061-020-0 12 1 0211- ● ● ● ●
6 05.812 WASHER; LK,FRT HUB
HIGH RIDE SUSPENSION(7YC) T=1.8 OD=65 		8-94442-398-0 02 1 0211- ● ● ● ●
6 05.812 WASHER; LK,FRT HUB
T=1.8 OD=65 		8-94442-398-0 02 1 0211- ● ● ● ●
6 05.812 WASHER; LK,FRT HUB
EXC. HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35 		8-94256-973-0 02 1 0211- ● ● ● ●
8 05.812 NUT; ADJ,FRT HUB
HIGH RIDE SUSPENSION(7YC) ID=40 OD=65 T=8 		8-94442-399-1 02 1 0211- ● ● ● ●
8 05.812 NUT; ADJ,FRT HUB
ID=40 OD=65 T=8 		8-94442-399-1 02 1 0211- ● ● ● ●
9 05.812 SCREW; ADJ,NUT
HIGH RIDE SUSPENSION(7YC) 08.913 M4X8 CK-HEAD 		9-93090-408-0 06 1 0211- ● ● ● ●
9 05.812 SCREW; ADJ,NUT
08.913 M4X8 CK-HEAD 		9-93090-408-0 06 1 0211- ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 06.311 NSK 		8-94227-041-0 02 1 0211- ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
06.311 NSK 		8-94227-041-0 02 1 0211- ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) NSK 		8-94242-913-0 02 1 0211- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M12X37.5 		8-97213-871-0 12 1 0211- ● ● ● ● ● ● ● ●
17 06.307 HUB; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97238-419-0 02 1 0211- ● ● ● ●
17 06.307 HUB; FRT AXLE 8-97238-419-0 02 1 0211- ● ● ● ●
17 06.307 HUB; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-417-1 02 1 0211- ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
HIGH RIDE SUSPENSION(7YC) 06.314 NSK 		8-94258-819-0 02 1 0211- ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
06.314 NSK 		8-94258-819-0 02 1 0211- ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) NSK 		8-94242-683-0 02 1 0211- ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-97238-273-0 02 1 0211-0211 ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97238-273-0 02 1 0211-0211 ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-97360-678-0 02 1 0211- ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97360-678-0 02 1 0211- ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97308-868-0 02 1 0211- ● ● ● ●
26 05.812 BOLT; BRK,DISC TO HUB 8-97318-614-0 12 1 0211- ● ● ● ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
HIGH RIDE SUSPENSION(7YC) 06.308 		8-94407-711-0 02 1 0211- ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
06.308 		8-94407-711-0 02 1 0211- ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
EXC. HIGH RIDE SUSPENSION(7YC) 		8-94433-718-0 02 1 0211- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) 		8-97238-288-0 01 1 0211- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) 		8-97238-287-0 01 1 0211- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97327-614-0 01 1 0211- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97327-614-0 01 1 0211- ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-97327-614-0 01 1 0211- ● ●
31 04.665 COVER; DUST,FRT BRAKE
HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97327-613-0 01 1 0211- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> 		8-97327-613-0 01 1 0211- ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-97327-613-0 01 1 0211- ● ●
31 04.665 COVER; DUST,FRT BRAKE
ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97327-612-0 01 1 0211- ●
31 04.665 COVER; DUST,FRT BRAKE
ANTI LOCK BRAKE SYSTEM<JE5> 		8-97327-612-0 01 1 0211- ● ●
31 04.665 COVER; DUST,FRT BRAKE
ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97327-611-0 01 1 0211- ●
31 04.665 COVER; DUST,FRT BRAKE
ANTI LOCK BRAKE SYSTEM<JE5> 		8-97327-611-0 01 1 0211- ● ●
31 04.665 COVER; DUST,FRT BRAKE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-286-0 01 1 0211- ●
31 04.665 COVER; DUST,FRT BRAKE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-285-0 01 1 0211- ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
EXC. HIGH RIDE SUSPENSION(7YC) M8X10 W/LK WASHER 		8-97025-916-0 06 1 0211-0211 ● ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
HIGH RIDE SUSPENSION(7YC) M8X10 W/LK WASHER 		8-97943-023-0 06 1 0211-0211 ● ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER 		8-97943-023-0 06 1 0211-0211 ● ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER 		8-97943-023-0 06 1 0211- ● ● ● ● ● ● ● ●
40 06.308 FLANGE; FRT WHEEL HUB 8-94173-313-0 02 1 0211- ● ● ● ●
67 05.811 ROTOR; SENSOR
ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97238-280-0 02 1 0211- ●
67 05.811 ROTOR; SENSOR
ANTI LOCK BRAKE SYSTEM<JE5> 		8-97238-280-0 02 1 0211- ● ●
67 05.811 ROTOR; SENSOR
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-278-0 02 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
