◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#41931) — 79 parça
çizim 10899
82 326 91 117 110 106 2 117
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 06.020 KNUCKLE; FRT AXLE 8-97238-424-1 01 1 0211-0306 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97943-439-0 01 1 0307- ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97238-425-1 01 1 0211-0306 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97943-440-0 01 1 0307- ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97247-571-2 01 1 0211-0301 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97943-437-0 01 1 0302-0302 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97943-626-1 01 1 0302- ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97247-570-2 01 1 0211-0301 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97943-438-0 01 1 0302-0302 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97943-627-1 01 1 0302- ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-422-1 01 1 0211-0301 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97943-435-0 01 1 0302-0302 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97943-624-1 01 1 0302- ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-423-1 01 1 0211-0301 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97943-436-0 01 1 0302-0302 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97943-625-1 01 1 0302- ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP
HIGH RIDE SUSPENSION(7YC) 		8-97235-783-1 01 1 0211- ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP 8-97235-783-1 01 1 0211- ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97214-815-1 01 1 0211- ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
HIGH RIDE SUSPENSION(7YC) 		8-97235-784-0 02 1 0211- ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-97235-784-0 02 1 0211- ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97247-083-0 02 1 0211- ● ● ● ●
106 06.216 BOLT; CAP FIX
M8X25 FLANGE 		0-28650-825-0 04 1 0211- ● ● ● ● ● ● ● ●
110 07.242 CLAMP; STAB TO ROD 8-97235-780-0 02 1 0211- ● ● ● ● ● ● ● ●
117 06.174 NUT; STAB BAR BUSHING
M10 FLANGE 		8-97245-646-0 02 1 0211- ● ● ● ● ● ● ● ●
117 06.174 NUT; STAB BAR BUSHING
M10 FLANGE 		8-97245-646-0 02 1 0211- ● ● ● ●
326 07.240 LINK ASM; STABILIZER
HIGH RIDE SUSPENSION(7YC) 		8-97235-787-1 01 1 0211- ● ● ● ●
326 07.240 LINK ASM; STABILIZER 8-97235-787-1 01 1 0211- ● ● ● ●
326 07.240 LINK ASM; STABILIZER
HIGH RIDE SUSPENSION(7YC) 		8-97235-786-1 01 1 0211- ● ● ● ●
326 07.240 LINK ASM; STABILIZER 8-97235-786-1 01 1 0211- ● ● ● ●
326 07.240 LINK ASM; STABILIZER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97214-822-1 02 1 0211- ● ● ● ●

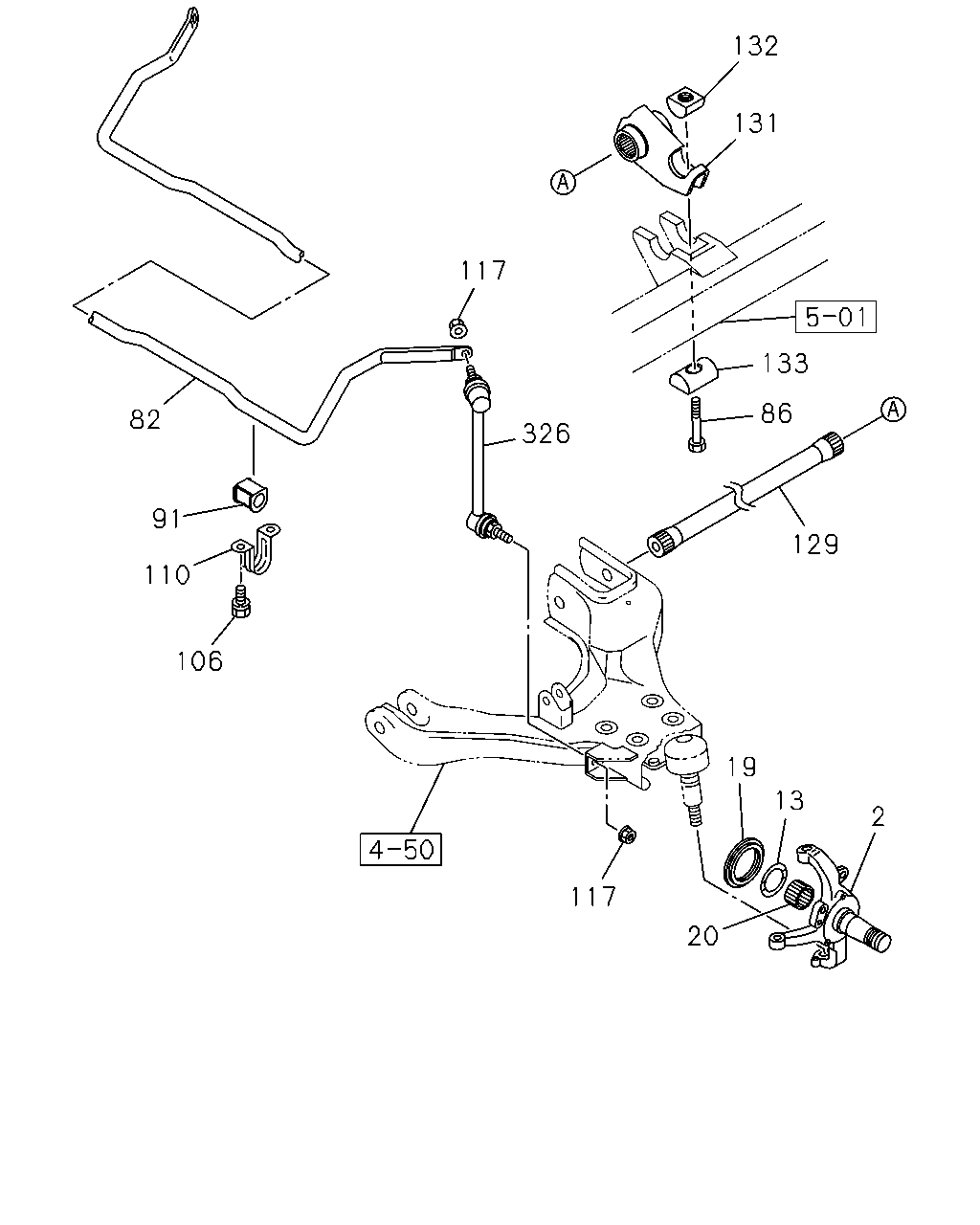

çizim 50336
132 131 117 133 86 82 326 91 129 110 106 19 13 2 117 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 06.020 KNUCKLE; FRT AXLE 8-97238-424-1 01 1 0211-0306 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97943-439-0 01 1 0307- ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97238-425-1 01 1 0211-0306 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE 8-97943-440-0 01 1 0307- ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97247-571-2 01 1 0211-0301 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97943-437-0 01 1 0302-0302 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97943-626-1 01 1 0302- ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97247-570-2 01 1 0211-0301 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97943-438-0 01 1 0302-0302 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
HIGH RIDE SUSPENSION(7YC) 		8-97943-627-1 01 1 0302- ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-422-1 01 1 0211-0301 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97943-435-0 01 1 0302-0302 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97943-624-1 01 1 0302- ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97238-423-1 01 1 0211-0301 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97943-436-0 01 1 0302-0302 ● ● ● ●
2 06.020 KNUCKLE; FRT AXLE
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97943-625-1 01 1 0302- ● ● ● ●
13 06.104 WASHER; THRUST,KNUCKLE
ID=34 W/OIL GROOVE 		8-94407-718-0 02 1 0211- ● ● ● ●
19 06.061 SEAL; OIL,KNUCKLE 8-97123-691-0 02 1 0211- ● ● ● ●
20 06.104 BEARING; KNUCKLE 8-94407-708-0 02 1 0211- ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP
HIGH RIDE SUSPENSION(7YC) 		8-97235-783-1 01 1 0211- ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP 8-97235-783-1 01 1 0211- ● ● ● ●
82 07.241 BAR; STAB,FRT SUSP
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97214-815-1 01 1 0211- ● ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
HIGH RIDE SUSPENSION(7YC) M18X160 		8-97250-133-0 02 1 0211- ● ● ● ●
86 07.428 BOLT; TORSION BAR,HEIGHT CONT
M18X160 		8-97250-133-0 02 1 0211- ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
HIGH RIDE SUSPENSION(7YC) 		8-97235-784-0 02 1 0211- ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-97235-784-0 02 1 0211- ● ● ● ●
91 07.243 BUSHING; RUBBER,STAB BAR
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97247-083-0 02 1 0211- ● ● ● ●
106 06.216 BOLT; CAP FIX
M8X25 FLANGE 		0-28650-825-0 04 1 0211- ● ● ● ● ● ● ● ●
110 07.242 CLAMP; STAB TO ROD 8-97235-780-0 02 1 0211- ● ● ● ● ● ● ● ●
117 06.174 NUT; STAB BAR BUSHING
M10 FLANGE 		8-97245-646-0 02 1 0211- ● ● ● ● ● ● ● ●
117 06.174 NUT; STAB BAR BUSHING
M10 FLANGE 		8-97245-646-0 02 1 0211- ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
HIGH RIDE SUSPENSION(7YC) 		8-97235-865-0 01 1 0211- ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-97235-865-0 01 1 0211- ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP
HIGH RIDE SUSPENSION(7YC) 		8-97235-864-0 01 1 0211- ● ● ● ●
129 07.412 BAR; TORSION,FRT SUSP 8-97235-864-0 01 1 0211- ● ● ● ●
131 07.436 ARM; HEIGHT CONT
HIGH RIDE SUSPENSION(7YC) 		8-97258-540-1 01 1 0211- ● ● ● ●
131 07.436 ARM; HEIGHT CONT 8-97258-540-1 01 1 0211- ● ● ● ●
131 07.436 ARM; HEIGHT CONT
HIGH RIDE SUSPENSION(7YC) 		8-97258-539-1 01 1 0211- ● ● ● ●
131 07.436 ARM; HEIGHT CONT 8-97258-539-1 01 1 0211- ● ● ● ●
132 07.436 COLLAR; TORSION BAR
HIGH RIDE SUSPENSION(7YC) 		8-94367-757-0 02 1 0211- ● ● ● ●
132 07.436 COLLAR; TORSION BAR 8-94367-757-0 02 1 0211- ● ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT
HIGH RIDE SUSPENSION(7YC) 		8-97032-976-1 02 1 0211- ● ● ● ●
133 07.420 SEAT; TORSION BAR,HEIGHT CONT 8-97032-976-1 02 1 0211- ● ● ● ●
326 07.240 LINK ASM; STABILIZER
HIGH RIDE SUSPENSION(7YC) 		8-97235-787-1 01 1 0211- ● ● ● ●
326 07.240 LINK ASM; STABILIZER 8-97235-787-1 01 1 0211- ● ● ● ●
326 07.240 LINK ASM; STABILIZER
HIGH RIDE SUSPENSION(7YC) 		8-97235-786-1 01 1 0211- ● ● ● ●
326 07.240 LINK ASM; STABILIZER 8-97235-786-1 01 1 0211- ● ● ● ●
326 07.240 LINK ASM; STABILIZER
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97214-822-1 02 1 0211- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
