Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#41930) — 244 parça

301 338 340 18 223 205 9 8 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) (A)	8-97942-849-0	01	1	0211-	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) (A)	8-97943-048-0	01	1	0211-	●	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97943-048-0	01	1	0211-						●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 6VE1 ENG(RJQ) A/T AISIN(RMD) (A)	8-97942-849-0	01	1	0211-	●	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT C24SE ENG(LG1) (A)	8-97942-849-0	01	1	0211-				●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) (A)	8-97942-849-0	01	1	0211-					●
8	05.544 YOKE; FLANGE,PROP SHAFT 6VE1 ENG(RJQ) (B)	8-97942-850-0	02	1	0211-	●					●		●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1-TC ENG(RDM) (B)	8-97942-850-0	01	1	0211-	●					●		●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97942-850-0	01	1	0211-							●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) (A)	8-97942-846-0	03	1	0211-	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) (A)	8-97943-041-0	03	1	0211-		●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97943-041-0	03	1	0211-					●
9	05.548 JOURNAL ASM; PROP SHAFT 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) (A)	8-97943-041-0	03	1	0211-					●
9	05.548 JOURNAL ASM; PROP SHAFT 6VE1 ENG(RJQ) A/T AISIN(RMD) (A)	8-97942-845-0	03	1	0211-		●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT C24SE ENG(LG1) (A)	8-97942-845-0	03	1	0211-				●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) (A)	8-97942-845-0	03	1	0211-					●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (A)	8-97943-042-0	03	1	0211-					●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	8-97943-042-0	03	1	0211-						●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) (A)	8-97943-042-0	03	1	0211-	●
9	05.548 JOURNAL ASM; PROP SHAFT 6VE1 ENG(RJQ) (B)	8-97942-846-0	02	1	0211-	●					●		●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM) (B)	8-97942-846-0	01	1	0211-	●					●		●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-97942-846-0	01	1	0211-							●
9	05.548 JOURNAL ASM; PROP SHAFT 6VE1 ENG(RJQ) A/T AISIN(RMD) (A)	8-97942-846-0	03	1	0211-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) 08.984 M6 STRAIGHT	9-09031-006-0	03	1	0211-					●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 M6 STRAIGHT	9-09031-006-0	03	1	0211-						●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) 08.984 M6 STRAIGHT	9-09031-006-0	03	1	0211-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 6VE1 ENG(RJQ) 08.984 M6 STRAIGHT	9-09031-006-0	02	1	0211-						●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 08.984 M6 STRAIGHT	9-09031-006-0	02	1	0211-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT CREW CAB EXTRA LONG(TF**WK) 6VE1 ENG(RJQ) 08.984 M6 STRAIGHT	9-09031-006-0	02	1	0211-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(RJQ) A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP) 08.984 M6 STRAIGHT	9-09031-006-0	02	1	0211-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1-TC ENG(RDM) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-						●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-							●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(RJQ) A/T AISIN(RMD) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT CREW CAB EXTRA LONG(TF**WK) 4JH1-TC ENG(RDM) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-	●
18	05.600 RING; SNAP,FRT UJT,PROP SHAFT 4JH1-TC ENG(RDM)	8-97332-492-0	01	1	0211-	●					●		●
18	05.600 RING; SNAP,FRT UJT,PROP SHAFT	8-97332-492-0	01	1	0211-							●
205	05.586 SEAL; UJT 4JH1-TC ENG(RDM)	8-97332-494-0	01	1	0211-	●					●		●
205	05.586 SEAL; UJT	8-97332-494-0	01	1	0211-							●
223	05.586 RING; PROP SHAFT 4JH1-TC ENG(RDM)	8-97332-493-0	01	1	0211-	●					●		●
223	05.586 RING; PROP SHAFT	8-97332-493-0	01	1	0211-							●
301	05.544 SHAFT ASM; PROP,FRT 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) L=692	8-97942-464-0	01	1	0211-	●					●		●
301	05.544 SHAFT ASM; PROP,FRT L=692	8-97942-464-0	01	1	0211-							●
301	05.544 SHAFT ASM; PROP,FRT 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) L=678	8-97940-805-0	01	1	0211-	●					●		●
301	05.544 SHAFT ASM; PROP,FRT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) L=759	8-97942-465-0	01	1	0211-	●
301	05.544 SHAFT ASM; PROP,FRT 6VE1 ENG(RJQ) A/T AISIN(RMD) L=699	8-97940-806-0	01	1	0211-	●
338	05.586 BAND; BOOT 4JH1-TC ENG(RDM)	8-97332-487-0	01	1	0211-	●					●		●
338	05.586 BAND; BOOT	8-97332-487-0	01	1	0211-							●
340	05.544 JOINT KIT; DOJ 4JH1-TC ENG(RDM)	8-97356-159-0	01	1	0211-	●					●		●
340	05.544 JOINT KIT; DOJ	8-97356-159-0	01	1	0211-							●

120 90 89 300 147 89 90 120 90 120 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
89	05.586 NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	04	1	0211-	●	●	●	●	●	●	●	●
89	05.586 NUT; YOKE TO RR AXLE 4JH1-TC ENG(RDM) M10 FLANGE	8-97246-900-0	04	1	0211-	●					●		●
89	05.586 NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	04	1	0211-							●
89	05.586 NUT; YOKE TO RR AXLE 6VE1 ENG(RJQ) M10 FLANGE	8-97246-900-0	08	1	0211-	●					●		●
90	05.586 WASHER; LK,YOKE TO RR AXLE (A) ID=10.1	8-97246-901-0	04	1	0211-	●	●	●	●	●	●	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JH1-TC ENG(RDM) (A) ID=10.1	8-97246-901-0	04	1	0211-	●					●		●
90	05.586 WASHER; LK,YOKE TO RR AXLE (A) ID=10.1	8-97246-901-0	04	1	0211-							●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JH1-TC ENG(RDM) 00.002 (B) ID=8.2	9-09150-608-0	06	1	0211-	●					●		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 (B) ID=8.2	9-09150-608-0	06	1	0211-							●
90	05.586 WASHER; LK,YOKE TO RR AXLE 6VE1 ENG(RJQ) (A),(B) ID=10.1	8-97246-901-0	08	1	0211-	●					●		●
120	05.586 BOLT; YOKE TO RR AXLE (A) M10X29	8-97246-859-0	04	1	0211-	●	●	●	●	●	●	●	●
120	05.586 BOLT; YOKE TO RR AXLE 4JH1-TC ENG(RDM) (A) M10X29	8-97246-859-0	04	1	0211-	●					●		●
120	05.586 BOLT; YOKE TO RR AXLE (A) M10X29	8-97246-859-0	04	1	0211-							●
120	05.586 BOLT; YOKE TO RR AXLE 4JH1-TC ENG(RDM) (B) M8X26	8-94437-365-1	06	1	0211-	●					●		●
120	05.586 BOLT; YOKE TO RR AXLE (B) M8X26	8-94437-365-1	06	1	0211-							●
120	05.586 BOLT; YOKE TO RR AXLE 6VE1 ENG(RJQ) (A),(B) M10X29	8-97246-859-0	08	1	0211-	●					●		●
147	05.586 BOLT; CENTER BRG MTG M12X25 FLANGE	0-28761-225-0	02	1	0211-	●	●	●	●	●	●	●	●
300	05.544 SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) L=1408	8-97940-803-2	02	1	0211-	●
300	05.544 SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) L=1803.5	8-97943-027-0	01	1	0211-		●			●
300	05.544 SHAFT ASM; PROP,RR SINGLE CAB LONG(TF**SF) 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) L=1803.5	8-97943-027-0	01	1	0211-				●
300	05.544 SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) L=1801.5	8-97940-799-3	01	1	0211-		●			●
300	05.544 SHAFT ASM; PROP,RR SINGLE CAB LONG(TF**SF) 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) L=1801.5	8-97940-799-3	01	1	0211-				●
300	05.544 SHAFT ASM; PROP,RR 6VE1 ENG(RJQ) A/T AISIN(RMD) L=1783.5	8-97940-795-3	01	1	0211-		●			●
300	05.544 SHAFT ASM; PROP,RR 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) L=1828.5	8-97941-467-3	01	1	0211-		●			●
300	05.544 SHAFT ASM; PROP,RR SINGLE CAB LONG(TF**SF) 6VE1 ENG(RJQ) L=1828.5	8-97941-467-3	01	1	0211-				●
300	05.544 SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) L=1951.5	8-97941-485-3	01	1	0211-			●
300	05.544 SHAFT ASM; PROP,RR 4X2 SINGLE CAB EXTRA LONG(TFB*SK) 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) L=1951.5	8-97941-485-3	01	1	0211-				●
300	05.544 SHAFT ASM; PROP,RR 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) L=1976.5	8-97941-479-3	01	1	0211-			●
300	05.544 SHAFT ASM; PROP,RR 4X2 SINGLE CAB EXTRA LONG(TFB*SK) 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) L=1976.5	8-97941-479-3	01	1	0211-				●
300	05.544 SHAFT ASM; PROP,RR 6VE1 ENG(RJQ) A/T AISIN(RMD) L=1933.5	8-97941-504-3	01	1	0211-			●	●
300	05.544 SHAFT ASM; PROP,RR C24SE ENG(LG1) L=1970.5	8-97941-482-2	01	1	0211-				●
300	05.544 SHAFT ASM; PROP,RR C24SE ENG(LG1) L=1820.5	8-97940-796-2	01	1	0211-					●
300	05.544 SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) L=1726	8-97943-026-0	01	1	0211-					●
300	05.544 SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) L=1474	8-97940-804-1	01	1	0211-						●
300	05.544 SHAFT ASM; PROP,RR 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) L=1474	8-97940-804-1	01	1	0211-	●
300	05.544 SHAFT ASM; PROP,RR 6VE1 ENG(RJQ) L=1497.5	8-97940-800-1	01	1	0211-						●
300	05.544 SHAFT ASM; PROP,RR 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) L=1497.5	8-97940-800-1	01	1	0211-	●
300	05.544 SHAFT ASM; PROP,RR L=1621.5	8-97941-486-1	01	1	0211-							●
300	05.544 SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) L=1621.5	8-97941-486-1	01	1	0211-								●
300	05.544 SHAFT ASM; PROP,RR CREW CAB EXTRA LONG(TF**WK) 4JH1-TC ENG(RDM) L=1621.5	8-97941-486-1	01	1	0211-	●
300	05.544 SHAFT ASM; PROP,RR 6VE1 ENG(RJQ) L=1646.5	8-97941-480-1	01	1	0211-								●
300	05.544 SHAFT ASM; PROP,RR CREW CAB EXTRA LONG(TF**WK) 6VE1 ENG(RJQ) L=1646.5	8-97941-480-1	01	1	0211-	●
300	05.544 SHAFT ASM; PROP,RR 6VE1 ENG(RJQ) A/T AISIN(RMD) L=1489.5	8-97941-497-2	01	1	0211-	●
301	05.544 SHAFT ASM; PROP,FRT 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) L=692	8-97942-464-0	01	1	0211-	●					●		●
301	05.544 SHAFT ASM; PROP,FRT L=692	8-97942-464-0	01	1	0211-							●
301	05.544 SHAFT ASM; PROP,FRT 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) L=678	8-97940-805-0	01	1	0211-	●					●		●
301	05.544 SHAFT ASM; PROP,FRT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) L=759	8-97942-465-0	01	1	0211-	●
301	05.544 SHAFT ASM; PROP,FRT 6VE1 ENG(RJQ) A/T AISIN(RMD) L=699	8-97940-806-0	01	1	0211-	●

301 103 220 9 106 8 17 8 9 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) (A)	8-97942-849-0	01	1	0211-	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) (A)	8-97943-048-0	01	1	0211-	●	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97943-048-0	01	1	0211-						●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 6VE1 ENG(RJQ) A/T AISIN(RMD) (A)	8-97942-849-0	01	1	0211-	●	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT C24SE ENG(LG1) (A)	8-97942-849-0	01	1	0211-				●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) (A)	8-97942-849-0	01	1	0211-					●
8	05.544 YOKE; FLANGE,PROP SHAFT 6VE1 ENG(RJQ) (B)	8-97942-850-0	02	1	0211-	●					●		●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1-TC ENG(RDM) (B)	8-97942-850-0	01	1	0211-	●					●		●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97942-850-0	01	1	0211-							●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) (A)	8-97942-846-0	03	1	0211-	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) (A)	8-97943-041-0	03	1	0211-		●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97943-041-0	03	1	0211-					●
9	05.548 JOURNAL ASM; PROP SHAFT 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) (A)	8-97943-041-0	03	1	0211-					●
9	05.548 JOURNAL ASM; PROP SHAFT 6VE1 ENG(RJQ) A/T AISIN(RMD) (A)	8-97942-845-0	03	1	0211-		●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT C24SE ENG(LG1) (A)	8-97942-845-0	03	1	0211-				●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) (A)	8-97942-845-0	03	1	0211-					●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (A)	8-97943-042-0	03	1	0211-					●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	8-97943-042-0	03	1	0211-						●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) (A)	8-97943-042-0	03	1	0211-	●
9	05.548 JOURNAL ASM; PROP SHAFT 6VE1 ENG(RJQ) (B)	8-97942-846-0	02	1	0211-	●					●		●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM) (B)	8-97942-846-0	01	1	0211-	●					●		●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-97942-846-0	01	1	0211-							●
9	05.548 JOURNAL ASM; PROP SHAFT 6VE1 ENG(RJQ) A/T AISIN(RMD) (A)	8-97942-846-0	03	1	0211-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) 08.984 M6 STRAIGHT	9-09031-006-0	03	1	0211-					●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 M6 STRAIGHT	9-09031-006-0	03	1	0211-						●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) 08.984 M6 STRAIGHT	9-09031-006-0	03	1	0211-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 6VE1 ENG(RJQ) 08.984 M6 STRAIGHT	9-09031-006-0	02	1	0211-						●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 08.984 M6 STRAIGHT	9-09031-006-0	02	1	0211-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT CREW CAB EXTRA LONG(TF**WK) 6VE1 ENG(RJQ) 08.984 M6 STRAIGHT	9-09031-006-0	02	1	0211-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(RJQ) A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP) 08.984 M6 STRAIGHT	9-09031-006-0	02	1	0211-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1-TC ENG(RDM) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-						●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-							●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(RJQ) A/T AISIN(RMD) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT CREW CAB EXTRA LONG(TF**WK) 4JH1-TC ENG(RDM) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-	●
103	05.544 BOOT; PROP SHAFT A/T AISIN(RMD) (A)	8-97942-134-0	01	1	0307-		●	●	●	●
103	05.544 BOOT; PROP SHAFT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 05.560 (A)	8-97940-114-0	01	1	0211-	●
103	05.544 BOOT; PROP SHAFT M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 05.560 (A)	8-97940-114-0	01	1	0211-	●	●	●	●	●	●	●	●
103	05.544 BOOT; PROP SHAFT 6VE1 ENG(RJQ) A/T AISIN(RMD) 05.560 (A)	8-97940-114-0	01	1	0211-	●
103	05.544 BOOT; PROP SHAFT 6VE1 ENG(RJQ) (B)	8-97943-053-0	01	1	0211-	●					●		●
106	05.586 NIPPLE; GREASE,YOKE,PROP SHAFT 6VE1 ENG(RJQ) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-	●					●		●
220	05.544 YOKE; SPLINED 6VE1 ENG(RJQ)	8-97943-050-0	01	1	0211-	●					●		●
301	05.544 SHAFT ASM; PROP,FRT 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) L=692	8-97942-464-0	01	1	0211-	●					●		●
301	05.544 SHAFT ASM; PROP,FRT L=692	8-97942-464-0	01	1	0211-							●
301	05.544 SHAFT ASM; PROP,FRT 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) L=678	8-97940-805-0	01	1	0211-	●					●		●
301	05.544 SHAFT ASM; PROP,FRT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) L=759	8-97942-465-0	01	1	0211-	●
301	05.544 SHAFT ASM; PROP,FRT 6VE1 ENG(RJQ) A/T AISIN(RMD) L=699	8-97940-806-0	01	1	0211-	●

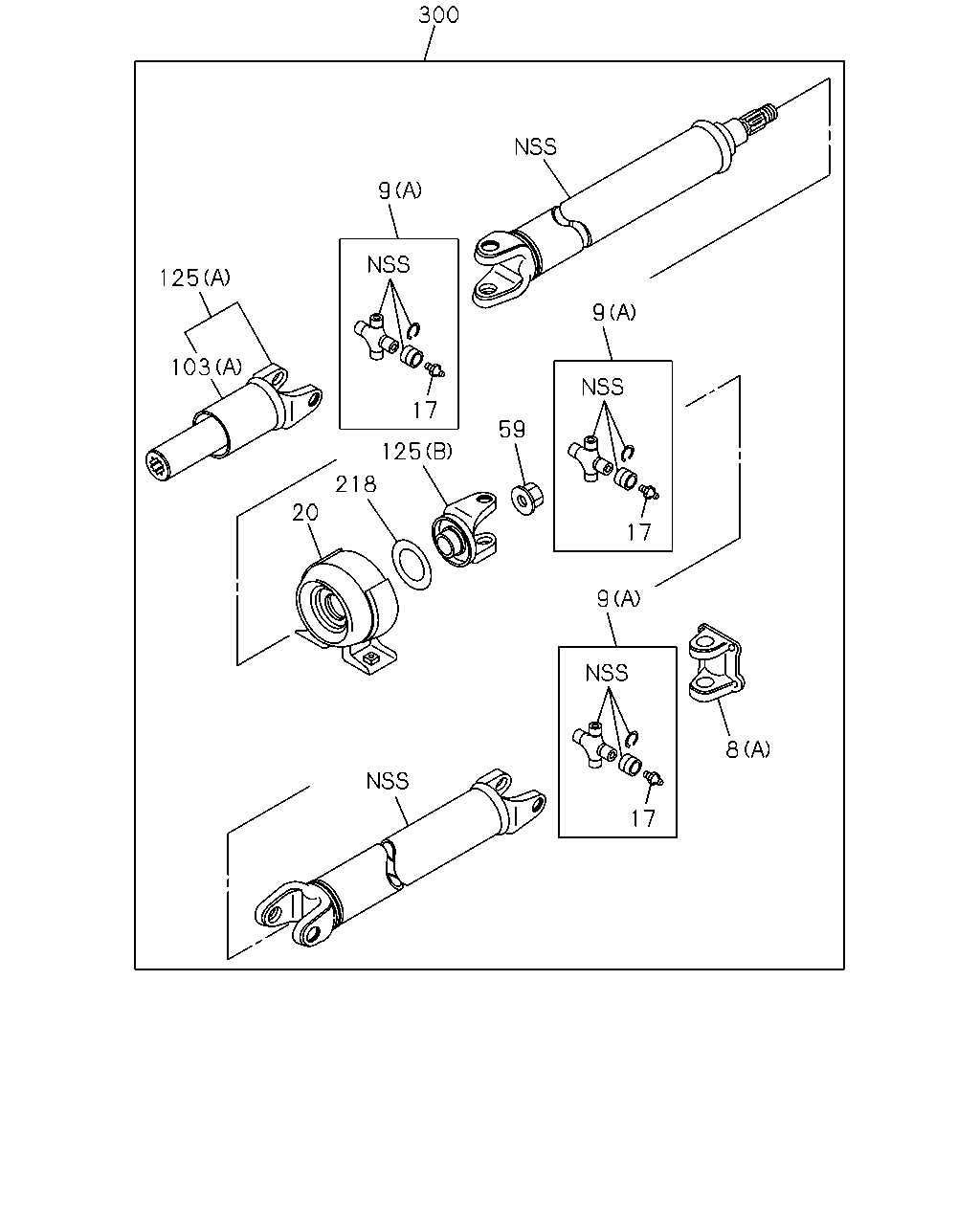

300 9 125 9 103 17 59 125 218 20 17 9 8 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) (A)	8-97942-849-0	01	1	0211-	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) (A)	8-97943-048-0	01	1	0211-	●	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT (A)	8-97943-048-0	01	1	0211-						●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 6VE1 ENG(RJQ) A/T AISIN(RMD) (A)	8-97942-849-0	01	1	0211-	●	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT C24SE ENG(LG1) (A)	8-97942-849-0	01	1	0211-				●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) (A)	8-97942-849-0	01	1	0211-					●
8	05.544 YOKE; FLANGE,PROP SHAFT 6VE1 ENG(RJQ) (B)	8-97942-850-0	02	1	0211-	●					●		●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1-TC ENG(RDM) (B)	8-97942-850-0	01	1	0211-	●					●		●
8	05.544 YOKE; FLANGE,PROP SHAFT (B)	8-97942-850-0	01	1	0211-							●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) (A)	8-97942-846-0	03	1	0211-	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) (A)	8-97943-041-0	03	1	0211-		●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97943-041-0	03	1	0211-					●
9	05.548 JOURNAL ASM; PROP SHAFT 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) (A)	8-97943-041-0	03	1	0211-					●
9	05.548 JOURNAL ASM; PROP SHAFT 6VE1 ENG(RJQ) A/T AISIN(RMD) (A)	8-97942-845-0	03	1	0211-		●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT C24SE ENG(LG1) (A)	8-97942-845-0	03	1	0211-				●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) (A)	8-97942-845-0	03	1	0211-					●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) (A)	8-97943-042-0	03	1	0211-					●
9	05.548 JOURNAL ASM; PROP SHAFT (A)	8-97943-042-0	03	1	0211-						●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) (A)	8-97943-042-0	03	1	0211-	●
9	05.548 JOURNAL ASM; PROP SHAFT 6VE1 ENG(RJQ) (B)	8-97942-846-0	02	1	0211-	●					●		●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1-TC ENG(RDM) (B)	8-97942-846-0	01	1	0211-	●					●		●
9	05.548 JOURNAL ASM; PROP SHAFT (B)	8-97942-846-0	01	1	0211-							●
9	05.548 JOURNAL ASM; PROP SHAFT 6VE1 ENG(RJQ) A/T AISIN(RMD) (A)	8-97942-846-0	03	1	0211-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) 08.984 M6 STRAIGHT	9-09031-006-0	03	1	0211-					●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 M6 STRAIGHT	9-09031-006-0	03	1	0211-						●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) 08.984 M6 STRAIGHT	9-09031-006-0	03	1	0211-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 6VE1 ENG(RJQ) 08.984 M6 STRAIGHT	9-09031-006-0	02	1	0211-						●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 08.984 M6 STRAIGHT	9-09031-006-0	02	1	0211-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT CREW CAB EXTRA LONG(TF**WK) 6VE1 ENG(RJQ) 08.984 M6 STRAIGHT	9-09031-006-0	02	1	0211-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(RJQ) A/T AISIN(RMD),M/T MUA 5 SPEED 5G(RSP) 08.984 M6 STRAIGHT	9-09031-006-0	02	1	0211-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1-TC ENG(RDM) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-						●		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-							●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(RJQ) A/T AISIN(RMD) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT CREW CAB EXTRA LONG(TF**WK) 4JH1-TC ENG(RDM) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5G(RSP) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0211-	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK)	8-97942-878-0	01	1	0211-	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP)	8-97942-877-0	01	1	0211-	●	●	●	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT	8-97942-877-0	01	1	0211-						●	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 6VE1 ENG(RJQ) A/T AISIN(RMD)	8-97942-878-0	01	1	0211-		●	●		●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4X2 SINGLE CAB EXTRA LONG(TFB*SK) 6VE1 ENG(RJQ) A/T AISIN(RMD)	8-97942-878-0	01	1	0211-				●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK)	8-97942-878-0	01	1	0211-					●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(RJQ) A/T AISIN(RMD)	8-97942-878-0	01	1	0211-	●
20	05.600 BEARING ASM; CTR,PROP SHAFT C24SE ENG(LG1)	8-97942-876-0	01	1	0211-				●	●
59	05.586 NUT; RET TO SUPPORT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK)	8-97332-468-0	01	1	0211-	●
59	05.586 NUT; RET TO SUPPORT	8-97332-468-0	01	1	0211-		●	●	●	●	●	●	●
59	05.586 NUT; RET TO SUPPORT M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ)	8-97332-468-0	01	1	0211-	●
59	05.586 NUT; RET TO SUPPORT 6VE1 ENG(RJQ) A/T AISIN(RMD)	8-97332-468-0	01	1	0211-	●
103	05.544 BOOT; PROP SHAFT A/T AISIN(RMD) (A)	8-97942-134-0	01	1	0307-		●	●	●	●
103	05.544 BOOT; PROP SHAFT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 05.560 (A)	8-97940-114-0	01	1	0211-	●
103	05.544 BOOT; PROP SHAFT M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 05.560 (A)	8-97940-114-0	01	1	0211-	●	●	●	●	●	●	●	●
103	05.544 BOOT; PROP SHAFT 6VE1 ENG(RJQ) A/T AISIN(RMD) 05.560 (A)	8-97940-114-0	01	1	0211-	●
103	05.544 BOOT; PROP SHAFT 6VE1 ENG(RJQ) (B)	8-97943-053-0	01	1	0211-	●					●		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) (A)	8-97942-843-0	01	1	0211-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) (B)	8-97942-848-0	01	1	0211-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 6VE1 ENG(RJQ) A/T AISIN(RMD) (A)	8-97943-038-0	01	1	0211-		●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) (A)	8-97943-038-0	01	1	0211-					●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) (A)	8-97943-037-0	01	1	0211-	●	●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT (A)	8-97943-037-0	01	1	0211-						●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) (B)	8-97943-044-0	01	1	0211-	●	●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT (B)	8-97943-044-0	01	1	0211-						●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 6VE1 ENG(RJQ) A/T AISIN(RMD) (B)	8-97942-848-0	01	1	0211-		●	●		●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4X2 SINGLE CAB EXTRA LONG(TFB*SK) 6VE1 ENG(RJQ) A/T AISIN(RMD) (B)	8-97942-848-0	01	1	0211-				●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) HIGH RIDE SUSPENSION(7YC) (B)	8-97942-848-0	01	1	0211-					●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) (B)	8-97942-848-0	01	1	0211-					●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(RJQ) A/T AISIN(RMD) (B)	8-97942-848-0	01	1	0211-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT C24SE ENG(LG1) (B)	8-97942-533-0	01	1	0211-				●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4X2 SINGLE CAB EXTRA LONG(TFB*SK) C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A)	8-97942-843-0	01	1	0211-				●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT C24SE ENG(LG1) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) (A)	8-97942-843-0	01	1	0211-					●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(RJQ) A/T AISIN(RMD) (A)	8-97942-843-0	01	1	0211-	●
218	05.586 WASHER; PL,PROP SHAFT 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) ID=30 H=40 L=35	8-97192-641-0	01	1	0211-	●
218	05.586 WASHER; PL,PROP SHAFT ID=30 H=40 L=35	8-97192-641-0	01	1	0211-		●	●	●	●	●	●	●
218	05.586 WASHER; PL,PROP SHAFT M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) ID=30 H=40 L=35	8-97192-641-0	01	1	0211-	●
218	05.586 WASHER; PL,PROP SHAFT 6VE1 ENG(RJQ) A/T AISIN(RMD) ID=30 H=40 L=35	8-97192-641-0	01	1	0211-	●
300	05.544 SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) L=1408	8-97940-803-2	02	1	0211-	●
300	05.544 SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) HIGH RIDE SUSPENSION(7YC) L=1803.5	8-97943-027-0	01	1	0211-		●			●
300	05.544 SHAFT ASM; PROP,RR SINGLE CAB LONG(TF**SF) 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) L=1803.5	8-97943-027-0	01	1	0211-				●
300	05.544 SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. HIGH RIDE SUSPENSION(7YC) L=1801.5	8-97940-799-3	01	1	0211-		●			●
300	05.544 SHAFT ASM; PROP,RR SINGLE CAB LONG(TF**SF) 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) L=1801.5	8-97940-799-3	01	1	0211-				●
300	05.544 SHAFT ASM; PROP,RR 6VE1 ENG(RJQ) A/T AISIN(RMD) L=1783.5	8-97940-795-3	01	1	0211-		●			●
300	05.544 SHAFT ASM; PROP,RR 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) L=1828.5	8-97941-467-3	01	1	0211-		●			●
300	05.544 SHAFT ASM; PROP,RR SINGLE CAB LONG(TF**SF) 6VE1 ENG(RJQ) L=1828.5	8-97941-467-3	01	1	0211-				●
300	05.544 SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) L=1951.5	8-97941-485-3	01	1	0211-			●
300	05.544 SHAFT ASM; PROP,RR 4X2 SINGLE CAB EXTRA LONG(TFB*SK) 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) L=1951.5	8-97941-485-3	01	1	0211-				●
300	05.544 SHAFT ASM; PROP,RR 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) L=1976.5	8-97941-479-3	01	1	0211-			●
300	05.544 SHAFT ASM; PROP,RR 4X2 SINGLE CAB EXTRA LONG(TFB*SK) 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) L=1976.5	8-97941-479-3	01	1	0211-				●
300	05.544 SHAFT ASM; PROP,RR 6VE1 ENG(RJQ) A/T AISIN(RMD) L=1933.5	8-97941-504-3	01	1	0211-			●	●
300	05.544 SHAFT ASM; PROP,RR C24SE ENG(LG1) L=1970.5	8-97941-482-2	01	1	0211-				●
300	05.544 SHAFT ASM; PROP,RR C24SE ENG(LG1) L=1820.5	8-97940-796-2	01	1	0211-					●
300	05.544 SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) L=1726	8-97943-026-0	01	1	0211-					●
300	05.544 SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) L=1474	8-97940-804-1	01	1	0211-						●
300	05.544 SHAFT ASM; PROP,RR 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) L=1474	8-97940-804-1	01	1	0211-	●
300	05.544 SHAFT ASM; PROP,RR 6VE1 ENG(RJQ) L=1497.5	8-97940-800-1	01	1	0211-						●
300	05.544 SHAFT ASM; PROP,RR 4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP) L=1497.5	8-97940-800-1	01	1	0211-	●
300	05.544 SHAFT ASM; PROP,RR L=1621.5	8-97941-486-1	01	1	0211-							●
300	05.544 SHAFT ASM; PROP,RR 4JH1-TC ENG(RDM) L=1621.5	8-97941-486-1	01	1	0211-								●
300	05.544 SHAFT ASM; PROP,RR CREW CAB EXTRA LONG(TF**WK) 4JH1-TC ENG(RDM) L=1621.5	8-97941-486-1	01	1	0211-	●
300	05.544 SHAFT ASM; PROP,RR 6VE1 ENG(RJQ) L=1646.5	8-97941-480-1	01	1	0211-								●
300	05.544 SHAFT ASM; PROP,RR CREW CAB EXTRA LONG(TF**WK) 6VE1 ENG(RJQ) L=1646.5	8-97941-480-1	01	1	0211-	●
300	05.544 SHAFT ASM; PROP,RR 6VE1 ENG(RJQ) A/T AISIN(RMD) L=1489.5	8-97941-497-2	01	1	0211-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
