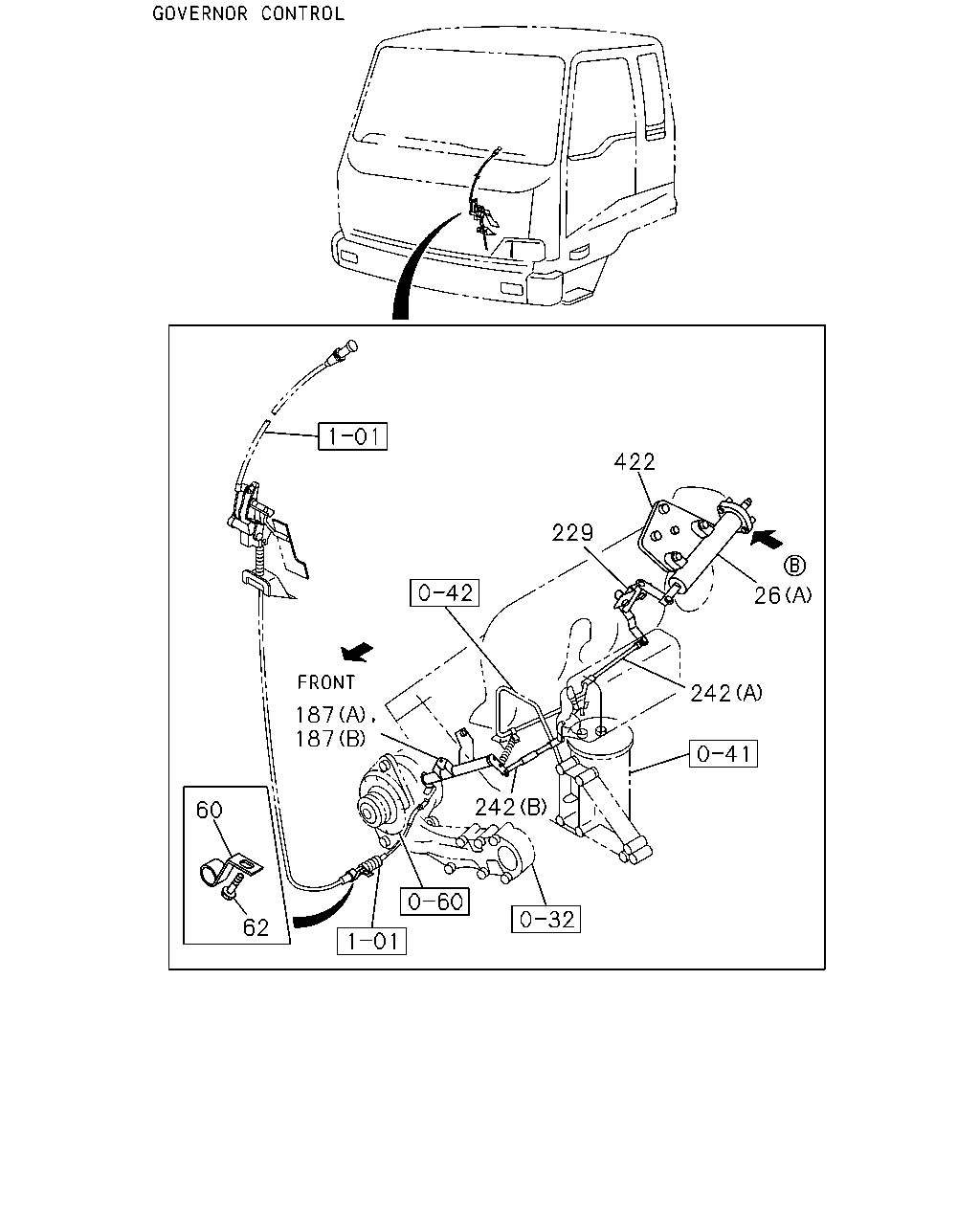

0-35B — ENGINE CONTROL VALVE AND LEVER (#4193) — 430 parça

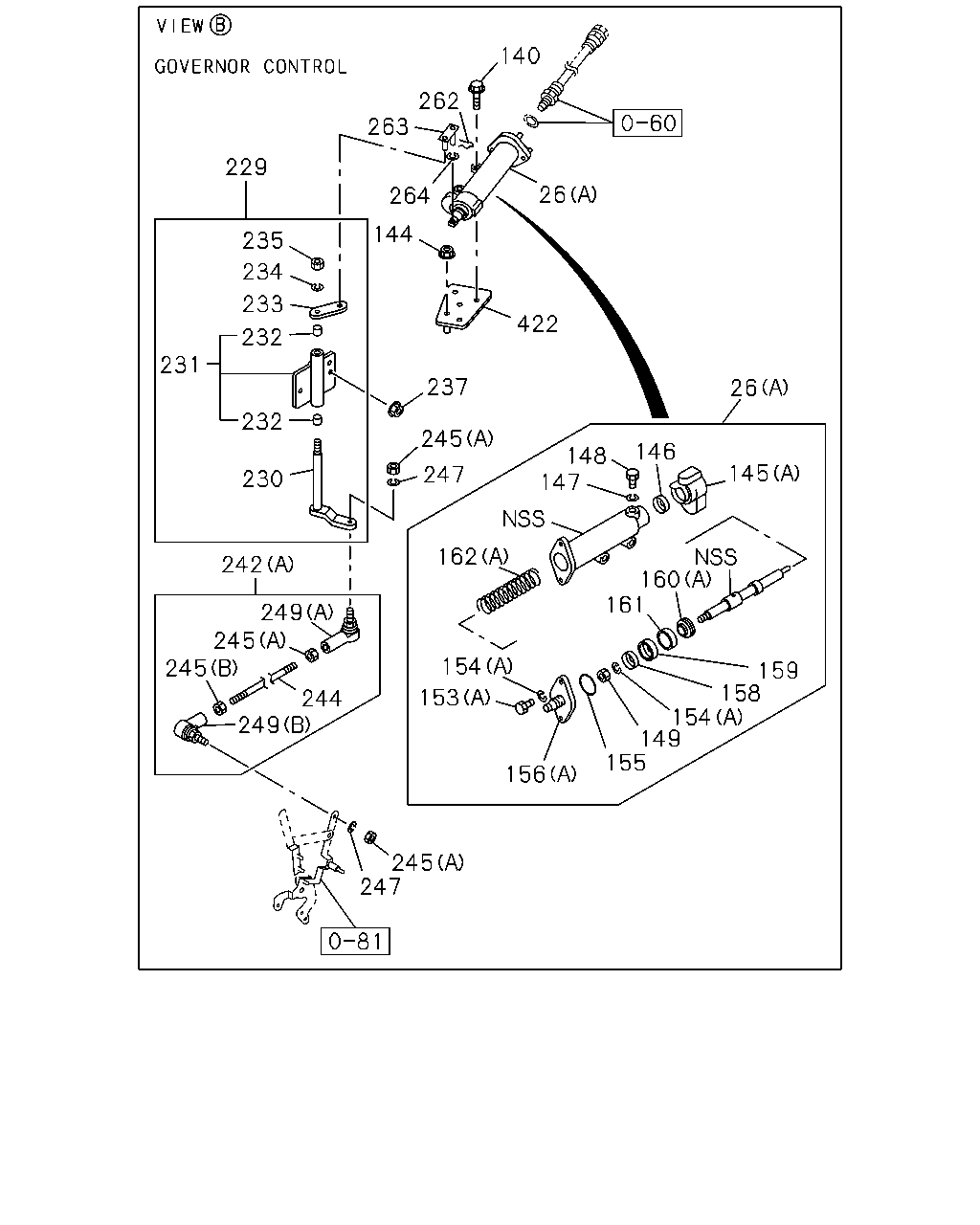

140 262 263 229 26 264 144 235 234 233 422 232 231 237 26 232 245 146 148 147 145 247 230 162 160 161 242 249 245 245 154 159 158 154 149 155 153 244 249 156 245 247

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
26	CYLINDER ASM; CONT (B)	1-22190-622-0	01	1	9603-9703	●	●
26	CYLINDER ASM; CONT (B)	1-22190-527-1	01	1	9703-9901	●	●
26	CYLINDER ASM; CONT GOVERNOR CONTROL<W69> (A)	1-22190-545-0	01	1	9905-	●	●
26	CYLINDER ASM; CONT (B)	1-22190-527-1	01	1	9905-	●	●	●	●
26	CYLINDER ASM; CONT GOVERNOR CONTROL<W69> (A)	1-22190-545-0	01	1	9603-9901		●
140	BOLT; CONNECTOR CYL GOVERNOR CONTROL<W69> M10X60 FLANGE	0-28081-060-0	02	1	9905-	●	●
140	BOLT; CONNECTOR CYL GOVERNOR CONTROL<W69> M10X60 FLANGE	0-28081-060-0	02	1	9603-9901		●
144	NUT; BRKT GOVERNOR CONTROL<W69> M10 FLANGE	0-91150-110-0	03	1	9905-	●	●
144	NUT; BRKT GOVERNOR CONTROL<W69> M10 FLANGE	0-91150-110-0	03	1	9603-9901		●
145	COVER; BREATHER (B)	1-22199-008-0	01	1	9603-9901	●	●
145	COVER; BREATHER GOVERNOR CONTROL<W69> (A)	1-22199-009-0	01	1	9905-	●	●
145	COVER; BREATHER (B)	1-22199-008-0	01	1	9905-	●	●	●	●
145	COVER; BREATHER GOVERNOR CONTROL<W69> (A)	1-22199-009-0	01	1	9603-9901		●
146	SEAL; DUST,CONT	1-22189-016-0	01	1	9603-9901	●	●
146	SEAL; DUST,CONT	1-22189-016-0	01	1	9905-	●	●	●	●
147	RING; RET	9-88510-331-0	01	1	9603-9901	●	●
147	RING; RET	9-88510-331-0	01	1	9905-	●	●	●	●
148	FILTER; CONT CYL	9-88510-330-0	01	1	9603-9901	●	●
148	FILTER; CONT CYL	9-88510-330-0	01	1	9905-	●	●	●	●
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	9603-9901	●	●
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	9905-	●	●	●	●
153	BOLT; CONT CYL (B)	1-22199-155-0	02	1	9603-9703	●	●
153	BOLT; CONT CYL (B)	1-33739-326-0	02	1	9703-9901	●	●
153	BOLT; CONT CYL GOVERNOR CONTROL<W69> (A)	9-88510-267-0	02	1	9905-	●	●
153	BOLT; CONT CYL (B)	1-33739-326-0	02	1	9905-	●	●	●	●
153	BOLT; CONT CYL GOVERNOR CONTROL<W69> (A)	9-88510-267-0	02	1	9603-9901		●
154	WASHER; LK,CYL (B) ID=8.2	9-09150-508-0	01	1	9603-9901	●	●
154	WASHER; LK,CYL GOVERNOR CONTROL<W69> (A) ID=8.2	9-09150-508-0	03	1	9905-	●	●
154	WASHER; LK,CYL (B) ID=8.2	9-09150-508-0	01	1	9905-	●	●	●	●
154	WASHER; LK,CYL GOVERNOR CONTROL<W69> (A) ID=8.2	9-09150-508-0	03	1	9603-9901		●
155	GASKET; CONT CYL	9-88510-372-0	01	1	9603-9901	●	●
155	GASKET; CONT CYL	9-88510-372-0	01	1	9905-	●	●	●	●
156	COVER; CONT CYL (B)	9-88510-321-0	01	1	9603-9703	●	●
156	COVER; CONT CYL (B)	1-22189-162-1	01	1	9703-9901	●	●
156	COVER; CONT CYL GOVERNOR CONTROL<W69> (A)	9-88510-375-0	01	1	9905-	●	●
156	COVER; CONT CYL (B)	1-22189-162-1	01	1	9905-	●	●	●	●
156	COVER; CONT CYL GOVERNOR CONTROL<W69> (A)	9-88510-375-0	01	1	9603-9901		●
158	RETAINER; GASKET,CYL	9-88510-324-0	01	1	9603-9901	●	●
158	RETAINER; GASKET,CYL	9-88510-324-0	01	1	9905-	●	●	●	●
159	GASKET; CONT CYL	9-88510-373-0	01	1	9603-9901	●	●
159	GASKET; CONT CYL	9-88510-373-0	01	1	9905-	●	●	●	●
160	PLATE (B)	1-22199-020-0	01	1	9603-9901	●	●
160	PLATE GOVERNOR CONTROL<W69> (A)	1-22199-001-0	01	1	9905-	●	●
160	PLATE (B)	1-22199-020-0	01	1	9905-	●	●	●	●
160	PLATE GOVERNOR CONTROL<W69> (A)	1-22199-001-0	01	1	9603-9901		●
161	RING; WEAR	1-22199-002-0	01	1	9603-9901	●	●
161	RING; WEAR	1-22199-002-0	01	1	9905-	●	●	●	●
162	SPRING; CONT CYL (B)	1-22199-018-0	01	1	9603-9901	●	●
162	SPRING; CONT CYL GOVERNOR CONTROL<W69> (A)	9-88510-374-0	01	1	9905-	●	●
162	SPRING; CONT CYL (B)	1-22199-018-0	01	1	9905-	●	●	●	●
162	SPRING; CONT CYL GOVERNOR CONTROL<W69> (A)	9-88510-374-0	01	1	9603-9901		●
229	CONTROL ASM; ENG SPD GOVERNOR CONTROL<W69>	1-23300-305-1	01	1	9905-0003	●	●
229	CONTROL ASM; ENG SPD EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-23300-305-1	01	1	0004-	●	●	●
229	CONTROL ASM; ENG SPD GOVERNOR CONTROL<W69>	1-23300-305-1	01	1	9603-9901		●
230	SHAFT; ENG SPD CONT GOVERNOR CONTROL<W69>	1-23331-107-0	01	1	9905-0003	●	●
230	SHAFT; ENG SPD CONT EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-23331-107-0	01	1	0004-	●	●	●
230	SHAFT; ENG SPD CONT GOVERNOR CONTROL<W69>	1-23331-107-0	01	1	9603-9901		●
231	BRACKET; ENG SPD CONT GOVERNOR CONTROL<W69>	1-23335-398-1	01	1	9905-0003	●	●
231	BRACKET; ENG SPD CONT EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-23335-398-1	01	1	0004-	●	●	●
231	BRACKET; ENG SPD CONT GOVERNOR CONTROL<W69>	1-23335-398-1	01	1	9603-9901		●
232	BUSHING; BRKT,ENG SPD CONT GOVERNOR CONTROL<W69>	1-23319-216-0	02	1	9905-0003	●	●
232	BUSHING; BRKT,ENG SPD CONT EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-23319-216-0	02	1	0004-	●	●	●
232	BUSHING; BRKT,ENG SPD CONT GOVERNOR CONTROL<W69>	1-23319-216-0	02	1	9603-9901		●
233	LEVER; ENG SPD CONT GOVERNOR CONTROL<W69>	1-23311-269-0	01	1	9905-0003	●	●
233	LEVER; ENG SPD CONT EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-23311-269-0	01	1	0004-	●	●	●
233	LEVER; ENG SPD CONT GOVERNOR CONTROL<W69>	1-23311-269-0	01	1	9603-9901		●
234	WASHER; LK,LEVER,ENG SPD CONT GOVERNOR CONTROL<W69> ID=10.2	9-09150-510-0	01	1	9905-0003	●	●
234	WASHER; LK,LEVER,ENG SPD CONT EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=10.2	9-09150-510-0	01	1	0004-	●	●	●
234	WASHER; LK,LEVER,ENG SPD CONT GOVERNOR CONTROL<W69> ID=10.2	9-09150-510-0	01	1	9603-9901		●
235	NUT; LEVER ENG SPD CONT GOVERNOR CONTROL<W69> M10	9-09110-410-0	01	1	9905-0003	●	●
235	NUT; LEVER ENG SPD CONT EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M10	9-09110-410-0	01	1	0004-	●	●	●
235	NUT; LEVER ENG SPD CONT GOVERNOR CONTROL<W69> M10	9-09110-410-0	01	1	9603-9901		●
237	NUT; BRKT GOVERNOR CONTROL<W69> M10 FLANGE	0-91150-110-0	02	1	9905-	●	●
237	NUT; BRKT GOVERNOR CONTROL<W69> M10 FLANGE	0-91150-110-0	02	1	9603-9901		●
242	LINK ASM (B) L=143	1-23314-176-0	01	1	9603-9901	●
242	LINK ASM (B) L=143	1-23314-176-0	01	1	9905-	●
242	LINK ASM GOVERNOR CONTROL<W69> (A) L=113	1-22190-493-1	01	1	9905-	●
242	LINK ASM (B) L=216	1-23314-177-0	01	1	9603-9901		●
242	LINK ASM ENGINE OIL TEMPERATURE GAUGE<UG3> (A) L=186	1-22190-494-1	01	1	9905-9905		●	●
242	LINK ASM GOVERNOR CONTROL<W69> (A) L=186	1-22190-494-1	01	1	9905-		●
242	LINK ASM GOVERNOR CONTROL<W69> (A) L=186	1-22190-494-1	01	1	9603-9901		●
242	LINK ASM (B) L=216	1-23314-177-0	01	1	9905-		●		●
244	JOINT ASM; BALL GOVERNOR CONTROL<W69>	1-09765-209-1	01	1	9905-	●
244	JOINT ASM; BALL ENGINE OIL TEMPERATURE GAUGE<UG3>	1-09765-210-1	01	1	9905-9905		●	●
244	JOINT ASM; BALL GOVERNOR CONTROL<W69>	1-09765-210-1	01	1	9905-		●
244	JOINT ASM; BALL GOVERNOR CONTROL<W69>	1-09765-210-1	01	1	9603-9901		●
245	NUT; LINK (D) M5	9-99111-405-0	02	1	9603-9901	●
245	NUT; LINK (D) M5	9-99111-405-0	02	1	9905-	●
245	NUT; LINK (C) M5 LH THREAD	9-09840-277-0	02	1	9603-9901	●	●
245	NUT; LINK GOVERNOR CONTROL<W69> (B) M8 LH THREAD	1-09409-002-0	01	1	9905-	●	●
245	NUT; LINK GOVERNOR CONTROL<W69> (A) M8	9-09110-408-0	03	1	9905-0003	●	●
245	NUT; LINK GOVERNOR CONTROL<W69> (A) M8	9-09110-408-0	03	1	0004-	●
245	NUT; LINK (C) M5 LH THREAD	9-09840-277-0	02	1	9905-9905	●	●	●	●
245	NUT; LINK (C) M5 LH THREAD	9-09840-277-0	02	1	9905-	●	●		●
245	NUT; LINK (D) M5	9-99110-405-0	02	1	9603-9901		●
245	NUT; LINK GOVERNOR CONTROL<W69> (B) M8 LH THREAD	1-09409-002-0	01	1	9603-9901		●
245	NUT; LINK GOVERNOR CONTROL<W69> (A) M8	9-09110-408-0	03	1	9603-9901		●
245	NUT; LINK GOVERNOR CONTROL<W69> (A) M8	9-09110-408-0	01	1	0004-		●
245	NUT; LINK CXZ&LONG CHASSIS(CXZ6MF) CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A) M8	9-09110-408-0	02	1	0004-		●	●
245	NUT; LINK (D) M5	9-99110-405-0	02	1	9905-		●		●
247	WASHER; LK,LINK GOVERNOR CONTROL<W69> ID=8.2	9-09150-508-0	02	1	9905-	●	●
247	WASHER; LK,LINK GOVERNOR CONTROL<W69> ID=8.2	9-09150-508-0	02	1	9603-9901		●
249	ROD; LINK GOVERNOR CONTROL<W69> (A) RH THREAD	1-09760-009-0	01	1	9905-	●	●
249	ROD; LINK GOVERNOR CONTROL<W69> (B) LH THREAD	1-09760-010-0	01	1	9905-	●	●
249	ROD; LINK GOVERNOR CONTROL<W69> (A) RH THREAD	1-09760-009-0	01	1	9603-9901		●
249	ROD; LINK GOVERNOR CONTROL<W69> (B) LH THREAD	1-09760-010-0	01	1	9603-9901		●
262	PIN; SNAP,LINK,CONT CYL GOVERNOR CONTROL<W69> L=21.2	1-09747-003-0	02	1	9905-	●	●
262	PIN; SNAP,LINK,CONT CYL GOVERNOR CONTROL<W69> L=21.2	1-09747-003-0	02	1	9603-9901		●
263	LINK ASM; CONT CYL GOVERNOR CONTROL<W69>	1-22196-183-0	01	1	9905-	●	●
263	LINK ASM; CONT CYL GOVERNOR CONTROL<W69>	1-22196-183-0	01	1	9603-9901		●
264	WASHER; LK,LINK,CONT CYL GOVERNOR CONTROL<W69> ID=6.4	9-09160-506-0	02	1	9905-	●	●
264	WASHER; LK,LINK,CONT CYL GOVERNOR CONTROL<W69> ID=6.4	9-09160-506-0	02	1	9603-9901		●
422	BRACKET; CONT CYL GOVERNOR CONTROL<W69>	1-23335-487-0	01	1	9905-	●	●
422	BRACKET; CONT CYL GOVERNOR CONTROL<W69>	1-23335-487-0	01	1	9603-9901		●

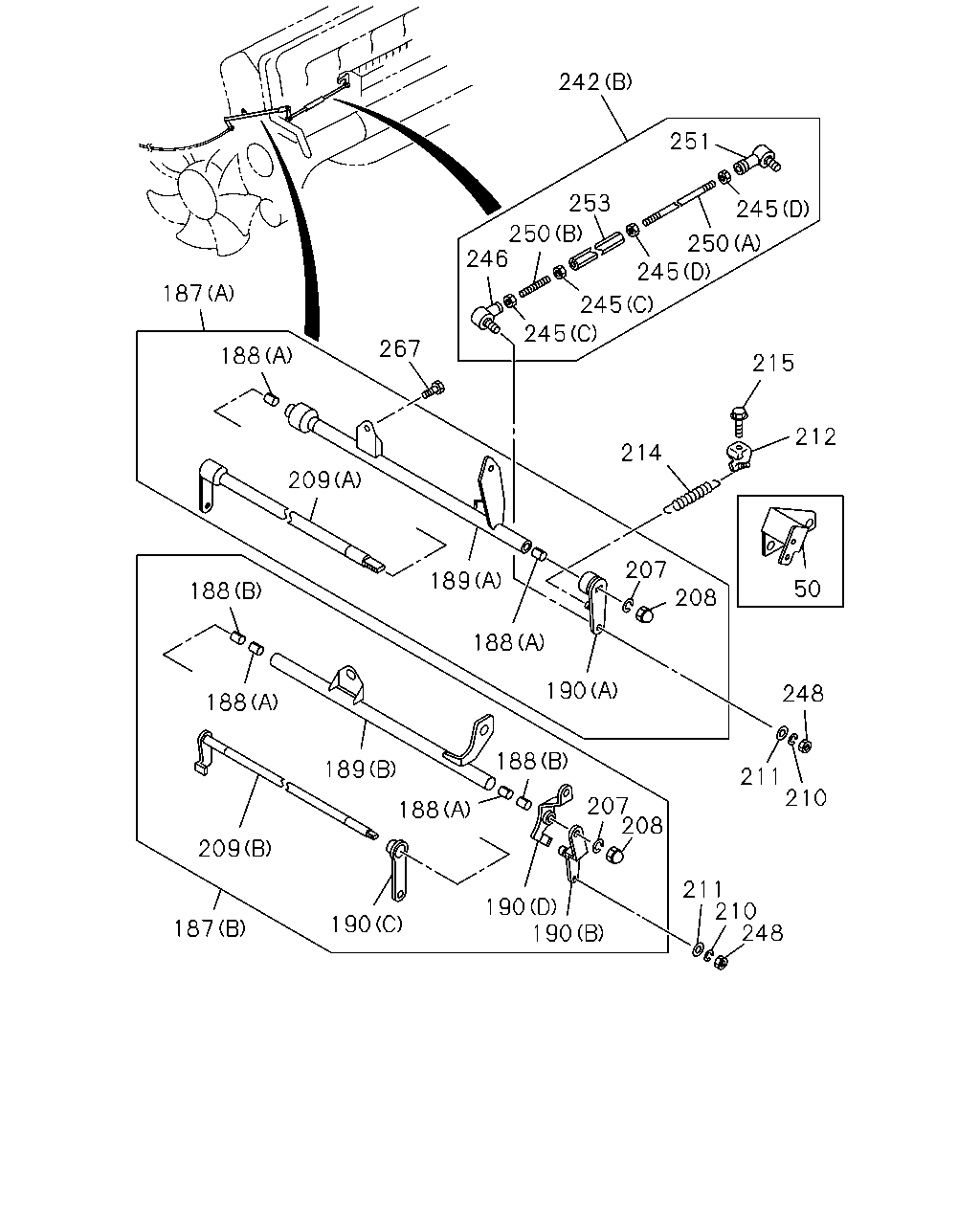

242 251 253 245 250 246 250 245 187 245 245 267 188 215 212 214 209 189 207 208 50 188 188 190 248 188 188 189 211 210 207 208 188 209 211 210 248 190 190 190 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
50	BRACKET; ENG CONT CABLE SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1)	1-23335-493-0	01	1	9604-9801	●	●
50	BRACKET; ENG CONT CABLE CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69>	1-23335-493-0	01	1	9604-9801		●
50	BRACKET; ENG CONT CABLE ENGINE REAR PTO(SV1)	1-23335-493-0	01	1	9802-9901	●	●
50	BRACKET; ENG CONT CABLE GOVERNOR CONTROL<W69>	1-23335-493-0	01	1	9802-9901		●
50	BRACKET; ENG CONT CABLE SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1)	1-23335-493-0	01	1	9905-9905	●	●
50	BRACKET; ENG CONT CABLE CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6>	1-23335-493-0	01	1	9905-9905	●	●
50	BRACKET; ENG CONT CABLE CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69>	1-23335-493-0	01	1	9905-9905		●
50	BRACKET; ENG CONT CABLE SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) EXC. TROPICAL ZONE KIT<WB6>	1-23335-493-0	01	1	9905-	●	●
50	BRACKET; ENG CONT CABLE CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6>	1-23335-493-0	01	1	9905-	●	●
50	BRACKET; ENG CONT CABLE SHORT CHASSIS(CX***C) MIXER TRUCK<RA2> TROPICAL ZONE KIT<WB6>	1-23335-493-0	01	1	9905-		●
50	BRACKET; ENG CONT CABLE CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69>	1-23335-493-0	01	1	9905-		●
187	CONTROL ASM; ENG (A)	1-23300-326-0	01	1	9603-9603	●	●
187	CONTROL ASM; ENG EXC. ENGINE REAR PTO(SV1),GOVERNOR CONTROL<W69> (A)	1-23300-326-0	01	1	9604-9901	●	●
187	CONTROL ASM; ENG ENGINE REAR PTO(SV1) (B)	1-23300-329-0	01	1	9604-9901	●	●
187	CONTROL ASM; ENG GOVERNOR CONTROL<W69> (B)	1-23300-329-0	01	1	9604-9901		●
187	CONTROL ASM; ENG SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) (B)	1-23300-329-0	01	1	9905-9905	●	●
187	CONTROL ASM; ENG CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (B)	1-23300-329-0	01	1	9905-9905	●	●
187	CONTROL ASM; ENG CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (B)	1-23300-329-0	01	1	9905-9905		●
187	CONTROL ASM; ENG SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) EXC. TROPICAL ZONE KIT<WB6> (B)	1-23300-329-0	01	1	9905-	●	●
187	CONTROL ASM; ENG CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (B)	1-23300-329-0	01	1	9905-	●	●
187	CONTROL ASM; ENG SHORT CHASSIS(CX***C) MIXER TRUCK<RA2> TROPICAL ZONE KIT<WB6> (B)	1-23300-329-0	01	1	9905-		●
187	CONTROL ASM; ENG CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (B)	1-23300-329-0	01	1	9905-		●
187	CONTROL ASM; ENG SHORT CHASSIS(CX***C) EXC. ENGINE REAR PTO(SV1) (A)	1-23300-326-0	01	1	9905-9905	●	●		●
187	CONTROL ASM; ENG CXZ&LONG CHASSIS(CXZ6MF) EXC. TROPICAL ZONE KIT<WB6>,GOVERNOR CONTROL<W69> (A)	1-23300-326-0	01	1	9905-9905	●	●
187	CONTROL ASM; ENG CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),GOVERNOR CONTROL<W69> (A)	1-23300-326-0	01	1	9905-9905	●	●
187	CONTROL ASM; ENG EXC. TROPICAL ZONE KIT<WB6> (A)	1-23300-326-0	01	1	9905-9905	●	●
187	CONTROL ASM; ENG TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2> (A)	1-23300-326-0	01	1	9905-9905	●	●
187	CONTROL ASM; ENG TROPICAL ZONE KIT<WB6> EXC. FIRE TRUCK<RA9> (A)	1-23300-326-0	01	1	9905-9905	●	●
187	CONTROL ASM; ENG EXC. TROPICAL ZONE KIT<WB6> (A)	1-23300-326-0	01	1	9906-0001	●	●
187	CONTROL ASM; ENG TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2> (A)	1-23300-326-0	01	1	9906-0001	●	●
187	CONTROL ASM; ENG TROPICAL ZONE KIT<WB6> EXC. FIRE TRUCK<RA9> (A)	1-23300-326-0	01	1	9906-0001	●	●
187	CONTROL ASM; ENG (A)	1-23300-326-0	01	1	9906-0001				●
187	CONTROL ASM; ENG EXC. TROPICAL ZONE KIT<WB6> (A)	1-23300-326-0	01	1	0002-	●	●
187	CONTROL ASM; ENG TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (A)	1-23300-326-0	01	1	0002-	●	●
187	CONTROL ASM; ENG (A)	1-23300-326-0	01	1	0002-				●
188	BUSHING; CONT SHAFT (A) OD=13 ID=10 L=15	1-09330-053-0	02	1	9603-9901	●	●
188	BUSHING; CONT SHAFT ENGINE REAR PTO(SV1) (B) OD=13 ID=10 L=10	1-09330-059-0	02	1	9604-9901	●	●
188	BUSHING; CONT SHAFT GOVERNOR CONTROL<W69> (B) OD=13 ID=10 L=10	1-09330-059-0	02	1	9604-9901		●
188	BUSHING; CONT SHAFT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) (B) OD=13 ID=10 L=10	1-09330-059-0	02	1	9905-9905	●	●
188	BUSHING; CONT SHAFT CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (B) OD=13 ID=10 L=10	1-09330-059-0	02	1	9905-9905	●	●
188	BUSHING; CONT SHAFT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (B) OD=13 ID=10 L=10	1-09330-059-0	02	1	9905-9905		●
188	BUSHING; CONT SHAFT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) EXC. TROPICAL ZONE KIT<WB6> (B) OD=13 ID=10 L=10	1-09330-059-0	02	1	9905-	●	●
188	BUSHING; CONT SHAFT CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (B) OD=13 ID=10 L=10	1-09330-059-0	02	1	9905-	●	●
188	BUSHING; CONT SHAFT SHORT CHASSIS(CX***C) MIXER TRUCK<RA2> TROPICAL ZONE KIT<WB6> (B) OD=13 ID=10 L=10	1-09330-059-0	02	1	9905-		●
188	BUSHING; CONT SHAFT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (B) OD=13 ID=10 L=10	1-09330-059-0	02	1	9905-		●
188	BUSHING; CONT SHAFT (A) OD=13 ID=10 L=15	1-09330-053-0	02	1	9905-	●	●		●
189	BRACKET; ENG CONT (A)	1-23335-482-0	01	1	9603-9603	●	●
189	BRACKET; ENG CONT EXC. ENGINE REAR PTO(SV1),GOVERNOR CONTROL<W69> (A)	1-23335-482-0	01	1	9604-9901	●	●
189	BRACKET; ENG CONT ENGINE REAR PTO(SV1) (A)	1-23335-492-0	01	1	9604-9901	●	●
189	BRACKET; ENG CONT GOVERNOR CONTROL<W69> (A)	1-23335-492-0	01	1	9604-9901		●
189	BRACKET; ENG CONT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) (B)	1-23335-492-0	01	1	9905-9905	●	●
189	BRACKET; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (B)	1-23335-492-0	01	1	9905-9905	●	●
189	BRACKET; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (B)	1-23335-492-0	01	1	9905-9905		●
189	BRACKET; ENG CONT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) EXC. TROPICAL ZONE KIT<WB6> (B)	1-23335-492-0	01	1	9905-	●	●
189	BRACKET; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (B)	1-23335-492-0	01	1	9905-	●	●
189	BRACKET; ENG CONT SHORT CHASSIS(CX***C) MIXER TRUCK<RA2> TROPICAL ZONE KIT<WB6> (B)	1-23335-492-0	01	1	9905-		●
189	BRACKET; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (B)	1-23335-492-0	01	1	9905-		●
189	BRACKET; ENG CONT SHORT CHASSIS(CX***C) EXC. ENGINE REAR PTO(SV1) (A)	1-23335-482-0	01	1	9905-9905	●	●		●
189	BRACKET; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) EXC. TROPICAL ZONE KIT<WB6>,GOVERNOR CONTROL<W69> (A)	1-23335-482-0	01	1	9905-9905	●	●
189	BRACKET; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),GOVERNOR CONTROL<W69> (A)	1-23335-482-0	01	1	9905-9905	●	●
189	BRACKET; ENG CONT EXC. TROPICAL ZONE KIT<WB6> (A)	1-23335-482-0	01	1	9905-9905	●	●
189	BRACKET; ENG CONT TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2> (A)	1-23335-482-0	01	1	9905-9905	●	●
189	BRACKET; ENG CONT TROPICAL ZONE KIT<WB6> EXC. FIRE TRUCK<RA9> (A)	1-23335-482-0	01	1	9905-9905	●	●
189	BRACKET; ENG CONT EXC. TROPICAL ZONE KIT<WB6> (A)	1-23335-482-0	01	1	9906-0001	●	●
189	BRACKET; ENG CONT TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2> (A)	1-23335-482-0	01	1	9906-0001	●	●
189	BRACKET; ENG CONT TROPICAL ZONE KIT<WB6> EXC. FIRE TRUCK<RA9> (A)	1-23335-482-0	01	1	9906-0001	●	●
189	BRACKET; ENG CONT (A)	1-23335-482-0	01	1	9906-0001				●
189	BRACKET; ENG CONT EXC. TROPICAL ZONE KIT<WB6> (A)	1-23335-482-0	01	1	0002-	●	●
189	BRACKET; ENG CONT TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (A)	1-23335-482-0	01	1	0002-	●	●
189	BRACKET; ENG CONT (A)	1-23335-482-0	01	1	0002-				●
190	LEVER; ENG CONT (A)	1-23311-352-0	01	1	9603-9603	●	●
190	LEVER; ENG CONT EXC. ENGINE REAR PTO(SV1),GOVERNOR CONTROL<W69> (A)	1-23311-352-0	01	1	9604-9901	●	●
190	LEVER; ENG CONT ENGINE REAR PTO(SV1) (B)	1-23311-353-0	01	1	9604-9901	●	●
190	LEVER; ENG CONT GOVERNOR CONTROL<W69> (B)	1-23311-353-0	01	1	9604-9901		●
190	LEVER; ENG CONT ENGINE REAR PTO(SV1) (C)	1-23311-354-0	01	1	9604-9901	●	●
190	LEVER; ENG CONT GOVERNOR CONTROL<W69> (C)	1-23311-354-0	01	1	9604-9901		●
190	LEVER; ENG CONT ENGINE REAR PTO(SV1) (D)	1-23311-355-0	01	1	9604-9901	●	●
190	LEVER; ENG CONT GOVERNOR CONTROL<W69> (D)	1-23311-355-0	01	1	9604-9901		●
190	LEVER; ENG CONT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) (B)	1-23311-353-0	01	1	9905-9905	●	●
190	LEVER; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (B)	1-23311-353-0	01	1	9905-9905	●	●
190	LEVER; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (B)	1-23311-353-0	01	1	9905-9905		●
190	LEVER; ENG CONT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) EXC. TROPICAL ZONE KIT<WB6> (B)	1-23311-353-0	01	1	9905-	●	●
190	LEVER; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (B)	1-23311-353-0	01	1	9905-	●	●
190	LEVER; ENG CONT SHORT CHASSIS(CX***C) MIXER TRUCK<RA2> TROPICAL ZONE KIT<WB6> (B)	1-23311-353-0	01	1	9905-		●
190	LEVER; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (B)	1-23311-353-0	01	1	9905-		●
190	LEVER; ENG CONT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) (C)	1-23311-354-0	01	1	9905-9905	●	●
190	LEVER; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (C)	1-23311-354-0	01	1	9905-9905	●	●
190	LEVER; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (C)	1-23311-354-0	01	1	9905-9905		●
190	LEVER; ENG CONT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) EXC. TROPICAL ZONE KIT<WB6> (C)	1-23311-354-0	01	1	9905-	●	●
190	LEVER; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (C)	1-23311-354-0	01	1	9905-	●	●
190	LEVER; ENG CONT SHORT CHASSIS(CX***C) MIXER TRUCK<RA2> TROPICAL ZONE KIT<WB6> (C)	1-23311-354-0	01	1	9905-		●
190	LEVER; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (C)	1-23311-354-0	01	1	9905-		●
190	LEVER; ENG CONT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) (D)	1-23311-355-0	01	1	9905-9905	●	●
190	LEVER; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (D)	1-23311-355-0	01	1	9905-9905	●	●
190	LEVER; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (D)	1-23311-355-0	01	1	9905-9905		●
190	LEVER; ENG CONT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) EXC. TROPICAL ZONE KIT<WB6> (D)	1-23311-355-0	01	1	9905-	●	●
190	LEVER; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (D)	1-23311-355-0	01	1	9905-	●	●
190	LEVER; ENG CONT SHORT CHASSIS(CX***C) MIXER TRUCK<RA2> TROPICAL ZONE KIT<WB6> (D)	1-23311-355-0	01	1	9905-		●
190	LEVER; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (D)	1-23311-355-0	01	1	9905-		●
190	LEVER; ENG CONT SHORT CHASSIS(CX***C) EXC. ENGINE REAR PTO(SV1) (A)	1-23311-352-0	01	1	9905-9905	●	●		●
190	LEVER; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) EXC. TROPICAL ZONE KIT<WB6>,GOVERNOR CONTROL<W69> (A)	1-23311-352-0	01	1	9905-9905	●	●
190	LEVER; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),GOVERNOR CONTROL<W69> (A)	1-23311-352-0	01	1	9905-9905	●	●
190	LEVER; ENG CONT EXC. TROPICAL ZONE KIT<WB6> (A)	1-23311-352-0	01	1	9905-9905	●	●
190	LEVER; ENG CONT TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2> (A)	1-23311-352-0	01	1	9905-9905	●	●
190	LEVER; ENG CONT TROPICAL ZONE KIT<WB6> EXC. FIRE TRUCK<RA9> (A)	1-23311-352-0	01	1	9905-9905	●	●
190	LEVER; ENG CONT EXC. TROPICAL ZONE KIT<WB6> (A)	1-23311-352-0	01	1	9906-0001	●	●
190	LEVER; ENG CONT TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2> (A)	1-23311-352-0	01	1	9906-0001	●	●
190	LEVER; ENG CONT TROPICAL ZONE KIT<WB6> EXC. FIRE TRUCK<RA9> (A)	1-23311-352-0	01	1	9906-0001	●	●
190	LEVER; ENG CONT (A)	1-23311-352-0	01	1	9906-0001				●
190	LEVER; ENG CONT EXC. TROPICAL ZONE KIT<WB6> (A)	1-23311-352-0	01	1	0002-	●	●
190	LEVER; ENG CONT TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (A)	1-23311-352-0	01	1	0002-	●	●
190	LEVER; ENG CONT (A)	1-23311-352-0	01	1	0002-				●
207	WASHER; LK,CONT LEVER ID=8.2	9-09150-508-0	01	1	9603-9901	●	●
207	WASHER; LK,CONT LEVER ID=8.2	9-09150-508-0	01	1	9905-	●	●		●
208	NUT; LEVER	1-09984-015-0	01	1	9603-9901	●	●
208	NUT; LEVER	1-09984-015-0	01	1	9905-	●	●		●
209	SHAFT; ENG CONT (A)	1-23331-128-0	01	1	9603-9603	●	●
209	SHAFT; ENG CONT EXC. ENGINE REAR PTO(SV1),GOVERNOR CONTROL<W69> (A)	1-23331-128-0	01	1	9604-9901	●	●
209	SHAFT; ENG CONT ENGINE REAR PTO(SV1) (B)	1-23331-130-0	01	1	9604-9901	●	●
209	SHAFT; ENG CONT GOVERNOR CONTROL<W69> (B)	1-23331-130-0	01	1	9604-9901		●
209	SHAFT; ENG CONT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) (B)	1-23331-130-0	01	1	9905-9905	●	●
209	SHAFT; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (B)	1-23331-130-0	01	1	9905-9905	●	●
209	SHAFT; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (B)	1-23331-130-0	01	1	9905-9905		●
209	SHAFT; ENG CONT SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) EXC. TROPICAL ZONE KIT<WB6> (B)	1-23331-130-0	01	1	9905-	●	●
209	SHAFT; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (B)	1-23331-130-0	01	1	9905-	●	●
209	SHAFT; ENG CONT SHORT CHASSIS(CX***C) MIXER TRUCK<RA2> TROPICAL ZONE KIT<WB6> (B)	1-23331-130-0	01	1	9905-		●
209	SHAFT; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (B)	1-23331-130-0	01	1	9905-		●
209	SHAFT; ENG CONT SHORT CHASSIS(CX***C) EXC. ENGINE REAR PTO(SV1) (A)	1-23331-128-0	01	1	9905-9905	●	●		●
209	SHAFT; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) EXC. TROPICAL ZONE KIT<WB6>,GOVERNOR CONTROL<W69> (A)	1-23331-128-0	01	1	9905-9905	●	●
209	SHAFT; ENG CONT CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),GOVERNOR CONTROL<W69> (A)	1-23331-128-0	01	1	9905-9905	●	●
209	SHAFT; ENG CONT EXC. TROPICAL ZONE KIT<WB6> (A)	1-23331-128-0	01	1	9905-9905	●	●
209	SHAFT; ENG CONT TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2> (A)	1-23331-128-0	01	1	9905-9905	●	●
209	SHAFT; ENG CONT TROPICAL ZONE KIT<WB6> EXC. FIRE TRUCK<RA9> (A)	1-23331-128-0	01	1	9905-9905	●	●
209	SHAFT; ENG CONT EXC. TROPICAL ZONE KIT<WB6> (A)	1-23331-128-0	01	1	9906-0001	●	●
209	SHAFT; ENG CONT TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2> (A)	1-23331-128-0	01	1	9906-0001	●	●
209	SHAFT; ENG CONT TROPICAL ZONE KIT<WB6> EXC. FIRE TRUCK<RA9> (A)	1-23331-128-0	01	1	9906-0001	●	●
209	SHAFT; ENG CONT (A)	1-23331-128-0	01	1	9906-0001				●
209	SHAFT; ENG CONT EXC. TROPICAL ZONE KIT<WB6> (A)	1-23331-128-0	01	1	0002-	●	●
209	SHAFT; ENG CONT TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (A)	1-23331-128-0	01	1	0002-	●	●
209	SHAFT; ENG CONT (A)	1-23331-128-0	01	1	0002-				●
210	WASHER; LK,JOINT BALL ID=5.1	9-09150-505-0	02	1	9603-9901	●	●
210	WASHER; LK,JOINT BALL ID=5.1	9-09150-505-0	02	1	9905-9905	●	●	●	●
210	WASHER; LK,JOINT BALL ID=5.1	9-09150-505-0	02	1	9905-	●	●		●
211	WASHER; PL,JOINT BALL ID=5.3 OD=16	9-09164-705-0	02	1	9603-9901	●	●
211	WASHER; PL,JOINT BALL ID=5.3 OD=16	9-09164-705-0	02	1	9905-9905	●	●	●	●
211	WASHER; PL,JOINT BALL ID=5.3 OD=16	9-09164-705-0	02	1	9905-	●	●		●
212	BRACKET; SPR EYE	1-23335-486-0	01	1	9603-9901	●	●
212	BRACKET; SPR EYE	1-23335-486-0	01	1	9905-9905	●	●	●	●
212	BRACKET; SPR EYE	1-23335-486-0	01	1	9905-	●	●		●
214	SPRING; ENG CONT RETURN	1-09583-315-0	01	1	9603-9901	●	●
214	SPRING; ENG CONT RETURN	1-09583-315-0	01	1	9905-9905	●	●	●	●
214	SPRING; ENG CONT RETURN	1-09583-315-0	01	1	9905-	●	●		●
215	BOLT; BRKT SPR EYE M10X16 FLANGE	0-28181-016-0	01	1	9603-9901		●
215	BOLT; BRKT SPR EYE M10X16 FLANGE	0-28181-016-0	01	1	9905-		●		●
242	LINK ASM (B) L=143	1-23314-176-0	01	1	9603-9901	●
242	LINK ASM (B) L=143	1-23314-176-0	01	1	9905-	●
242	LINK ASM GOVERNOR CONTROL<W69> (A) L=113	1-22190-493-1	01	1	9905-	●
242	LINK ASM (B) L=216	1-23314-177-0	01	1	9603-9901		●
242	LINK ASM ENGINE OIL TEMPERATURE GAUGE<UG3> (A) L=186	1-22190-494-1	01	1	9905-9905		●	●
242	LINK ASM GOVERNOR CONTROL<W69> (A) L=186	1-22190-494-1	01	1	9905-		●
242	LINK ASM GOVERNOR CONTROL<W69> (A) L=186	1-22190-494-1	01	1	9603-9901		●
242	LINK ASM (B) L=216	1-23314-177-0	01	1	9905-		●		●
245	NUT; LINK (D) M5	9-99111-405-0	02	1	9603-9901	●
245	NUT; LINK (D) M5	9-99111-405-0	02	1	9905-	●
245	NUT; LINK (C) M5 LH THREAD	9-09840-277-0	02	1	9603-9901	●	●
245	NUT; LINK GOVERNOR CONTROL<W69> (B) M8 LH THREAD	1-09409-002-0	01	1	9905-	●	●
245	NUT; LINK GOVERNOR CONTROL<W69> (A) M8	9-09110-408-0	03	1	9905-0003	●	●
245	NUT; LINK GOVERNOR CONTROL<W69> (A) M8	9-09110-408-0	03	1	0004-	●
245	NUT; LINK (C) M5 LH THREAD	9-09840-277-0	02	1	9905-9905	●	●	●	●
245	NUT; LINK (C) M5 LH THREAD	9-09840-277-0	02	1	9905-	●	●		●
245	NUT; LINK (D) M5	9-99110-405-0	02	1	9603-9901		●
245	NUT; LINK GOVERNOR CONTROL<W69> (B) M8 LH THREAD	1-09409-002-0	01	1	9603-9901		●
245	NUT; LINK GOVERNOR CONTROL<W69> (A) M8	9-09110-408-0	03	1	9603-9901		●
245	NUT; LINK GOVERNOR CONTROL<W69> (A) M8	9-09110-408-0	01	1	0004-		●
245	NUT; LINK CXZ&LONG CHASSIS(CXZ6MF) CONCRETE PUMP<RA5>,FIRE TRUCK<RA9> (A) M8	9-09110-408-0	02	1	0004-		●	●
245	NUT; LINK (D) M5	9-99110-405-0	02	1	9905-		●		●
246	JOINT; BALL,ENG CONT LINK	1-09760-104-0	01	1	9603-9901	●	●
246	JOINT; BALL,ENG CONT LINK	1-09760-104-0	01	1	9905-9905	●	●	●	●
246	JOINT; BALL,ENG CONT LINK	1-09760-104-0	01	1	9905-	●	●		●
248	NUT; JOINT BALL M5	9-99110-405-0	02	1	9603-9901	●	●
248	NUT; JOINT BALL M5	9-99110-405-0	02	1	9905-9905	●	●	●	●
248	NUT; JOINT BALL M5	9-99110-405-0	02	1	9905-	●	●		●
250	ROD; ROD TO JOINT (A) M5X50	1-09765-198-0	01	1	9603-9901	●
250	ROD; ROD TO JOINT (A) M5X50	1-09765-198-0	01	1	9905-	●
250	ROD; ROD TO JOINT (B) M5X50 LH THREAD	1-09765-197-0	01	1	9603-9901	●	●
250	ROD; ROD TO JOINT (B) M5X50 LH THREAD	1-09765-197-0	01	1	9905-9905	●	●	●	●
250	ROD; ROD TO JOINT (B) M5X50 LH THREAD	1-09765-197-0	01	1	9905-	●	●		●
250	ROD; ROD TO JOINT (A) M5X120	9-08400-512-0	01	1	9603-9901		●
250	ROD; ROD TO JOINT (A) M5X120	9-08400-512-0	01	1	9905-		●		●
251	JOINT; BALL,RIGHT SCREW,ENG CONT LINK	1-09760-103-0	01	1	9603-9901	●	●
251	JOINT; BALL,RIGHT SCREW,ENG CONT LINK	1-09760-103-0	01	1	9905-9905	●	●	●	●
251	JOINT; BALL,RIGHT SCREW,ENG CONT LINK	1-09760-103-0	01	1	9905-	●	●		●
253	JOINT; ROD TO ROD	9-23319-194-0	01	1	9603-9901	●	●
253	JOINT; ROD TO ROD	9-23319-194-0	01	1	9905-9905	●	●	●	●
253	JOINT; ROD TO ROD	9-23319-194-0	01	1	9905-	●	●		●
267	BOLT; ENG CONT M10X30 FLANGE	0-28181-030-0	01	1	9603-9901	●	●
267	BOLT; ENG CONT M10X30 FLANGE	0-28181-030-0	01	1	9905-9905	●	●	●	●
267	BOLT; ENG CONT M10X30 FLANGE	0-28181-030-0	01	1	9905-	●	●		●

422 229 26 242 187 187 242 60 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

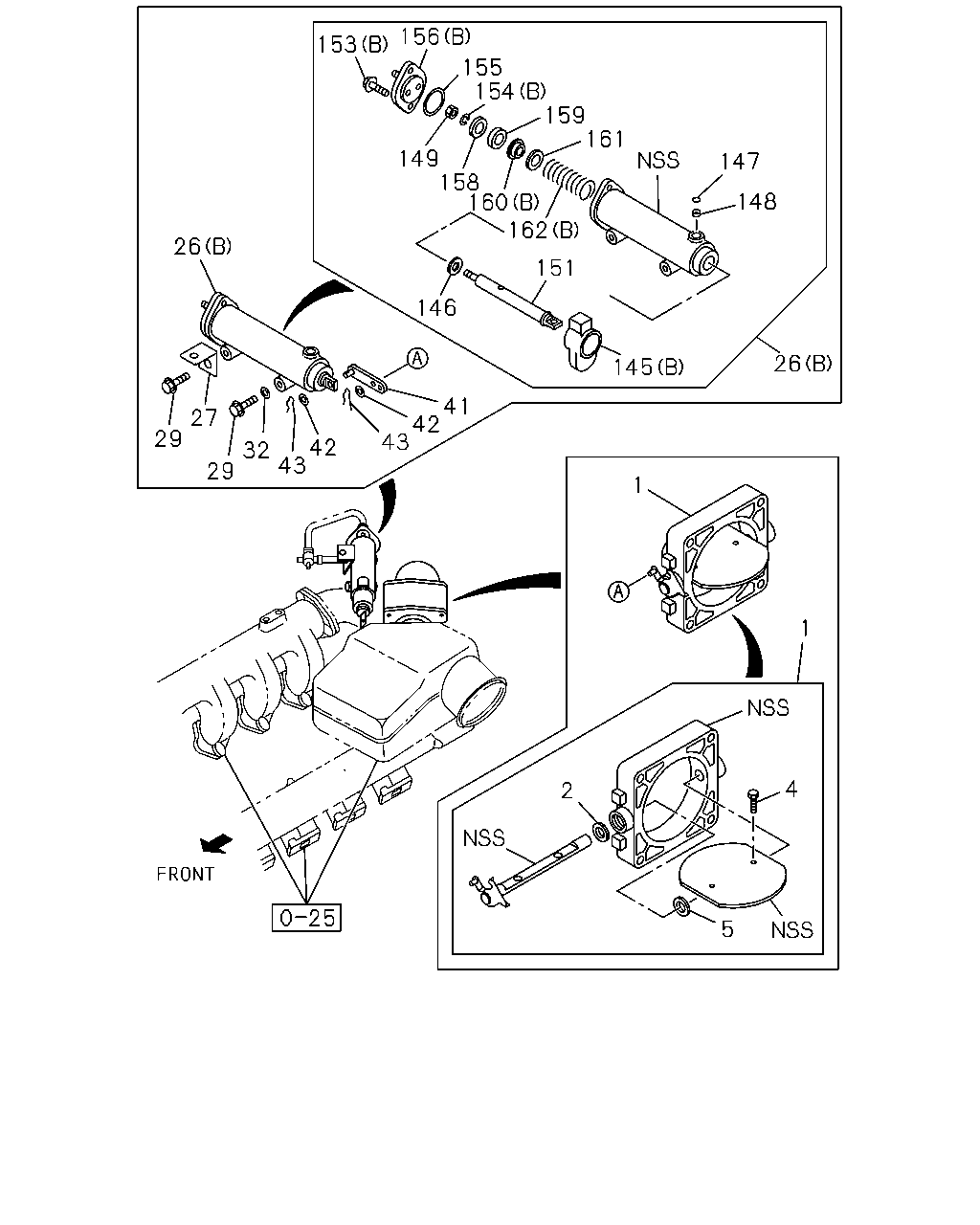

26	CYLINDER ASM; CONT (B)	1-22190-622-0	01	1	9603-9703	●	●
26	CYLINDER ASM; CONT (B)	1-22190-527-1	01	1	9703-9901	●	●
26	CYLINDER ASM; CONT GOVERNOR CONTROL<W69> (A)	1-22190-545-0	01	1	9905-	●	●
26	CYLINDER ASM; CONT (B)	1-22190-527-1	01	1	9905-	●	●	●	●
26	CYLINDER ASM; CONT GOVERNOR CONTROL<W69> (A)	1-22190-545-0	01	1	9603-9901		●
60	CLIP; CABLE ID=8 H=20 L=20	1-09700-604-0	01	1	9603-9901	●	●
60	CLIP; CABLE ID=8 H=20 L=20	1-09700-604-0	01	1	9905-	●	●	●	●
62	BOLT; CABLE END M6X16 FLANGE	0-28080-616-0	02	1	9603-9606	●	●
62	BOLT; CABLE END M8X20 FLANGE	0-28680-820-0	02	1	9607-9709	●	●
62	BOLT; CABLE END M6X16 FLANGE	0-28080-616-0	02	1	9710-9901	●	●
62	BOLT; CABLE END M6X16 FLANGE	0-28080-616-0	02	1	9905-	●	●	●	●
187	CONTROL ASM; ENG (A)	1-23300-326-0	01	1	9603-9603	●	●
187	CONTROL ASM; ENG EXC. ENGINE REAR PTO(SV1),GOVERNOR CONTROL<W69> (A)	1-23300-326-0	01	1	9604-9901	●	●
187	CONTROL ASM; ENG ENGINE REAR PTO(SV1) (B)	1-23300-329-0	01	1	9604-9901	●	●
187	CONTROL ASM; ENG GOVERNOR CONTROL<W69> (B)	1-23300-329-0	01	1	9604-9901		●
187	CONTROL ASM; ENG SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) (B)	1-23300-329-0	01	1	9905-9905	●	●
187	CONTROL ASM; ENG CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (B)	1-23300-329-0	01	1	9905-9905	●	●
187	CONTROL ASM; ENG CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (B)	1-23300-329-0	01	1	9905-9905		●
187	CONTROL ASM; ENG SHORT CHASSIS(CX***C) ENGINE REAR PTO(SV1) EXC. TROPICAL ZONE KIT<WB6> (B)	1-23300-329-0	01	1	9905-	●	●
187	CONTROL ASM; ENG CXZ&LONG CHASSIS(CXZ6MF) GOVERNOR CONTROL<W69> EXC. TROPICAL ZONE KIT<WB6> (B)	1-23300-329-0	01	1	9905-	●	●
187	CONTROL ASM; ENG SHORT CHASSIS(CX***C) MIXER TRUCK<RA2> TROPICAL ZONE KIT<WB6> (B)	1-23300-329-0	01	1	9905-		●
187	CONTROL ASM; ENG CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. GOVERNOR CONTROL<W69> (B)	1-23300-329-0	01	1	9905-		●
187	CONTROL ASM; ENG SHORT CHASSIS(CX***C) EXC. ENGINE REAR PTO(SV1) (A)	1-23300-326-0	01	1	9905-9905	●	●		●
187	CONTROL ASM; ENG CXZ&LONG CHASSIS(CXZ6MF) EXC. TROPICAL ZONE KIT<WB6>,GOVERNOR CONTROL<W69> (A)	1-23300-326-0	01	1	9905-9905	●	●
187	CONTROL ASM; ENG CXZ&LONG CHASSIS(CXZ6MF) TROPICAL ZONE KIT<WB6> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),GOVERNOR CONTROL<W69> (A)	1-23300-326-0	01	1	9905-9905	●	●
187	CONTROL ASM; ENG EXC. TROPICAL ZONE KIT<WB6> (A)	1-23300-326-0	01	1	9905-9905	●	●
187	CONTROL ASM; ENG TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2> (A)	1-23300-326-0	01	1	9905-9905	●	●
187	CONTROL ASM; ENG TROPICAL ZONE KIT<WB6> EXC. FIRE TRUCK<RA9> (A)	1-23300-326-0	01	1	9905-9905	●	●
187	CONTROL ASM; ENG EXC. TROPICAL ZONE KIT<WB6> (A)	1-23300-326-0	01	1	9906-0001	●	●
187	CONTROL ASM; ENG TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2> (A)	1-23300-326-0	01	1	9906-0001	●	●
187	CONTROL ASM; ENG TROPICAL ZONE KIT<WB6> EXC. FIRE TRUCK<RA9> (A)	1-23300-326-0	01	1	9906-0001	●	●
187	CONTROL ASM; ENG (A)	1-23300-326-0	01	1	9906-0001				●
187	CONTROL ASM; ENG EXC. TROPICAL ZONE KIT<WB6> (A)	1-23300-326-0	01	1	0002-	●	●
187	CONTROL ASM; ENG TROPICAL ZONE KIT<WB6> EXC. MIXER TRUCK<RA2>,FIRE TRUCK<RA9> (A)	1-23300-326-0	01	1	0002-	●	●
187	CONTROL ASM; ENG (A)	1-23300-326-0	01	1	0002-				●
229	CONTROL ASM; ENG SPD GOVERNOR CONTROL<W69>	1-23300-305-1	01	1	9905-0003	●	●
229	CONTROL ASM; ENG SPD EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-23300-305-1	01	1	0004-	●	●	●
229	CONTROL ASM; ENG SPD GOVERNOR CONTROL<W69>	1-23300-305-1	01	1	9603-9901		●
242	LINK ASM (B) L=143	1-23314-176-0	01	1	9603-9901	●
242	LINK ASM (B) L=143	1-23314-176-0	01	1	9905-	●
242	LINK ASM GOVERNOR CONTROL<W69> (A) L=113	1-22190-493-1	01	1	9905-	●
242	LINK ASM (B) L=216	1-23314-177-0	01	1	9603-9901		●
242	LINK ASM ENGINE OIL TEMPERATURE GAUGE<UG3> (A) L=186	1-22190-494-1	01	1	9905-9905		●	●
242	LINK ASM GOVERNOR CONTROL<W69> (A) L=186	1-22190-494-1	01	1	9905-		●
242	LINK ASM GOVERNOR CONTROL<W69> (A) L=186	1-22190-494-1	01	1	9603-9901		●
242	LINK ASM (B) L=216	1-23314-177-0	01	1	9905-		●		●
422	BRACKET; CONT CYL GOVERNOR CONTROL<W69>	1-23335-487-0	01	1	9905-	●	●
422	BRACKET; CONT CYL GOVERNOR CONTROL<W69>	1-23335-487-0	01	1	9603-9901		●

156 153 155 154 159 161 149 158 160 162 147 148 26 151 146 26 145 41 42 43 27 29 32 42 43 29 1 1 4 2 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHUTTER ASM; INT	1-14310-219-0	01	1	9603-9901	●	●
1	SHUTTER ASM; INT	1-14310-219-0	01	1	9905-	●	●	●	●
2	COVER; DUST,SHAFT	9-14319-316-0	01	1	9603-9901	●	●
2	COVER; DUST,SHAFT	9-14319-316-0	01	1	9905-	●	●	●	●
4	SCREW; VLV FIX	9-92050-514-0	02	1	9603-9901	●	●
4	SCREW; VLV FIX	9-92050-514-0	02	1	9905-	●	●	●	●
5	WASHER; THRUST,INT SHUTTER ID=12.5	9-09160-512-0	01	1	9603-9901	●	●
5	WASHER; THRUST,INT SHUTTER ID=12.5	9-09160-512-0	01	1	9905-	●	●	●	●
26	CYLINDER ASM; CONT (B)	1-22190-622-0	01	1	9603-9703	●	●
26	CYLINDER ASM; CONT (B)	1-22190-527-1	01	1	9703-9901	●	●
26	CYLINDER ASM; CONT GOVERNOR CONTROL<W69> (A)	1-22190-545-0	01	1	9905-	●	●
26	CYLINDER ASM; CONT (B)	1-22190-527-1	01	1	9905-	●	●	●	●
26	CYLINDER ASM; CONT GOVERNOR CONTROL<W69> (A)	1-22190-545-0	01	1	9603-9901		●
27	BRACKET; WIRE CLIP	1-83129-087-0	01	1	9603-9901	●	●
27	BRACKET; WIRE CLIP	1-83129-087-0	01	1	9905-	●	●	●	●
29	BOLT; CONT CYL M10X55 FLANGE	8-94399-863-1	02	1	9603-9901	●	●
29	BOLT; CONT CYL M10X55 FLANGE	8-94399-863-1	02	1	9905-	●	●	●	●
32	WASHER; LK,CONT CYL ID=10.5 OD=18	9-09160-510-0	01	1	9603-9901		●
32	WASHER; LK,CONT CYL ID=10.5 OD=18	9-09160-510-0	01	1	9905-		●	●	●
41	LINK; INT SHUTTER	1-14319-004-2	01	1	9603-9711	●	●
41	LINK; INT SHUTTER	1-14319-133-0	01	1	9712-9901	●	●
41	LINK; INT SHUTTER	1-14319-133-0	01	1	9905-	●	●	●	●
42	WASHER; LK,ROD LOCK ID=6.4	9-09160-506-0	02	1	9603-9901	●	●
42	WASHER; LK,ROD LOCK ID=6.4	9-09160-506-0	02	1	9905-	●	●	●	●
43	PIN; SNAP ROD LK L=21.2	1-09747-003-0	02	1	9603-9901	●	●
43	PIN; SNAP ROD LK L=21.2	1-09747-003-0	02	1	9905-	●	●	●	●
145	COVER; BREATHER (B)	1-22199-008-0	01	1	9603-9901	●	●
145	COVER; BREATHER GOVERNOR CONTROL<W69> (A)	1-22199-009-0	01	1	9905-	●	●
145	COVER; BREATHER (B)	1-22199-008-0	01	1	9905-	●	●	●	●
145	COVER; BREATHER GOVERNOR CONTROL<W69> (A)	1-22199-009-0	01	1	9603-9901		●
146	SEAL; DUST,CONT	1-22189-016-0	01	1	9603-9901	●	●
146	SEAL; DUST,CONT	1-22189-016-0	01	1	9905-	●	●	●	●
147	RING; RET	9-88510-331-0	01	1	9603-9901	●	●
147	RING; RET	9-88510-331-0	01	1	9905-	●	●	●	●
148	FILTER; CONT CYL	9-88510-330-0	01	1	9603-9901	●	●
148	FILTER; CONT CYL	9-88510-330-0	01	1	9905-	●	●	●	●
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	9603-9901	●	●
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	9905-	●	●	●	●
151	SHAFT; CONT CYL	1-22196-256-0	01	1	9603-9901	●	●
151	SHAFT; CONT CYL	1-22196-256-0	01	1	9905-	●	●	●	●
153	BOLT; CONT CYL (B)	1-22199-155-0	02	1	9603-9703	●	●
153	BOLT; CONT CYL (B)	1-33739-326-0	02	1	9703-9901	●	●
153	BOLT; CONT CYL GOVERNOR CONTROL<W69> (A)	9-88510-267-0	02	1	9905-	●	●
153	BOLT; CONT CYL (B)	1-33739-326-0	02	1	9905-	●	●	●	●
153	BOLT; CONT CYL GOVERNOR CONTROL<W69> (A)	9-88510-267-0	02	1	9603-9901		●
154	WASHER; LK,CYL (B) ID=8.2	9-09150-508-0	01	1	9603-9901	●	●
154	WASHER; LK,CYL GOVERNOR CONTROL<W69> (A) ID=8.2	9-09150-508-0	03	1	9905-	●	●
154	WASHER; LK,CYL (B) ID=8.2	9-09150-508-0	01	1	9905-	●	●	●	●
154	WASHER; LK,CYL GOVERNOR CONTROL<W69> (A) ID=8.2	9-09150-508-0	03	1	9603-9901		●
155	GASKET; CONT CYL	9-88510-372-0	01	1	9603-9901	●	●
155	GASKET; CONT CYL	9-88510-372-0	01	1	9905-	●	●	●	●
156	COVER; CONT CYL (B)	9-88510-321-0	01	1	9603-9703	●	●
156	COVER; CONT CYL (B)	1-22189-162-1	01	1	9703-9901	●	●
156	COVER; CONT CYL GOVERNOR CONTROL<W69> (A)	9-88510-375-0	01	1	9905-	●	●
156	COVER; CONT CYL (B)	1-22189-162-1	01	1	9905-	●	●	●	●
156	COVER; CONT CYL GOVERNOR CONTROL<W69> (A)	9-88510-375-0	01	1	9603-9901		●
158	RETAINER; GASKET,CYL	9-88510-324-0	01	1	9603-9901	●	●
158	RETAINER; GASKET,CYL	9-88510-324-0	01	1	9905-	●	●	●	●
159	GASKET; CONT CYL	9-88510-373-0	01	1	9603-9901	●	●
159	GASKET; CONT CYL	9-88510-373-0	01	1	9905-	●	●	●	●
160	PLATE (B)	1-22199-020-0	01	1	9603-9901	●	●
160	PLATE GOVERNOR CONTROL<W69> (A)	1-22199-001-0	01	1	9905-	●	●
160	PLATE (B)	1-22199-020-0	01	1	9905-	●	●	●	●
160	PLATE GOVERNOR CONTROL<W69> (A)	1-22199-001-0	01	1	9603-9901		●
161	RING; WEAR	1-22199-002-0	01	1	9603-9901	●	●
161	RING; WEAR	1-22199-002-0	01	1	9905-	●	●	●	●
162	SPRING; CONT CYL (B)	1-22199-018-0	01	1	9603-9901	●	●
162	SPRING; CONT CYL GOVERNOR CONTROL<W69> (A)	9-88510-374-0	01	1	9905-	●	●
162	SPRING; CONT CYL (B)	1-22199-018-0	01	1	9905-	●	●	●	●
162	SPRING; CONT CYL GOVERNOR CONTROL<W69> (A)	9-88510-374-0	01	1	9603-9901		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
