◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#41928) — 303 parça

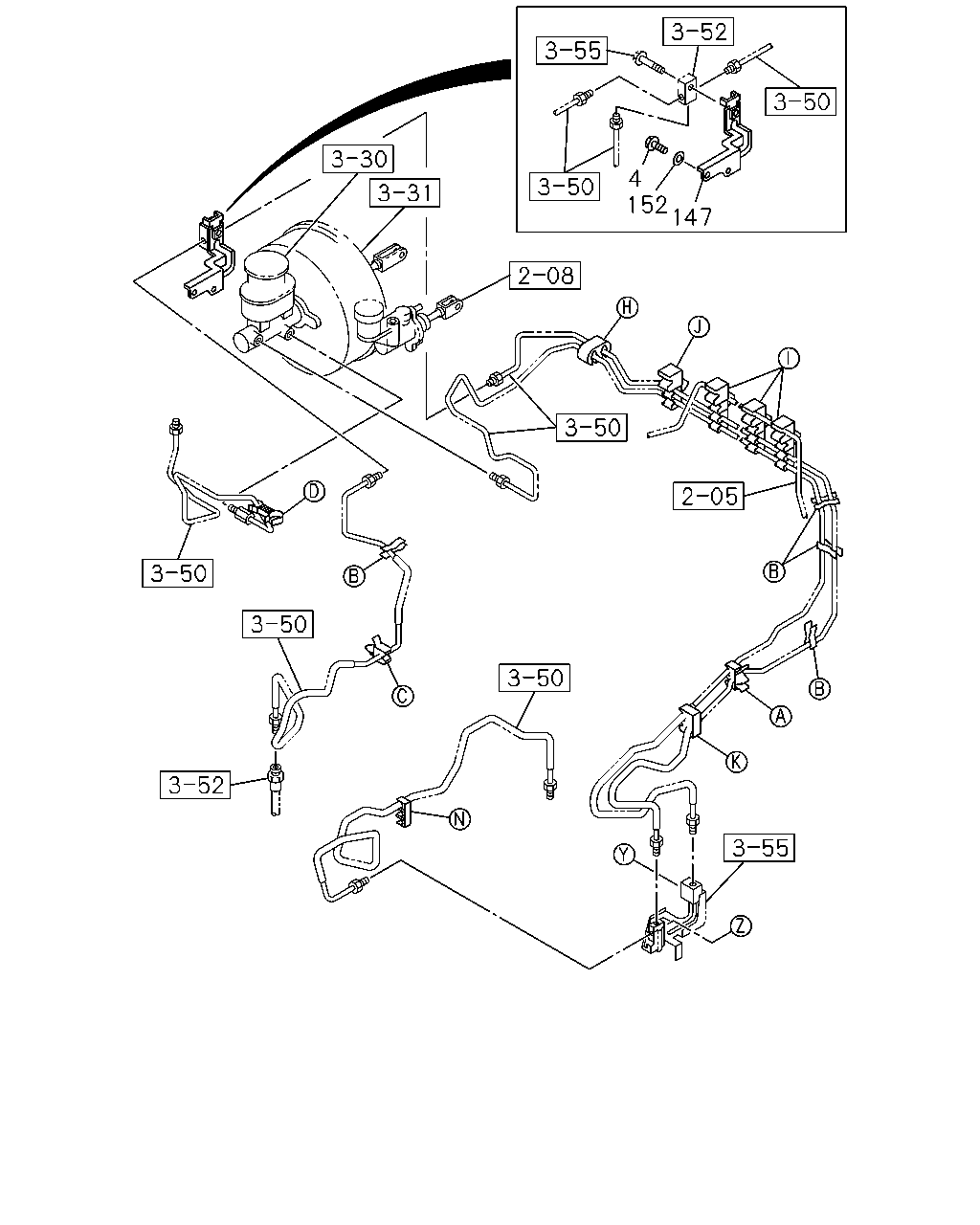

çizim 49497
4 152 147
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
4 04.686 BOLT; BRKT
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0211- ● ● ● ● ● ● ● ●
147 04.686 BRACKET; CONNECTOR 8-97248-079-0 01 1 0211- ● ● ● ● ●
147 04.686 BRACKET; CONNECTOR
BRK WHL LK CONT LSPV<6PH> 		8-97248-079-0 01 1 0211- ● ● ●
152 04.686 WASHER; PL
C24SE ENG(LG1),6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> 07.633 ID=8.4 OD=22 		9-09164-708-0 02 1 0211-0305 ● ● ● ●
152 04.686 WASHER; PL
C24SE ENG(LG1),6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> 07.633 ID=8.4 OD=22 		9-09164-708-0 02 1 0306- ● ● ● ● ● ● ● ●

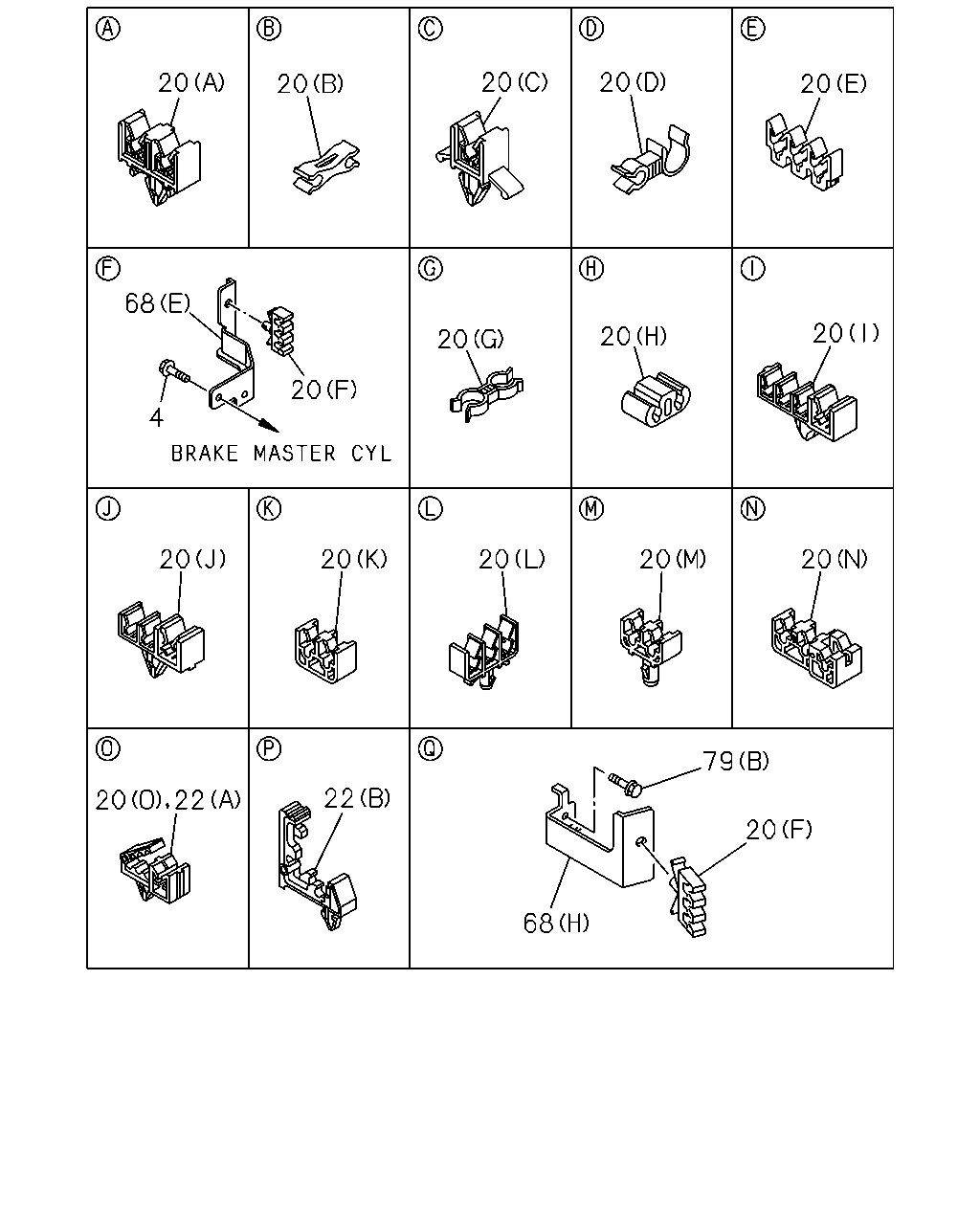

çizim 49824
20 20 20 20 20 68 20 20 20 20 4 20 20 20 20 20 79 22 20 68 20 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
4 04.686 BOLT; BRKT
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0211- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 04 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E) ID=4.8X3 		8-94487-369-0 04 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 02 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (O) ID=10 & 4.76X3 		8-97249-904-0 02 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 06.008 (A) ID=4.76X2 		8-97249-905-0 02 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (G) ID=4.8 		8-97300-405-0 02 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 08 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0211- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0211- ● ● ●
20 04.686 CLIP; BRK PIPE
(M) ID=6.8X2 		8-97251-124-0 02 1 0211- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0211-0211 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0212- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0212- ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0211- ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0211- ●
20 04.686 CLIP; BRK PIPE
03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0211- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0211- ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0211- ● ●
20 04.686 CLIP; BRK PIPE
03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0211- ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) BRK WHL LK CONT LSPV<6PH> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0211- ●
20 04.686 CLIP; BRK PIPE
CREW CAB EXTRA LONG(TF**WK) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0211- ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) BRK WHL LK CONT LSPV<6PH> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0211- ●
20 04.686 CLIP; BRK PIPE
CREW CAB EXTRA LONG(TF**WK) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0211- ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (O) ID=10 & 4.76X3 		8-97249-904-0 01 1 0211-0305 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> (O) ID=10 & 4.76X3 		8-97249-904-0 01 1 0306- ● ● ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 04 1 0211-0302 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0211-0301 ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0211-0301 ● ● ● ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0212- ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0212- ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0211-0302 ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0211-0302 ● ● ● ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0303-0305 ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0303-0305 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 02 1 0306- ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0211-0301 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0211-0301 ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0211-0301 ● ● ● ●
20 04.686 CLIP; BRK PIPE
06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0212- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0212- ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0212- ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0212- ●
20 04.686 CLIP; BRK PIPE
CREW CAB EXTRA LONG(TF**WK) 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0212- ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) BRK WHL LK CONT LSPV<6PH> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0212- ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<6PH> (K) ID=6.8X2 		8-97251-122-0 01 1 0211- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> (K) ID=6.8X2 		8-97251-122-0 02 1 0211- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 02 1 0211- ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> (K) ID=6.8X2 		8-97251-122-0 02 1 0211- ● ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 0211- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 0211- ● ● ●
20 04.686 CLIP; BRK PIPE
(H) ID=4.8X2 		8-94389-060-0 01 1 0211- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> (H) ID=4.8X2 		8-94389-060-0 01 1 0211- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> 02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0211-0301 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) 02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0211-0301 ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> 02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0211-0301 ● ● ● ●
20 04.686 CLIP; BRK PIPE
02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0212-0305 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0306- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=10 & 4.76X3 		8-97201-752-0 03 1 0211- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> (I) ID=10 & 4.76X3 		8-97201-752-0 03 1 0211- ● ● ●
20 04.686 CLIP; BRK PIPE
(J) 		8-97264-768-0 01 1 0211- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> (J) 		8-97264-768-0 01 1 0211- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0211-0211 ● ● ● ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0212-0305 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0212-0305 ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306- ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
CREW CAB EXTRA LONG(TF**WK) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (E) ID=4.8X3 		8-94487-369-0 02 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> (E) ID=4.8X3 		8-94487-369-0 02 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> (E) ID=4.8X3 		8-94487-369-0 02 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> (E) ID=4.8X3 		8-94487-369-0 02 1 0212-0305 ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> (E) ID=4.8X3 		8-94487-369-0 02 1 0212-0305 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> (E) ID=4.8X3 		8-94487-369-0 02 1 0306- ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0211-0301 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH>, HIGHRIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0211-0301 ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) BRK WHL LK CONT LSPV<6PH> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
CREW CAB EXTRA LONG(TF**WK) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0212-0305 ● ● ● ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0212-0305 ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH>, HIGHRIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0212-0305 ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0212-0305 ● ● ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0212-0305 ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306- ● ● ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306- ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH>, HIGHRIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306- ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
CREW CAB EXTRA LONG(TF**WK) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) BRK WHL LK CONT LSPV<6PH> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (G) ID=4.8 		8-97300-405-0 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0212- ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0212- ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 02 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 02 1 0212-0302 ● ● ● ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 02 1 0212-0302 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0212-0302 ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0212-0302 ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0303-0305 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0303-0305 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0306- ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0306- ●
22 04.686 CLIP; PIPE TO FRAME
EXC. HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 01 1 0303- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<6PH> EXC. HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 01 1 0303- ●
22 04.686 CLIP; PIPE TO FRAME
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 02 1 0303- ●
22 04.686 CLIP; PIPE TO FRAME
ANTI LOCK BRAKE SYSTEM<JE5> (A) ID=10 & 4.76X3 		8-97249-904-0 03 1 0211- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
ANTI LOCK BRAKE SYSTEM<JE5> (B) 		8-97255-709-0 01 1 0211- ● ● ●
68 04.686 BRACKET; CLIP
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97357-947-0 01 1 0303- ● ● ● ●
68 04.686 BRACKET; CLIP
(H) 		8-97259-809-0 01 1 0211- ● ● ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<6PH> (H) 		8-97259-809-0 01 1 0211- ● ● ●
68 04.686 BRACKET; CLIP
C24SE ENG(LG1) (B) 		8-97357-949-0 01 1 0303- ● ●
68 04.686 BRACKET; CLIP
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5S(RSQ) EXC. BRK WHL LK CONT LSPV<6PH>, HIGHRIDE SUSPENSION(7YC) (D) 		8-97357-946-0 01 1 0303- ●
68 04.686 BRACKET; CLIP
M/T MUA 5 SPEED 5G(RSP) EXC. BRK WHL LK CONT LSPV<6PH>, HIGHRIDE SUSPENSION(7YC) (C) 		8-97357-948-0 01 1 0303- ●
68 04.686 BRACKET; CLIP
ANTI LOCK BRAKE SYSTEM<JE5> (E) 		8-97259-810-1 01 1 0211- ● ● ●
68 04.686 BRACKET; CLIP
ANTI LOCK BRAKE SYSTEM<JE5> AUTO CRUISE CONT<K30> (F) 		8-97236-437-1 01 1 0211- ● ● ●
68 04.686 BRACKET; CLIP
ANTI LOCK BRAKE SYSTEM<JE5> EXC. AUTO CRUISE CONT<K30> (G) 		8-97236-433-4 01 1 0211- ● ● ●
79 04.686 BOLT; CLIP,OIL PIPE
C24SE ENG(LG1),6VE1 ENG(RJQ) 07.874 (A) M6X22 W/PL WASHER 		8-97012-072-0 02 1 0211- ● ● ● ● ● ● ●
79 04.686 BOLT; CLIP,OIL PIPE
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0211- ● ● ● ● ●
79 04.686 BOLT; CLIP,OIL PIPE
C24SE ENG(LG1) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0211- ● ●
79 04.686 BOLT; CLIP,OIL PIPE
BRK WHL LK CONT LSPV<6PH> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0211- ● ● ●

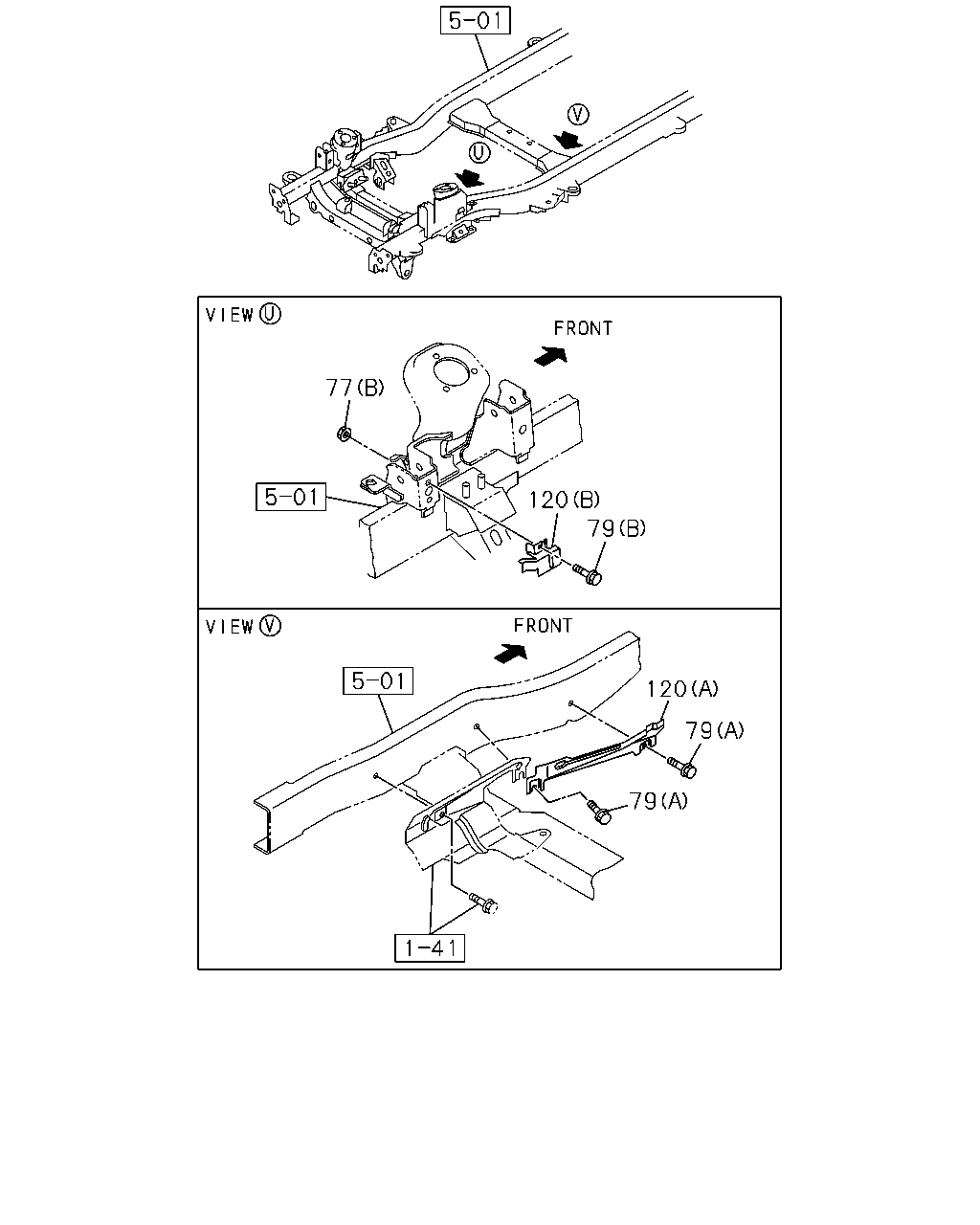

çizim 51467
77 120 79 120 79 79
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
77 04.686 NUT; BRKT,OIL PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. HIGH RIDE SUSPENSION(7YC) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0211- ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
ANTI LOCK BRAKE SYSTEM<JE5> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0211- ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
C24SE ENG(LG1) EXC. BRK WHL LK CONT LSPV<6PH> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0211- ●
77 04.686 NUT; BRKT,OIL PIPE
C24SE ENG(LG1) 01.540 (B) M6 FLANGE 		0-91180-206-0 01 1 0211- ● ●
77 04.686 NUT; BRKT,OIL PIPE
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) EXC. BRK WHL LK CONT LSPV<6PH>, HIGHRIDE SUSPENSION(7YC) 01.062 (A) M6 FLANGE 		0-91180-106-0 02 1 0211- ●
79 04.686 BOLT; CLIP,OIL PIPE
C24SE ENG(LG1),6VE1 ENG(RJQ) 07.874 (A) M6X22 W/PL WASHER 		8-97012-072-0 02 1 0211- ● ● ● ● ● ● ●
79 04.686 BOLT; CLIP,OIL PIPE
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0211- ● ● ● ● ●
79 04.686 BOLT; CLIP,OIL PIPE
C24SE ENG(LG1) 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0211- ● ●
79 04.686 BOLT; CLIP,OIL PIPE
BRK WHL LK CONT LSPV<6PH> 02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0211- ● ● ●
120 04.686 PROTECTOR; HEAT
C24SE ENG(LG1),6VE1 ENG(RJQ) (A) 		8-97249-914-0 01 1 0211- ● ● ● ● ● ● ●
120 04.686 PROTECTOR; HEAT
C24SE ENG(LG1) (B) 		8-97263-520-0 01 1 0211- ● ●
çizim 53144
93 93 68 77 77 20 20 68 77 68 68 22 22 93 93 22 22 68 68 77 93 93
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 04 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E) ID=4.8X3 		8-94487-369-0 04 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 02 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (O) ID=10 & 4.76X3 		8-97249-904-0 02 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 06.008 (A) ID=4.76X2 		8-97249-905-0 02 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (G) ID=4.8 		8-97300-405-0 02 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 08 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0211- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0211- ● ● ●
20 04.686 CLIP; BRK PIPE
(M) ID=6.8X2 		8-97251-124-0 02 1 0211- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0211-0211 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0212- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0212- ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0211- ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (L) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0211- ●
20 04.686 CLIP; BRK PIPE
03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0211- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0211- ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0211- ● ●
20 04.686 CLIP; BRK PIPE
03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0211- ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) BRK WHL LK CONT LSPV<6PH> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0211- ●
20 04.686 CLIP; BRK PIPE
CREW CAB EXTRA LONG(TF**WK) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0211- ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) BRK WHL LK CONT LSPV<6PH> 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0211- ●
20 04.686 CLIP; BRK PIPE
CREW CAB EXTRA LONG(TF**WK) 03.162 (N) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0211- ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (O) ID=10 & 4.76X3 		8-97249-904-0 01 1 0211-0305 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> (O) ID=10 & 4.76X3 		8-97249-904-0 01 1 0306- ● ● ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 04 1 0211-0302 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0211-0301 ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0211-0301 ● ● ● ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0212- ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0212- ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0211-0302 ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0211-0302 ● ● ● ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0303-0305 ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0303-0305 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 02 1 0306- ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0211-0301 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0211-0301 ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0211-0301 ● ● ● ●
20 04.686 CLIP; BRK PIPE
06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0212- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0212- ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0212- ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0212- ●
20 04.686 CLIP; BRK PIPE
CREW CAB EXTRA LONG(TF**WK) 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0212- ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) BRK WHL LK CONT LSPV<6PH> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0212- ●
20 04.686 CLIP; BRK PIPE
C24SE ENG(LG1),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<6PH> (K) ID=6.8X2 		8-97251-122-0 01 1 0211- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> (K) ID=6.8X2 		8-97251-122-0 02 1 0211- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> HIGH RIDE SUSPENSION(7YC) (K) ID=6.8X2 		8-97251-122-0 02 1 0211- ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> (K) ID=6.8X2 		8-97251-122-0 02 1 0211- ● ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 0211- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 04.868 (B) ID=4.6X2 		8-94241-454-0 03 1 0211- ● ● ●
20 04.686 CLIP; BRK PIPE
(H) ID=4.8X2 		8-94389-060-0 01 1 0211- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> (H) ID=4.8X2 		8-94389-060-0 01 1 0211- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> 02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0211-0301 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) 02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0211-0301 ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> 02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0211-0301 ● ● ● ●
20 04.686 CLIP; BRK PIPE
02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0212-0305 ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0306- ● ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=10 & 4.76X3 		8-97201-752-0 03 1 0211- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> (I) ID=10 & 4.76X3 		8-97201-752-0 03 1 0211- ● ● ●
20 04.686 CLIP; BRK PIPE
(J) 		8-97264-768-0 01 1 0211- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> (J) 		8-97264-768-0 01 1 0211- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0211-0211 ● ● ● ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 02 1 0211-0211 ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0212-0305 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0212-0305 ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306- ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306- ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) EXC. ANTI LOCK BRAKE SYSTEM<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
CREW CAB EXTRA LONG(TF**WK) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (E) ID=4.8X3 		8-94487-369-0 02 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> (E) ID=4.8X3 		8-94487-369-0 02 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> (E) ID=4.8X3 		8-94487-369-0 02 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> (E) ID=4.8X3 		8-94487-369-0 02 1 0212-0305 ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> (E) ID=4.8X3 		8-94487-369-0 02 1 0212-0305 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> (E) ID=4.8X3 		8-94487-369-0 02 1 0306- ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0211-0301 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH>, HIGHRIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0211-0301 ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) BRK WHL LK CONT LSPV<6PH> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
CREW CAB EXTRA LONG(TF**WK) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0212-0305 ● ● ● ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0212-0305 ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH>, HIGHRIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0212-0305 ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0212-0305 ● ● ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0212-0305 ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306- ● ● ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306- ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH>, HIGHRIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306- ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
CREW CAB EXTRA LONG(TF**WK) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) BRK WHL LK CONT LSPV<6PH> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (G) ID=4.8 		8-97300-405-0 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0212- ● ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0212- ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 02 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0211-0301 ●
20 04.686 CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 02 1 0212-0302 ● ● ● ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 02 1 0212-0302 ●
20 04.686 CLIP; BRK PIPE
ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0212-0302 ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0212-0302 ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0303-0305 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0303-0305 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0306- ● ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0306- ●
20 04.686 CLIP; BRK PIPE
4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0306- ●
22 04.686 CLIP; PIPE TO FRAME
EXC. HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 01 1 0303- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<6PH> EXC. HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 01 1 0303- ●
22 04.686 CLIP; PIPE TO FRAME
ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 02 1 0303- ●
22 04.686 CLIP; PIPE TO FRAME
ANTI LOCK BRAKE SYSTEM<JE5> (A) ID=10 & 4.76X3 		8-97249-904-0 03 1 0211- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
ANTI LOCK BRAKE SYSTEM<JE5> (B) 		8-97255-709-0 01 1 0211- ● ● ●
68 04.686 BRACKET; CLIP
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97357-947-0 01 1 0303- ● ● ● ●
68 04.686 BRACKET; CLIP
(H) 		8-97259-809-0 01 1 0211- ● ● ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<6PH> (H) 		8-97259-809-0 01 1 0211- ● ● ●
68 04.686 BRACKET; CLIP
C24SE ENG(LG1) (B) 		8-97357-949-0 01 1 0303- ● ●
68 04.686 BRACKET; CLIP
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5S(RSQ) EXC. BRK WHL LK CONT LSPV<6PH>, HIGHRIDE SUSPENSION(7YC) (D) 		8-97357-946-0 01 1 0303- ●
68 04.686 BRACKET; CLIP
M/T MUA 5 SPEED 5G(RSP) EXC. BRK WHL LK CONT LSPV<6PH>, HIGHRIDE SUSPENSION(7YC) (C) 		8-97357-948-0 01 1 0303- ●
68 04.686 BRACKET; CLIP
ANTI LOCK BRAKE SYSTEM<JE5> (E) 		8-97259-810-1 01 1 0211- ● ● ●
68 04.686 BRACKET; CLIP
ANTI LOCK BRAKE SYSTEM<JE5> AUTO CRUISE CONT<K30> (F) 		8-97236-437-1 01 1 0211- ● ● ●
68 04.686 BRACKET; CLIP
ANTI LOCK BRAKE SYSTEM<JE5> EXC. AUTO CRUISE CONT<K30> (G) 		8-97236-433-4 01 1 0211- ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JH1-TC ENG(RDM),6VE1 ENG(RJQ) M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) EXC. HIGH RIDE SUSPENSION(7YC) 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0211- ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
ANTI LOCK BRAKE SYSTEM<JE5> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0211- ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
C24SE ENG(LG1) EXC. BRK WHL LK CONT LSPV<6PH> 01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 0211- ●
77 04.686 NUT; BRKT,OIL PIPE
C24SE ENG(LG1) 01.540 (B) M6 FLANGE 		0-91180-206-0 01 1 0211- ● ●
77 04.686 NUT; BRKT,OIL PIPE
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) EXC. BRK WHL LK CONT LSPV<6PH>, HIGHRIDE SUSPENSION(7YC) 01.062 (A) M6 FLANGE 		0-91180-106-0 02 1 0211- ●
93 04.686 CLIP; BRKT
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) EXC. BRK WHL LK CONT LSPV<6PH>, HIGHRIDE SUSPENSION(7YC) 16.800 (A) OD=18 		8-94269-290-0 02 1 0211- ●
93 04.686 CLIP; BRKT
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK),M/T MUA 5 SPEED 5S(RSQ) EXC. BRK WHL LK CONT LSPV<6PH>, HIGHRIDE SUSPENSION(7YC) 16.800 (A) OD=18 		8-94269-290-0 01 1 0211- ●
93 04.686 CLIP; BRKT
ANTI LOCK BRAKE SYSTEM<JE5> 08.820 (B) OD=25 		8-94279-810-0 01 1 0211- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
