Sayfa 3-50 - Isuzu EPC

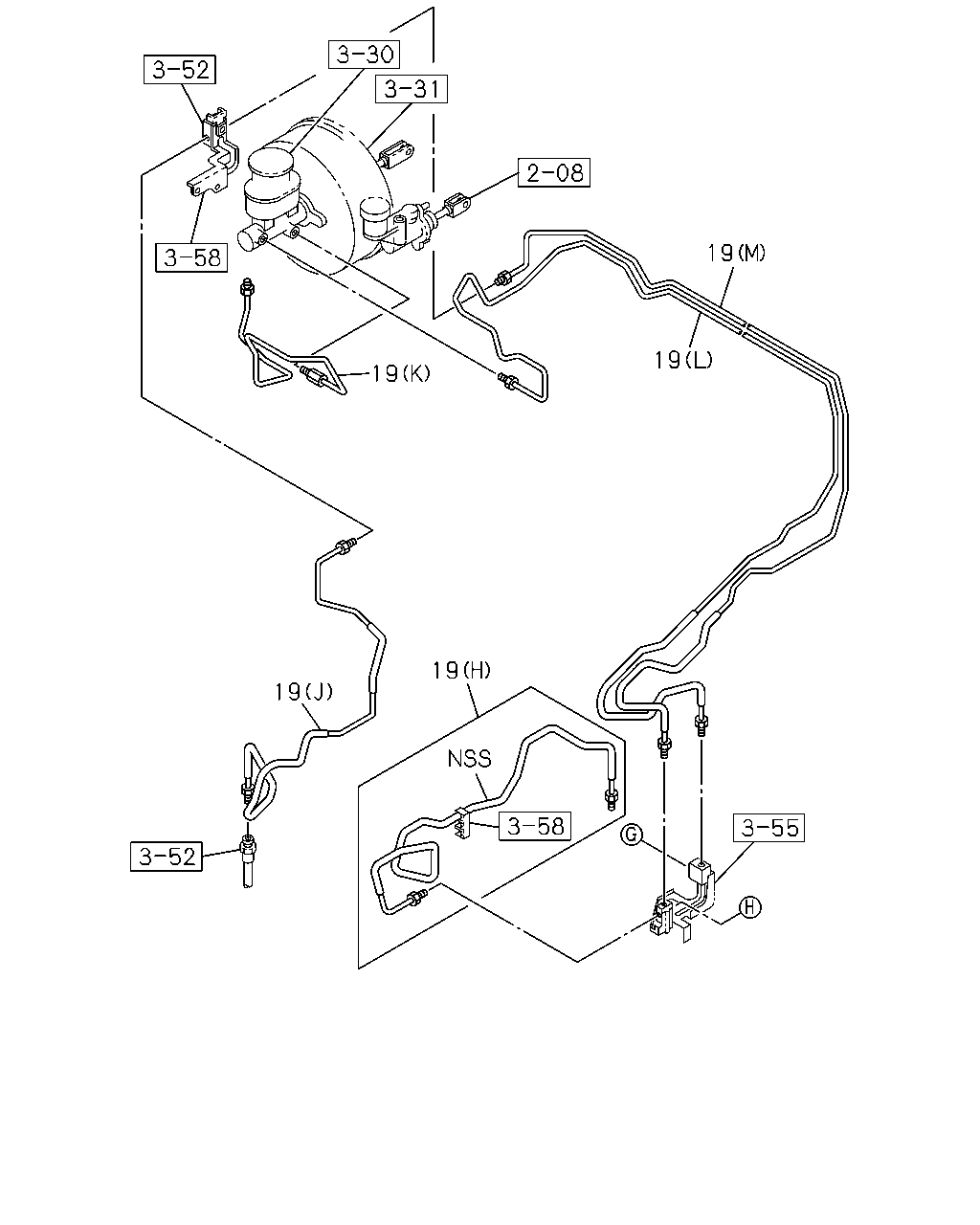

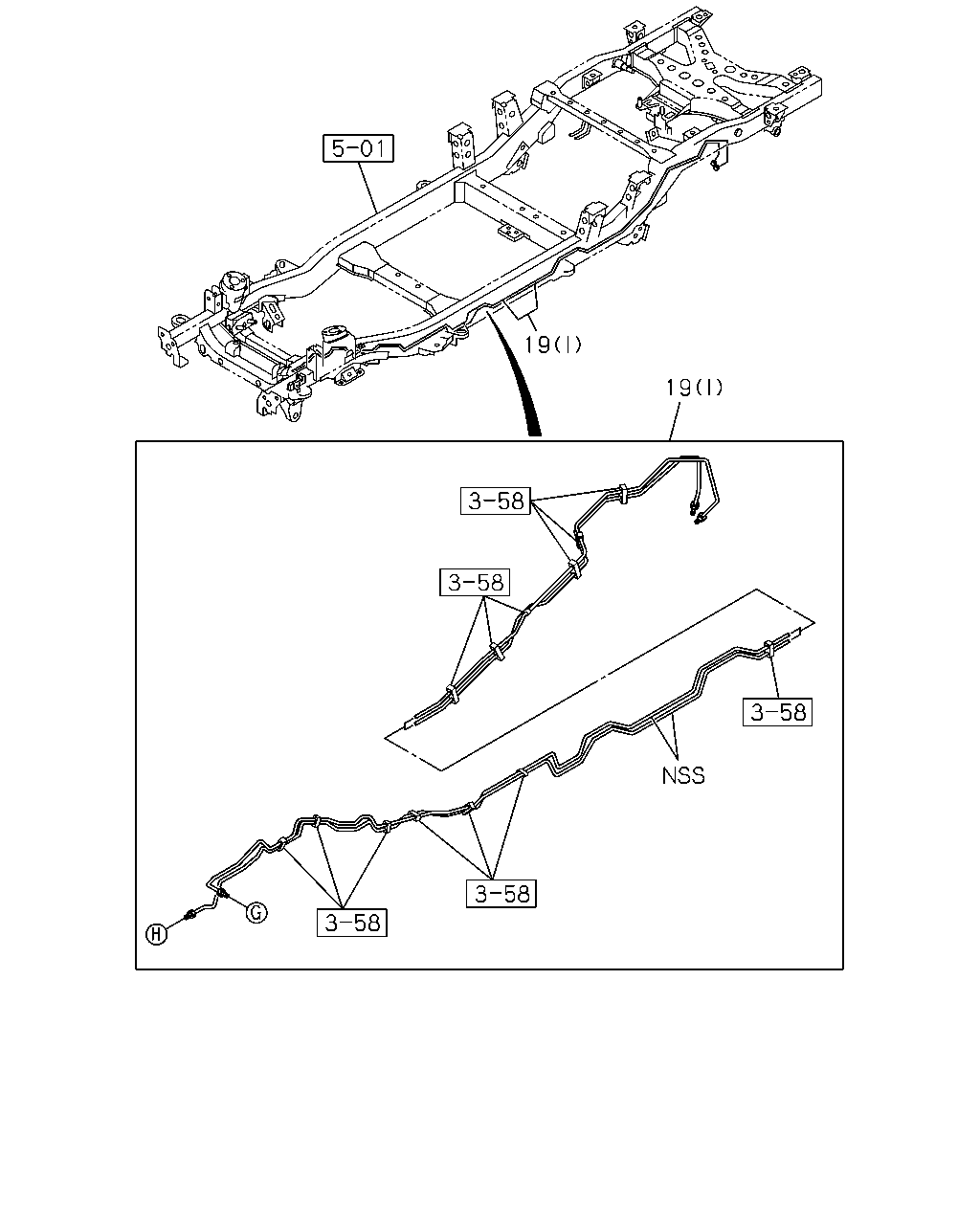

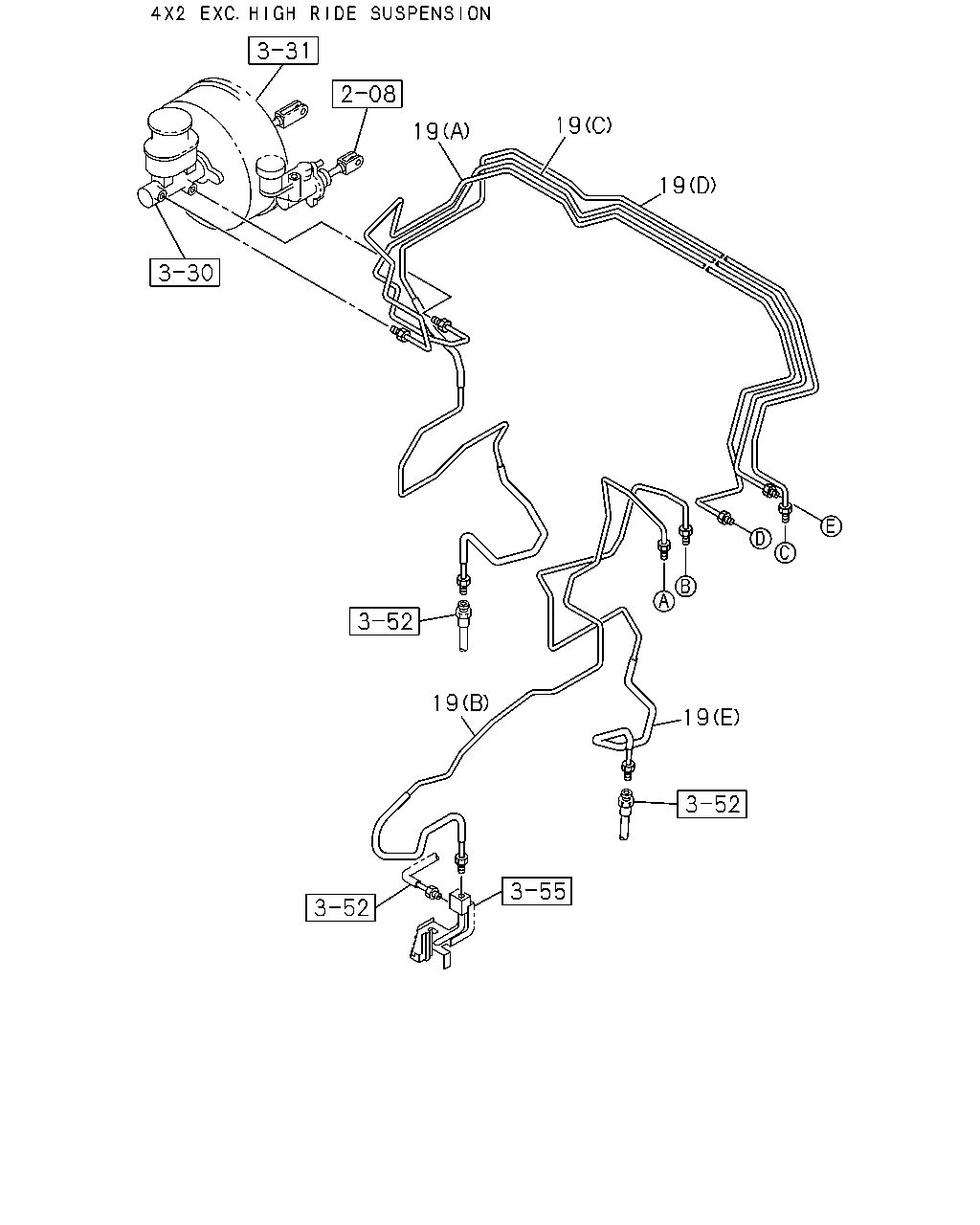

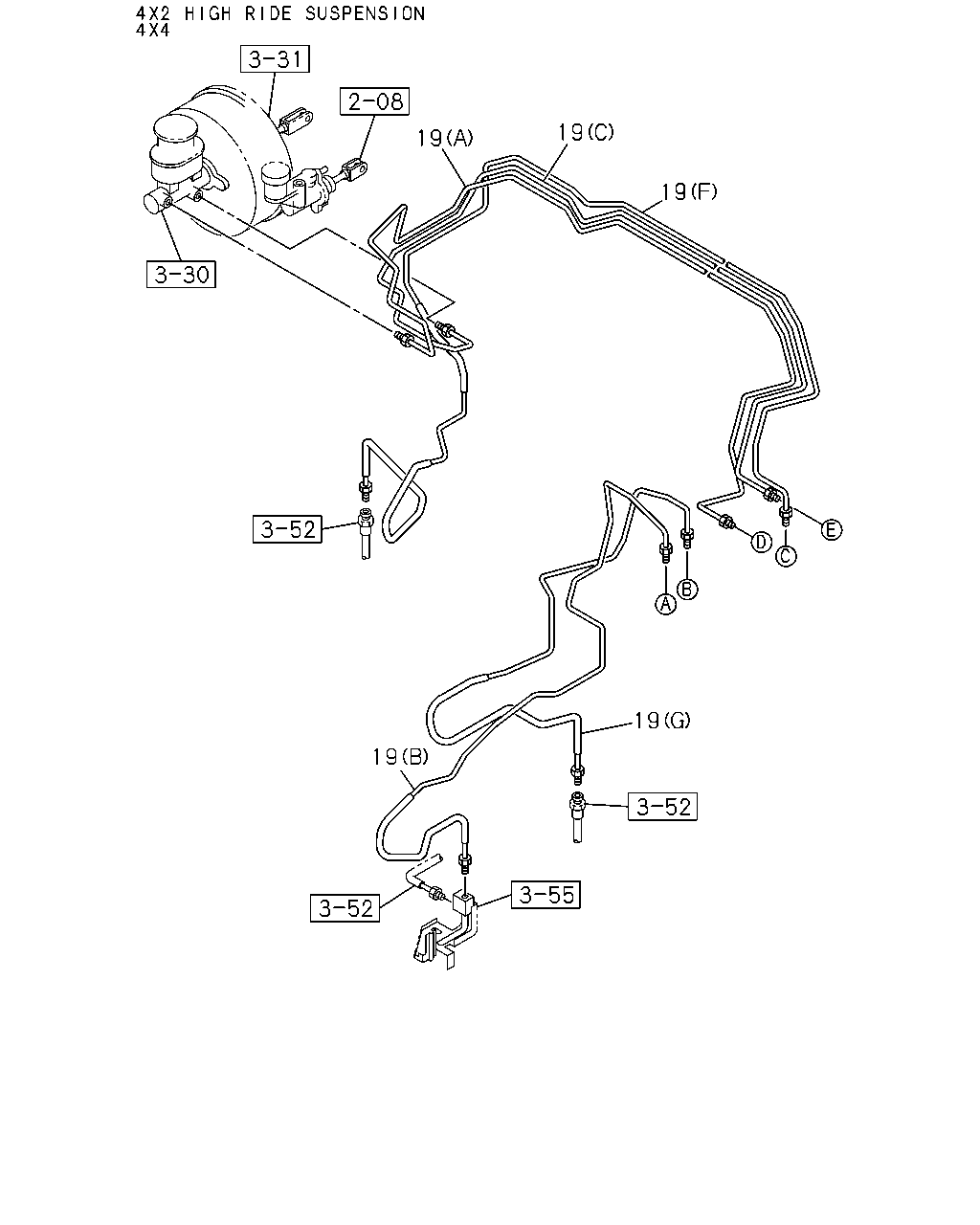

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#41925) — 358 parça

19 19 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97250-053-2	01	1	0211-0211	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) (J)	8-97250-053-2	01	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97236-419-2	02	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97236-423-7	01	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-97236-426-3	01	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97236-428-2	02	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97261-907-2	02	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97355-527-2	01	1	0211-0302	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) (J)	8-97355-527-2	01	1	0211-0302				●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97355-527-3	01	1	0303-	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) (J)	8-97355-527-3	01	1	0303-				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-97355-529-3	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97355-530-3	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) (I)	8-97250-065-2	01	1	0211-	●
19	04.685 PIPE; BRK,M/CYL TO UNION SINGLE CAB LONG(TF**SF) HIGH RIDE SUSPENSION(7YC) (I)	8-97250-065-2	01	1	0211-			●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> HIGH RIDE SUSPENSION(7YC) (I)	8-97250-065-2	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> (I)	8-97250-065-2	01	1	0211-					●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X4 CREW CAB LONG(TFS*WF) BRK WHL LK CONT LSPV<6PH> (I)	8-97250-065-2	01	1	0211-						●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (I)	8-97250-063-0	01	1	0211-	●
19	04.685 PIPE; BRK,M/CYL TO UNION SINGLE CAB LONG(TF**SF) EXC. HIGH RIDE SUSPENSION(7YC) (I)	8-97250-063-0	01	1	0211-			●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> EXC. HIGH RIDE SUSPENSION(7YC) (I)	8-97250-063-0	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> HIGH RIDE SUSPENSION(7YC) (H)	8-97215-335-0	01	1	0211-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> (H)	8-97215-335-0	01	1	0211-					●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> EXC. HIGH RIDE SUSPENSION(7YC) (H)	8-97215-327-2	01	1	0211-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97215-334-1	01	1	0211-0305	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97215-334-1	01	1	0211-0305					●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97307-529-2	01	1	0211-0305	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97307-529-2	01	1	0211-0305					●	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97307-529-2	01	1	0306-0306	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97307-529-2	01	1	0306-0306					●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97365-223-0	01	1	0306-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97365-223-0	01	1	0306-					●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<6PH> (L)	8-97215-324-1	01	1	0211-	●	●	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<6PH> (M)	8-97215-336-1	01	1	0211-0212	●	●	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<6PH> (M)	8-97363-996-0	01	1	0301-	●	●	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> (L)	8-97307-528-2	01	1	0211-	●	●	●	●	●	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> (M)	8-97307-532-1	01	1	0211-	●	●	●	●	●	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION (K)	8-97215-322-1	01	1	0211-	●	●	●				●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (K)	8-97215-322-1	01	1	0211-				●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) (I)	8-97250-066-2	01	1	0211-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X2 SINGLE CAB EXTRA LONG(TFB*SK) HIGH RIDE SUSPENSION(7YC) (I)	8-97250-066-2	01	1	0211-			●
19	04.685 PIPE; BRK,M/CYL TO UNION (I)	8-97250-066-2	01	1	0211-							●	●
19	04.685 PIPE; BRK,M/CYL TO UNION CREW CAB EXTRA LONG(TF**WK) (I)	8-97250-066-2	01	1	0211-						●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (I)	8-97250-064-0	01	1	0211-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X2 SINGLE CAB EXTRA LONG(TFB*SK) EXC. HIGH RIDE SUSPENSION(7YC) (I)	8-97250-064-0	01	1	0211-			●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (A)	8-97236-419-2	01	1	0211-0301				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (A)	8-97236-419-2	01	1	0211-0301					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97236-419-2	01	1	0302-0305				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (A)	8-97236-419-2	01	1	0302-0305				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (A)	8-97236-419-2	01	1	0302-0305					●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (A)	8-97236-419-2	01	1	0302-0305						●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97236-419-2	01	1	0306-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (F)	8-97236-425-4	01	1	0211-0305				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (F)	8-97236-425-4	01	1	0211-0305					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (G)	8-97236-427-2	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (G)	8-97236-427-2	01	1	0211-					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97236-428-2	01	1	0211-0301				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (B)	8-97236-428-2	01	1	0211-0301					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97236-428-2	01	1	0302-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97236-428-2	01	1	0302-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (B)	8-97236-428-2	01	1	0302-					●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (B)	8-97236-428-2	01	1	0302-						●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (C)	8-97261-907-2	01	1	0211-0301				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (C)	8-97261-907-2	01	1	0211-0301					●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (C)	8-97261-907-2	01	1	0211-0301						●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C)	8-97261-907-2	01	1	0302-0305				●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> (C)	8-97261-907-2	01	1	0302-0305						●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C)	8-97261-907-2	01	1	0306-				●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (F)	8-97307-534-3	01	1	0211-0305				●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (F)	8-97307-534-3	01	1	0211-0305					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (F)	8-97307-534-3	01	1	0306-0306				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F)	8-97307-534-3	01	1	0306-0306					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (F)	8-97365-221-0	01	1	0306-				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F)	8-97365-221-0	01	1	0306-					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (G)	8-97307-535-0	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (G)	8-97307-535-0	01	1	0211-					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97307-536-2	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (B)	8-97307-536-2	01	1	0211-					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (A)	8-97355-356-0	01	1	0211-0305				●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (A)	8-97355-356-0	01	1	0211-0305					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (A)	8-97355-356-0	01	1	0306-				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A)	8-97355-356-0	01	1	0306-					●	●

89 72 72 176 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D	E	F

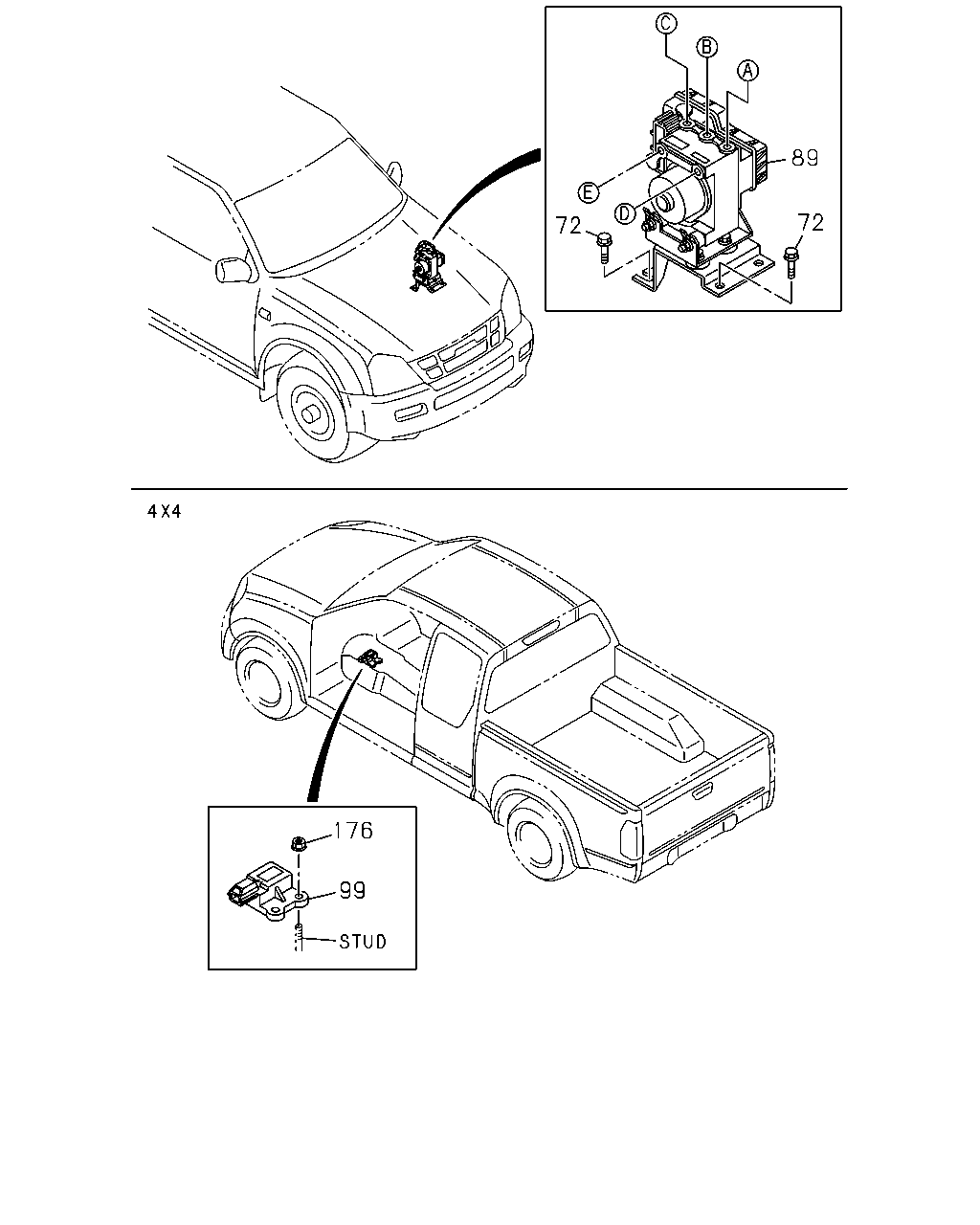

72	04.686 BOLT; BRKT TO BODY ANTI LOCK BRAKE SYSTEM<JE5> 02.343 M6X16 FLANGE	0-28650-616-0	03	1	0211-	●	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK ANTI LOCK BRAKE SYSTEM<JE5>	8-97329-787-0	01	1	0211-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK ANTI LOCK BRAKE SYSTEM<JE5>	8-97349-969-0	01	1	0211-		●	●
99	04.710 SENSOR; DECELERATION ANTI LOCK BRAKE SYSTEM<JE5>	8-97262-548-0	01	1	0211-		●	●
176	04.730 NUT; SENSOR ANTI LOCK BRAKE SYSTEM<JE5> 01.540 M6 FLANGE	0-91180-206-0	02	1	0211-		●	●

19 19 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97250-053-2	01	1	0211-0211	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) (J)	8-97250-053-2	01	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97236-419-2	02	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97236-423-7	01	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-97236-426-3	01	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97236-428-2	02	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97261-907-2	02	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97355-527-2	01	1	0211-0302	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) (J)	8-97355-527-2	01	1	0211-0302				●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97355-527-3	01	1	0303-	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) (J)	8-97355-527-3	01	1	0303-				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-97355-529-3	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97355-530-3	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) (I)	8-97250-065-2	01	1	0211-	●
19	04.685 PIPE; BRK,M/CYL TO UNION SINGLE CAB LONG(TF**SF) HIGH RIDE SUSPENSION(7YC) (I)	8-97250-065-2	01	1	0211-			●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> HIGH RIDE SUSPENSION(7YC) (I)	8-97250-065-2	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> (I)	8-97250-065-2	01	1	0211-					●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X4 CREW CAB LONG(TFS*WF) BRK WHL LK CONT LSPV<6PH> (I)	8-97250-065-2	01	1	0211-						●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (I)	8-97250-063-0	01	1	0211-	●
19	04.685 PIPE; BRK,M/CYL TO UNION SINGLE CAB LONG(TF**SF) EXC. HIGH RIDE SUSPENSION(7YC) (I)	8-97250-063-0	01	1	0211-			●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> EXC. HIGH RIDE SUSPENSION(7YC) (I)	8-97250-063-0	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> HIGH RIDE SUSPENSION(7YC) (H)	8-97215-335-0	01	1	0211-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> (H)	8-97215-335-0	01	1	0211-					●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> EXC. HIGH RIDE SUSPENSION(7YC) (H)	8-97215-327-2	01	1	0211-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97215-334-1	01	1	0211-0305	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97215-334-1	01	1	0211-0305					●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97307-529-2	01	1	0211-0305	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97307-529-2	01	1	0211-0305					●	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97307-529-2	01	1	0306-0306	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97307-529-2	01	1	0306-0306					●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97365-223-0	01	1	0306-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97365-223-0	01	1	0306-					●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<6PH> (L)	8-97215-324-1	01	1	0211-	●	●	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<6PH> (M)	8-97215-336-1	01	1	0211-0212	●	●	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<6PH> (M)	8-97363-996-0	01	1	0301-	●	●	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> (L)	8-97307-528-2	01	1	0211-	●	●	●	●	●	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> (M)	8-97307-532-1	01	1	0211-	●	●	●	●	●	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION (K)	8-97215-322-1	01	1	0211-	●	●	●				●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (K)	8-97215-322-1	01	1	0211-				●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) (I)	8-97250-066-2	01	1	0211-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X2 SINGLE CAB EXTRA LONG(TFB*SK) HIGH RIDE SUSPENSION(7YC) (I)	8-97250-066-2	01	1	0211-			●
19	04.685 PIPE; BRK,M/CYL TO UNION (I)	8-97250-066-2	01	1	0211-							●	●
19	04.685 PIPE; BRK,M/CYL TO UNION CREW CAB EXTRA LONG(TF**WK) (I)	8-97250-066-2	01	1	0211-						●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (I)	8-97250-064-0	01	1	0211-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X2 SINGLE CAB EXTRA LONG(TFB*SK) EXC. HIGH RIDE SUSPENSION(7YC) (I)	8-97250-064-0	01	1	0211-			●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (A)	8-97236-419-2	01	1	0211-0301				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (A)	8-97236-419-2	01	1	0211-0301					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97236-419-2	01	1	0302-0305				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (A)	8-97236-419-2	01	1	0302-0305				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (A)	8-97236-419-2	01	1	0302-0305					●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (A)	8-97236-419-2	01	1	0302-0305						●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97236-419-2	01	1	0306-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (F)	8-97236-425-4	01	1	0211-0305				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (F)	8-97236-425-4	01	1	0211-0305					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (G)	8-97236-427-2	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (G)	8-97236-427-2	01	1	0211-					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97236-428-2	01	1	0211-0301				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (B)	8-97236-428-2	01	1	0211-0301					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97236-428-2	01	1	0302-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97236-428-2	01	1	0302-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (B)	8-97236-428-2	01	1	0302-					●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (B)	8-97236-428-2	01	1	0302-						●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (C)	8-97261-907-2	01	1	0211-0301				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (C)	8-97261-907-2	01	1	0211-0301					●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (C)	8-97261-907-2	01	1	0211-0301						●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C)	8-97261-907-2	01	1	0302-0305				●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> (C)	8-97261-907-2	01	1	0302-0305						●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C)	8-97261-907-2	01	1	0306-				●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (F)	8-97307-534-3	01	1	0211-0305				●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (F)	8-97307-534-3	01	1	0211-0305					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (F)	8-97307-534-3	01	1	0306-0306				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F)	8-97307-534-3	01	1	0306-0306					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (F)	8-97365-221-0	01	1	0306-				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F)	8-97365-221-0	01	1	0306-					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (G)	8-97307-535-0	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (G)	8-97307-535-0	01	1	0211-					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97307-536-2	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (B)	8-97307-536-2	01	1	0211-					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (A)	8-97355-356-0	01	1	0211-0305				●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (A)	8-97355-356-0	01	1	0211-0305					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (A)	8-97355-356-0	01	1	0306-				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A)	8-97355-356-0	01	1	0306-					●	●

19 19 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97250-053-2	01	1	0211-0211	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) (J)	8-97250-053-2	01	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97236-419-2	02	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97236-423-7	01	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-97236-426-3	01	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97236-428-2	02	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97261-907-2	02	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97355-527-2	01	1	0211-0302	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) (J)	8-97355-527-2	01	1	0211-0302				●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97355-527-3	01	1	0303-	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) (J)	8-97355-527-3	01	1	0303-				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-97355-529-3	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97355-530-3	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) (I)	8-97250-065-2	01	1	0211-	●
19	04.685 PIPE; BRK,M/CYL TO UNION SINGLE CAB LONG(TF**SF) HIGH RIDE SUSPENSION(7YC) (I)	8-97250-065-2	01	1	0211-			●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> HIGH RIDE SUSPENSION(7YC) (I)	8-97250-065-2	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> (I)	8-97250-065-2	01	1	0211-					●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X4 CREW CAB LONG(TFS*WF) BRK WHL LK CONT LSPV<6PH> (I)	8-97250-065-2	01	1	0211-						●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (I)	8-97250-063-0	01	1	0211-	●
19	04.685 PIPE; BRK,M/CYL TO UNION SINGLE CAB LONG(TF**SF) EXC. HIGH RIDE SUSPENSION(7YC) (I)	8-97250-063-0	01	1	0211-			●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> EXC. HIGH RIDE SUSPENSION(7YC) (I)	8-97250-063-0	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> HIGH RIDE SUSPENSION(7YC) (H)	8-97215-335-0	01	1	0211-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> (H)	8-97215-335-0	01	1	0211-					●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> EXC. HIGH RIDE SUSPENSION(7YC) (H)	8-97215-327-2	01	1	0211-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97215-334-1	01	1	0211-0305	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97215-334-1	01	1	0211-0305					●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97307-529-2	01	1	0211-0305	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97307-529-2	01	1	0211-0305					●	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97307-529-2	01	1	0306-0306	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97307-529-2	01	1	0306-0306					●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97365-223-0	01	1	0306-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97365-223-0	01	1	0306-					●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<6PH> (L)	8-97215-324-1	01	1	0211-	●	●	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<6PH> (M)	8-97215-336-1	01	1	0211-0212	●	●	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<6PH> (M)	8-97363-996-0	01	1	0301-	●	●	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> (L)	8-97307-528-2	01	1	0211-	●	●	●	●	●	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> (M)	8-97307-532-1	01	1	0211-	●	●	●	●	●	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION (K)	8-97215-322-1	01	1	0211-	●	●	●				●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (K)	8-97215-322-1	01	1	0211-				●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) (I)	8-97250-066-2	01	1	0211-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X2 SINGLE CAB EXTRA LONG(TFB*SK) HIGH RIDE SUSPENSION(7YC) (I)	8-97250-066-2	01	1	0211-			●
19	04.685 PIPE; BRK,M/CYL TO UNION (I)	8-97250-066-2	01	1	0211-							●	●
19	04.685 PIPE; BRK,M/CYL TO UNION CREW CAB EXTRA LONG(TF**WK) (I)	8-97250-066-2	01	1	0211-						●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (I)	8-97250-064-0	01	1	0211-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X2 SINGLE CAB EXTRA LONG(TFB*SK) EXC. HIGH RIDE SUSPENSION(7YC) (I)	8-97250-064-0	01	1	0211-			●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (A)	8-97236-419-2	01	1	0211-0301				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (A)	8-97236-419-2	01	1	0211-0301					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97236-419-2	01	1	0302-0305				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (A)	8-97236-419-2	01	1	0302-0305				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (A)	8-97236-419-2	01	1	0302-0305					●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (A)	8-97236-419-2	01	1	0302-0305						●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97236-419-2	01	1	0306-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (F)	8-97236-425-4	01	1	0211-0305				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (F)	8-97236-425-4	01	1	0211-0305					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (G)	8-97236-427-2	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (G)	8-97236-427-2	01	1	0211-					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97236-428-2	01	1	0211-0301				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (B)	8-97236-428-2	01	1	0211-0301					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97236-428-2	01	1	0302-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97236-428-2	01	1	0302-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (B)	8-97236-428-2	01	1	0302-					●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (B)	8-97236-428-2	01	1	0302-						●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (C)	8-97261-907-2	01	1	0211-0301				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (C)	8-97261-907-2	01	1	0211-0301					●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (C)	8-97261-907-2	01	1	0211-0301						●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C)	8-97261-907-2	01	1	0302-0305				●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> (C)	8-97261-907-2	01	1	0302-0305						●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C)	8-97261-907-2	01	1	0306-				●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (F)	8-97307-534-3	01	1	0211-0305				●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (F)	8-97307-534-3	01	1	0211-0305					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (F)	8-97307-534-3	01	1	0306-0306				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F)	8-97307-534-3	01	1	0306-0306					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (F)	8-97365-221-0	01	1	0306-				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F)	8-97365-221-0	01	1	0306-					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (G)	8-97307-535-0	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (G)	8-97307-535-0	01	1	0211-					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97307-536-2	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (B)	8-97307-536-2	01	1	0211-					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (A)	8-97355-356-0	01	1	0211-0305				●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (A)	8-97355-356-0	01	1	0211-0305					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (A)	8-97355-356-0	01	1	0306-				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A)	8-97355-356-0	01	1	0306-					●	●

19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97250-053-2	01	1	0211-0211	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) (J)	8-97250-053-2	01	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97236-419-2	02	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97236-423-7	01	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-97236-426-3	01	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97236-428-2	02	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C)	8-97261-907-2	02	1	0211-0211				●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97355-527-2	01	1	0211-0302	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) (J)	8-97355-527-2	01	1	0211-0302				●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (J)	8-97355-527-3	01	1	0303-	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5>, HIGH RIDE SUSPENSION(7YC) (J)	8-97355-527-3	01	1	0303-				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (E)	8-97355-529-3	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (D)	8-97355-530-3	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) (I)	8-97250-065-2	01	1	0211-	●
19	04.685 PIPE; BRK,M/CYL TO UNION SINGLE CAB LONG(TF**SF) HIGH RIDE SUSPENSION(7YC) (I)	8-97250-065-2	01	1	0211-			●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> HIGH RIDE SUSPENSION(7YC) (I)	8-97250-065-2	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> (I)	8-97250-065-2	01	1	0211-					●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X4 CREW CAB LONG(TFS*WF) BRK WHL LK CONT LSPV<6PH> (I)	8-97250-065-2	01	1	0211-						●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (I)	8-97250-063-0	01	1	0211-	●
19	04.685 PIPE; BRK,M/CYL TO UNION SINGLE CAB LONG(TF**SF) EXC. HIGH RIDE SUSPENSION(7YC) (I)	8-97250-063-0	01	1	0211-			●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> EXC. HIGH RIDE SUSPENSION(7YC) (I)	8-97250-063-0	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> HIGH RIDE SUSPENSION(7YC) (H)	8-97215-335-0	01	1	0211-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> (H)	8-97215-335-0	01	1	0211-					●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<6PH> EXC. HIGH RIDE SUSPENSION(7YC) (H)	8-97215-327-2	01	1	0211-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97215-334-1	01	1	0211-0305	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97215-334-1	01	1	0211-0305					●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97307-529-2	01	1	0211-0305	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97307-529-2	01	1	0211-0305					●	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97307-529-2	01	1	0306-0306	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97307-529-2	01	1	0306-0306					●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97365-223-0	01	1	0306-	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (J)	8-97365-223-0	01	1	0306-					●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<6PH> (L)	8-97215-324-1	01	1	0211-	●	●	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<6PH> (M)	8-97215-336-1	01	1	0211-0212	●	●	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION C24SE ENG(LG1),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<6PH> (M)	8-97363-996-0	01	1	0301-	●	●	●	●	●	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> (L)	8-97307-528-2	01	1	0211-	●	●	●	●	●	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) BRK WHL LK CONT LSPV<6PH> (M)	8-97307-532-1	01	1	0211-	●	●	●	●	●	●		●
19	04.685 PIPE; BRK,M/CYL TO UNION (K)	8-97215-322-1	01	1	0211-	●	●	●				●	●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. ANTI LOCK BRAKE SYSTEM<JE5> (K)	8-97215-322-1	01	1	0211-				●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION HIGH RIDE SUSPENSION(7YC) (I)	8-97250-066-2	01	1	0211-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X2 SINGLE CAB EXTRA LONG(TFB*SK) HIGH RIDE SUSPENSION(7YC) (I)	8-97250-066-2	01	1	0211-			●
19	04.685 PIPE; BRK,M/CYL TO UNION (I)	8-97250-066-2	01	1	0211-							●	●
19	04.685 PIPE; BRK,M/CYL TO UNION CREW CAB EXTRA LONG(TF**WK) (I)	8-97250-066-2	01	1	0211-						●
19	04.685 PIPE; BRK,M/CYL TO UNION EXC. HIGH RIDE SUSPENSION(7YC) (I)	8-97250-064-0	01	1	0211-		●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X2 SINGLE CAB EXTRA LONG(TFB*SK) EXC. HIGH RIDE SUSPENSION(7YC) (I)	8-97250-064-0	01	1	0211-			●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (A)	8-97236-419-2	01	1	0211-0301				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (A)	8-97236-419-2	01	1	0211-0301					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97236-419-2	01	1	0302-0305				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (A)	8-97236-419-2	01	1	0302-0305				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (A)	8-97236-419-2	01	1	0302-0305					●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (A)	8-97236-419-2	01	1	0302-0305						●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97236-419-2	01	1	0306-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (F)	8-97236-425-4	01	1	0211-0305				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (F)	8-97236-425-4	01	1	0211-0305					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (G)	8-97236-427-2	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (G)	8-97236-427-2	01	1	0211-					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97236-428-2	01	1	0211-0301				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (B)	8-97236-428-2	01	1	0211-0301					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97236-428-2	01	1	0302-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97236-428-2	01	1	0302-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (B)	8-97236-428-2	01	1	0302-					●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) ANTI LOCK BRAKE SYSTEM<JE5> (B)	8-97236-428-2	01	1	0302-						●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (C)	8-97261-907-2	01	1	0211-0301				●
19	04.685 PIPE; BRK,M/CYL TO UNION 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (C)	8-97261-907-2	01	1	0211-0301					●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM),6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (C)	8-97261-907-2	01	1	0211-0301						●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C)	8-97261-907-2	01	1	0302-0305				●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 4X4 CREW CAB LONG(TFS*WF) ANTI LOCK BRAKE SYSTEM<JE5> (C)	8-97261-907-2	01	1	0302-0305						●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (C)	8-97261-907-2	01	1	0306-				●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (F)	8-97307-534-3	01	1	0211-0305				●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (F)	8-97307-534-3	01	1	0211-0305					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (F)	8-97307-534-3	01	1	0306-0306				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F)	8-97307-534-3	01	1	0306-0306					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (F)	8-97365-221-0	01	1	0306-				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (F)	8-97365-221-0	01	1	0306-					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (G)	8-97307-535-0	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (G)	8-97307-535-0	01	1	0211-					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97307-536-2	01	1	0211-				●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (B)	8-97307-536-2	01	1	0211-					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (A)	8-97355-356-0	01	1	0211-0305				●
19	04.685 PIPE; BRK,M/CYL TO UNION 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM<JE5> (A)	8-97355-356-0	01	1	0211-0305					●	●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (A)	8-97355-356-0	01	1	0306-				●
19	04.685 PIPE; BRK,M/CYL TO UNION ANTI LOCK BRAKE SYSTEM<JE5> (A)	8-97355-356-0	01	1	0306-					●	●

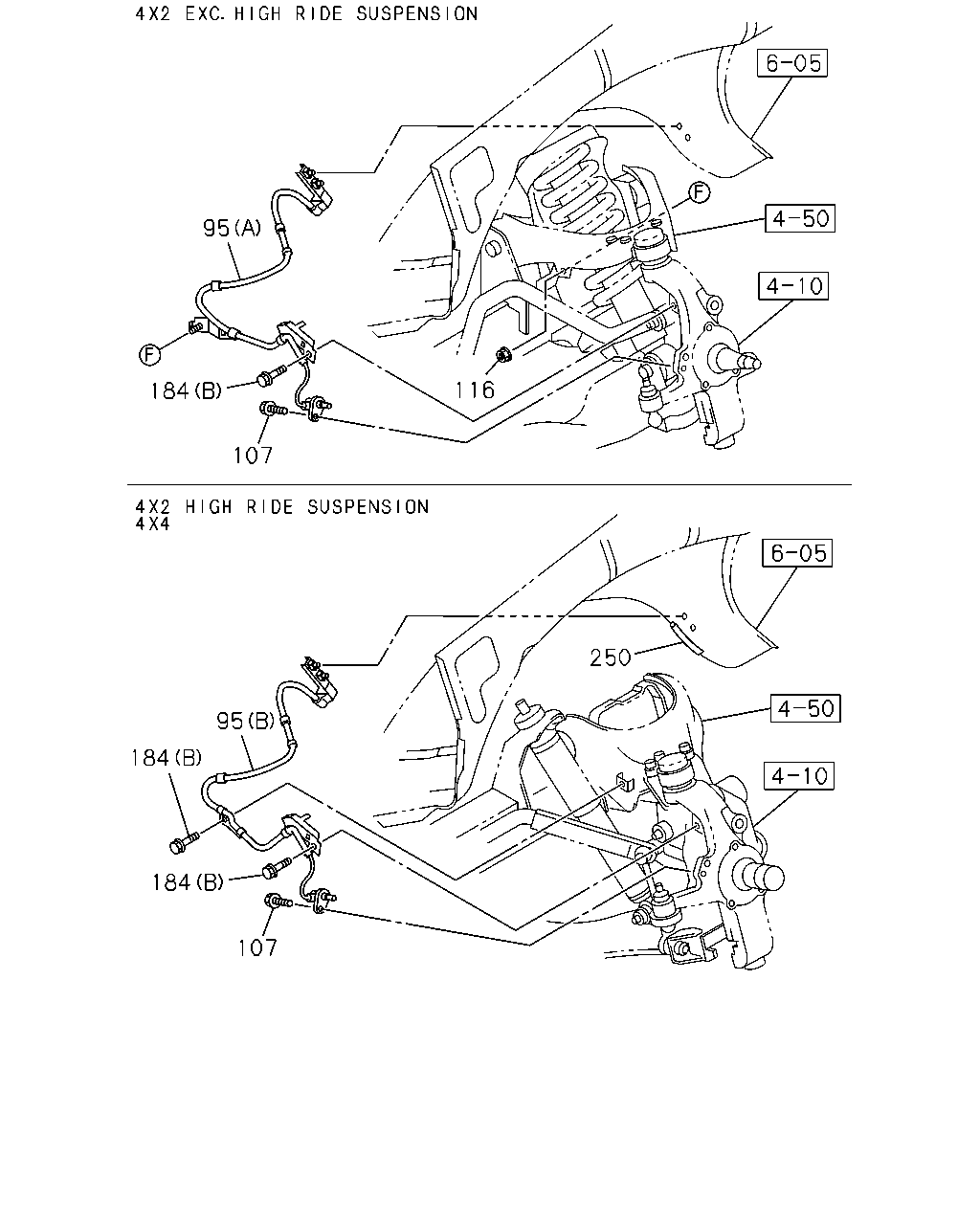

95 116 184 107 250 95 184 184 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D	E	F
95	04.710 SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97236-106-2	01	1	0211-	●
95	04.710 SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> (B)	8-97236-106-2	01	1	0211-		●	●
95	04.710 SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) (B)	8-97236-104-2	01	1	0211-	●
95	04.710 SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> (B)	8-97236-104-2	01	1	0211-		●	●
95	04.710 SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97236-103-2	01	1	0211-	●
95	04.710 SENSOR; SPD,FRT WHEEL ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97239-255-2	01	1	0211-	●
107	04.710 BOLT; WHEEL SPD SENSOR ANTI LOCK BRAKE SYSTEM<JE5> 03.671 M6X10 FLANGE	0-28050-610-0	02	1	0211-	●	●	●
116	04.686 NUT ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 01.540 M8 FLANGE	0-91180-208-0	02	1	0211-	●
184	04.681 BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0211-	●	●	●
184	04.681 BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0211-	●
184	04.681 BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0211-		●	●
184	04.681 BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0211-	●	●	●
250	04.685 FINISHER; HARNESS ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) 02.559 L=80	5-71997-133-0	02	1	0211-	●
250	04.685 FINISHER; HARNESS ANTI LOCK BRAKE SYSTEM<JE5> 02.559 L=80	5-71997-133-0	02	1	0211-		●	●

129 129 184 96 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D	E	F
96	04.710 SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC)	8-97311-998-0	01	1	0211-0302	●
96	04.710 SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM<JE5>	8-97311-998-0	01	1	0211-0302		●	●
96	04.710 SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC)	8-97362-460-0	01	1	0303-	●
96	04.710 SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM<JE5>	8-97362-460-0	01	1	0303-		●	●
96	04.710 SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97311-997-0	01	1	0211-0302	●
96	04.710 SENSOR; SPD,RR WHEEL ANTI LOCK BRAKE SYSTEM<JE5> EXC. HIGH RIDE SUSPENSION(7YC)	8-97362-459-0	01	1	0303-	●
129	04.710 BOLT; BRKT ANTI LOCK BRAKE SYSTEM<JE5> 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0211-	●	●	●
184	04.681 BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0211-	●	●	●
184	04.681 BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> HIGH RIDE SUSPENSION(7YC) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0211-	●
184	04.681 BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0211-		●	●
184	04.681 BOLT; CLIP ANTI LOCK BRAKE SYSTEM<JE5> 02.343 (A) M6X16 FLANGE	0-28650-616-0	02	1	0211-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
