◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#41920) — 284 parça

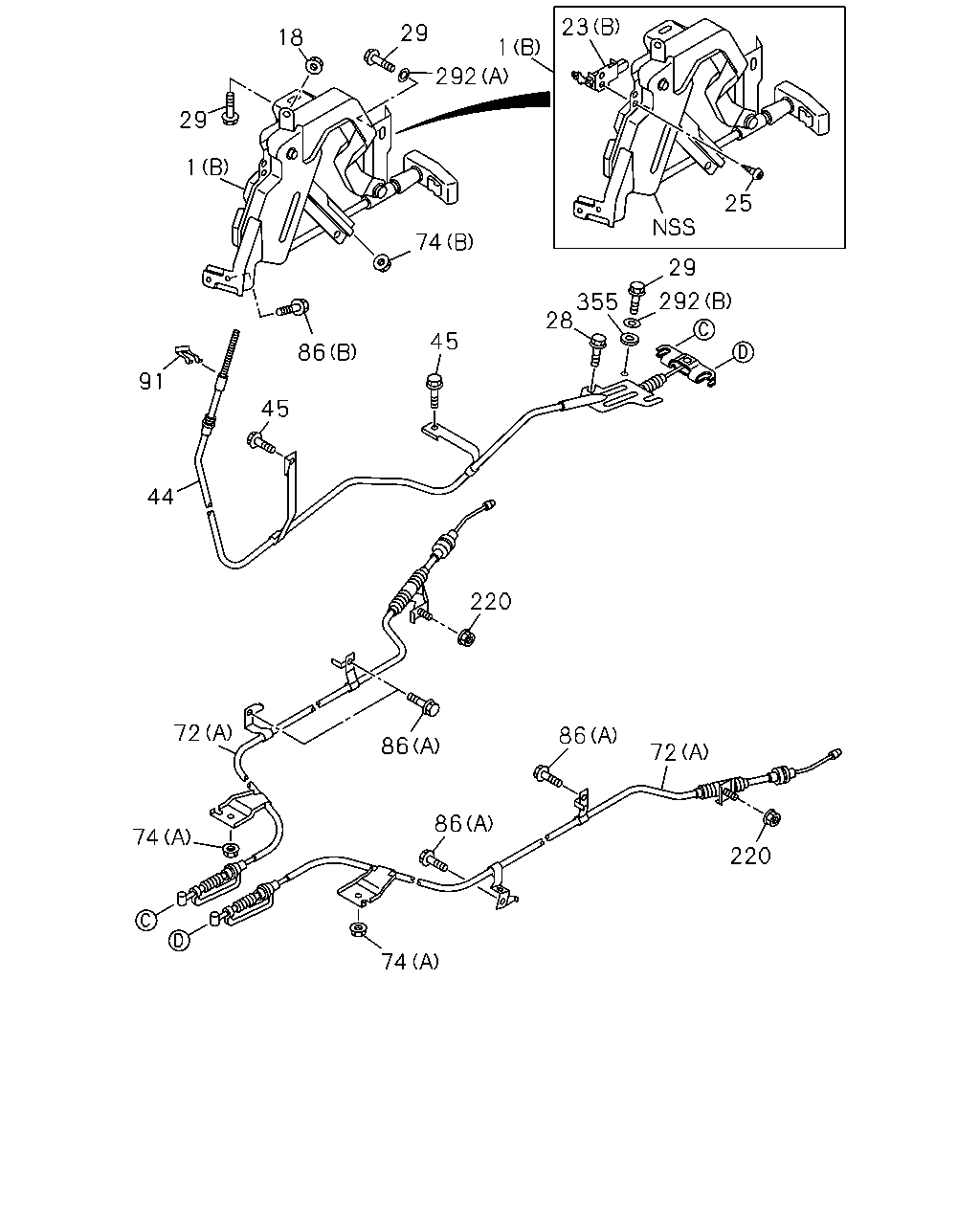

çizim 49508
23 29 18 1 292 29 1 25 74 29 292 355 28 45 86 91 45 44 220 72 86 86 72 86 74 220 74
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.592 STEM ASM; PARKING BRK
(A) 		8-97328-608-0 01 1 0211-0304 ● ● ●
1 04.592 STEM ASM; PARKING BRK
PARKING BRAKE FLOOR<7XW> (A) 		8-97328-608-0 01 1 0211-0304 ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
(A) 		8-97363-082-0 01 1 0305- ● ● ●
1 04.592 STEM ASM; PARKING BRK
PARKING BRAKE FLOOR<7XW> (A) 		8-97363-082-0 01 1 0305- ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> (B) 		8-97235-284-3 01 1 0211-0304 ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> (B) 		8-97367-028-0 01 1 0305- ● ● ● ● ●
18 04.589 NUT; STEM
EXC. PARKING BRAKE FLOOR<7XW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0211- ● ● ● ● ●
23 04.589 SWITCH; PARKING BRK
(A) 		8-97301-436-0 01 1 0211- ● ● ●
23 04.589 SWITCH; PARKING BRK
PARKING BRAKE FLOOR<7XW> (A) 		8-97301-436-0 01 1 0211- ● ● ● ● ●
23 04.589 SWITCH; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> (B) 		8-97032-276-0 01 1 0211- ● ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-97103-556-0 02 1 0211- ● ● ● ● ● ● ● ●
28 04.594 BOLT; HAND BRK LEVER
EXC. PARKING BRAKE FLOOR<7XW> 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0211- ● ● ● ● ●
29 04.595 BOLT; PARKING BRK LEVER TO BODY
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0211- ● ● ● ● ● ● ● ●
44 04.779 CABLE; PARKING BRK,FRT
EXC. PARKING BRAKE FLOOR<7XW> 		8-97352-408-1 01 1 0211- ● ● ● ● ●
45 04.785 BOLT; CABLE TO FLOOR
EXC. PARKING BRAKE FLOOR<7XW> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0211- ● ● ● ● ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97321-525-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97321-525-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
C24SE ENG(LG1),6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97321-525-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) (A) 		8-97321-525-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(RJQ) (A) 		8-97321-525-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-345-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-345-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
C24SE ENG(LG1),6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-345-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) (A) 		8-97363-345-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(RJQ) (A) 		8-97363-345-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-069-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-069-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
C24SE ENG(LG1),6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-069-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) (A) 		8-97368-069-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(RJQ) (A) 		8-97368-069-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97321-521-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97321-521-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
C24SE ENG(LG1),6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97321-521-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-342-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-342-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
C24SE ENG(LG1),6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-342-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-067-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-067-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
C24SE ENG(LG1),6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-067-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
(B) 		8-97355-932-0 01 1 0211-0304 ● ● ●
72 04.779 CABLE; PARKING BRK
PARKING BRAKE FLOOR<7XW> (B) 		8-97355-932-0 01 1 0211-0304 ● ● ● ● ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-296-5 01 1 0211-0304 ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-296-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) (A) 		8-97235-296-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) (A) 		8-97235-296-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-344-0 01 1 0305-0305 ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-344-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) (A) 		8-97363-344-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) (A) 		8-97363-344-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-068-0 01 1 0306- ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-068-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) (A) 		8-97368-068-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) (A) 		8-97368-068-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-292-5 01 1 0211-0304 ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-292-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-341-0 01 1 0305-0305 ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-341-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-066-0 01 1 0306- ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-066-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-297-6 01 1 0211-0301 ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-297-6 01 1 0211-0301 ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97235-297-6 01 1 0211-0301 ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) (A) 		8-97235-297-6 01 1 0211-0301 ●
72 04.779 CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) (A) 		8-97361-258-0 01 1 0302-0304 ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) HIGH RIDE SUSPENSION(7YC) (A) 		8-97361-258-0 01 1 0302-0304 ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97361-258-0 01 1 0302-0304 ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) (A) 		8-97361-258-0 01 1 0302-0304 ●
72 04.779 CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-346-0 01 1 0305- ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-346-0 01 1 0305- ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97363-346-0 01 1 0305- ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) (A) 		8-97363-346-0 01 1 0305- ●
72 04.779 CABLE; PARKING BRK
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-293-6 01 1 0211-0301 ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-293-6 01 1 0211-0301 ●
72 04.779 CABLE; PARKING BRK
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97361-256-0 01 1 0302-0304 ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97361-256-0 01 1 0302-0304 ●
72 04.779 CABLE; PARKING BRK
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-343-0 01 1 0305- ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-343-0 01 1 0305- ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-298-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-298-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97235-298-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) (A) 		8-97235-298-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) 4JH1-TC ENG(RDM) (A) 		8-97235-298-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-350-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-350-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97363-350-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) (A) 		8-97363-350-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) 4JH1-TC ENG(RDM) (A) 		8-97363-350-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-072-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-072-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97368-072-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) (A) 		8-97368-072-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) 4JH1-TC ENG(RDM) (A) 		8-97368-072-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-294-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-294-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-347-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-347-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-070-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-070-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-299-6 01 1 0211-0301 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-299-6 01 1 0211-0301 ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97235-299-6 01 1 0211-0301 ● ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) (A) 		8-97235-299-6 01 1 0211-0301 ●
72 04.779 CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) (A) 		8-97361-259-0 01 1 0302-0304 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) HIGH RIDE SUSPENSION(7YC) (A) 		8-97361-259-0 01 1 0302-0304 ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97361-259-0 01 1 0302-0304 ● ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) (A) 		8-97361-259-0 01 1 0302-0304 ●
72 04.779 CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-352-0 01 1 0305- ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-352-0 01 1 0305- ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97363-352-0 01 1 0305- ● ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) (A) 		8-97363-352-0 01 1 0305- ●
72 04.779 CABLE; PARKING BRK
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-295-6 01 1 0211-0301 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-295-6 01 1 0211-0301 ●
72 04.779 CABLE; PARKING BRK
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97361-257-0 01 1 0302-0304 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97361-257-0 01 1 0302-0304 ●
72 04.779 CABLE; PARKING BRK
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-349-0 01 1 0305- ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-349-0 01 1 0305- ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97321-526-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) C24SE ENG(LG1),6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97321-526-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) (A) 		8-97321-526-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) 6VE1 ENG(RJQ) (A) 		8-97321-526-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-351-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) C24SE ENG(LG1),6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-351-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) (A) 		8-97363-351-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) 6VE1 ENG(RJQ) (A) 		8-97363-351-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-073-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) C24SE ENG(LG1),6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-073-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) (A) 		8-97368-073-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) 6VE1 ENG(RJQ) (A) 		8-97368-073-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97321-522-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) C24SE ENG(LG1),6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97321-522-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-348-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) C24SE ENG(LG1),6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-348-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-071-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) C24SE ENG(LG1),6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-071-0 01 1 0306- ●
74 04.785 NUT; CONT WIRE
(A) 		8-97136-404-0 02 1 0211- ● ● ● ● ● ● ● ●
74 04.785 NUT; CONT WIRE
EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE 		0-91303-606-0 01 1 0211- ● ● ● ● ●
86 04.785 BOLT
03.162 (A) M6X20 FLANGE 		0-28650-620-0 04 1 0211- ● ● ● ● ● ● ● ●
86 04.785 BOLT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0211- ● ● ● ● ● ● ● ●
91 04.785 CLIP; PARKING BRK CABLE
EXC. PARKING BRAKE FLOOR<7XW> 04.681 		5-09709-039-0 01 1 0211- ● ● ● ● ●
220 04.785 NUT; CLIP,PARKING CONT CABLE
01.062 M6 FLANGE 		0-91180-106-0 02 1 0211- ● ● ● ● ● ● ● ●
292 04.589 WASHER; PARK BRK LEVER
EXC. PARKING BRAKE FLOOR<7XW> 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 01 1 0211- ● ● ● ● ●
292 04.589 WASHER; PARK BRK LEVER
EXC. PARKING BRAKE FLOOR<7XW> 01.276 (B) ID=8.4 OD=18 		9-09164-608-0 01 1 0211- ● ● ● ● ●
355 04.594 SPACER; HAND BRK LEVER
EXC. PARKING BRAKE FLOOR<7XW> 04.591 		8-94334-899-1 01 1 0211- ● ● ● ● ●

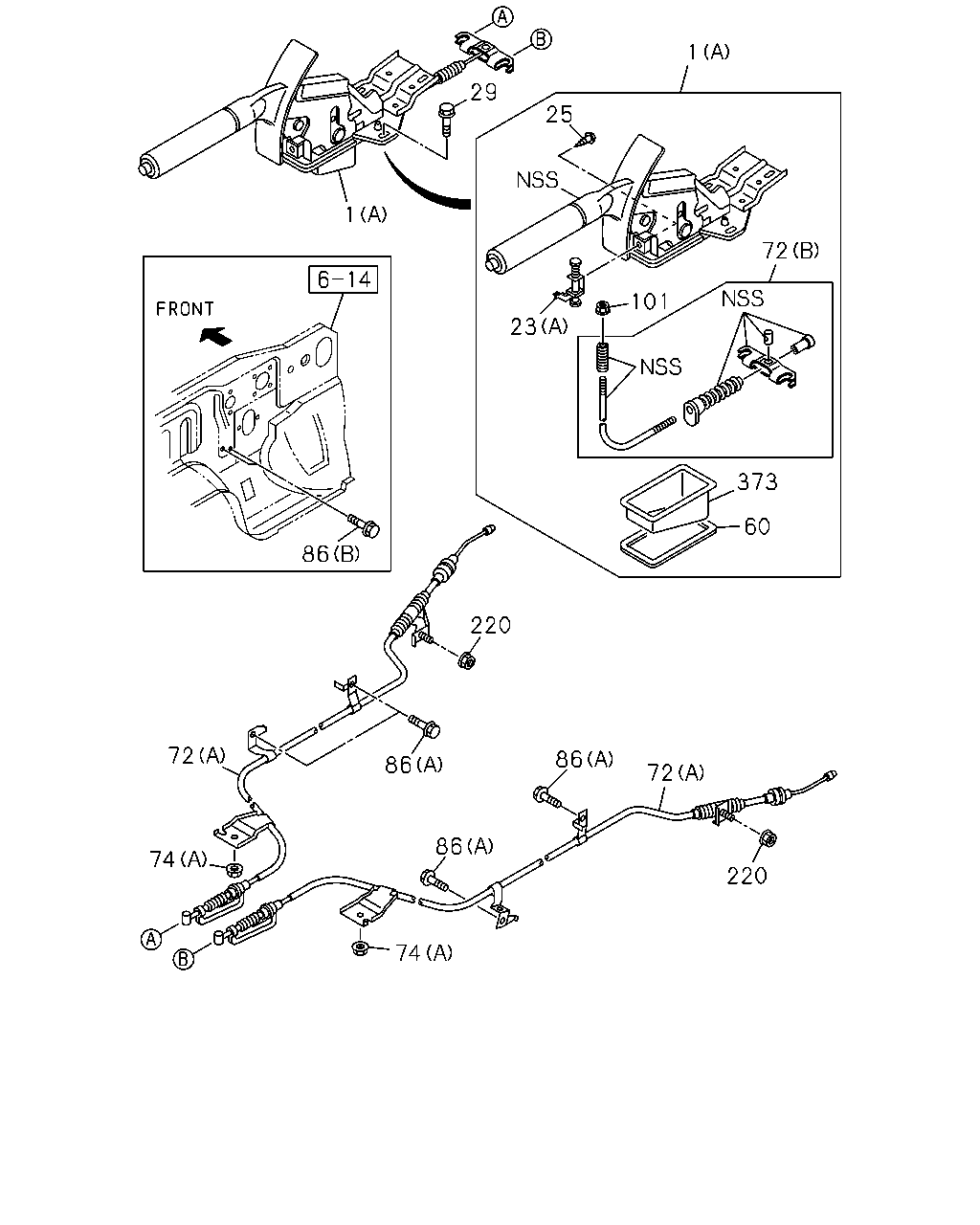

çizim 54836
1 29 25 1 72 101 23 373 60 86 220 72 86 86 72 86 74 220 74
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.592 STEM ASM; PARKING BRK
(A) 		8-97328-608-0 01 1 0211-0304 ● ● ●
1 04.592 STEM ASM; PARKING BRK
PARKING BRAKE FLOOR<7XW> (A) 		8-97328-608-0 01 1 0211-0304 ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
(A) 		8-97363-082-0 01 1 0305- ● ● ●
1 04.592 STEM ASM; PARKING BRK
PARKING BRAKE FLOOR<7XW> (A) 		8-97363-082-0 01 1 0305- ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> (B) 		8-97235-284-3 01 1 0211-0304 ● ● ● ● ●
1 04.592 STEM ASM; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> (B) 		8-97367-028-0 01 1 0305- ● ● ● ● ●
23 04.589 SWITCH; PARKING BRK
(A) 		8-97301-436-0 01 1 0211- ● ● ●
23 04.589 SWITCH; PARKING BRK
PARKING BRAKE FLOOR<7XW> (A) 		8-97301-436-0 01 1 0211- ● ● ● ● ●
23 04.589 SWITCH; PARKING BRK
EXC. PARKING BRAKE FLOOR<7XW> (B) 		8-97032-276-0 01 1 0211- ● ● ● ● ●
25 04.589 SCREW; SW,PARKING BRK 8-97103-556-0 02 1 0211- ● ● ● ● ● ● ● ●
29 04.595 BOLT; PARKING BRK LEVER TO BODY
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0211- ● ● ● ● ● ● ● ●
60 04.595 GASKET; PARKING BRK 8-97355-931-0 01 1 0211-0304 ● ● ●
60 04.595 GASKET; PARKING BRK
PARKING BRAKE FLOOR<7XW> 		8-97355-931-0 01 1 0211-0304 ● ● ● ● ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97321-525-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97321-525-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
C24SE ENG(LG1),6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97321-525-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) (A) 		8-97321-525-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(RJQ) (A) 		8-97321-525-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-345-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-345-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
C24SE ENG(LG1),6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-345-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) (A) 		8-97363-345-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(RJQ) (A) 		8-97363-345-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-069-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-069-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
C24SE ENG(LG1),6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-069-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) (A) 		8-97368-069-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) 6VE1 ENG(RJQ) (A) 		8-97368-069-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97321-521-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97321-521-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
C24SE ENG(LG1),6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97321-521-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-342-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-342-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
C24SE ENG(LG1),6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-342-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-067-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-067-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
C24SE ENG(LG1),6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-067-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
(B) 		8-97355-932-0 01 1 0211-0304 ● ● ●
72 04.779 CABLE; PARKING BRK
PARKING BRAKE FLOOR<7XW> (B) 		8-97355-932-0 01 1 0211-0304 ● ● ● ● ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-296-5 01 1 0211-0304 ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-296-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) (A) 		8-97235-296-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) (A) 		8-97235-296-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-344-0 01 1 0305-0305 ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-344-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) (A) 		8-97363-344-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) (A) 		8-97363-344-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-068-0 01 1 0306- ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-068-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) (A) 		8-97368-068-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) 4JH1-TC ENG(RDM) (A) 		8-97368-068-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-292-5 01 1 0211-0304 ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-292-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-341-0 01 1 0305-0305 ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-341-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-066-0 01 1 0306- ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-066-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-297-6 01 1 0211-0301 ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-297-6 01 1 0211-0301 ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97235-297-6 01 1 0211-0301 ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) (A) 		8-97235-297-6 01 1 0211-0301 ●
72 04.779 CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) (A) 		8-97361-258-0 01 1 0302-0304 ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) HIGH RIDE SUSPENSION(7YC) (A) 		8-97361-258-0 01 1 0302-0304 ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97361-258-0 01 1 0302-0304 ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) (A) 		8-97361-258-0 01 1 0302-0304 ●
72 04.779 CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-346-0 01 1 0305- ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-346-0 01 1 0305- ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97363-346-0 01 1 0305- ●
72 04.779 CABLE; PARKING BRK
4X4 CREW CAB LONG(TFS*WF) (A) 		8-97363-346-0 01 1 0305- ●
72 04.779 CABLE; PARKING BRK
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-293-6 01 1 0211-0301 ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-293-6 01 1 0211-0301 ●
72 04.779 CABLE; PARKING BRK
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97361-256-0 01 1 0302-0304 ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97361-256-0 01 1 0302-0304 ●
72 04.779 CABLE; PARKING BRK
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-343-0 01 1 0305- ● ●
72 04.779 CABLE; PARKING BRK
SINGLE CAB LONG(TF**SF) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-343-0 01 1 0305- ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-298-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-298-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97235-298-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) (A) 		8-97235-298-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) 4JH1-TC ENG(RDM) (A) 		8-97235-298-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-350-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-350-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97363-350-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) (A) 		8-97363-350-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) 4JH1-TC ENG(RDM) (A) 		8-97363-350-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-072-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) 4JH1-TC ENG(RDM) HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-072-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97368-072-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) (A) 		8-97368-072-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) 4JH1-TC ENG(RDM) (A) 		8-97368-072-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-294-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-294-5 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-347-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-347-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-070-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) 4JH1-TC ENG(RDM) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-070-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-299-6 01 1 0211-0301 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-299-6 01 1 0211-0301 ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97235-299-6 01 1 0211-0301 ● ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) (A) 		8-97235-299-6 01 1 0211-0301 ●
72 04.779 CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) (A) 		8-97361-259-0 01 1 0302-0304 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) HIGH RIDE SUSPENSION(7YC) (A) 		8-97361-259-0 01 1 0302-0304 ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97361-259-0 01 1 0302-0304 ● ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) (A) 		8-97361-259-0 01 1 0302-0304 ●
72 04.779 CABLE; PARKING BRK
HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-352-0 01 1 0305- ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-352-0 01 1 0305- ●
72 04.779 CABLE; PARKING BRK
(A) 		8-97363-352-0 01 1 0305- ● ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) (A) 		8-97363-352-0 01 1 0305- ●
72 04.779 CABLE; PARKING BRK
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-295-6 01 1 0211-0301 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97235-295-6 01 1 0211-0301 ●
72 04.779 CABLE; PARKING BRK
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97361-257-0 01 1 0302-0304 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97361-257-0 01 1 0302-0304 ●
72 04.779 CABLE; PARKING BRK
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-349-0 01 1 0305- ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-349-0 01 1 0305- ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97321-526-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) C24SE ENG(LG1),6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97321-526-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) (A) 		8-97321-526-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) 6VE1 ENG(RJQ) (A) 		8-97321-526-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-351-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) C24SE ENG(LG1),6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-351-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) (A) 		8-97363-351-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) 6VE1 ENG(RJQ) (A) 		8-97363-351-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-073-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) C24SE ENG(LG1),6VE1 ENG(RJQ) HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-073-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) (A) 		8-97368-073-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
CREW CAB EXTRA LONG(TF**WK) 6VE1 ENG(RJQ) (A) 		8-97368-073-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97321-522-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) C24SE ENG(LG1),6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97321-522-4 01 1 0211-0304 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-348-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) C24SE ENG(LG1),6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97363-348-0 01 1 0305-0305 ●
72 04.779 CABLE; PARKING BRK
6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-071-0 01 1 0306- ●
72 04.779 CABLE; PARKING BRK
4X2 SINGLE CAB EXTRA LONG(TFB*SK) C24SE ENG(LG1),6VE1 ENG(RJQ) EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97368-071-0 01 1 0306- ●
74 04.785 NUT; CONT WIRE
(A) 		8-97136-404-0 02 1 0211- ● ● ● ● ● ● ● ●
74 04.785 NUT; CONT WIRE
EXC. PARKING BRAKE FLOOR<7XW> (B) M6 LOCK NUT FLANGE 		0-91303-606-0 01 1 0211- ● ● ● ● ●
86 04.785 BOLT
03.162 (A) M6X20 FLANGE 		0-28650-620-0 04 1 0211- ● ● ● ● ● ● ● ●
86 04.785 BOLT
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0211- ● ● ● ● ● ● ● ●
101 04.785 NUT; CABLE TO LEVER 8-97355-929-0 01 1 0211-0304 ● ● ●
101 04.785 NUT; CABLE TO LEVER
PARKING BRAKE FLOOR<7XW> 		8-97355-929-0 01 1 0211-0304 ● ● ● ● ●
220 04.785 NUT; CLIP,PARKING CONT CABLE
01.062 M6 FLANGE 		0-91180-106-0 02 1 0211- ● ● ● ● ● ● ● ●
373 04.594 COVER; BOTTOM,PARKING BRK LEVER 8-97355-930-0 01 1 0211-0304 ● ● ●
373 04.594 COVER; BOTTOM,PARKING BRK LEVER
PARKING BRAKE FLOOR<7XW> 		8-97355-930-0 01 1 0211-0304 ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
