0-35A — ENGINE CONTROL VALVE AND LEVER (#4192) — 102 parça

52 45 52 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	CLIP; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5) ID=9 L=20	9-09524-835-0	01	1	9902-	●	●
51	BOLT; CLIP,FUEL CUT CABLE ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9902-	●	●
52	CABLE; FUEL CUT ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> L=2535	1-73907-594-4	01	1	9902-	●	●
52	CABLE; FUEL CUT ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> L=2400	1-73907-595-1	01	1	9902-	●	●

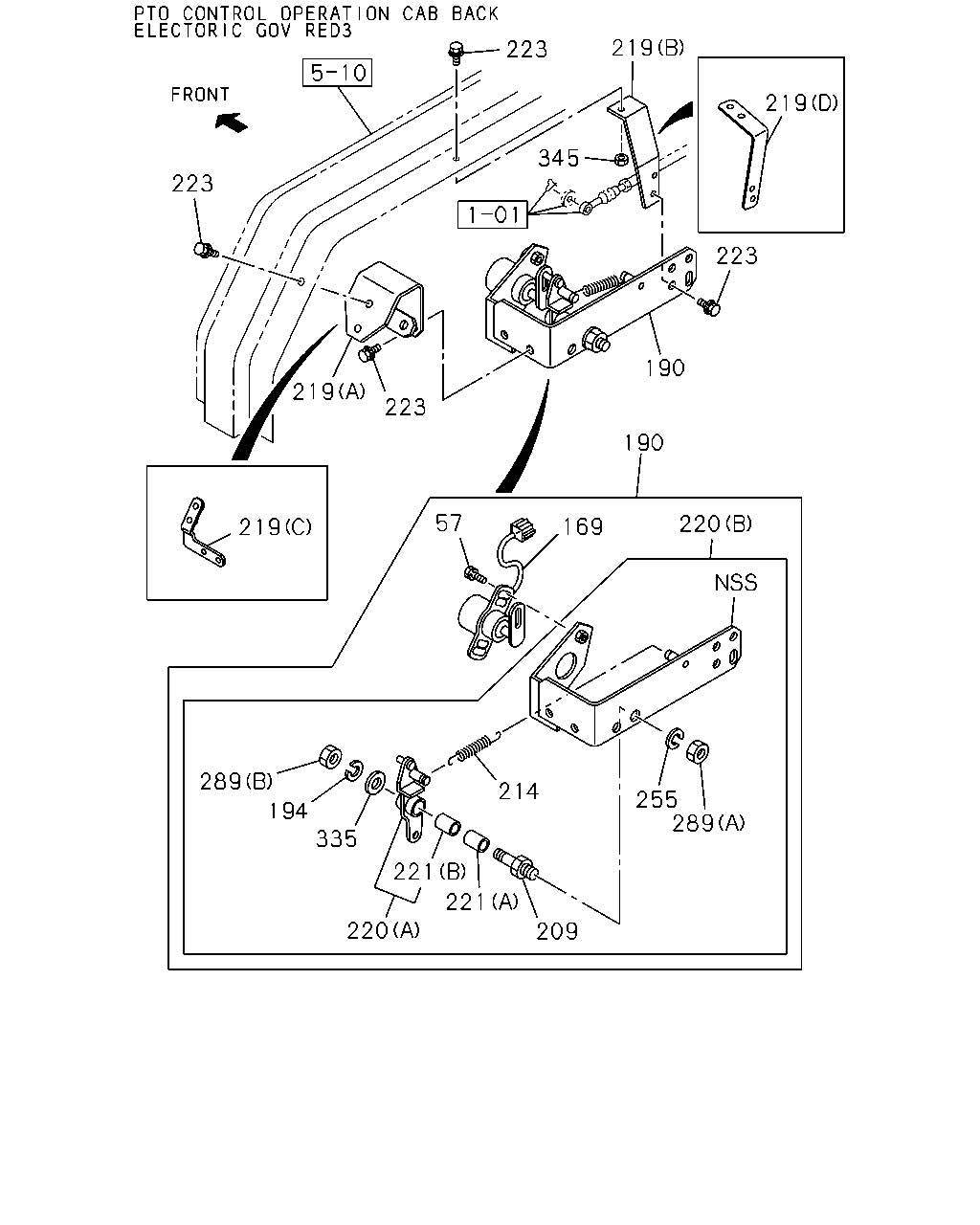

219 223 219 345 223 223 190 219 223 190 57 220 169 219 289 214 255 289 194 335 221 221 220 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
57	BOLT; BRKT CAB UP +110MM<TGG> M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9902-0002	●		●
57	BOLT; BRKT PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	0003-	●			●
57	BOLT; BRKT CXZ(CXZ***) PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	0003-		●
169	SENSOR CAB UP +110MM<TGG>	1-81534-010-0	01	1	9902-0002	●		●
169	SENSOR PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5)	1-81534-010-0	01	1	0003-	●			●
169	SENSOR CXZ(CXZ***) PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5)	1-81534-010-0	01	1	0003-		●
190	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG>	1-23335-547-0	01	1	0005-	●			●
190	LEVER; ENG CONT CXZ(CXZ***) ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG>	1-23335-547-0	01	1	0005-		●
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5)	1-23335-503-0	01	1	0003-	●			●
190	LEVER; ENG CONT CXZ(CXZ***) PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5)	1-23335-503-0	01	1	0003-		●
190	LEVER; ENG CONT CAB UP +110MM<TGG>	1-23335-504-0	01	1	9902-0002	●		●
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5)	1-23335-504-0	01	1	0003-0004	●			●
190	LEVER; ENG CONT CXZ(CXZ***) PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5)	1-23335-504-0	01	1	0003-0004		●
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG>	1-23335-504-0	01	1	0005-	●			●
190	LEVER; ENG CONT CXZ(CXZ***) PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG>	1-23335-504-0	01	1	0005-		●
194	WASHER; LK,LEVER CAB UP +110MM<TGG> ID=8.2	9-09150-508-0	01	1	9902-	●		●
209	SHAFT; ENG CONT CAB UP +110MM<TGG>	1-14336-002-1	01	1	9902-	●		●
214	SPRING; ENG CONT RETURN CAB UP +110MM<TGG>	8-94481-840-1	01	1	9902-	●		●
219	BRACKET; ENG CONT CAB UP +110MM<TGG> (A)	1-23335-459-0	01	1	9902-9910	●		●
219	BRACKET; ENG CONT EXC. CAB UP +110MM<TGG> (A)	1-23335-459-0	01	1	9911-	●	●	●	●
219	BRACKET; ENG CONT CAB UP +110MM<TGG> (B)	1-23335-460-2	01	1	9902-9910	●		●
219	BRACKET; ENG CONT EXC. CAB UP +110MM<TGG> (B)	1-23335-460-2	01	1	9911-	●	●	●	●
219	BRACKET; ENG CONT CAB UP +110MM<TGG> (C)	1-23335-511-0	01	1	9911-0004	●	●		●
219	BRACKET; ENG CONT CAB UP +110MM<TGG> (C)	1-23335-545-0	01	1	0005-	●	●		●
219	BRACKET; ENG CONT CAB UP +110MM<TGG> (D)	1-23335-541-0	01	1	9911-0004	●	●		●
219	BRACKET; ENG CONT CAB UP +110MM<TGG> (D)	1-23335-546-0	01	1	0005-	●	●		●
220	LEVER ASM ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (A)	1-23335-551-0	01	1	0005-	●			●
220	LEVER ASM CXZ(CXZ***) ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (A)	1-23335-551-0	01	1	0005-		●
220	LEVER ASM CAB UP +110MM<TGG> (B)	1-23311-357-0	01	1	9902-0002	●		●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) (B)	1-23311-357-0	01	1	0003-	●			●
220	LEVER ASM CXZ(CXZ***) PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) (B)	1-23311-357-0	01	1	0003-		●
220	LEVER ASM CAB UP +110MM<TGG> (A)	1-23335-505-0	01	1	9902-0002	●		●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) (A)	1-23335-505-0	01	1	0003-0004	●			●
220	LEVER ASM CXZ(CXZ***) PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) (A)	1-23335-505-0	01	1	0003-0004		●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> (A)	1-23335-505-0	01	1	0005-	●			●
220	LEVER ASM CXZ(CXZ***) PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> (A)	1-23335-505-0	01	1	0005-		●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (C)	1-23311-359-0	01	1	0003-	●			●
220	LEVER ASM CXZ(CXZ***) PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (C)	1-23311-359-0	01	1	0003-		●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (D)	1-23311-360-0	01	1	0003-	●			●
220	LEVER ASM CXZ(CXZ***) PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (D)	1-23311-360-0	01	1	0003-		●
221	BUSHING; LEVER CAB UP +110MM<TGG> (A)	1-09330-057-0	01	1	9902-	●		●
221	BUSHING; LEVER CAB UP +110MM<TGG> (B)	1-09330-058-0	01	1	9902-	●		●
223	BOLT; BRKT FIX CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	07	1	9902-0004	●		●
223	BOLT; BRKT FIX CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	04	1	0005-0008	●		●
223	BOLT; BRKT FIX CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	05	1	0009-	●		●
223	BOLT; BRKT FIX CAB UP +110MM<TGG> M8X25 FLANGE	0-28680-825-0	03	1	0005-0008	●		●
223	BOLT; BRKT FIX CAB UP +110MM<TGG> M8X25 FLANGE	0-28680-825-0	02	1	0009-	●		●
255	WASHER; LK,LEVER CAB UP +110MM<TGG> ID=10.2	9-09150-510-0	01	1	9902-	●		●
289	NUT; LEVER CAB UP +110MM<TGG> (A) M10	9-09110-410-0	01	1	9902-	●		●
289	NUT; LEVER CAB UP +110MM<TGG> (B) M8	9-09111-408-0	01	1	9902-	●		●
335	WASHER; PL LEVER CAB UP +110MM<TGG>	5-09503-135-0	01	1	9902-	●		●
345	NUT; BRKT CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9902-	●		●

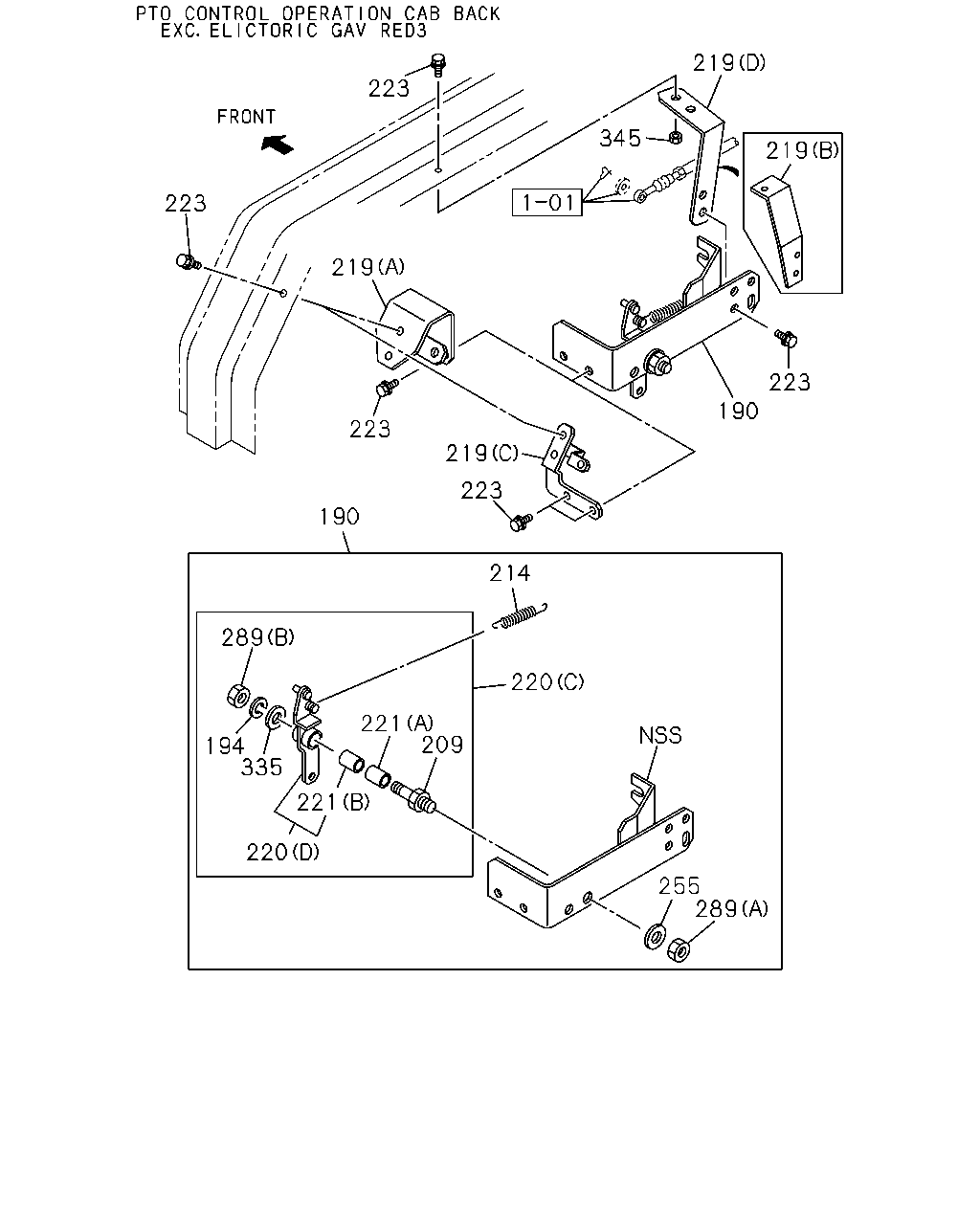

219 223 345 219 223 219 223 190 223 219 223 190 214 289 220 221 209 194 335 221 220 255 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
190	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG>	1-23335-547-0	01	1	0005-	●			●
190	LEVER; ENG CONT CXZ(CXZ***) ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG>	1-23335-547-0	01	1	0005-		●
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5)	1-23335-503-0	01	1	0003-	●			●
190	LEVER; ENG CONT CXZ(CXZ***) PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5)	1-23335-503-0	01	1	0003-		●
190	LEVER; ENG CONT CAB UP +110MM<TGG>	1-23335-504-0	01	1	9902-0002	●		●
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5)	1-23335-504-0	01	1	0003-0004	●			●
190	LEVER; ENG CONT CXZ(CXZ***) PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5)	1-23335-504-0	01	1	0003-0004		●
190	LEVER; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG>	1-23335-504-0	01	1	0005-	●			●
190	LEVER; ENG CONT CXZ(CXZ***) PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG>	1-23335-504-0	01	1	0005-		●
194	WASHER; LK,LEVER CAB UP +110MM<TGG> ID=8.2	9-09150-508-0	01	1	9902-	●		●
209	SHAFT; ENG CONT CAB UP +110MM<TGG>	1-14336-002-1	01	1	9902-	●		●
214	SPRING; ENG CONT RETURN CAB UP +110MM<TGG>	8-94481-840-1	01	1	9902-	●		●
219	BRACKET; ENG CONT CAB UP +110MM<TGG> (A)	1-23335-459-0	01	1	9902-9910	●		●
219	BRACKET; ENG CONT EXC. CAB UP +110MM<TGG> (A)	1-23335-459-0	01	1	9911-	●	●	●	●
219	BRACKET; ENG CONT CAB UP +110MM<TGG> (B)	1-23335-460-2	01	1	9902-9910	●		●
219	BRACKET; ENG CONT EXC. CAB UP +110MM<TGG> (B)	1-23335-460-2	01	1	9911-	●	●	●	●
219	BRACKET; ENG CONT CAB UP +110MM<TGG> (C)	1-23335-511-0	01	1	9911-0004	●	●		●
219	BRACKET; ENG CONT CAB UP +110MM<TGG> (C)	1-23335-545-0	01	1	0005-	●	●		●
219	BRACKET; ENG CONT CAB UP +110MM<TGG> (D)	1-23335-541-0	01	1	9911-0004	●	●		●
219	BRACKET; ENG CONT CAB UP +110MM<TGG> (D)	1-23335-546-0	01	1	0005-	●	●		●
220	LEVER ASM ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (A)	1-23335-551-0	01	1	0005-	●			●
220	LEVER ASM CXZ(CXZ***) ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (A)	1-23335-551-0	01	1	0005-		●
220	LEVER ASM CAB UP +110MM<TGG> (B)	1-23311-357-0	01	1	9902-0002	●		●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) (B)	1-23311-357-0	01	1	0003-	●			●
220	LEVER ASM CXZ(CXZ***) PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) (B)	1-23311-357-0	01	1	0003-		●
220	LEVER ASM CAB UP +110MM<TGG> (A)	1-23335-505-0	01	1	9902-0002	●		●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) (A)	1-23335-505-0	01	1	0003-0004	●			●
220	LEVER ASM CXZ(CXZ***) PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) (A)	1-23335-505-0	01	1	0003-0004		●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> (A)	1-23335-505-0	01	1	0005-	●			●
220	LEVER ASM CXZ(CXZ***) PTO CONTROL OPERATION CAB BACK<TBZ> ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> (A)	1-23335-505-0	01	1	0005-		●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (C)	1-23311-359-0	01	1	0003-	●			●
220	LEVER ASM CXZ(CXZ***) PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (C)	1-23311-359-0	01	1	0003-		●
220	LEVER ASM PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (D)	1-23311-360-0	01	1	0003-	●			●
220	LEVER ASM CXZ(CXZ***) PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (D)	1-23311-360-0	01	1	0003-		●
221	BUSHING; LEVER CAB UP +110MM<TGG> (A)	1-09330-057-0	01	1	9902-	●		●
221	BUSHING; LEVER CAB UP +110MM<TGG> (B)	1-09330-058-0	01	1	9902-	●		●
223	BOLT; BRKT FIX CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	07	1	9902-0004	●		●
223	BOLT; BRKT FIX CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	04	1	0005-0008	●		●
223	BOLT; BRKT FIX CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	05	1	0009-	●		●
223	BOLT; BRKT FIX CAB UP +110MM<TGG> M8X25 FLANGE	0-28680-825-0	03	1	0005-0008	●		●
223	BOLT; BRKT FIX CAB UP +110MM<TGG> M8X25 FLANGE	0-28680-825-0	02	1	0009-	●		●
255	WASHER; LK,LEVER CAB UP +110MM<TGG> ID=10.2	9-09150-510-0	01	1	9902-	●		●
289	NUT; LEVER CAB UP +110MM<TGG> (A) M10	9-09110-410-0	01	1	9902-	●		●
289	NUT; LEVER CAB UP +110MM<TGG> (B) M8	9-09111-408-0	01	1	9902-	●		●
335	WASHER; PL LEVER CAB UP +110MM<TGG>	5-09503-135-0	01	1	9902-	●		●
345	NUT; BRKT CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	9902-	●		●
