◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50936 - TFR/TFS(AUSTRALIA) ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#41919) — 26 parça

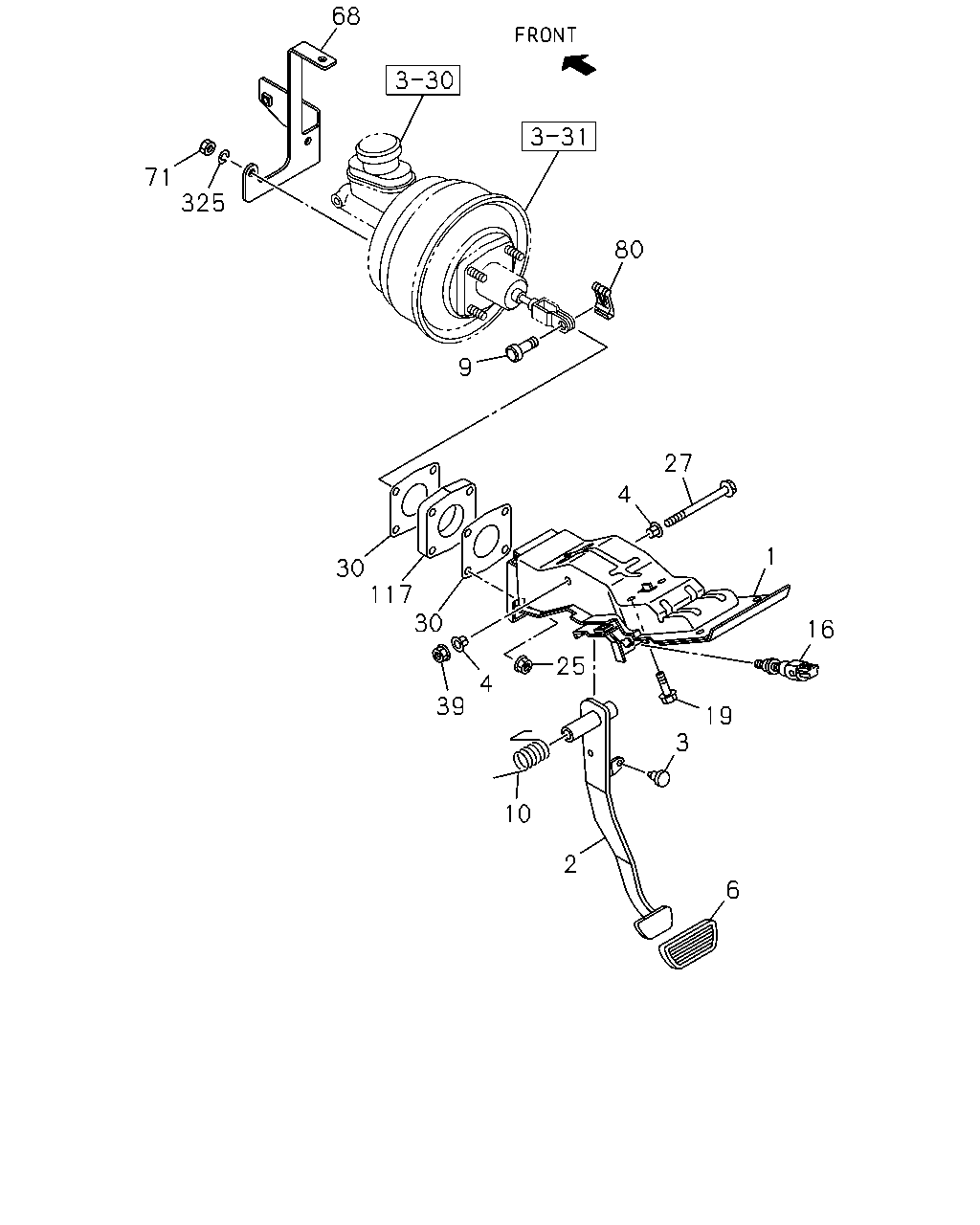

çizim 49909
68 71 325 80 9 27 4 1 30 117 30 16 25 4 39 19 3 10 2 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.634 BRACKET ASM; PEDAL 8-97327-157-1 01 1 0211- ● ● ● ● ● ● ● ●
2 04.625 PEDAL; BRK
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97327-159-1 01 1 0211- ● ● ● ● ●
2 04.625 PEDAL; BRK
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97327-158-1 01 1 0211- ● ● ● ● ●
2 04.625 PEDAL; BRK 8-97327-158-1 01 1 0211- ● ● ●
3 04.634 STOPPER; BRK PEDAL 8-97302-035-0 01 1 0211- ● ● ● ● ● ● ● ●
4 04.634 BUSHING; BRK PEDAL 8-97301-688-0 02 1 0211- ● ● ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
A/T AISIN(RMD),A/T 4 SPEED-JATCO(RMK) 		8-97263-035-0 01 1 0211- ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
M/T MUA 5 SPEED 5G(RSP),M/T MUA 5 SPEED 5S(RSQ) 		8-97318-799-0 01 1 0211- ● ● ● ● ●
6 04.630 COVER; BRK PEDAL 8-97318-799-0 01 1 0211- ● ● ●
9 04.634 PIN; JAW JOINT 8-97311-602-0 01 1 0211- ● ● ● ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-97301-689-0 01 1 0211- ● ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
4JH1-TC ENG(RDM) 		8-97327-156-0 01 1 0211- ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
6VE1 ENG(RJQ) AUTO CRUISE CONT<K30> 		8-97327-156-0 01 1 0211- ● ● ●
16 02.447 SWITCH; STOP LAMP 8-97327-156-0 01 1 0211- ●
16 02.447 SWITCH; STOP LAMP
6VE1 ENG(RJQ) EXC. AUTO CRUISE CONT<K30> 		8-97301-684-0 01 1 0211- ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
C24SE ENG(LG1) 		8-97301-684-0 01 1 0211- ● ●
19 04.634 BOLT; BRKT
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0211- ● ● ● ● ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		8-97943-102-0 04 1 0211- ● ● ● ● ● ● ● ●
27 04.634 SHAFT; BRK PEDAL 8-97304-171-0 01 1 0211- ● ● ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY 8-97301-539-0 02 1 0211- ● ● ● ● ● ● ● ●
39 04.634 NUT; STOPPER LK
00.833 M10 LOCK NUT FLANGE 		0-91303-610-0 01 1 0211- ● ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL 8-97301-541-0 01 1 0211- ● ● ● ● ● ● ● ●
71 04.650 NUT; BRK M/CYL 8-97301-537-0 02 1 0211- ● ● ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL 8-97311-594-0 01 1 0211- ● ● ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY 8-97301-540-0 01 1 0211- ● ● ● ● ● ● ● ●
325 04.634 WASHER; BRK M/CYL 8-97301-538-0 02 1 0211- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
