3-05 — REAR WHEEL BRAKE (#41918) — 62 parça

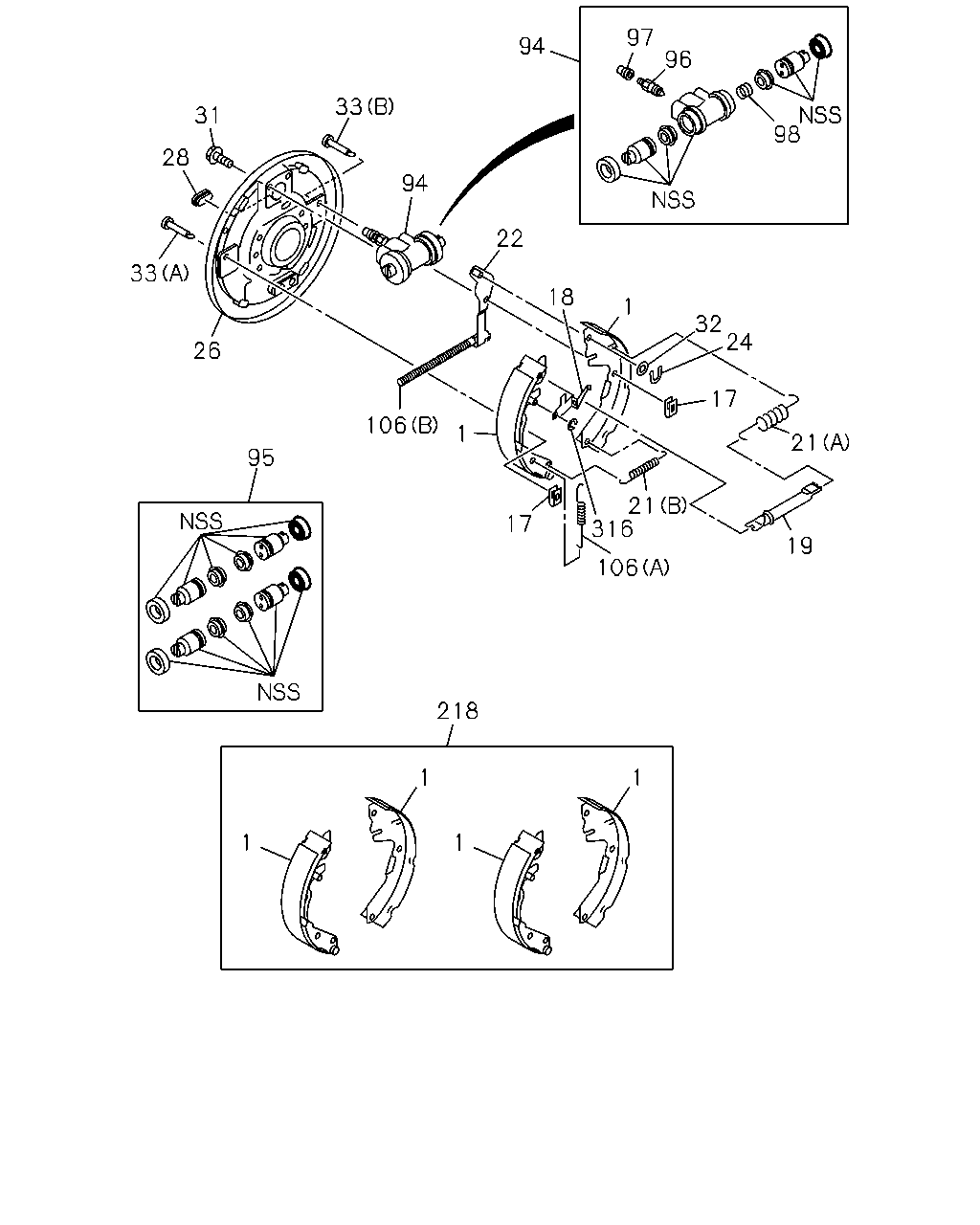

çizim 54835
97 98 96 32 17 24 21 19 21 316 106 17 1 18 22 1 106 95 26 33 28 31 33 94 94 1 1 1 1 218
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 05.017 SHOE; BRK,RR
HIGH RIDE SUSPENSION(7YC) TRAILING 		8-97351-921-1 02 1 0211- ● ● ● ●
1 05.017 SHOE; BRK,RR
TRAILING 		8-97351-921-1 02 1 0211- ● ● ● ●
1 05.017 SHOE; BRK,RR
HIGH RIDE SUSPENSION(7YC) LEADING 		8-97351-920-1 01 1 0211- ● ● ● ●
1 05.017 SHOE; BRK,RR
LEADING 		8-97351-920-1 01 1 0211- ● ● ● ●
1 05.017 SHOE; BRK,RR
HIGH RIDE SUSPENSION(7YC) LEADING 		8-97351-919-1 01 1 0211- ● ● ● ●
1 05.017 SHOE; BRK,RR
LEADING 		8-97351-919-1 01 1 0211- ● ● ● ●
1 05.017 SHOE; BRK,RR
EXC. HIGH RIDE SUSPENSION(7YC) TRAILING 		8-97302-635-1 02 1 0211- ● ● ● ●
1 05.017 SHOE; BRK,RR
EXC. HIGH RIDE SUSPENSION(7YC) LEADING 		8-97302-637-1 01 1 0211- ● ● ● ●
1 05.017 SHOE; BRK,RR
EXC. HIGH RIDE SUSPENSION(7YC) LEADING 		8-97302-636-1 01 1 0211- ● ● ● ●
17 04.043 SPRING; SHOE HOLD DOWN 8-97301-510-0 04 1 0211- ● ● ● ● ● ● ● ●
18 05.103 LEVER; AUTO ADJ 8-97301-504-0 01 1 0211- ● ● ● ● ● ● ● ●
18 05.103 LEVER; AUTO ADJ 8-97301-503-0 01 1 0211- ● ● ● ● ● ● ● ●
19 05.110 ADJUSTER; RR BRK
HIGH RIDE SUSPENSION(7YC) 		8-97301-528-0 01 1 0211- ● ● ● ●
19 05.110 ADJUSTER; RR BRK 8-97301-528-0 01 1 0211- ● ● ● ●
19 05.110 ADJUSTER; RR BRK
HIGH RIDE SUSPENSION(7YC) 		8-97301-527-0 01 1 0211- ● ● ● ●
19 05.110 ADJUSTER; RR BRK 8-97301-527-0 01 1 0211- ● ● ● ●
19 05.110 ADJUSTER; RR BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97301-495-0 01 1 0211- ● ● ● ●
19 05.110 ADJUSTER; RR BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97301-494-0 01 1 0211- ● ● ● ●
21 05.026 SPRING; SHOE,RET
HIGH RIDE SUSPENSION(7YC) (A) 		8-97301-523-0 02 1 0211- ● ● ● ●
21 05.026 SPRING; SHOE,RET
(A) 		8-97301-523-0 02 1 0211- ● ● ● ●
21 05.026 SPRING; SHOE,RET
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97301-501-0 02 1 0211- ● ● ● ●
21 05.026 SPRING; SHOE,RET
(B) 		8-97301-502-0 02 1 0211- ● ● ● ● ● ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
HIGH RIDE SUSPENSION(7YC) 		8-97301-520-0 01 1 0211- ● ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK 8-97301-520-0 01 1 0211- ● ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
HIGH RIDE SUSPENSION(7YC) 		8-97301-519-0 01 1 0211- ● ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK 8-97301-519-0 01 1 0211- ● ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97301-491-0 01 1 0211- ● ● ● ●
22 05.149 LEVER; PARKING BRK,WHEEL BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97301-490-0 01 1 0211- ● ● ● ●
24 05.158 RETAINER; PARKING BRK 8-97301-493-0 02 1 0211- ● ● ● ● ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
HIGH RIDE SUSPENSION(7YC) 		8-97301-515-1 01 1 0211- ● ● ● ●
26 05.001 PLATE; BACK,RR BRK 8-97301-515-1 01 1 0211- ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
HIGH RIDE SUSPENSION(7YC) 		8-97301-514-1 01 1 0211- ● ● ● ●
26 05.001 PLATE; BACK,RR BRK 8-97301-514-1 01 1 0211- ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97301-476-1 01 1 0211- ● ● ● ●
26 05.001 PLATE; BACK,RR BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97301-474-1 01 1 0211- ● ● ● ●
28 05.117 COVER; ADJ HOLE 8-97301-477-0 04 1 0211- ● ● ● ● ● ● ● ●
31 04.665 BOLT; RR WHEEL CYL 8-97333-973-0 04 1 0211- ● ● ● ● ● ● ● ●
32 05.056 WASHER; LK 8-97301-492-0 02 1 0211- ● ● ● ● ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
(A) 		8-97301-509-0 04 1 0211- ● ● ● ● ● ● ● ●
33 05.043 PIN; SHOE HOLD DOWN
(B) 		8-97301-511-0 02 1 0211- ● ● ● ● ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
HIGH RIDE SUSPENSION(7YC) 		8-97319-300-0 02 1 0211- ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-97319-300-0 02 1 0211- ● ● ● ●
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97301-478-0 02 1 0211- ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
HIGH RIDE SUSPENSION(7YC) W/PISTON 		5-87832-068-0 01 1 0211- ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
W/PISTON 		5-87832-068-0 01 1 0211- ● ● ● ●
95 04.665 CUP SET; RR WHEEL CYL
EXC. HIGH RIDE SUSPENSION(7YC) W/PISTON 		5-87832-026-0 01 1 0211- ● ● ● ●
96 04.666 SCREW; BLEEDER,RR BRK 8-97301-484-0 02 1 0211- ● ● ● ● ● ● ● ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-97301-485-0 02 1 0211- ● ● ● ● ● ● ● ●
98 04.669 SPRING; RR WHEEL CYL 8-97301-483-0 02 1 0211- ● ● ● ● ● ● ● ●
106 05.107 SPRING; ADJ LEVER
HIGH RIDE SUSPENSION(7YC) (B) 		8-97301-526-0 02 1 0211- ● ● ● ●
106 05.107 SPRING; ADJ LEVER
(B) 		8-97301-526-0 02 1 0211- ● ● ● ●
106 05.107 SPRING; ADJ LEVER
HIGH RIDE SUSPENSION(7YC) (A) 		8-97301-525-0 01 1 0211- ● ● ● ●
106 05.107 SPRING; ADJ LEVER
(A) 		8-97301-525-0 01 1 0211- ● ● ● ●
106 05.107 SPRING; ADJ LEVER
HIGH RIDE SUSPENSION(7YC) (A) 		8-97301-524-0 01 1 0211- ● ● ● ●
106 05.107 SPRING; ADJ LEVER
(A) 		8-97301-524-0 01 1 0211- ● ● ● ●
106 05.107 SPRING; ADJ LEVER
EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97301-512-0 02 1 0211- ● ● ● ●
106 05.107 SPRING; ADJ LEVER
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97301-508-0 01 1 0211- ● ● ● ●
106 05.107 SPRING; ADJ LEVER
EXC. HIGH RIDE SUSPENSION(7YC) (A) 		8-97301-507-0 01 1 0211- ● ● ● ●
218 05.017 SHOE KIT; BRK,RR
HIGH RIDE SUSPENSION(7YC) 		5-87832-090-0 01 1 0211- ● ● ● ●
218 05.017 SHOE KIT; BRK,RR 5-87832-090-0 01 1 0211- ● ● ● ●
218 05.017 SHOE KIT; BRK,RR
EXC. HIGH RIDE SUSPENSION(7YC) 		5-87832-091-0 01 1 0211- ● ● ● ●
316 05.125 RING; SNAP 8-97330-511-0 02 1 0211- ● ● ● ● ● ● ● ●
