3-02 — FRONT DISC BRAKE CALIPER (#41917) — 29 parça

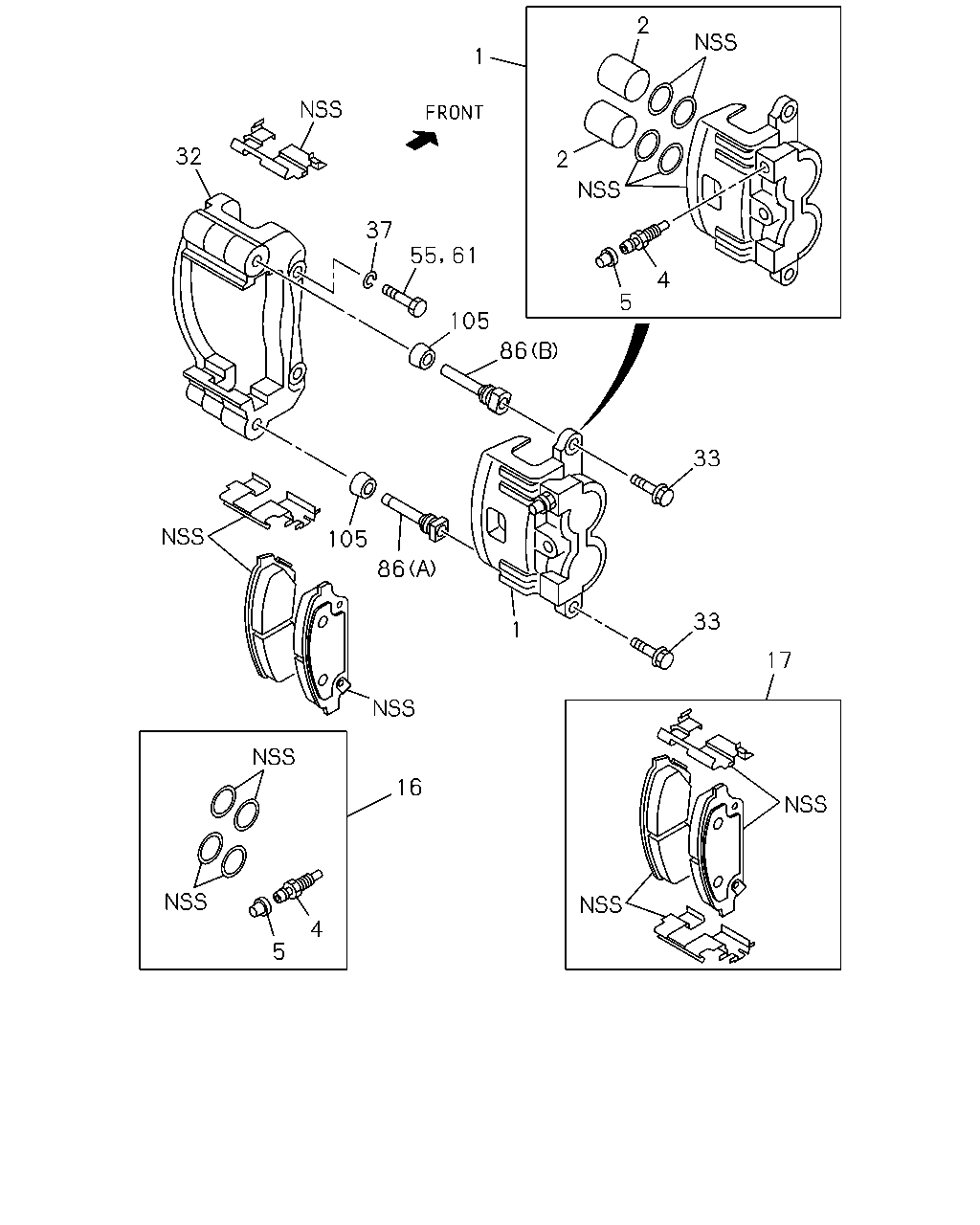

çizim 50442
2 1 32 2 37 55 4 5 105 86 33 105 86 33 1 17 16 4 5 61
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.665 CALIPER; FRT DISC BRK
HIGH RIDE SUSPENSION(7YC) 		8-97357-000-0 01 1 0211- ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK 8-97357-000-0 01 1 0211- ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
HIGH RIDE SUSPENSION(7YC) 		8-97356-999-0 01 1 0211- ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK 8-97356-999-0 01 1 0211- ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97318-676-0 01 1 0211- ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97318-677-0 01 1 0211- ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-97328-606-0 04 1 0211- ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97328-606-0 04 1 0211- ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97328-224-0 04 1 0211- ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 8-97301-725-0 02 1 0211- ● ● ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 8-97301-726-0 02 1 0211- ● ● ● ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-97356-996-0 01 1 0211- ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-97356-996-0 01 1 0211- ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97318-674-0 01 1 0211- ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
HIGH RIDE SUSPENSION(7YC) 		8-97329-333-0 01 1 0211- ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97329-333-0 01 1 0211- ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97329-332-0 01 1 0211- ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
HIGH RIDE SUSPENSION(7YC) 		8-97328-535-0 02 1 0211-0211 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK 8-97328-535-0 02 1 0211-0211 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
HIGH RIDE SUSPENSION(7YC) 		8-97328-493-0 02 1 0211- ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK 8-97328-493-0 02 1 0211- ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97301-729-0 02 1 0211- ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK 8-97301-730-0 04 1 0211- ● ● ● ● ● ● ● ●
37 04.665 WASHER; LK
05.422 ID=14.2 		9-09150-814-0 04 1 0211- ● ● ● ● ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
04.665 		8-97331-945-0 02 1 0211- ● ● ● ● ● ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE 8-97331-945-0 02 1 0211- ● ● ● ● ● ● ● ●
86 04.665 PIN; GUIDE
(A) LEADING 		8-97301-728-0 02 1 0211- ● ● ● ● ● ● ● ●
86 04.665 PIN; GUIDE
(B) TRAILING 		8-97301-746-0 02 1 0211- ● ● ● ● ● ● ● ●
105 04.665 BOOT; CALIPER 8-97328-229-0 04 1 0211- ● ● ● ● ● ● ● ●
