2-66 — MANUAL TRANSFER GEAR; OUTPUT (#41916) — 24 parça

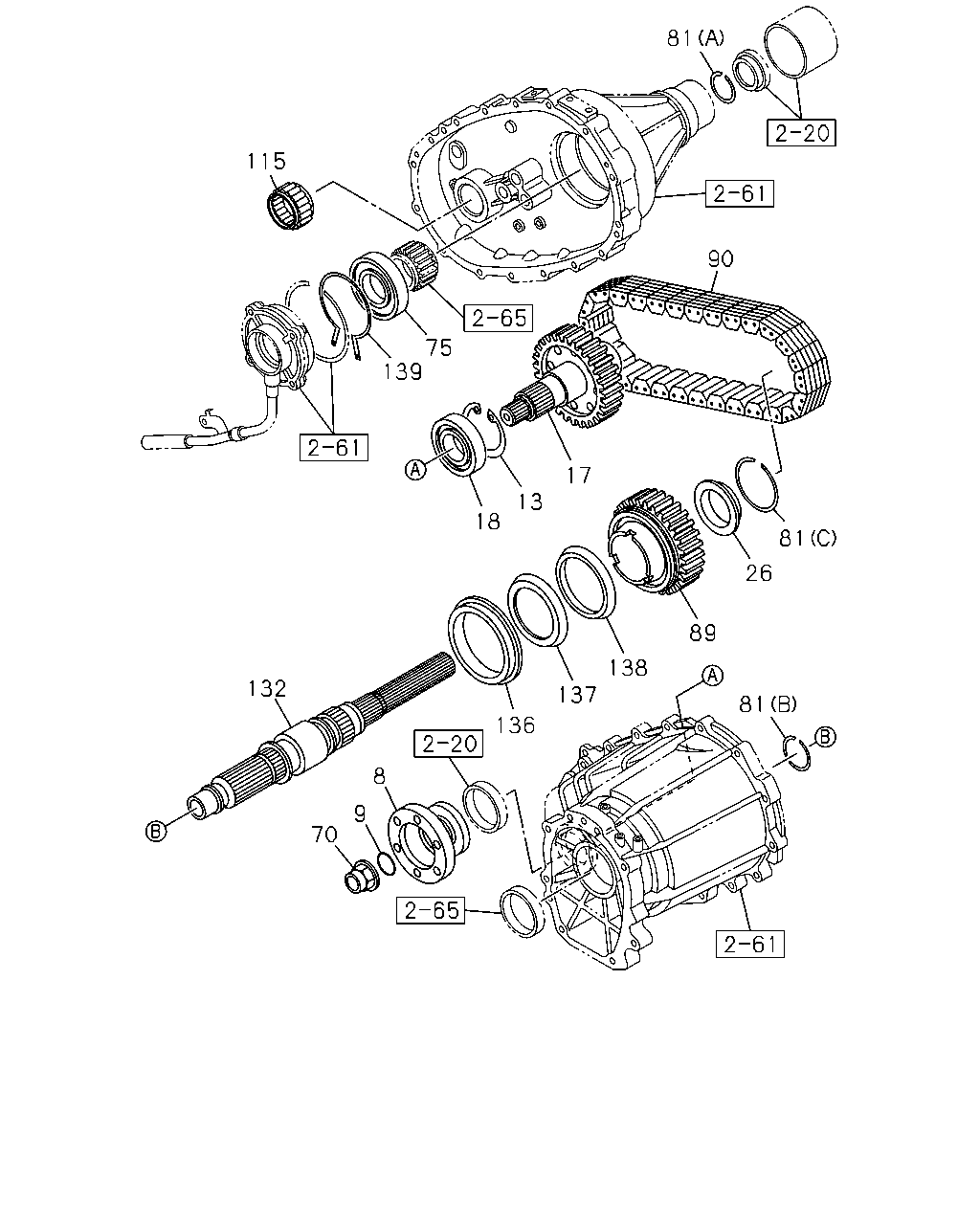

çizim 51032
81 115 90 75 139 17 13 18 81 26 89 138 132 137 81 136 8 9 70
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 04.535 FLANGE; OUTPUT
4JH1-TC ENG(RDM) 		8-97307-914-1 01 1 0211- ● ● ●
8 04.535 FLANGE; OUTPUT 8-97307-914-1 01 1 0211- ●
8 04.535 FLANGE; OUTPUT
6VE1 ENG(RJQ) 		8-97319-825-2 01 1 0211- ● ● ●
9 04.164 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 04.552 ID=29.7 OD=36.1 		8-94483-035-0 01 1 0211- ● ● ● ●
13 04.545 RING; SNAP,OUTPUT,FRT
ID=67 		8-97305-402-0 01 1 0211- ● ● ● ●
17 04.555 SHAFT; OUTPUT 8-97231-853-0 01 1 0211- ● ● ● ●
18 04.520 BEARING; BALL,OUTPUT,FRT
NSK 		8-94422-172-1 01 1 0211- ● ● ● ●
26 04.533 WASHER; THRUST 8-97239-774-0 01 1 0211- ● ● ● ●
70 04.164 NUT; RR OUTPUT SHAFT,TRANSFER 8-97305-605-0 01 1 0211- ● ● ● ●
75 04.520 BEARING; BALL,RR OUTPUT 8-97234-737-0 01 1 0211- ● ● ● ●
81 04.545 RING; SNAP
(A) T=1.9 		8-97305-404-1 01 1 0211- ● ● ● ●
81 04.545 RING; SNAP
(B) T=1.4 		8-97305-405-0 01 1 0211- ● ● ● ●
81 04.545 RING; SNAP
(C) T=2.15 RED 		8-97305-407-0 01 1 0211- ● ● ● ●
81 04.545 RING; SNAP
(C) T=2.10 NON COLOR 		8-97305-408-0 01 1 0211- ● ● ● ●
81 04.545 RING; SNAP
(C) T=2.05 BLUE 		8-97305-409-0 01 1 0211- ● ● ● ●
81 04.545 RING; SNAP
(C) T=2.00 WHITE 		8-97305-410-0 01 1 0211- ● ● ● ●
89 04.535 SPROCKET; DRIVE 8-97231-852-0 01 1 0211- ● ● ● ●
90 04.535 CHAIN; DRIVE 8-97323-177-0 01 1 0211- ● ● ● ●
115 04.520 BEARING; NEEDLE 8-97234-747-0 01 1 0211- ● ● ● ●
132 05.544 SHAFT; MAIN,TRANSFER 8-97231-833-3 01 1 0211- ● ● ● ●
136 04.545 BLOCK RING; 2-4
04.383 Z=48 		8-94363-054-1 01 1 0211- ● ● ● ●
137 04.545 RING; OUTSIDE,2-4
04.383 OD=90.0 		8-94363-055-1 01 1 0211- ● ● ● ●
138 04.545 RING; INSIDE,2-4
04.383 OD=95.8 		8-94363-056-0 01 1 0211- ● ● ● ●
139 04.545 RING; RETAINING,RR OUTPUT
ID=76 		8-97305-012-0 01 1 0211- ● ● ● ●
