Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#41914) — 279 parça

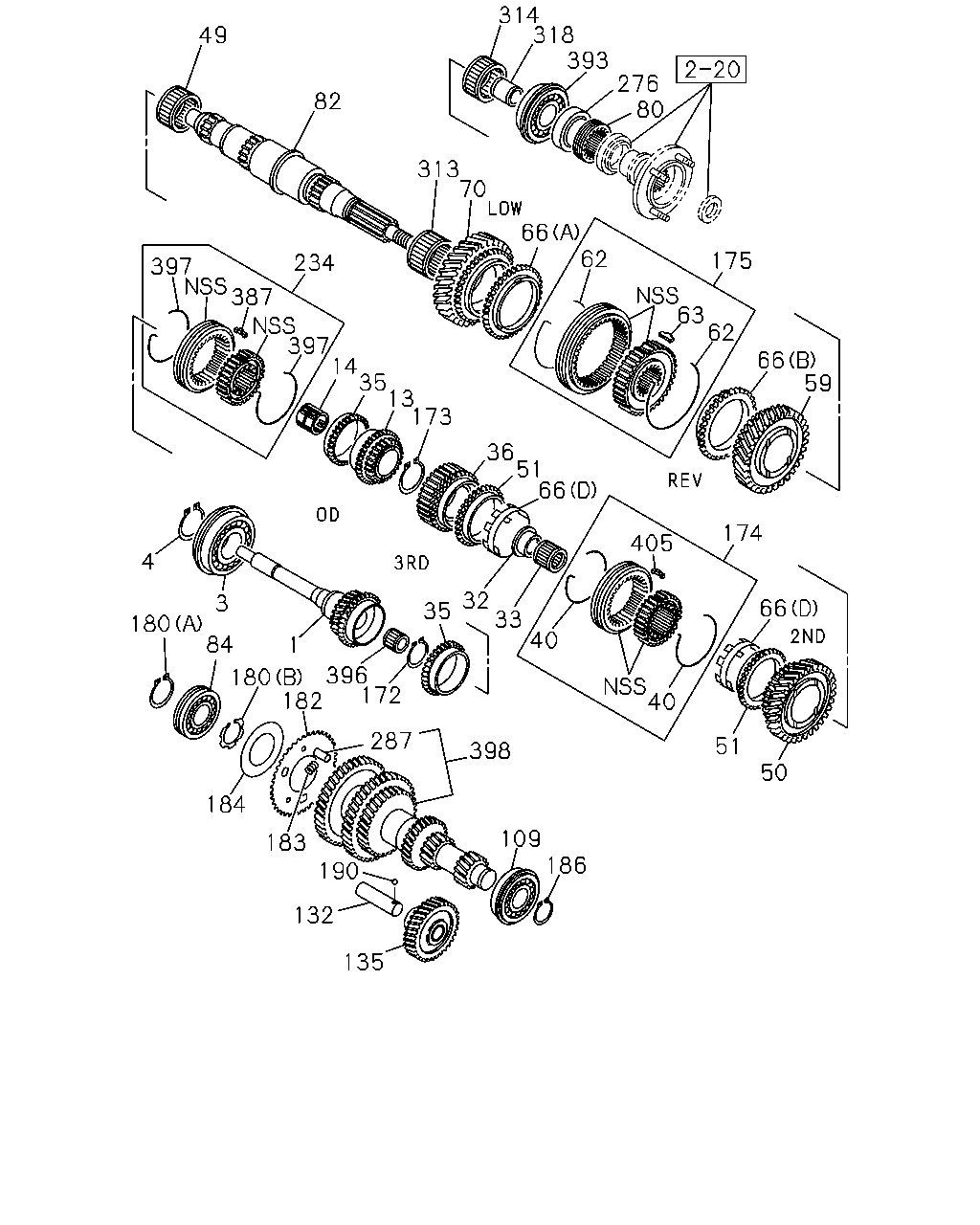

314 318 393 276 80 49 82 313 70 66 62 175 234 397 387 63 62 397 14 35 13 173 66 59 36 51 66 174 405 4 32 33 40 3 66 35 180 84 1 172 182 40 287 51 398 50 184 109 186 183 190 132 135 180 396

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=30	8-97103-632-0	01	1	9812-0105	●	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JH1 ENG(RJX) Z=29	8-97168-980-0	01	1	0106-			●
3	04.403 BEARING; TOP GEAR SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.408 NSK	8-94178-732-1	01	1	9812-0105	●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JH1 ENG(RJX)	8-97035-047-0	01	1	0106-			●
3	04.403 BEARING; TOP GEAR SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.352 JTEKT	8-94462-615-0	01	1	9812-0105	●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) 08.934 ID=37.0	9-09180-040-0	01	1	9812-0105	●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 4JH1 ENG(RJX)	8-97035-040-0	01	1	0106-			●
13	04.415 GEAR; 5TH,MAINSHAFT 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=25	8-97206-015-0	01	1	9906-0105	●
13	04.415 GEAR; 5TH,MAINSHAFT 4JG2 ENG(RJC) Z=25	8-97147-817-0	01	1	9812-9905	●
13	04.415 GEAR; 5TH,MAINSHAFT 4JG2 ENG(RJC) Z=25	8-97206-012-0	01	1	9906-0105	●
13	04.415 GEAR; 5TH,MAINSHAFT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> Z=25	8-97206-012-0	01	1	9906-0105	●
13	04.415 GEAR; 5TH,MAINSHAFT 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=25	8-97206-012-0	01	1	9906-0105		●
13	04.415 GEAR; 5TH,MAINSHAFT 4JH1 ENG(RJX) Z=23	8-97034-856-0	01	1	0106-			●
14	04.419 BEARING; NEEDLE,5TH 4JH1 ENG(RJX)	8-97147-572-0	01	1	0106-			●
32	04.415 COLLAR; 3RD GEAR 4JH1 ENG(RJX)	8-94178-500-2	01	1	0106-			●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94317-158-0	01	1	9812-0105	●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JH1 ENG(RJX) 04.419 NTN	8-97201-005-0	01	1	0106-			●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JH1 ENG(RJX) NSK	9-00096-638-0	01	1	0106-			●
35	04.383 RING; BLOCK,4TH & 3RD 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=36	8-94128-775-2	02	1	9906-0105	●	●
35	04.383 RING; BLOCK,4TH & 3RD 4JH1 ENG(RJX) Z=36	8-94128-775-2	02	1	0106-			●
36	04.415 GEAR; 3RD,MAINSHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=33	8-94316-761-2	01	1	9812-0105	●
36	04.415 GEAR; 3RD,MAINSHAFT 4JH1 ENG(RJX) Z=37	8-97034-854-1	01	1	0106-			●
36	04.415 GEAR; 3RD,MAINSHAFT 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=31	8-94316-760-2	01	1	9906-0105		●
40	04.384 SPRING; INSERT,LOW & 2ND 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97023-708-0	02	1	9812-0105	●	●
40	04.384 SPRING; INSERT,LOW & 2ND 4JH1 ENG(RJX)	8-97023-708-0	02	1	0106-			●
49	04.352 BEARING; NEEDLE,2ND GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.419 NSK	5-09811-014-0	01	1	9812-0105	●	●
49	04.352 BEARING; NEEDLE,2ND GEAR 4JH1 ENG(RJX) NSK	9-00096-638-0	01	1	0106-			●
49	04.352 BEARING; NEEDLE,2ND GEAR 4JH1 ENG(RJX) 04.419 NTN	8-97201-005-0	01	1	0106-			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> Z=36	8-97014-034-2	01	1	9906-0105	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JG2 ENG(RJC) Z=36	8-94316-766-3	01	1	9812-9905	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=36	8-94316-766-3	01	1	9906-0105	●	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JG2 ENG(RJC) Z=36	8-94316-766-3	01	1	9906-0105	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JH1 ENG(RJX) Z=37	8-97262-951-0	01	1	0106-			●
51	04.383 RING; BLOCK,LOW & 2ND 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=42	8-97074-619-2	02	1	9812-0105	●	●
51	04.383 RING; BLOCK,LOW & 2ND 4JH1 ENG(RJX) Z=42	8-97074-619-3	02	1	0106-			●
59	04.417 GEAR; REV MAINSHAFT 4JG2 ENG(RJC) Z=41	8-97115-777-0	01	1	9812-9905	●
59	04.417 GEAR; REV MAINSHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=41	8-97206-006-0	01	1	9906-0105	●	●
59	04.417 GEAR; REV MAINSHAFT 4JH1 ENG(RJX) Z=40	8-97094-821-1	01	1	0106-			●
62	04.384 SPRING; INSERT,REV & 5TH 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97023-710-0	02	1	9812-0105	●	●
62	04.384 SPRING; INSERT,REV & 5TH 4JH1 ENG(RJX)	8-97023-709-0	02	1	0106-			●
63	04.384 INSERT; SYN,REV & 5TH 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-33263-613-0	03	1	9812-0105	●	●
63	04.384 INSERT; SYN,REV & 5TH 4JH1 ENG(RJX)	5-33263-001-0	03	1	0106-			●
66	04.383 RING; BLOCK,SYN 4JH1 ENG(RJX) (D) OUTER	8-94316-749-0	02	1	0106-			●
66	04.383 RING; BLOCK,SYN 4JH1 ENG(RJX) (D) INNER	8-97248-220-0	02	1	0106-			●
66	04.383 RING; BLOCK,SYN 4JG2 ENG(RJC) (C) Z=36	8-94128-775-2	01	1	9812-9905	●
66	04.383 RING; BLOCK,SYN 4JG2 ENG(RJC),4JB1 ENG(RLF) (C) Z=36	8-94128-775-2	01	1	9906-0105	●	●
66	04.383 RING; BLOCK,SYN 4JH1 ENG(RJX) (B) Z=30	8-97034-840-1	01	1	0106-			●
66	04.383 RING; BLOCK,SYN 4JH1 ENG(RJX) (A) Z=45	8-97061-752-0	01	1	0106-			●
70	04.417 GEAR; 1ST,MAINSHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=43	8-97014-033-3	01	1	9812-0105	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JH1 ENG(RJX) Z=45	8-97084-377-1	01	1	0106-			●
80	04.343 GEAR; SPD DRIVE 4JG2 ENG(RJC) Z=4	8-97011-350-0	01	1	9812-9905	●
80	04.343 GEAR; SPD DRIVE 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=4	8-97207-146-0	01	1	9906-0105	●	●
80	04.343 GEAR; SPD DRIVE 4JH1 ENG(RJX) Z=4	8-97011-348-0	01	1	0106-			●
82	04.403 SHAFT; MAIN,TRANS 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> Z=27-40-31-24	8-97045-932-1	01	1	9906-9911	●
82	04.403 SHAFT; MAIN,TRANS 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> Z=27-40-31-24	8-97045-932-1	01	1	9906-9911	●
82	04.403 SHAFT; MAIN,TRANS 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=27-40-31-24	8-97045-932-1	01	1	9906-9911		●
82	04.403 SHAFT; MAIN,TRANS 4JG2 ENG(RJC) Z=27-40-31-24	8-97045-932-1	01	1	9812-9905	●
82	04.403 SHAFT; MAIN,TRANS 4JG2 ENG(RJC) Z=27-40-37-27	8-97207-119-0	01	1	9906-9911	●
82	04.403 SHAFT; MAIN,TRANS 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> Z=27-40-37-27	8-97207-119-0	01	1	9906-9911	●
82	04.403 SHAFT; MAIN,TRANS 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=27-40-37-27	8-97207-119-0	01	1	9912-0105	●	●
82	04.403 SHAFT; MAIN,TRANS 4JH1 ENG(RJX) Z=27-40-40-28	8-97034-847-2	01	1	0106-			●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JG2 ENG(RJC),4JB1 ENG(RLF) NSK	5-09800-062-1	01	1	9812-0105	●	●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JH1 ENG(RJX) NSK	8-97035-048-0	01	1	0106-			●
109	04.422 BEARING; COUNTER SHAFT,RR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97095-913-0	01	1	9812-0105	●	●
109	04.422 BEARING; COUNTER SHAFT,RR 4JH1 ENG(RJX)	8-97035-049-0	01	1	0106-			●
132	04.433 SHAFT; REV 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-33351-604-1	01	1	9812-0105	●	●
132	04.433 SHAFT; REV 4JH1 ENG(RJX)	8-94415-162-1	01	1	0106-			●
135	04.430 GEAR; REV IDLER 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=29	8-97081-539-3	01	1	9812-0105	●	●
135	04.430 GEAR; REV IDLER 4JH1 ENG(RJX) Z=27	5-33361-042-2	01	1	0106-			●
172	04.412 RING; SNAP,CLU HUB 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.384 T=1.75	8-94402-405-0	01	1	9812-0105	●	●
172	04.412 RING; SNAP,CLU HUB 4JH1 ENG(RJX) 04.384 T=1.75	8-94402-405-0	01	1	0106-			●
172	04.412 RING; SNAP,CLU HUB 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.384 T=1.80	8-94402-406-0	01	1	9812-0105	●	●
172	04.412 RING; SNAP,CLU HUB 4JH1 ENG(RJX) 04.384 T=1.80	8-94402-406-0	01	1	0106-			●
172	04.412 RING; SNAP,CLU HUB 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.384 T=1.85	8-94402-407-0	01	1	9812-0105	●	●
172	04.412 RING; SNAP,CLU HUB 4JH1 ENG(RJX) 04.384 T=1.85	8-94402-407-0	01	1	0106-			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) T=1.85	8-94151-522-0	01	1	9812-0105	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JH1 ENG(RJX) T=1.85	8-94151-522-0	01	1	0106-			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) T=1.90	8-94151-523-0	01	1	9812-0105	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JH1 ENG(RJX) T=1.90	8-94151-523-0	01	1	0106-			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) T=1.95	8-94151-524-0	01	1	9812-0105	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JH1 ENG(RJX) T=1.95	8-94151-524-0	01	1	0106-			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) T=2.00	8-94157-747-0	01	1	9812-0105	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JH1 ENG(RJX) T=2.00	8-94157-747-0	01	1	0106-			●
174	04.380 SYNCHRONIZER ASM; 2ND-3RD 4JH1 ENG(RJX)	8-97190-991-0	01	1	0106-			●
175	04.380 SYNCHRONIZER; LOW-REV 4JH1 ENG(RJX)	8-97048-738-0	01	1	0106-			●
180	04.422 RING; SNAP,CLUSTER GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) (B) ID=38.5	8-94146-483-0	01	1	9812-0105	●	●
180	04.422 RING; SNAP,CLUSTER GEAR 4JH1 ENG(RJX) (B) ID=44.5	5-09589-010-0	01	1	0106-			●
180	04.422 RING; SNAP,CLUSTER GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) 08.934 (A) ID=32.2	9-09180-035-0	01	1	9812-0105	●	●
180	04.422 RING; SNAP,CLUSTER GEAR 4JH1 ENG(RJX) 08.934 (A) ID=32.2	9-09180-035-0	01	1	0106-			●
182	04.422 PLATE; CLUSTER GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97095-984-0	01	1	9812-0105	●	●
182	04.422 PLATE; CLUSTER GEAR 4JH1 ENG(RJX)	8-94131-924-1	01	1	0106-			●
183	04.422 SPRING; PLATE,CLUSTER GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94132-168-0	03	1	9812-0105	●	●
183	04.422 SPRING; PLATE,CLUSTER GEAR 4JH1 ENG(RJX)	8-94148-196-0	03	1	0106-			●
184	04.422 SPRING; CLUSTER GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94128-790-1	01	1	9812-0105	●	●
184	04.422 SPRING; CLUSTER GEAR 4JH1 ENG(RJX)	8-94101-320-0	01	1	0106-			●
186	04.422 RING; SNAP,CLUSTER GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) ID=29.6	9-09180-032-0	01	1	9812-0105	●	●
186	04.422 RING; SNAP,CLUSTER GEAR 4JH1 ENG(RJX) 08.934 ID=32.2	9-09180-035-0	01	1	0106-			●
190	04.435 BALL; LK,REV SHAFT 4JH1 ENG(RJX) 04.311	9-00097-509-0	01	1	0106-			●
234	04.380 SYNCHRONIZER ASM; 4TH TO 5TH 4JH1 ENG(RJX)	8-97034-841-1	01	1	0106-			●
276	04.419 SPACER; BRG TO DRIVE GEAR 4JG2 ENG(RJC)	9-33235-606-1	01	1	9812-9905	●
276	04.419 SPACER; BRG TO DRIVE GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97207-175-0	01	1	9906-0105	●	●
276	04.419 SPACER; BRG TO DRIVE GEAR 4JH1 ENG(RJX)	8-97034-876-0	01	1	0106-			●
287	04.422 PIN; COUNTER GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94402-462-0	01	1	9812-0105	●	●
287	04.422 PIN; COUNTER GEAR 4JH1 ENG(RJX)	8-94402-462-0	03	1	0106-			●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) NSK	8-94317-161-0	01	1	9812-0105	●	●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JH1 ENG(RJX) NTN	8-97201-005-0	01	1	0106-			●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) JTEKT	8-97010-547-0	01	1	9812-0105	●	●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JH1 ENG(RJX) 04.352 NSK	9-00096-638-0	01	1	0106-			●
314	04.419 BEARING; NEEDLE,REV GEAR 4JG2 ENG(RJC) NSK	5-09811-014-0	01	1	9812-9905	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) NSK	8-97207-174-0	01	1	9906-0105	●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JH1 ENG(RJX) NTN	8-97201-005-0	01	1	0106-			●
314	04.419 BEARING; NEEDLE,REV GEAR 4JH1 ENG(RJX) 04.352 NSK	9-00096-638-0	01	1	0106-			●
318	04.419 COLLAR; DIST,REV GEAR 4JH1 ENG(RJX)	8-97076-908-0	01	1	0106-			●
387	04.384 INSERT; SYN,4TH & 3RD 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-33263-001-0	03	1	9812-0105	●	●
387	04.384 INSERT; SYN,4TH & 3RD 4JH1 ENG(RJX)	5-33263-001-0	03	1	0106-			●
393	04.352 BEARING; MAINSHAFT END 4JG2 ENG(RJC) 04.422	8-97095-913-0	01	1	9812-9905	●
393	04.352 BEARING; MAINSHAFT END 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97207-512-0	01	1	9906-0105	●	●
393	04.352 BEARING; MAINSHAFT END 4JH1 ENG(RJX) 04.355	8-94178-731-0	01	1	0106-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JG2 ENG(RJC) 04.520	9-00096-606-0	01	1	9812-9905	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JG2 ENG(RJC) 04.520	9-00096-606-0	01	1	9906-0105	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 04.520	9-00096-606-0	01	1	9906-0105	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JH1 ENG(RJX)	8-97228-274-0	01	1	0106-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97161-658-0	01	1	9906-0105	●	●
397	04.384 SPRING; INSERT,4TH & 3RD 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97023-710-0	02	1	9812-0105	●	●
397	04.384 SPRING; INSERT,4TH & 3RD 4JH1 ENG(RJX)	8-97023-710-0	02	1	0106-			●
398	04.421 GEAR; COUNTER 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=49-34-22-14	8-97191-207-0	01	1	9906-0105	●
398	04.421 GEAR; COUNTER 4JG2 ENG(RJC) Z=49-34-22-14	8-97077-337-0	01	1	9812-9905	●
398	04.421 GEAR; COUNTER 4JG2 ENG(RJC) Z=49-34-22-14	8-97077-337-0	01	1	9906-0105	●
398	04.421 GEAR; COUNTER 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> Z=49-34-22-14	8-97077-337-0	01	1	9906-0105	●
398	04.421 GEAR; COUNTER 4JH1 ENG(RJX) Z=45-49-36-20-14-13	8-97075-976-0	01	1	0106-			●
398	04.421 GEAR; COUNTER 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=49-34-22-14	8-97205-081-0	01	1	9906-0105		●
405	04.384 INSERT; SYN,LOW & 2ND 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-33263-001-0	03	1	9812-0105	●	●
405	04.384 INSERT; SYN,LOW & 2ND 4JH1 ENG(RJX)	5-33263-001-0	03	1	0106-			●

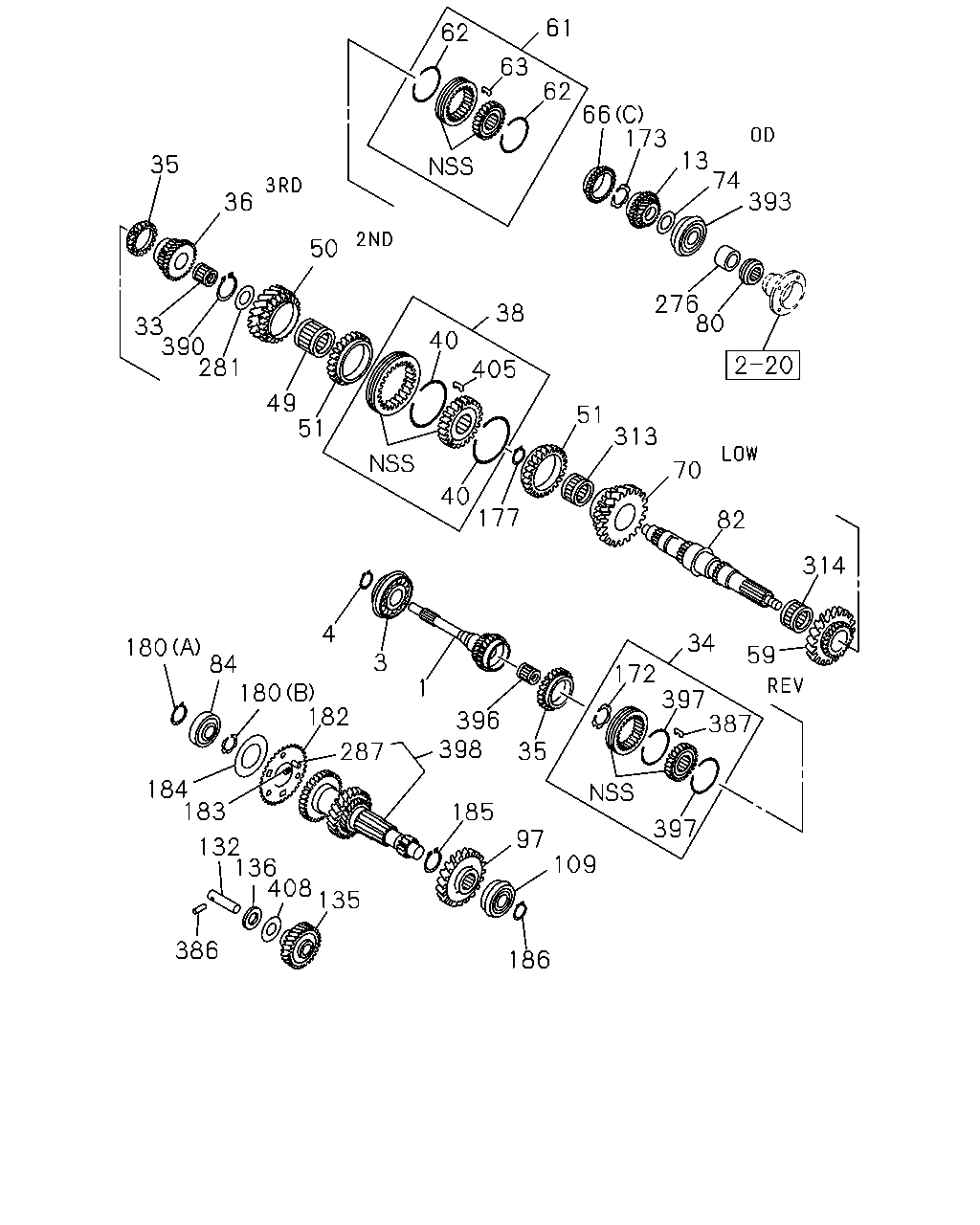

61 62 63 62 66 173 13 74 393 35 3 36 50 276 80 38 33 390 281 40 405 49 51 51 313 70 40 177 82 314 4 34 180 84 180 182 59 3 172 397 387 1 396 398 35 287 184 183 185 397 97 132 136 408 135 109 386 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=30	8-97103-632-0	01	1	9812-0105	●	●
1	04.351 SHAFT; TOP GEAR,TRANS 4JH1 ENG(RJX) Z=29	8-97168-980-0	01	1	0106-			●
3	04.403 BEARING; TOP GEAR SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.408 NSK	8-94178-732-1	01	1	9812-0105	●	●
3	04.403 BEARING; TOP GEAR SHAFT 4JH1 ENG(RJX)	8-97035-047-0	01	1	0106-			●
3	04.403 BEARING; TOP GEAR SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.352 JTEKT	8-94462-615-0	01	1	9812-0105	●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) 08.934 ID=37.0	9-09180-040-0	01	1	9812-0105	●	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 4JH1 ENG(RJX)	8-97035-040-0	01	1	0106-			●
13	04.415 GEAR; 5TH,MAINSHAFT 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=25	8-97206-015-0	01	1	9906-0105	●
13	04.415 GEAR; 5TH,MAINSHAFT 4JG2 ENG(RJC) Z=25	8-97147-817-0	01	1	9812-9905	●
13	04.415 GEAR; 5TH,MAINSHAFT 4JG2 ENG(RJC) Z=25	8-97206-012-0	01	1	9906-0105	●
13	04.415 GEAR; 5TH,MAINSHAFT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> Z=25	8-97206-012-0	01	1	9906-0105	●
13	04.415 GEAR; 5TH,MAINSHAFT 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=25	8-97206-012-0	01	1	9906-0105		●
13	04.415 GEAR; 5TH,MAINSHAFT 4JH1 ENG(RJX) Z=23	8-97034-856-0	01	1	0106-			●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94317-158-0	01	1	9812-0105	●	●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JH1 ENG(RJX) 04.419 NTN	8-97201-005-0	01	1	0106-			●
33	04.352 BEARING; NEEDLE,3RD GEAR 4JH1 ENG(RJX) NSK	9-00096-638-0	01	1	0106-			●
34	04.380 SYNCHRONIZER; 4TH & 3RD 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97048-745-2	01	1	9812-0105	●	●
35	04.383 RING; BLOCK,4TH & 3RD 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=36	8-94128-775-2	02	1	9906-0105	●	●
35	04.383 RING; BLOCK,4TH & 3RD 4JH1 ENG(RJX) Z=36	8-94128-775-2	02	1	0106-			●
36	04.415 GEAR; 3RD,MAINSHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=33	8-94316-761-2	01	1	9812-0105	●
36	04.415 GEAR; 3RD,MAINSHAFT 4JH1 ENG(RJX) Z=37	8-97034-854-1	01	1	0106-			●
36	04.415 GEAR; 3RD,MAINSHAFT 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=31	8-94316-760-2	01	1	9906-0105		●
38	04.384 SYNCHRONIZER; LOW & 2ND 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97048-748-0	01	1	9812-0105	●	●
40	04.384 SPRING; INSERT,LOW & 2ND 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97023-708-0	02	1	9812-0105	●	●
40	04.384 SPRING; INSERT,LOW & 2ND 4JH1 ENG(RJX)	8-97023-708-0	02	1	0106-			●
49	04.352 BEARING; NEEDLE,2ND GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.419 NSK	5-09811-014-0	01	1	9812-0105	●	●
49	04.352 BEARING; NEEDLE,2ND GEAR 4JH1 ENG(RJX) NSK	9-00096-638-0	01	1	0106-			●
49	04.352 BEARING; NEEDLE,2ND GEAR 4JH1 ENG(RJX) 04.419 NTN	8-97201-005-0	01	1	0106-			●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> Z=36	8-97014-034-2	01	1	9906-0105	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JG2 ENG(RJC) Z=36	8-94316-766-3	01	1	9812-9905	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=36	8-94316-766-3	01	1	9906-0105	●	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JG2 ENG(RJC) Z=36	8-94316-766-3	01	1	9906-0105	●
50	04.395 GEAR; 2ND,MAINSHAFT 4JH1 ENG(RJX) Z=37	8-97262-951-0	01	1	0106-			●
51	04.383 RING; BLOCK,LOW & 2ND 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=42	8-97074-619-2	02	1	9812-0105	●	●
51	04.383 RING; BLOCK,LOW & 2ND 4JH1 ENG(RJX) Z=42	8-97074-619-3	02	1	0106-			●
59	04.417 GEAR; REV MAINSHAFT 4JG2 ENG(RJC) Z=41	8-97115-777-0	01	1	9812-9905	●
59	04.417 GEAR; REV MAINSHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=41	8-97206-006-0	01	1	9906-0105	●	●
59	04.417 GEAR; REV MAINSHAFT 4JH1 ENG(RJX) Z=40	8-97094-821-1	01	1	0106-			●
61	04.380 SYNCHRONIZER; REV & 5TH 4JG2 ENG(RJC)	8-97048-750-0	01	1	9812-9905	●
61	04.380 SYNCHRONIZER; REV & 5TH 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97206-010-0	01	1	9906-0105	●	●
62	04.384 SPRING; INSERT,REV & 5TH 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97023-710-0	02	1	9812-0105	●	●
62	04.384 SPRING; INSERT,REV & 5TH 4JH1 ENG(RJX)	8-97023-709-0	02	1	0106-			●
63	04.384 INSERT; SYN,REV & 5TH 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-33263-613-0	03	1	9812-0105	●	●
63	04.384 INSERT; SYN,REV & 5TH 4JH1 ENG(RJX)	5-33263-001-0	03	1	0106-			●
66	04.383 RING; BLOCK,SYN 4JH1 ENG(RJX) (D) OUTER	8-94316-749-0	02	1	0106-			●
66	04.383 RING; BLOCK,SYN 4JH1 ENG(RJX) (D) INNER	8-97248-220-0	02	1	0106-			●
66	04.383 RING; BLOCK,SYN 4JG2 ENG(RJC) (C) Z=36	8-94128-775-2	01	1	9812-9905	●
66	04.383 RING; BLOCK,SYN 4JG2 ENG(RJC),4JB1 ENG(RLF) (C) Z=36	8-94128-775-2	01	1	9906-0105	●	●
66	04.383 RING; BLOCK,SYN 4JH1 ENG(RJX) (B) Z=30	8-97034-840-1	01	1	0106-			●
66	04.383 RING; BLOCK,SYN 4JH1 ENG(RJX) (A) Z=45	8-97061-752-0	01	1	0106-			●
70	04.417 GEAR; 1ST,MAINSHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=43	8-97014-033-3	01	1	9812-0105	●	●
70	04.417 GEAR; 1ST,MAINSHAFT 4JH1 ENG(RJX) Z=45	8-97084-377-1	01	1	0106-			●
74	04.419 WASHER; THRUST,REV GEAR 4JG2 ENG(RJC)	9-33271-607-1	01	1	9812-9905	●
74	04.419 WASHER; THRUST,REV GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97207-176-0	01	1	9906-0105	●	●
80	04.343 GEAR; SPD DRIVE 4JG2 ENG(RJC) Z=4	8-97011-350-0	01	1	9812-9905	●
80	04.343 GEAR; SPD DRIVE 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=4	8-97207-146-0	01	1	9906-0105	●	●
80	04.343 GEAR; SPD DRIVE 4JH1 ENG(RJX) Z=4	8-97011-348-0	01	1	0106-			●
82	04.403 SHAFT; MAIN,TRANS 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> Z=27-40-31-24	8-97045-932-1	01	1	9906-9911	●
82	04.403 SHAFT; MAIN,TRANS 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> Z=27-40-31-24	8-97045-932-1	01	1	9906-9911	●
82	04.403 SHAFT; MAIN,TRANS 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=27-40-31-24	8-97045-932-1	01	1	9906-9911		●
82	04.403 SHAFT; MAIN,TRANS 4JG2 ENG(RJC) Z=27-40-31-24	8-97045-932-1	01	1	9812-9905	●
82	04.403 SHAFT; MAIN,TRANS 4JG2 ENG(RJC) Z=27-40-37-27	8-97207-119-0	01	1	9906-9911	●
82	04.403 SHAFT; MAIN,TRANS 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> Z=27-40-37-27	8-97207-119-0	01	1	9906-9911	●
82	04.403 SHAFT; MAIN,TRANS 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=27-40-37-27	8-97207-119-0	01	1	9912-0105	●	●
82	04.403 SHAFT; MAIN,TRANS 4JH1 ENG(RJX) Z=27-40-40-28	8-97034-847-2	01	1	0106-			●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JG2 ENG(RJC),4JB1 ENG(RLF) NSK	5-09800-062-1	01	1	9812-0105	●	●
84	04.422 BEARING; COUNTER SHAFT,FRT 4JH1 ENG(RJX) NSK	8-97035-048-0	01	1	0106-			●
97	04.415 GEAR; 5TH,COUNTER 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=53	8-97077-341-1	01	1	9812-0105	●	●
109	04.422 BEARING; COUNTER SHAFT,RR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97095-913-0	01	1	9812-0105	●	●
109	04.422 BEARING; COUNTER SHAFT,RR 4JH1 ENG(RJX)	8-97035-049-0	01	1	0106-			●
132	04.433 SHAFT; REV 4JG2 ENG(RJC),4JB1 ENG(RLF)	9-33351-604-1	01	1	9812-0105	●	●
132	04.433 SHAFT; REV 4JH1 ENG(RJX)	8-94415-162-1	01	1	0106-			●
135	04.430 GEAR; REV IDLER 4JG2 ENG(RJC),4JB1 ENG(RLF) Z=29	8-97081-539-3	01	1	9812-0105	●	●
135	04.430 GEAR; REV IDLER 4JH1 ENG(RJX) Z=27	5-33361-042-2	01	1	0106-			●
136	04.437 WASHER; THRUST,REV IDLE,RR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97081-579-2	01	1	9812-0105	●	●
172	04.412 RING; SNAP,CLU HUB 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.384 T=1.75	8-94402-405-0	01	1	9812-0105	●	●
172	04.412 RING; SNAP,CLU HUB 4JH1 ENG(RJX) 04.384 T=1.75	8-94402-405-0	01	1	0106-			●
172	04.412 RING; SNAP,CLU HUB 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.384 T=1.80	8-94402-406-0	01	1	9812-0105	●	●
172	04.412 RING; SNAP,CLU HUB 4JH1 ENG(RJX) 04.384 T=1.80	8-94402-406-0	01	1	0106-			●
172	04.412 RING; SNAP,CLU HUB 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.384 T=1.85	8-94402-407-0	01	1	9812-0105	●	●
172	04.412 RING; SNAP,CLU HUB 4JH1 ENG(RJX) 04.384 T=1.85	8-94402-407-0	01	1	0106-			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) T=1.85	8-94151-522-0	01	1	9812-0105	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JH1 ENG(RJX) T=1.85	8-94151-522-0	01	1	0106-			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) T=1.90	8-94151-523-0	01	1	9812-0105	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JH1 ENG(RJX) T=1.90	8-94151-523-0	01	1	0106-			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) T=1.95	8-94151-524-0	01	1	9812-0105	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JH1 ENG(RJX) T=1.95	8-94151-524-0	01	1	0106-			●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) T=2.00	8-94157-747-0	01	1	9812-0105	●	●
173	04.416 RING; SNAP,OVERDRIVE GEAR 4JH1 ENG(RJX) T=2.00	8-94157-747-0	01	1	0106-			●
177	04.384 RING; SNAP,CLU HUB 4JG2 ENG(RJC) T=1.75	8-94402-405-0	01	1	9812-9905	●
177	04.384 RING; SNAP,CLU HUB 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.422 ID=44.5	5-09589-010-0	01	1	9906-0105	●	●
177	04.384 RING; SNAP,CLU HUB 4JG2 ENG(RJC) T=1.80	8-94402-406-0	01	1	9812-9905	●
177	04.384 RING; SNAP,CLU HUB 4JG2 ENG(RJC) T=1.85	8-94402-407-0	01	1	9812-9905	●
180	04.422 RING; SNAP,CLUSTER GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) (B) ID=38.5	8-94146-483-0	01	1	9812-0105	●	●
180	04.422 RING; SNAP,CLUSTER GEAR 4JH1 ENG(RJX) (B) ID=44.5	5-09589-010-0	01	1	0106-			●
180	04.422 RING; SNAP,CLUSTER GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) 08.934 (A) ID=32.2	9-09180-035-0	01	1	9812-0105	●	●
180	04.422 RING; SNAP,CLUSTER GEAR 4JH1 ENG(RJX) 08.934 (A) ID=32.2	9-09180-035-0	01	1	0106-			●
182	04.422 PLATE; CLUSTER GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97095-984-0	01	1	9812-0105	●	●
182	04.422 PLATE; CLUSTER GEAR 4JH1 ENG(RJX)	8-94131-924-1	01	1	0106-			●
183	04.422 SPRING; PLATE,CLUSTER GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94132-168-0	03	1	9812-0105	●	●
183	04.422 SPRING; PLATE,CLUSTER GEAR 4JH1 ENG(RJX)	8-94148-196-0	03	1	0106-			●
184	04.422 SPRING; CLUSTER GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94128-790-1	01	1	9812-0105	●	●
184	04.422 SPRING; CLUSTER GEAR 4JH1 ENG(RJX)	8-94101-320-0	01	1	0106-			●
185	04.422 RING; SNAP,CLUSTER GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) ID=41.5	9-09180-045-0	01	1	9812-0105	●	●
186	04.422 RING; SNAP,CLUSTER GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) ID=29.6	9-09180-032-0	01	1	9812-0105	●	●
186	04.422 RING; SNAP,CLUSTER GEAR 4JH1 ENG(RJX) 08.934 ID=32.2	9-09180-035-0	01	1	0106-			●
276	04.419 SPACER; BRG TO DRIVE GEAR 4JG2 ENG(RJC)	9-33235-606-1	01	1	9812-9905	●
276	04.419 SPACER; BRG TO DRIVE GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97207-175-0	01	1	9906-0105	●	●
276	04.419 SPACER; BRG TO DRIVE GEAR 4JH1 ENG(RJX)	8-97034-876-0	01	1	0106-			●
281	04.419 WASHER; THRUST,MAINSHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-33271-007-0	01	1	9812-0105	●	●
287	04.422 PIN; COUNTER GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94402-462-0	01	1	9812-0105	●	●
287	04.422 PIN; COUNTER GEAR 4JH1 ENG(RJX)	8-94402-462-0	03	1	0106-			●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) NSK	8-94317-161-0	01	1	9812-0105	●	●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JH1 ENG(RJX) NTN	8-97201-005-0	01	1	0106-			●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) JTEKT	8-97010-547-0	01	1	9812-0105	●	●
313	04.419 BEARING; NEEDLE,LOW GEAR 4JH1 ENG(RJX) 04.352 NSK	9-00096-638-0	01	1	0106-			●
314	04.419 BEARING; NEEDLE,REV GEAR 4JG2 ENG(RJC) NSK	5-09811-014-0	01	1	9812-9905	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JG2 ENG(RJC),4JB1 ENG(RLF) NSK	8-97207-174-0	01	1	9906-0105	●	●
314	04.419 BEARING; NEEDLE,REV GEAR 4JH1 ENG(RJX) NTN	8-97201-005-0	01	1	0106-			●
314	04.419 BEARING; NEEDLE,REV GEAR 4JH1 ENG(RJX) 04.352 NSK	9-00096-638-0	01	1	0106-			●
386	04.435 PIN; REV SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94128-794-0	01	1	9812-0105	●	●
387	04.384 INSERT; SYN,4TH & 3RD 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-33263-001-0	03	1	9812-0105	●	●
387	04.384 INSERT; SYN,4TH & 3RD 4JH1 ENG(RJX)	5-33263-001-0	03	1	0106-			●
390	04.383 RING; SNAP,CLU HUB 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 04.416 T=1.90	8-94151-523-0	01	1	9906-0105	●
390	04.383 RING; SNAP,CLU HUB 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.384 T=1.75	8-94151-520-0	01	1	9812-0105	●	●
390	04.383 RING; SNAP,CLU HUB 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.384 T=1.80	8-94151-521-0	01	1	9812-0105	●	●
390	04.383 RING; SNAP,CLU HUB 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.416 T=1.85	8-94151-522-0	01	1	9812-0105	●	●
393	04.352 BEARING; MAINSHAFT END 4JG2 ENG(RJC) 04.422	8-97095-913-0	01	1	9812-9905	●
393	04.352 BEARING; MAINSHAFT END 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97207-512-0	01	1	9906-0105	●	●
393	04.352 BEARING; MAINSHAFT END 4JH1 ENG(RJX) 04.355	8-94178-731-0	01	1	0106-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JG2 ENG(RJC) 04.520	9-00096-606-0	01	1	9812-9905	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JG2 ENG(RJC) 04.520	9-00096-606-0	01	1	9906-0105	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 04.520	9-00096-606-0	01	1	9906-0105	●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JH1 ENG(RJX)	8-97228-274-0	01	1	0106-			●
396	04.352 BEARING; NEEDLE,MAINSHAFT 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97161-658-0	01	1	9906-0105	●	●
397	04.384 SPRING; INSERT,4TH & 3RD 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97023-710-0	02	1	9812-0105	●	●
397	04.384 SPRING; INSERT,4TH & 3RD 4JH1 ENG(RJX)	8-97023-710-0	02	1	0106-			●
398	04.421 GEAR; COUNTER 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=49-34-22-14	8-97191-207-0	01	1	9906-0105	●
398	04.421 GEAR; COUNTER 4JG2 ENG(RJC) Z=49-34-22-14	8-97077-337-0	01	1	9812-9905	●
398	04.421 GEAR; COUNTER 4JG2 ENG(RJC) Z=49-34-22-14	8-97077-337-0	01	1	9906-0105	●
398	04.421 GEAR; COUNTER 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> Z=49-34-22-14	8-97077-337-0	01	1	9906-0105	●
398	04.421 GEAR; COUNTER 4JH1 ENG(RJX) Z=45-49-36-20-14-13	8-97075-976-0	01	1	0106-			●
398	04.421 GEAR; COUNTER 4JB1 ENG(RLF) TURBOCHARGER<K51> Z=49-34-22-14	8-97205-081-0	01	1	9906-0105		●
405	04.384 INSERT; SYN,LOW & 2ND 4JG2 ENG(RJC),4JB1 ENG(RLF)	5-33263-001-0	03	1	9812-0105	●	●
405	04.384 INSERT; SYN,LOW & 2ND 4JH1 ENG(RJX)	5-33263-001-0	03	1	0106-			●
408	04.384 SPRING 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97081-577-0	01	1	9812-0105	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
