◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50909 - TBR-LHD ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#41911) — 12 parça

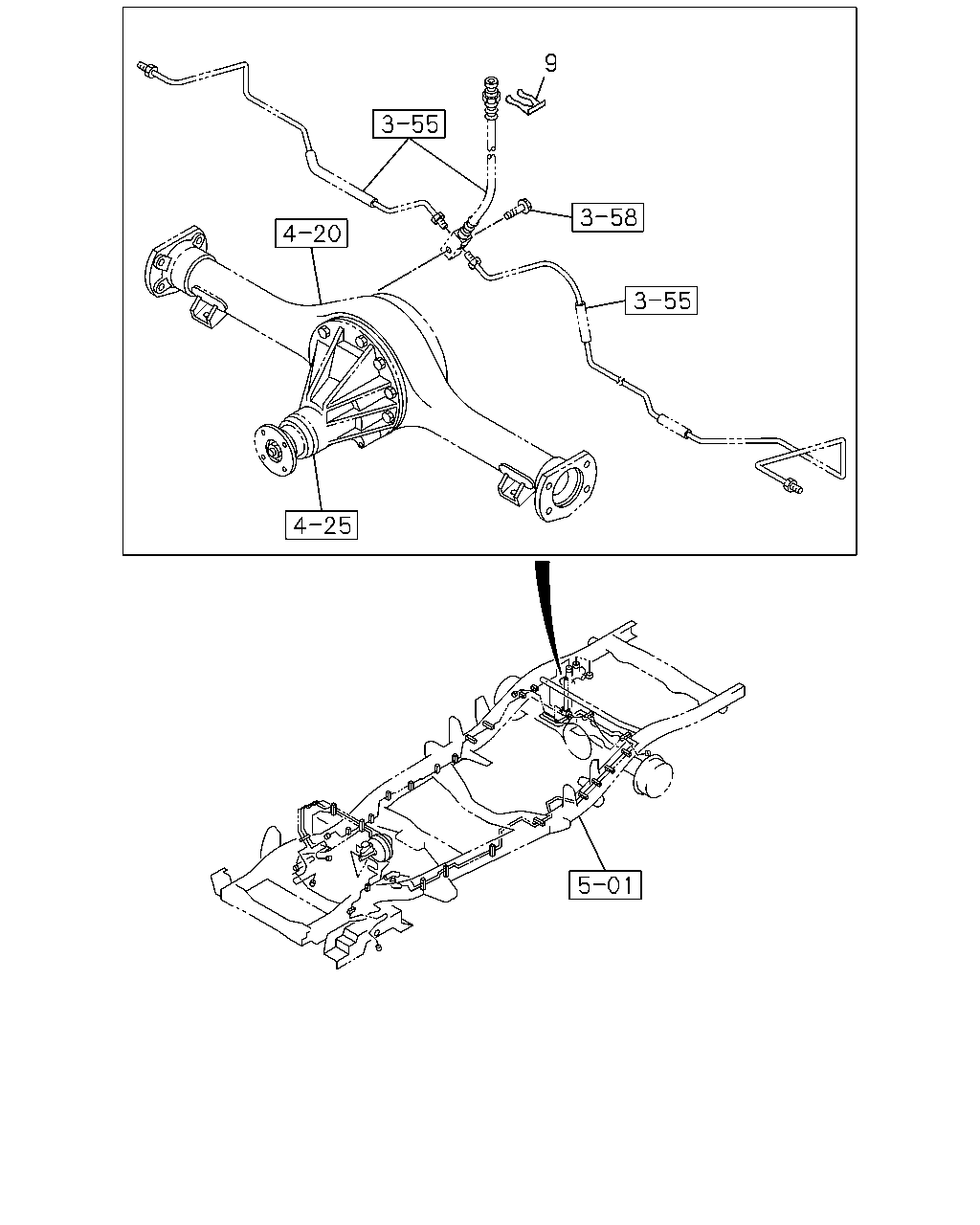

çizim 11974
9
BalonParca AdiParca NoAdetTipApplied Date
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 05 1 0103-

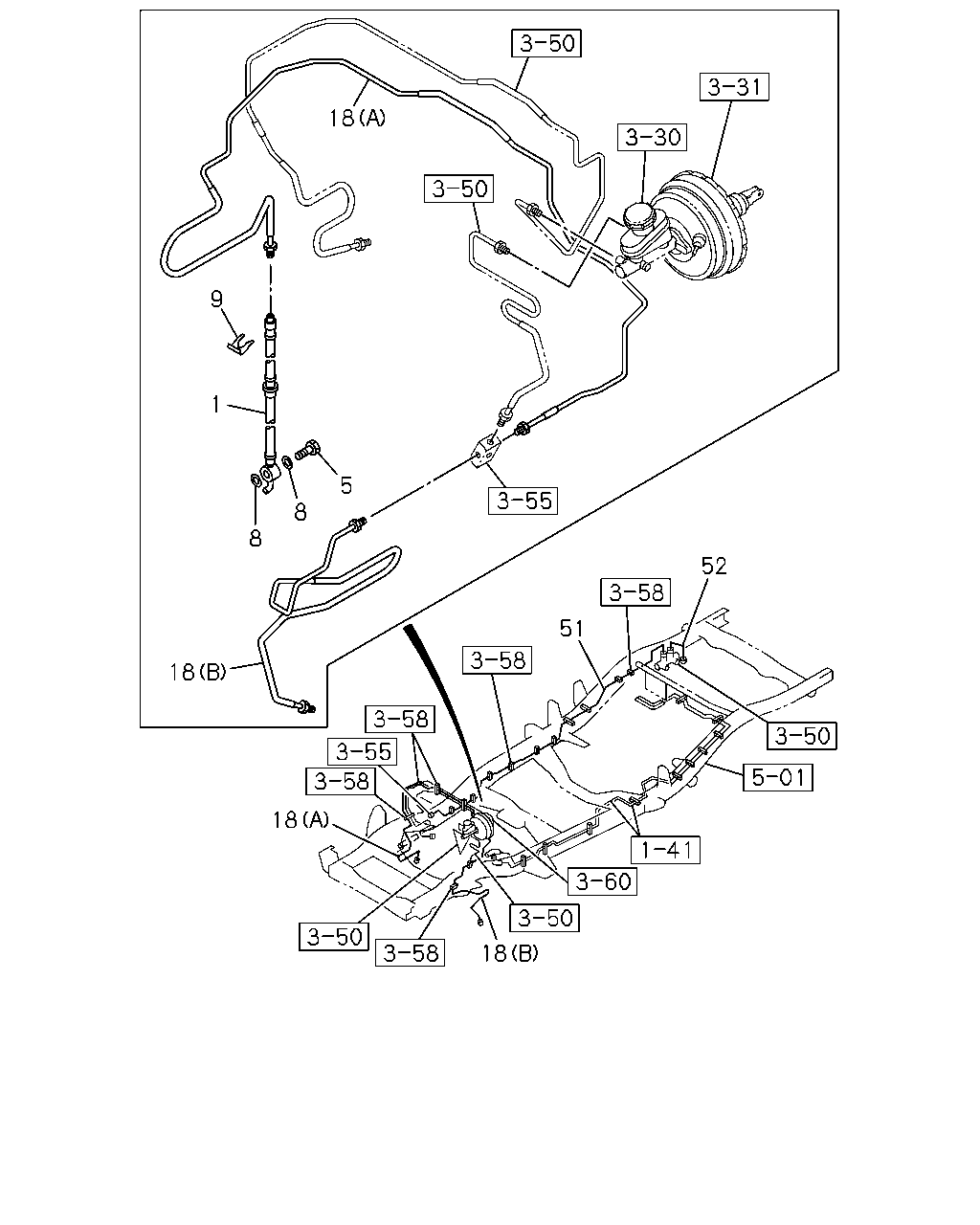

çizim 50888
18 9 1 5 8 8 52 51 18 18 18
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK
PHI 		8-97175-367-2 02 1 0103-
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		5-09675-017-0 02 1 0103-0410
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-97381-454-0 02 1 0411-
8 GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0 		9-09571-410-0 04 1 0103-
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 05 1 0103-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (B) PHI 		8-97975-974-2 01 1 0103-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (A) PHI 		8-97975-972-3 01 1 0103-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
GRADE XTRM(RBG) (B) PHI 		8-97975-975-0 01 1 0111-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
GRADE XTRM(RBG) (A) PHI 		8-97975-973-1 01 1 0111-
51 PIPE; BRK
PHI 		8-97976-138-0 01 1 0103-
52 PIPE; BRK
PHI 		8-97976-123-0 01 1 0103-
