0-34B — INTAKE HEATER (#4191) — 44 parça

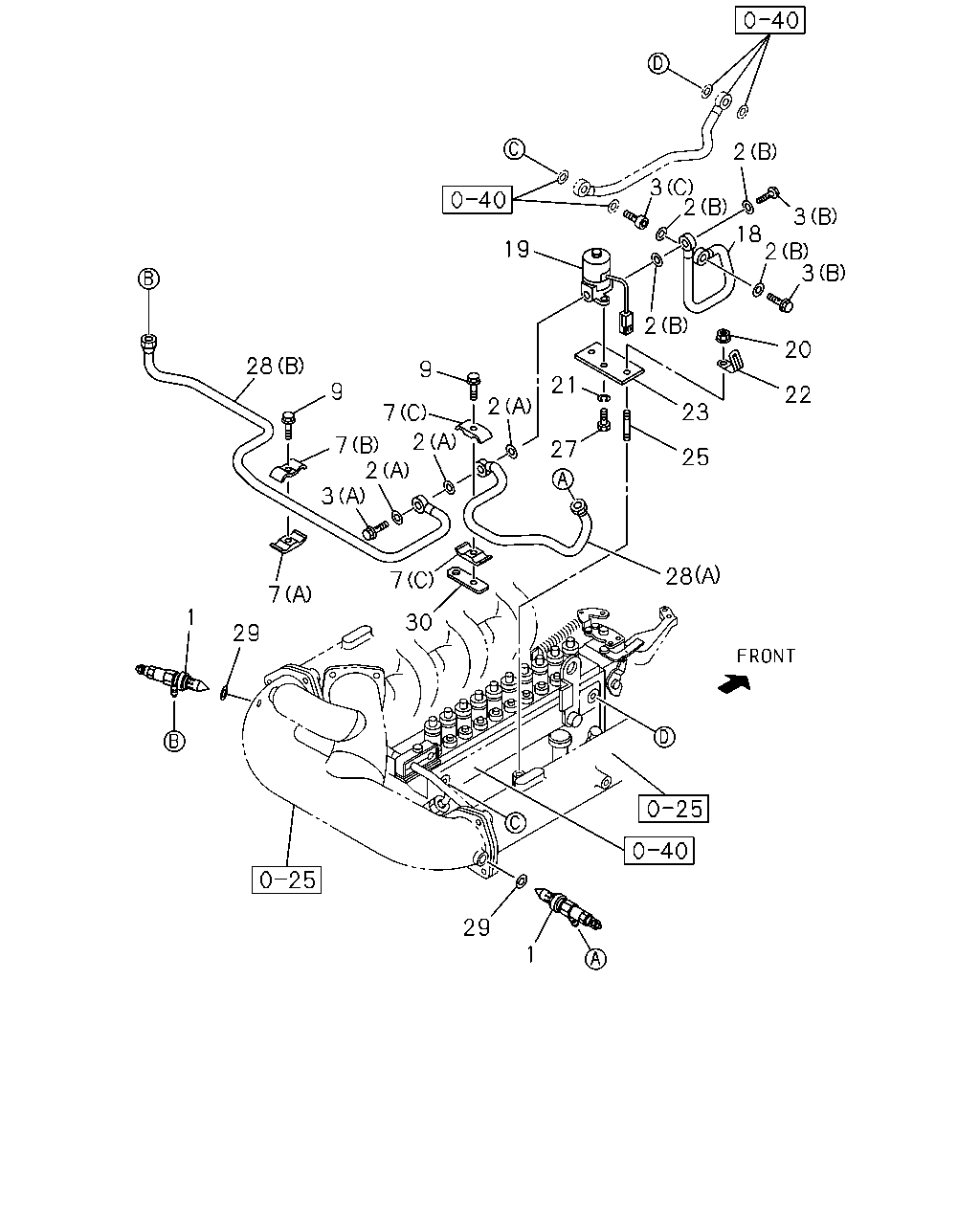

çizim 42048
2 3 2 3 18 2 3 19 2 20 28 9 21 9 22 2 23 7 2 7 2 27 25 3 28 7 7 1 30 29 29 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEATER; INT
INTAKE HEATER<SL2> 		1-81430-022-0 02 1 9603-9901 ● ●
1 HEATER; INT
INTAKE HEATER<SL2> 		1-81430-022-0 02 1 9905- ● ● ● ●
2 GASKET; FUEL PIPE FILTER TO VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INTAKE HEATER<SL2> (A) ID=8.2 OD=13.2 		1-09630-082-0 03 1 9603-9901 ● ●
2 GASKET; FUEL PIPE FILTER TO VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INTAKE HEATER<SL2> (B) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9603-9901 ● ●
2 GASKET; FUEL PIPE FILTER TO VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INTAKE HEATER<SL2> (A) ID=8.2 OD=13.2 		1-09630-082-0 03 1 9905- ● ● ● ●
2 GASKET; FUEL PIPE FILTER TO VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) INTAKE HEATER<SL2> (B) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9905- ● ● ● ●
3 BOLT; EYE FUEL PIPE
INTAKE HEATER<SL2> (A) M8X24 FLANGE 		1-09675-038-1 01 1 9603-9901 ● ●
3 BOLT; EYE FUEL PIPE
INTAKE HEATER<SL2> (B) M10X18 FLANGE 		1-09675-076-0 02 1 9603-9901 ● ●
3 BOLT; EYE FUEL PIPE
INTAKE HEATER<SL2> (C) M14X27 M10-HOLE ON HEAD 		1-09675-087-0 01 1 9603-9901 ● ●
3 BOLT; EYE FUEL PIPE
INTAKE HEATER<SL2> (A) M8X24 FLANGE 		1-09675-038-1 01 1 9905- ● ● ● ●
3 BOLT; EYE FUEL PIPE
INTAKE HEATER<SL2> (B) M10X18 FLANGE 		1-09675-076-0 02 1 9905- ● ● ● ●
3 BOLT; EYE FUEL PIPE
INTAKE HEATER<SL2> (C) M14X27 M10-HOLE ON HEAD 		1-09675-087-0 01 1 9905- ● ● ● ●
7 CLIP; FUEL PIPE
INTAKE HEATER<SL2> (A) ID=4.76 & 6.35 L=25 W/NUT 		1-09700-850-0 01 1 9603-9901 ● ●
7 CLIP; FUEL PIPE
INTAKE HEATER<SL2> (B) ID=7 L=25 B=18 		1-09700-851-0 01 1 9603-9901 ● ●
7 CLIP; FUEL PIPE
INTAKE HEATER<SL2> (C) 		9-09917-396-0 02 1 9603-9901 ● ●
7 CLIP; FUEL PIPE
INTAKE HEATER<SL2> (A) ID=4.76 & 6.35 L=25 W/NUT 		1-09700-850-0 01 1 9905- ● ● ● ●
7 CLIP; FUEL PIPE
INTAKE HEATER<SL2> (B) ID=7 L=25 B=18 		1-09700-851-0 01 1 9905- ● ● ● ●
7 CLIP; FUEL PIPE
INTAKE HEATER<SL2> (C) 		9-09917-396-0 02 1 9905- ● ● ● ●
9 BOLT; CLIP
INTAKE HEATER<SL2> M6X20 FLANGE 		0-28080-620-0 02 1 9603-9901 ● ●
9 BOLT; CLIP
INTAKE HEATER<SL2> M6X20 FLANGE 		0-28080-620-0 02 1 9905- ● ● ● ●
18 PIPE ASM; FUEL PUMP TO VLV
INTAKE HEATER<SL2> 		1-15415-622-0 01 1 9603-9901 ● ●
18 PIPE ASM; FUEL PUMP TO VLV
INTAKE HEATER<SL2> 		1-15415-622-0 01 1 9905- ● ● ● ●
19 VALVE; MAG INT HTR
INTAKE HEATER<SL2> 		1-82563-396-0 01 1 9603-9901 ● ●
19 VALVE; MAG INT HTR
INTAKE HEATER<SL2> 		1-82563-396-0 01 1 9905- ● ● ● ●
20 NUT; BRKT
INTAKE HEATER<SL2> M10 FLANGE 		0-91150-110-0 01 1 9603-9901 ● ●
20 NUT; BRKT
INTAKE HEATER<SL2> M10 FLANGE 		0-91150-110-0 01 1 9905- ● ● ● ●
21 WASHER; LK,VLV
INTAKE HEATER<SL2> ID=5.1 		9-09150-505-0 02 1 9603-9901 ● ●
21 WASHER; LK,VLV
INTAKE HEATER<SL2> ID=5.1 		9-09150-505-0 02 1 9905- ● ● ● ●
22 CLIP; HARNESS
INTAKE HEATER<SL2> 		8-94213-457-0 01 1 9603-9901 ● ●
22 CLIP; HARNESS
INTAKE HEATER<SL2> 		8-94213-457-0 01 1 9905- ● ● ● ●
23 BRACKET; MAG VLV INT HTR
INTAKE HEATER<SL2> 		1-82569-036-0 01 1 9603-9901 ● ●
23 BRACKET; MAG VLV INT HTR
INTAKE HEATER<SL2> 		1-82569-036-0 01 1 9905- ● ● ● ●
25 STUD; BRKT
INTAKE HEATER<SL2> M10X16 L=31 		9-04411-016-0 01 1 9603-9901 ● ●
25 STUD; BRKT
INTAKE HEATER<SL2> M10X16 L=31 		9-04411-016-0 01 1 9905- ● ● ● ●
27 BOLT; VLV
INTAKE HEATER<SL2> M5X10 		0-20800-510-0 02 1 9603-9901 ● ●
27 BOLT; VLV
INTAKE HEATER<SL2> M5X10 		0-20800-510-0 02 1 9905- ● ● ● ●
28 PIPE ASM; FUEL VLV TO INT HTR
INTAKE HEATER<SL2> (A) 		1-15415-931-0 01 1 9603-9901 ● ●
28 PIPE ASM; FUEL VLV TO INT HTR
INTAKE HEATER<SL2> (B) 		1-15415-932-0 01 1 9603-9901 ● ●
28 PIPE ASM; FUEL VLV TO INT HTR
INTAKE HEATER<SL2> (A) 		1-15415-931-0 01 1 9905- ● ● ● ●
28 PIPE ASM; FUEL VLV TO INT HTR
INTAKE HEATER<SL2> (B) 		1-15415-932-0 01 1 9905- ● ● ● ●
29 GASKET; INT HTR
ALSO INCLUDED IN GASKET SET(ENGINE). INTAKE HEATER<SL2> ID=22.5 		9-09571-422-0 02 1 9603-9901 ● ●
29 GASKET; INT HTR
ALSO INCLUDED IN GASKET SET(ENGINE). INTAKE HEATER<SL2> ID=22.5 		9-09571-422-0 02 1 9905- ● ● ● ●
30 BRACKET; FUEL PIPE CLIP
INTAKE HEATER<SL2> 		1-13319-020-0 01 1 9603-9901 ● ●
30 BRACKET; FUEL PIPE CLIP
INTAKE HEATER<SL2> 		1-13319-020-0 01 1 9905- ● ● ● ●
