Sayfa 3-11 - Isuzu EPC

3-11 — PARKING BRAKE CONTROL (#41907) — 238 parça

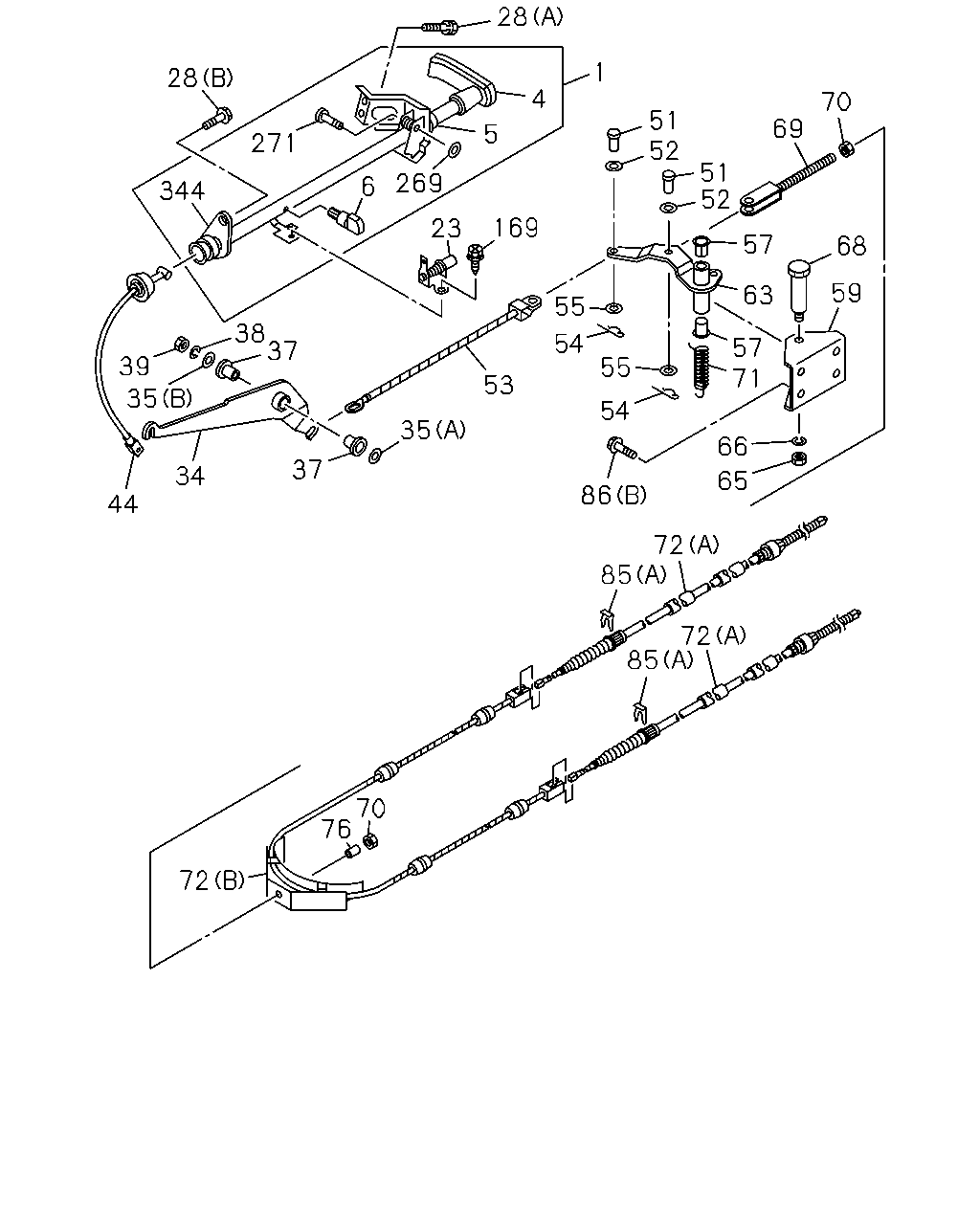

28 1 28 4 70 51 52 69 5 271 51 52 269 6 344 169 23 57 68 59 63 55 57 71 38 37 54 39 35 55 53 54 35 66 37 34 65 86 44 72 85 72 85 70 76 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STEM ASM; PARKING BRK	8-97190-645-0	01	1	0103-0401
1	STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97190-645-0	01	1	0402-
4	STEM; PARKING BRK	8-97309-829-0	01	1	0103-0401
4	STEM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97309-829-0	01	1	0402-
5	BUSHING; PARKING BRK	8-97309-835-0	01	1	0103-0401
5	BUSHING; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97309-835-0	01	1	0402-
6	PIN; STEM,PARK BRK	8-97162-045-0	01	1	0103-0401
6	PIN; STEM,PARK BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97162-045-0	01	1	0402-
23	SWITCH; PARKING BRK	8-94328-267-0	01	1	0103-0401
23	SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94328-267-0	01	1	0402-
23	SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97179-726-0	01	1	0402-
28	BOLT; HAND BRK LEVER (A) M6X20 FLANGE	0-28680-620-0	02	1	0103-0401
28	BOLT; HAND BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> (A) M6X20 FLANGE	0-28680-620-0	02	1	0402-0512
28	BOLT; HAND BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> (A) M6X20 FLANGE	0-28650-620-0	02	1	0601-
28	BOLT; HAND BRK LEVER (B) M8X20 FLANGE	0-28680-820-0	02	1	0103-0512
28	BOLT; HAND BRK LEVER (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
34	LEVER; PARK BRK CONT	8-97190-646-0	01	1	0103-0401
34	LEVER; PARK BRK CONT EXC. PARKING BRAKE FLOOR<7XW>	8-97190-646-0	01	1	0402-
35	WASHER; PL,RELAY LEVER,PARK BRK (A) ID=15.5 OD=24	8-94222-473-0	01	1	0103-0401
35	WASHER; PL,RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> (A) ID=15.5 OD=24	8-94222-473-0	01	1	0402-
35	WASHER; PL,RELAY LEVER,PARK BRK (B) ID=10.5 OD=26	9-09160-710-0	01	1	0103-0401
35	WASHER; PL,RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> (B) ID=10.5 OD=26	9-09160-710-0	01	1	0402-
37	BUSHING; RELAY LEVER,PARK BRK	5-46149-012-0	02	1	0103-0401
37	BUSHING; RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW>	5-46149-012-0	02	1	0402-
38	WASHER; LK,RELAY LEVER,PARK BRK ID=10.2	9-09150-510-0	01	1	0103-0401
38	WASHER; LK,RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> ID=10.2	9-09150-510-0	01	1	0402-0603
38	WASHER; LK,RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> ID=10.2	0-91510-510-0	01	1	0604-
39	NUT; RELAY LEVER,PARK BRK M10	9-09110-410-0	01	1	0103-0401
39	NUT; RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> M10	9-09110-410-0	01	1	0402-0512
39	NUT; RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW> M10	0-91110-510-0	01	1	0601-
44	CABLE; PARKING BRK,FRT GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN	8-97957-729-0	01	1	0103-0302
44	CABLE; PARKING BRK,FRT GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) PHI	8-97562-229-0	01	1	0303-0401
44	CABLE; PARKING BRK,FRT GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. PARKING BRAKE FLOOR<7XW> PHI	8-97562-229-0	01	1	0402-
44	CABLE; PARKING BRK,FRT GRADE XTRM(RBG) IDN	8-97959-469-2	01	1	0111-0302
44	CABLE; PARKING BRK,FRT GRADE XTRM(RBG) PHI	8-97562-230-0	01	1	0303-0401
44	CABLE; PARKING BRK,FRT GRADE XTRM(RBG) EXC. PARKING BRAKE FLOOR<7XW> PHI	8-97562-230-0	01	1	0402-
51	PIN; JOINT,RELAY LEVER OD=8 L=20	9-08233-820-0	02	1	0103-0401
51	PIN; JOINT,RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> OD=8 L=20	9-08233-820-0	02	1	0402-0606
51	PIN; JOINT,RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> OD=8 L=20	0-82353-820-0	02	1	0607-
51	PIN; JOINT,RELAY LEVER PARKING BRAKE FLOOR<7XW>	8-97202-452-0	01	1	0402-
52	WASHER; CURVED RELAY LEVER ID=8.5 T=0.3	5-09509-001-0	02	1	0103-0401
52	WASHER; CURVED RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> ID=8.5 T=0.3	5-09509-001-0	02	1	0402-
53	CABLE; PARK BRK,FRT LWR	8-97257-907-0	01	1	0103-0401
53	CABLE; PARK BRK,FRT LWR EXC. PARKING BRAKE FLOOR<7XW>	8-97257-907-0	01	1	0402-
54	PIN; SNAP,CABLE TO LEVER OD=1.8 L=15	9-08112-015-0	02	1	0103-0401
54	PIN; SNAP,CABLE TO LEVER EXC. PARKING BRAKE FLOOR<7XW> OD=1.8 L=15	9-08112-015-0	02	1	0402-0606
54	PIN; SNAP,CABLE TO LEVER EXC. PARKING BRAKE FLOOR<7XW> OD=1.8 L=15	0-81122-015-0	02	1	0607-
55	WASHER; PL,PARK BRK CABLE ID=8.4	9-09160-508-0	02	1	0103-0401
55	WASHER; PL,PARK BRK CABLE EXC. PARKING BRAKE FLOOR<7XW> ID=8.4	9-09160-508-0	02	1	0402-0605
55	WASHER; PL,PARK BRK CABLE EXC. PARKING BRAKE FLOOR<7XW> ID=8.4 OD=16	0-91610-508-0	02	1	0606-
57	BUSHING; RELAY LEVER	5-33659-053-0	02	1	0103-0401
57	BUSHING; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW>	5-33659-053-0	02	1	0402-
59	BRACKET; RELAY LEVER	8-94479-094-0	01	1	0103-0401
59	BRACKET; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW>	8-94479-094-0	01	1	0402-
63	LEVER; RELAY,HAND BRK	8-97257-904-0	01	1	0103-0401
63	LEVER; RELAY,HAND BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97257-904-0	01	1	0402-
65	NUT; RELAY LEVER M10	9-09110-410-0	01	1	0103-0401
65	NUT; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> M10	9-09110-410-0	01	1	0402-0512
65	NUT; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> M10	0-91110-510-0	01	1	0601-
66	WASHER; LK,RELAY LEVER ID=10.2	9-09150-510-0	01	1	0103-0401
66	WASHER; LK,RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> ID=10.2	9-09150-510-0	01	1	0402-0603
66	WASHER; LK,RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> ID=10.2	0-91510-510-0	01	1	0604-
68	PIN; FULCRUM,RELAY LEVER,PARK BRK	8-94404-908-1	01	1	0103-0401
68	PIN; FULCRUM,RELAY LEVER,PARK BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94404-908-1	01	1	0402-
69	ROD; RELAY LEVER	8-97257-905-0	01	1	0103-0401
69	ROD; RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW>	8-97257-905-0	01	1	0402-
70	NUT; EQUALIZER TO FRT CABLE M10	9-09111-410-0	02	1	0103-0401
70	NUT; EQUALIZER TO FRT CABLE EXC. PARKING BRAKE FLOOR<7XW> M10	9-09111-410-0	02	1	0402-0512
70	NUT; EQUALIZER TO FRT CABLE EXC. PARKING BRAKE FLOOR<7XW> M10	0-91111-510-0	02	1	0601-
71	SPRING; RETURN,PARKING BRK TO BODY	8-97257-980-0	01	1	0103-0401
71	SPRING; RETURN,PARKING BRK TO BODY EXC. PARKING BRAKE FLOOR<7XW>	8-97257-980-0	01	1	0402-
72	CABLE; PARKING BRK (B) IDN	8-97956-712-0	01	1	0103-0305
72	CABLE; PARKING BRK (B) IDN	8-97562-242-0	01	1	0306-0401
72	CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (B) IDN	8-97562-242-0	01	1	0402-
72	CABLE; PARKING BRK (A) IDN	8-97956-181-3	01	1	0103-0401
72	CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) IDN	8-97956-181-3	01	1	0402-
72	CABLE; PARKING BRK (A) IDN	8-97956-180-1	01	1	0103-0401
72	CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) IDN	8-97956-180-1	01	1	0402-
72	CABLE; PARKING BRK GRADE XTO(RBD) PARKING BRAKE FLOOR<7XW> (C) PHI	8-97956-185-0	01	1	0409-
72	CABLE; PARKING BRK GRADE XTO(RBD) PARKING BRAKE FLOOR<7XW> (C) PHI	8-97956-184-0	01	1	0409-
72	CABLE; PARKING BRK GRADE XTRM(RBG) PARKING BRAKE FLOOR<7XW> (C) IDN	8-97956-578-0	01	1	0402-
72	CABLE; PARKING BRK GRADE XTRM(RBG) PARKING BRAKE FLOOR<7XW> (C) IDN	8-97956-577-0	01	1	0402-
76	SLEEVE; CABLE GUIDE,PARKING BRK	8-97207-615-0	01	1	0103-0401
76	SLEEVE; CABLE GUIDE,PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97207-615-0	01	1	0402-
85	CLIP; BRKT (A)	5-09709-039-0	02	1	0103-0401
85	CLIP; BRKT EXC. PARKING BRAKE FLOOR<7XW> (A)	5-09709-039-0	02	1	0402-
85	CLIP; BRKT (B)	8-94146-602-0	04	1	0103-0401
85	CLIP; BRKT PARKING BRAKE FLOOR<7XW> (B)	8-94146-602-0	01	1	0402-
85	CLIP; BRKT (C) ID=14	9-09916-883-0	01	1	0103-
85	CLIP; BRKT (B)	8-94146-602-0	02	1	0402-
85	CLIP; BRKT EXC. PARKING BRAKE FLOOR<7XW> (B)	8-94146-602-0	02	1	0402-
86	BOLT (A) M6X12 FLANGE	0-28080-612-0	09	1	0103-0401
86	BOLT (A) M6X12 FLANGE	0-28080-612-0	04	1	0402-0512
86	BOLT PARKING BRAKE FLOOR<7XW> (A) M6X12 FLANGE	0-28080-612-0	04	1	0402-0512
86	BOLT (A) M6X12 FLANGE	0-28050-612-0	04	1	0601-
86	BOLT PARKING BRAKE FLOOR<7XW> (A) M6X12 FLANGE	0-28050-612-0	04	1	0601-
86	BOLT (B) M8X20 FLANGE	0-28680-820-0	04	1	0103-0401
86	BOLT EXC. PARKING BRAKE FLOOR<7XW> (B) M8X20 FLANGE	0-28680-820-0	04	1	0402-0512
86	BOLT EXC. PARKING BRAKE FLOOR<7XW> (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-
86	BOLT PARKING BRAKE FLOOR<7XW> (C) M6X16 FLANGE	0-28480-616-0	02	1	0402-0512
86	BOLT PARKING BRAKE FLOOR<7XW> (C) M6X16 FLANGE	0-28450-616-0	02	1	0601-
86	BOLT EXC. PARKING BRAKE FLOOR<7XW> (A) M6X12 FLANGE	0-28080-612-0	05	1	0402-0512
86	BOLT EXC. PARKING BRAKE FLOOR<7XW> (A) M6X12 FLANGE	0-28050-612-0	05	1	0601-
169	BOLT; SWITCH M6X16 W/LK&PL WASHER	8-94452-505-0	01	1	0103-0401
169	BOLT; SWITCH EXC. PARKING BRAKE FLOOR<7XW> M6X16 W/LK&PL WASHER	8-94452-505-0	01	1	0402-
269	WASHER; GUIDE TO BRKT,PARK BRK	8-97309-834-0	01	1	0103-0401
269	WASHER; GUIDE TO BRKT,PARK BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97309-834-0	01	1	0402-
271	PIN; GUIDE TO BRKT,PARK BRK	8-97309-830-0	01	1	0103-0401
271	PIN; GUIDE TO BRKT,PARK BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97309-830-0	01	1	0402-
344	GASKET; DASH LWR	8-97309-836-0	01	1	0103-0401
344	GASKET; DASH LWR EXC. PARKING BRAKE FLOOR<7XW>	8-97309-836-0	01	1	0402-

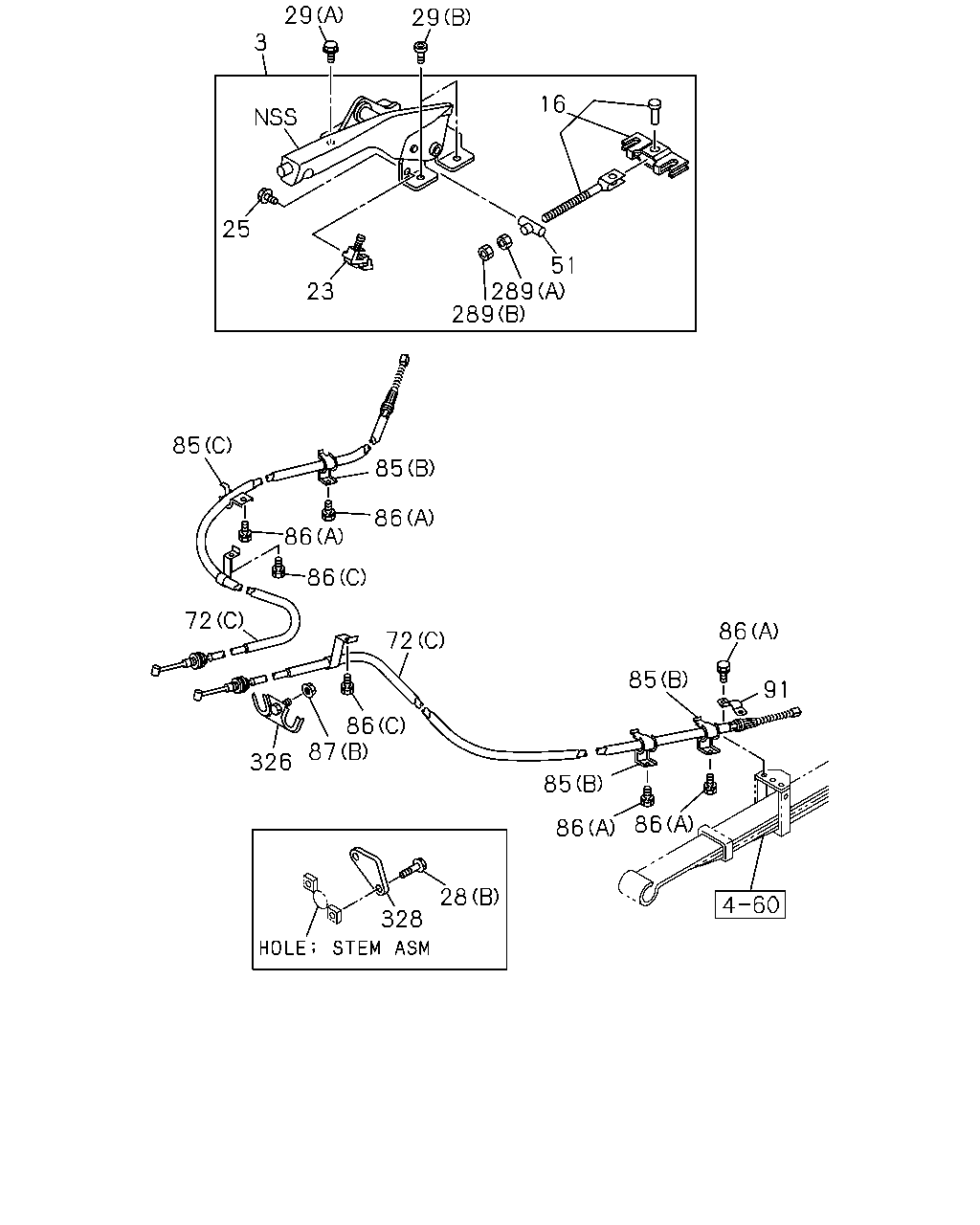

29 29 3 16 25 51 289 289 23 85 85 86 86 86 72 86 72 85 91 86 87 326 85 86 86 28 328

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	LEVER; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97378-131-0	01	1	0402-
16	BRACKET; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97202-451-0	01	1	0402-
23	SWITCH; PARKING BRK	8-94328-267-0	01	1	0103-0401
23	SWITCH; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-94328-267-0	01	1	0402-
23	SWITCH; PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97179-726-0	01	1	0402-
25	SCREW; SW,PARKING BRK PARKING BRAKE FLOOR<7XW>	8-97179-727-0	01	1	0402-
28	BOLT; HAND BRK LEVER (A) M6X20 FLANGE	0-28680-620-0	02	1	0103-0401
28	BOLT; HAND BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> (A) M6X20 FLANGE	0-28680-620-0	02	1	0402-0512
28	BOLT; HAND BRK LEVER EXC. PARKING BRAKE FLOOR<7XW> (A) M6X20 FLANGE	0-28650-620-0	02	1	0601-
28	BOLT; HAND BRK LEVER (B) M8X20 FLANGE	0-28680-820-0	02	1	0103-0512
28	BOLT; HAND BRK LEVER (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-
29	BOLT; PARKING BRK LEVER TO BODY PARKING BRAKE FLOOR<7XW> (A) M8X20 FLANGE	0-28480-820-0	02	1	0402-0512
29	BOLT; PARKING BRK LEVER TO BODY PARKING BRAKE FLOOR<7XW> (A) M8X20 FLANGE	0-28450-820-0	02	1	0601-
29	BOLT; PARKING BRK LEVER TO BODY PARKING BRAKE FLOOR<7XW> (B) M8X20 HEX SOCKET	0-58310-820-0	02	1	0402-
51	PIN; JOINT,RELAY LEVER OD=8 L=20	9-08233-820-0	02	1	0103-0401
51	PIN; JOINT,RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> OD=8 L=20	9-08233-820-0	02	1	0402-0606
51	PIN; JOINT,RELAY LEVER EXC. PARKING BRAKE FLOOR<7XW> OD=8 L=20	0-82353-820-0	02	1	0607-
51	PIN; JOINT,RELAY LEVER PARKING BRAKE FLOOR<7XW>	8-97202-452-0	01	1	0402-
72	CABLE; PARKING BRK (B) IDN	8-97956-712-0	01	1	0103-0305
72	CABLE; PARKING BRK (B) IDN	8-97562-242-0	01	1	0306-0401
72	CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (B) IDN	8-97562-242-0	01	1	0402-
72	CABLE; PARKING BRK (A) IDN	8-97956-181-3	01	1	0103-0401
72	CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) IDN	8-97956-181-3	01	1	0402-
72	CABLE; PARKING BRK (A) IDN	8-97956-180-1	01	1	0103-0401
72	CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) IDN	8-97956-180-1	01	1	0402-
72	CABLE; PARKING BRK GRADE XTO(RBD) PARKING BRAKE FLOOR<7XW> (C) PHI	8-97956-185-0	01	1	0409-
72	CABLE; PARKING BRK GRADE XTO(RBD) PARKING BRAKE FLOOR<7XW> (C) PHI	8-97956-184-0	01	1	0409-
72	CABLE; PARKING BRK GRADE XTRM(RBG) PARKING BRAKE FLOOR<7XW> (C) IDN	8-97956-578-0	01	1	0402-
72	CABLE; PARKING BRK GRADE XTRM(RBG) PARKING BRAKE FLOOR<7XW> (C) IDN	8-97956-577-0	01	1	0402-
85	CLIP; BRKT (A)	5-09709-039-0	02	1	0103-0401
85	CLIP; BRKT EXC. PARKING BRAKE FLOOR<7XW> (A)	5-09709-039-0	02	1	0402-
85	CLIP; BRKT (B)	8-94146-602-0	04	1	0103-0401
85	CLIP; BRKT PARKING BRAKE FLOOR<7XW> (B)	8-94146-602-0	01	1	0402-
85	CLIP; BRKT (C) ID=14	9-09916-883-0	01	1	0103-
85	CLIP; BRKT (B)	8-94146-602-0	02	1	0402-
85	CLIP; BRKT EXC. PARKING BRAKE FLOOR<7XW> (B)	8-94146-602-0	02	1	0402-
86	BOLT (A) M6X12 FLANGE	0-28080-612-0	09	1	0103-0401
86	BOLT (A) M6X12 FLANGE	0-28080-612-0	04	1	0402-0512
86	BOLT PARKING BRAKE FLOOR<7XW> (A) M6X12 FLANGE	0-28080-612-0	04	1	0402-0512
86	BOLT (A) M6X12 FLANGE	0-28050-612-0	04	1	0601-
86	BOLT PARKING BRAKE FLOOR<7XW> (A) M6X12 FLANGE	0-28050-612-0	04	1	0601-
86	BOLT (B) M8X20 FLANGE	0-28680-820-0	04	1	0103-0401
86	BOLT EXC. PARKING BRAKE FLOOR<7XW> (B) M8X20 FLANGE	0-28680-820-0	04	1	0402-0512
86	BOLT EXC. PARKING BRAKE FLOOR<7XW> (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-
86	BOLT PARKING BRAKE FLOOR<7XW> (C) M6X16 FLANGE	0-28480-616-0	02	1	0402-0512
86	BOLT PARKING BRAKE FLOOR<7XW> (C) M6X16 FLANGE	0-28450-616-0	02	1	0601-
86	BOLT EXC. PARKING BRAKE FLOOR<7XW> (A) M6X12 FLANGE	0-28080-612-0	05	1	0402-0512
86	BOLT EXC. PARKING BRAKE FLOOR<7XW> (A) M6X12 FLANGE	0-28050-612-0	05	1	0601-
87	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0103-0602
87	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0603-
87	NUT PARKING BRAKE FLOOR<7XW> (B) M10 FLANGE	0-91150-110-0	01	1	0402-0602
87	NUT PARKING BRAKE FLOOR<7XW> (B) M10 FLANGE	0-91180-110-0	01	1	0603-
91	CLIP; PARKING BRK CABLE	8-97045-075-0	01	1	0103-
91	CLIP; PARKING BRK CABLE	8-97045-074-0	01	1	0103-
289	NUT; PARKING BRK PARKING BRAKE FLOOR<7XW> (A)	8-97202-449-0	01	1	0402-
289	NUT; PARKING BRK PARKING BRAKE FLOOR<7XW> (B)	8-97378-368-0	01	1	0402-
326	RETAINER; PARK CABLE PARKING BRAKE FLOOR<7XW> IDN	8-97562-256-0	01	1	0402-
328	PLATE; SEAL PARKING BRAKE FLOOR<7XW>	8-97064-242-1	01	1	0402-

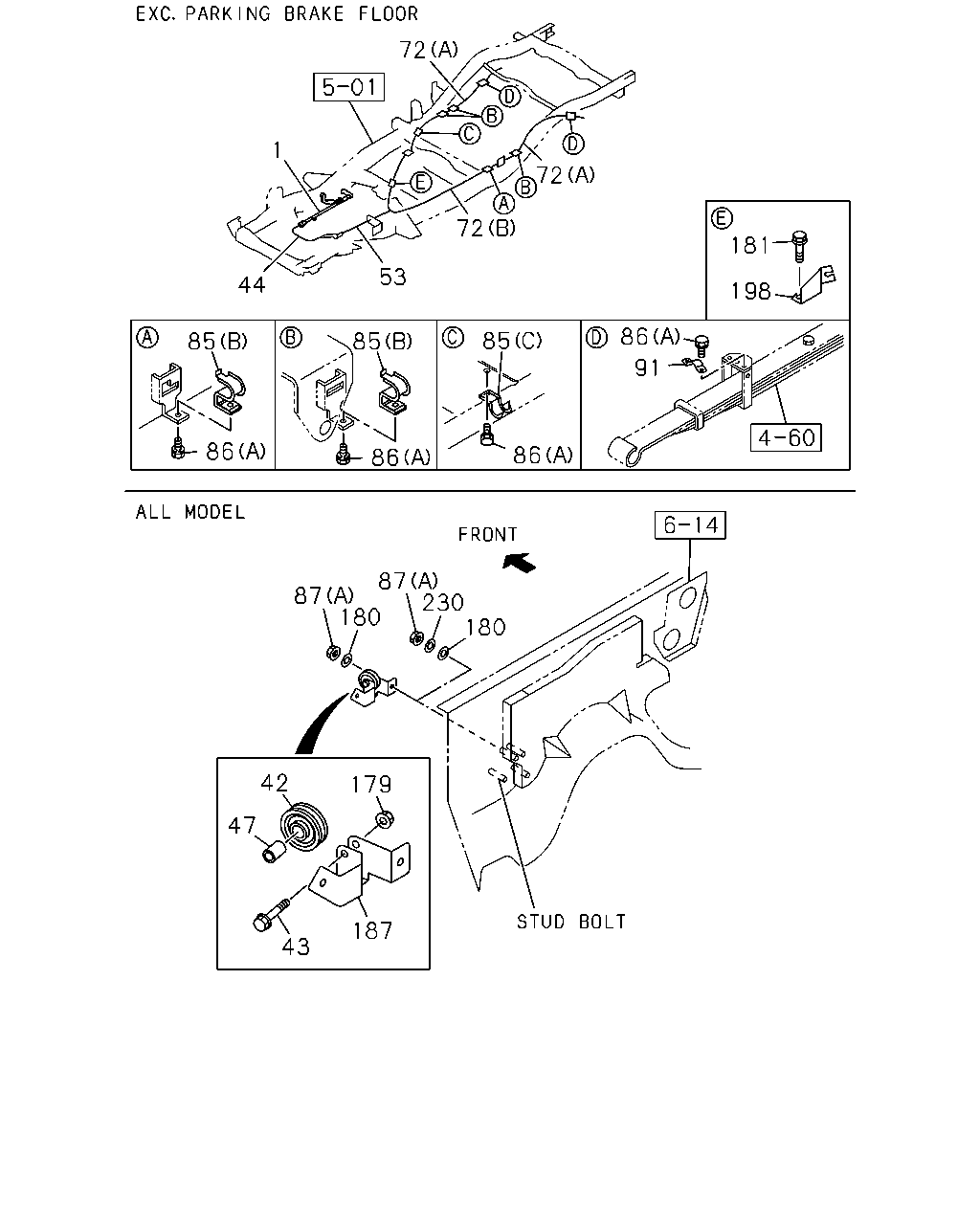

72 72 1 72 181 53 44 198 86 85 85 85 91 86 86 86 87 230 180 87 180 42 179 47 187 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STEM ASM; PARKING BRK	8-97190-645-0	01	1	0103-0401
1	STEM ASM; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW>	8-97190-645-0	01	1	0402-
42	ROLLER; PARK BRK CABLE GRADE XTRM(RBG)	8-94341-286-0	01	1	0111-0401
42	ROLLER; PARK BRK CABLE GRADE XTRM(RBG) EXC. PARKING BRAKE FLOOR<7XW>	8-94341-286-0	01	1	0402-
43	BOLT; ROLLER,PARK BRK CABLE GRADE XTRM(RBG) M8X40 FLANGE	0-28680-840-0	01	1	0111-0401
43	BOLT; ROLLER,PARK BRK CABLE GRADE XTRM(RBG) EXC. PARKING BRAKE FLOOR<7XW> M8X40 FLANGE	0-28680-840-0	01	1	0402-0512
43	BOLT; ROLLER,PARK BRK CABLE GRADE XTRM(RBG) EXC. PARKING BRAKE FLOOR<7XW> M8X40 FLANGE	0-28650-840-0	01	1	0601-
44	CABLE; PARKING BRK,FRT GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) IDN	8-97957-729-0	01	1	0103-0302
44	CABLE; PARKING BRK,FRT GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) PHI	8-97562-229-0	01	1	0303-0401
44	CABLE; PARKING BRK,FRT GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) EXC. PARKING BRAKE FLOOR<7XW> PHI	8-97562-229-0	01	1	0402-
44	CABLE; PARKING BRK,FRT GRADE XTRM(RBG) IDN	8-97959-469-2	01	1	0111-0302
44	CABLE; PARKING BRK,FRT GRADE XTRM(RBG) PHI	8-97562-230-0	01	1	0303-0401
44	CABLE; PARKING BRK,FRT GRADE XTRM(RBG) EXC. PARKING BRAKE FLOOR<7XW> PHI	8-97562-230-0	01	1	0402-
47	COLLAR; ROLLER,PARK BRK CABLE GRADE XTRM(RBG)	9-46129-013-1	01	1	0111-0401
47	COLLAR; ROLLER,PARK BRK CABLE GRADE XTRM(RBG) EXC. PARKING BRAKE FLOOR<7XW>	9-46129-013-1	01	1	0402-
53	CABLE; PARK BRK,FRT LWR	8-97257-907-0	01	1	0103-0401
53	CABLE; PARK BRK,FRT LWR EXC. PARKING BRAKE FLOOR<7XW>	8-97257-907-0	01	1	0402-
72	CABLE; PARKING BRK (B) IDN	8-97956-712-0	01	1	0103-0305
72	CABLE; PARKING BRK (B) IDN	8-97562-242-0	01	1	0306-0401
72	CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (B) IDN	8-97562-242-0	01	1	0402-
72	CABLE; PARKING BRK (A) IDN	8-97956-181-3	01	1	0103-0401
72	CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) IDN	8-97956-181-3	01	1	0402-
72	CABLE; PARKING BRK (A) IDN	8-97956-180-1	01	1	0103-0401
72	CABLE; PARKING BRK EXC. PARKING BRAKE FLOOR<7XW> (A) IDN	8-97956-180-1	01	1	0402-
72	CABLE; PARKING BRK GRADE XTO(RBD) PARKING BRAKE FLOOR<7XW> (C) PHI	8-97956-185-0	01	1	0409-
72	CABLE; PARKING BRK GRADE XTO(RBD) PARKING BRAKE FLOOR<7XW> (C) PHI	8-97956-184-0	01	1	0409-
72	CABLE; PARKING BRK GRADE XTRM(RBG) PARKING BRAKE FLOOR<7XW> (C) IDN	8-97956-578-0	01	1	0402-
72	CABLE; PARKING BRK GRADE XTRM(RBG) PARKING BRAKE FLOOR<7XW> (C) IDN	8-97956-577-0	01	1	0402-
85	CLIP; BRKT (A)	5-09709-039-0	02	1	0103-0401
85	CLIP; BRKT EXC. PARKING BRAKE FLOOR<7XW> (A)	5-09709-039-0	02	1	0402-
85	CLIP; BRKT (B)	8-94146-602-0	04	1	0103-0401
85	CLIP; BRKT PARKING BRAKE FLOOR<7XW> (B)	8-94146-602-0	01	1	0402-
85	CLIP; BRKT (C) ID=14	9-09916-883-0	01	1	0103-
85	CLIP; BRKT (B)	8-94146-602-0	02	1	0402-
85	CLIP; BRKT EXC. PARKING BRAKE FLOOR<7XW> (B)	8-94146-602-0	02	1	0402-
86	BOLT (A) M6X12 FLANGE	0-28080-612-0	09	1	0103-0401
86	BOLT (A) M6X12 FLANGE	0-28080-612-0	04	1	0402-0512
86	BOLT PARKING BRAKE FLOOR<7XW> (A) M6X12 FLANGE	0-28080-612-0	04	1	0402-0512
86	BOLT (A) M6X12 FLANGE	0-28050-612-0	04	1	0601-
86	BOLT PARKING BRAKE FLOOR<7XW> (A) M6X12 FLANGE	0-28050-612-0	04	1	0601-
86	BOLT (B) M8X20 FLANGE	0-28680-820-0	04	1	0103-0401
86	BOLT EXC. PARKING BRAKE FLOOR<7XW> (B) M8X20 FLANGE	0-28680-820-0	04	1	0402-0512
86	BOLT EXC. PARKING BRAKE FLOOR<7XW> (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-
86	BOLT PARKING BRAKE FLOOR<7XW> (C) M6X16 FLANGE	0-28480-616-0	02	1	0402-0512
86	BOLT PARKING BRAKE FLOOR<7XW> (C) M6X16 FLANGE	0-28450-616-0	02	1	0601-
86	BOLT EXC. PARKING BRAKE FLOOR<7XW> (A) M6X12 FLANGE	0-28080-612-0	05	1	0402-0512
86	BOLT EXC. PARKING BRAKE FLOOR<7XW> (A) M6X12 FLANGE	0-28050-612-0	05	1	0601-
87	NUT (A) M8 FLANGE	0-91150-108-0	02	1	0103-0602
87	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0603-
87	NUT PARKING BRAKE FLOOR<7XW> (B) M10 FLANGE	0-91150-110-0	01	1	0402-0602
87	NUT PARKING BRAKE FLOOR<7XW> (B) M10 FLANGE	0-91180-110-0	01	1	0603-
91	CLIP; PARKING BRK CABLE	8-97045-075-0	01	1	0103-
91	CLIP; PARKING BRK CABLE	8-97045-074-0	01	1	0103-
179	NUT; ROLLER,PARK BRK CABLE GRADE XTRM(RBG) M8	9-09110-408-0	01	1	0111-0401
179	NUT; ROLLER,PARK BRK CABLE GRADE XTRM(RBG) EXC. PARKING BRAKE FLOOR<7XW> M8	9-09110-408-0	01	1	0402-0512
179	NUT; ROLLER,PARK BRK CABLE GRADE XTRM(RBG) EXC. PARKING BRAKE FLOOR<7XW> M8	0-91110-508-0	01	1	0601-
180	GASKET; ROLLER BRKT,PARKING BRK	8-94334-899-1	02	1	0103-
181	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0103-0401
181	BOLT; BRKT EXC. PARKING BRAKE FLOOR<7XW> M6X16 FLANGE	0-28680-616-0	02	1	0402-0512
181	BOLT; BRKT EXC. PARKING BRAKE FLOOR<7XW> M6X16 FLANGE	0-28650-616-0	02	1	0601-
187	BRACKET; HAND BRK GRADE XTRM(RBG) PHI	8-97307-197-2	01	1	0111-0401
187	BRACKET; HAND BRK GRADE XTRM(RBG) EXC. PARKING BRAKE FLOOR<7XW> PHI	8-97307-197-2	01	1	0402-
198	BRACKET; CABLE PHI	8-97190-652-0	01	1	0103-0401
198	BRACKET; CABLE EXC. PARKING BRAKE FLOOR<7XW> PHI	8-97190-652-0	01	1	0402-
230	WASHER; PL GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) ID=8.4 OD=22	9-09160-708-0	02	1	0103-0401
230	WASHER; PL GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) ID=8.4 OD=22	9-09160-708-0	02	1	0402-0605
230	WASHER; PL GRADE XTRM(RBG) PARKING BRAKE FLOOR<7XW> ID=8.4 OD=22	9-09160-708-0	02	1	0402-0605
230	WASHER; PL GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) ID=8.4 OD=22	0-91610-708-0	02	1	0606-
230	WASHER; PL GRADE XTRM(RBG) PARKING BRAKE FLOOR<7XW> ID=8.4 OD=22	0-91610-708-0	02	1	0606-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
