3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

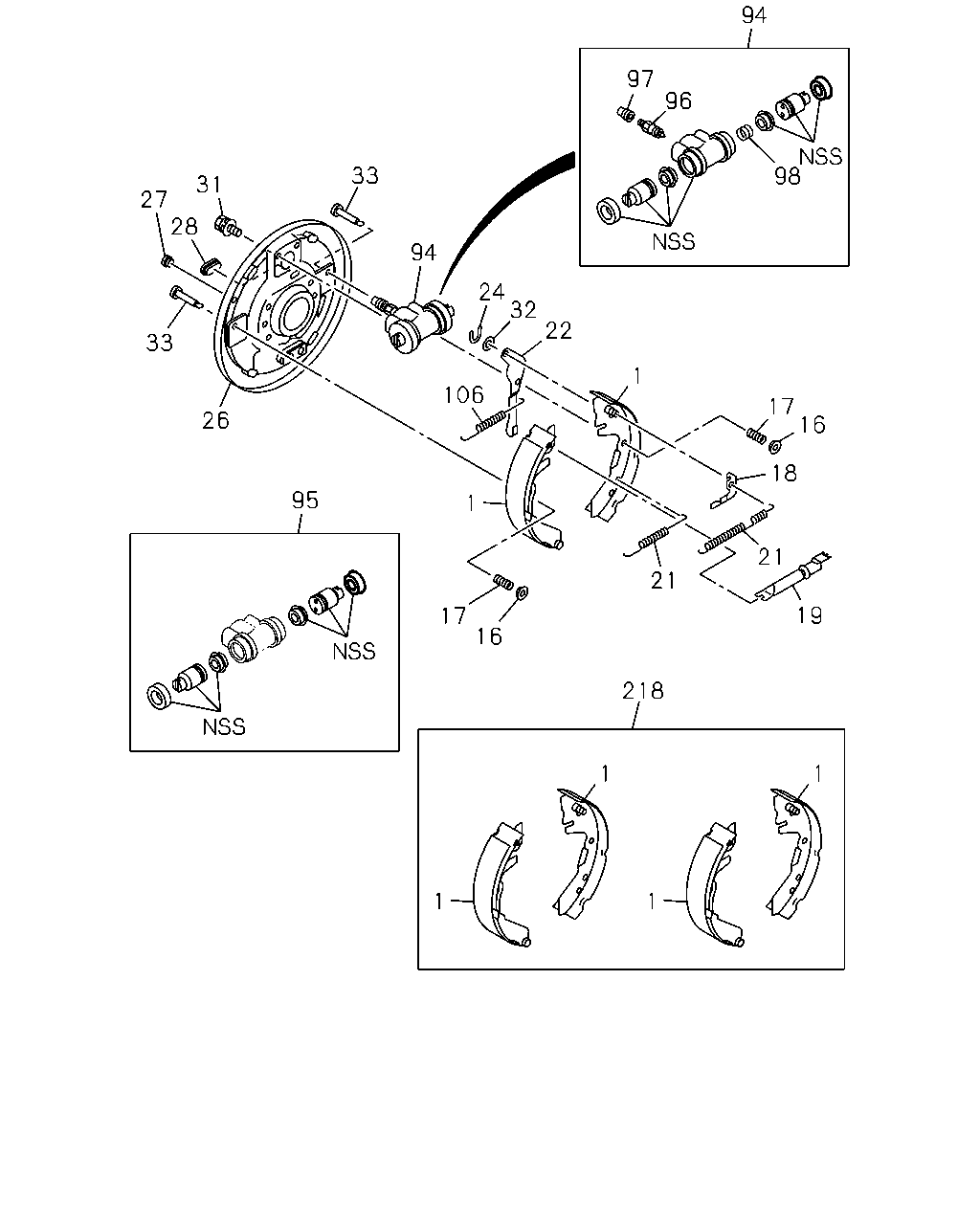

3-05 — REAR WHEEL BRAKE
(#41905) — 32 parça
94
97
96
98
33
31
27
28
94
24
32
22
33
1
106
17
16
26
18
95
1
21
21
19
17
16
218
1
1
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,RR
TRAILING IDN
8-97147-565-1
02
1
0103-0204
1
SHOE; BRK,RR
TRAILING IDN
8-97956-913-0
02
1
0205-
1
SHOE; BRK,RR
LEADING IDN
8-97049-177-1
01
1
0103-0204
1
SHOE; BRK,RR
LEADING IDN
8-97049-176-1
01
1
0103-0204
1
SHOE; BRK,RR
LEADING IDN
8-97956-911-0
02
1
0205-
16
CUP; SHOE HOLDING
IDN
9-47162-033-0
04
1
0103-
17
SPRING; SHOE HOLD DOWN
IDN
8-94134-106-0
04
1
0103-
18
LEVER; AUTO ADJ
IDN
8-94124-866-1
01
1
0103-
18
LEVER; AUTO ADJ
IDN
8-94124-865-1
01
1
0103-
19
ADJUSTER; RR BRK
IDN
8-94127-078-1
01
1
0103-
19
ADJUSTER; RR BRK
IDN
8-94127-077-1
01
1
0103-
21
SPRING; SHOE,RET
LOWER IDN
8-94127-066-0
02
1
0103-
21
SPRING; SHOE,RET
UPPER IDN
8-94480-191-0
02
1
0103-
22
LEVER; PARKING BRK,WHEEL BRK
IDN
8-94124-868-2
01
1
0103-
22
LEVER; PARKING BRK,WHEEL BRK
IDN
8-94124-867-2
01
1
0103-
24
RETAINER; PARKING BRK
IDN
9-46349-005-1
02
1
0103-
26
PLATE; BACK,RR BRK
IDN
8-97147-567-0
01
1
0103-0204
26
PLATE; BACK,RR BRK
IDN
8-97956-909-0
01
1
0205-
26
PLATE; BACK,RR BRK
IDN
8-97147-566-0
01
1
0103-0204
26
PLATE; BACK,RR BRK
IDN
8-97956-908-0
01
1
0205-
27
COVER; CHECK HOLE,DRUM COVER
IDN
8-97122-854-0
02
1
0103-
28
COVER; ADJ HOLE
IDN
8-94111-509-0
02
1
0103-
31
BOLT; RR WHEEL CYL
M6X10 FLANGE IDN
8-94134-103-0
04
1
0103-
32
WASHER; LK
ID=9.5 IDN
9-09850-529-0
02
1
0103-
33
PIN; SHOE HOLD DOWN
IDN
8-94201-061-0
04
1
0103-
94
CYLINDER; WHEEL,RR BRK
IDN
8-97230-425-0
02
1
0103-
95
CUP SET; RR WHEEL CYL
5-87831-828-0
01
1
0103-
96
SCREW; BLEEDER,RR BRK
IDN
9-47615-027-0
02
1
0103-
97
CAP; BLEEDER,RR WHEEL CYL
IDN
1-47619-009-0
02
1
0103-
98
SPRING; RR WHEEL CYL
IDN
8-94230-597-2
02
1
0103-
106
SPRING; ADJ LEVER
IDN
8-94480-190-0
02
1
0103-
218
SHOE KIT; BRK,RR
PHI
5-87832-092-0
01
1
0204-
