2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶

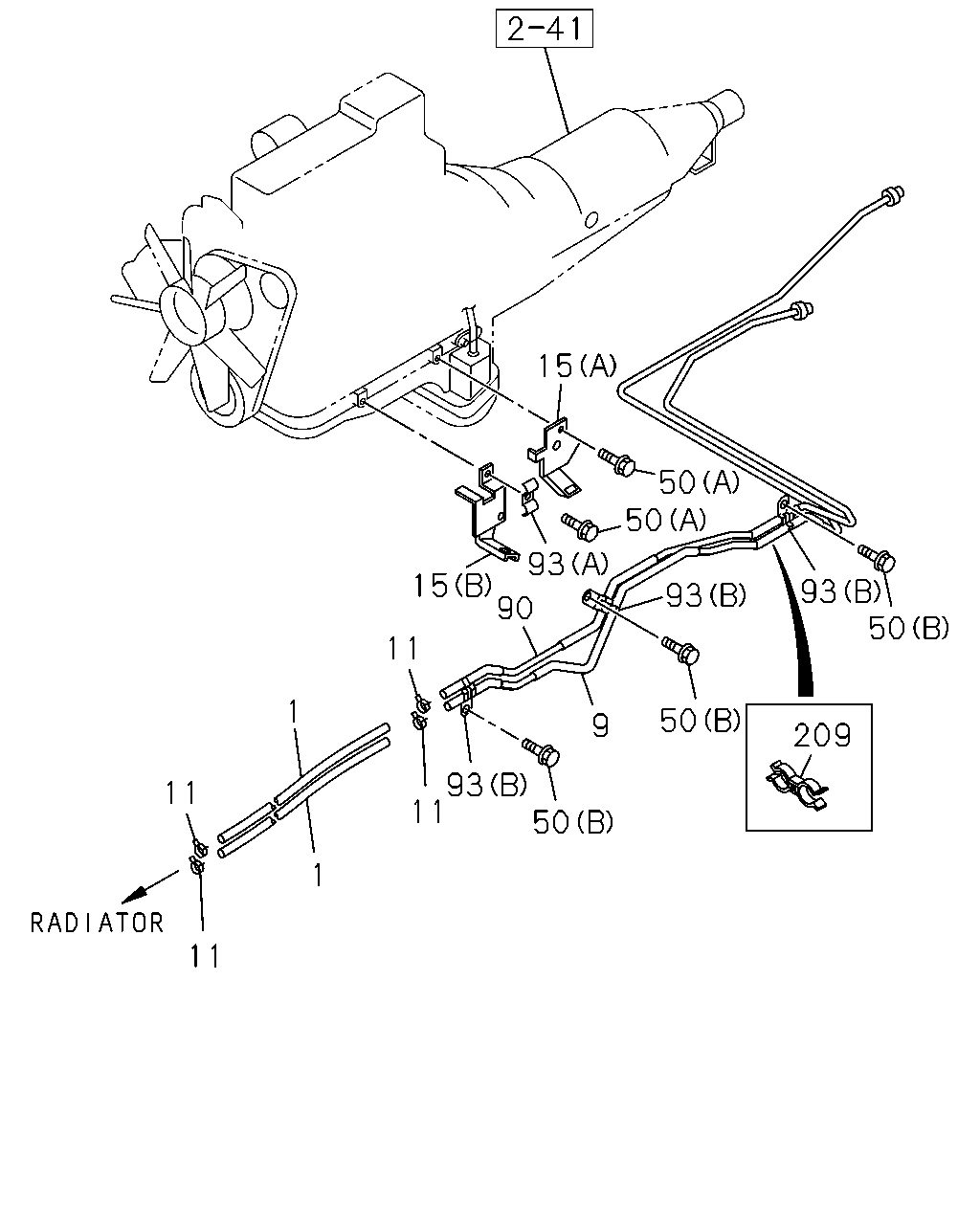

2-53 — TRANSMISSION OIL COOLER SYSTEM
(#41901) — 14 parça
15
50
50
93
15
90
93
50
93
11
1
50
9
209
93
11
50
11
1
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
L=250
8-97089-701-0
02
1
0103-
9
PIPE; ATF,INL,A/T
PHI
8-97976-141-0
01
1
0103-
11
CLIP; PIPE
ID=14
8-94238-572-0
04
1
0103-
15
BRACKET; ATF PIPE
(A) IDN
8-97061-686-0
01
1
0103-
15
BRACKET; ATF PIPE
(B) IDN
8-97956-671-0
01
1
0103-0103
15
BRACKET; ATF PIPE
(B) IDN
8-97959-853-0
01
1
0103-
50
BOLT; CLIP
(A) M6X16 FLANGE
0-28080-616-0
02
1
0103-0512
50
BOLT; CLIP
M6X16 FLANGE
0-28050-616-0
02
1
0601-
50
BOLT; CLIP
(B) M8X16 W/LK WASHER
0-50040-816-0
04
1
0103-0512
50
BOLT; CLIP
M8X16 W/LK WASHER
0-50540-816-0
04
1
0601-
90
PIPE ASM; ATF
PHI
8-97976-142-0
01
1
0103-
93
CLIP; BRKT
(A)
8-94334-345-1
01
1
0103-
93
CLIP; BRKT
(B)
8-97062-040-0
03
1
0103-
209
CLIP; HOSE
8-97210-049-0
01
1
0103-
