◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10585 - CXH RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-27B - EXHAUST MANIFOLD ▶
0-27B — EXHAUST MANIFOLD (#419) — 25 parça

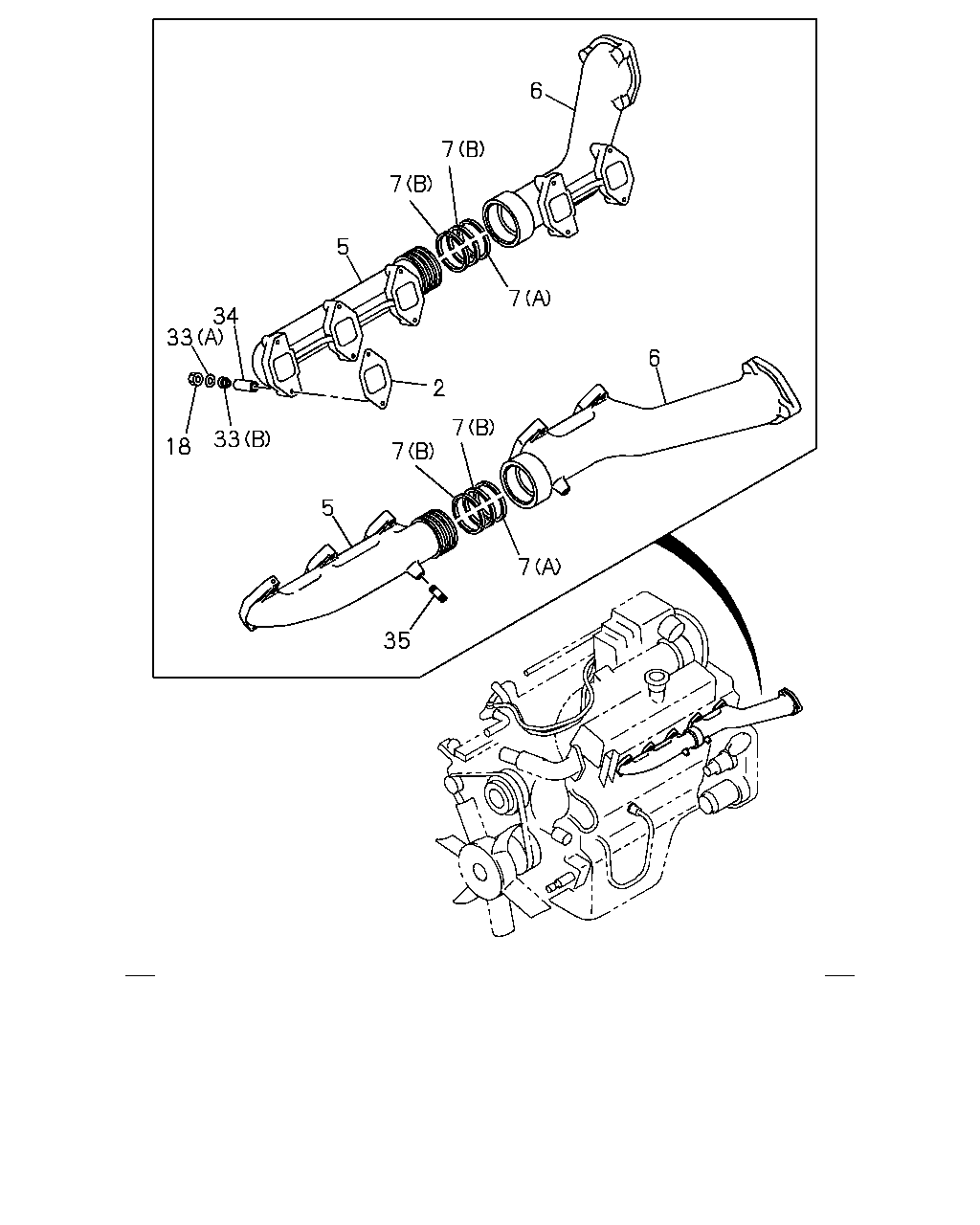

çizim 94749
6 7 7 5 7 34 33 18 33 2 7 5 7 6 7 35
BalonParca AdiParca NoAdetTipApplied Date A B
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-084-0 10 1 8712-9412 ● ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14145-185-0 10 1 9501- ●
5 MANIFOLD; EXH,FRT 1-14141-552-1 02 1 8712-9001 ●
5 MANIFOLD; EXH,FRT 1-14141-719-0 02 1 9002-9410 ●
5 MANIFOLD; EXH,FRT 1-14141-859-4 02 1 9411- ●
6 MANIFOLD; EXH,RR 1-14141-608-3 01 1 8712-9001 ●
6 MANIFOLD; EXH,RR 1-14141-607-3 01 1 8712-9001 ●
6 MANIFOLD; EXH,RR 1-14141-725-1 01 1 9002-9306 ●
6 MANIFOLD; EXH,RR 1-14141-724-0 01 1 9002-9306 ●
6 MANIFOLD; EXH,RR
AUTO ENG SHUTOFF<KB6> 		1-14141-721-2 01 1 9307-9307 ●
6 MANIFOLD; EXH,RR
AUTO ENG SHUTOFF<KB6> 		1-14141-720-1 01 1 9307-9307 ●
6 MANIFOLD; EXH,RR
EXC. AUTO ENG SHUTOFF<KB6> 		1-14141-725-1 01 1 9307-9307 ●
6 MANIFOLD; EXH,RR 1-14141-725-2 01 1 9308- ●
6 MANIFOLD; EXH,RR
EXC. AUTO ENG SHUTOFF<KB6> 		1-14141-724-0 01 1 9307-9307 ●
6 MANIFOLD; EXH,RR 1-14141-724-1 01 1 9308- ●
7 RING; SEAL,EXH MANIF
(A),(B) 		9-14149-026-0 06 1 8712-9001 ●
7 RING; SEAL,EXH MANIF
(A),(B) 		1-14149-159-0 06 1 9002-9112 ●
7 RING; SEAL,EXH MANIF
(A) 		1-14149-201-0 02 1 9201- ●
7 RING; SEAL,EXH MANIF
(B) 		9-14149-026-0 04 1 9201- ●
18 NUT; EXH MANIF
M10 		9-09110-510-0 20 1 8712-9001 ●
18 NUT; EXH MANIF
M10 FLANGE 		0-91150-210-0 20 1 9002- ●
33 WASHER; EXH MANIF
(A) 		1-09556-015-0 20 1 8712- ● ●
33 WASHER; EXH MANIF
(B) 		1-14149-042-0 20 1 8712- ● ●
34 COLLAR; DIST,EXH MANIF
L=43 		1-14149-048-1 20 1 8712- ● ●
35 STUD; BRKT
M8X16 L=28 		9-04110-816-0 01 1 8712- ● ●
