Isuzu WW
▶
AUV
▶
TBR
▶
50909 - TBR-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-49 - AUTO TRANS INHIBITOR SWITCH
▶

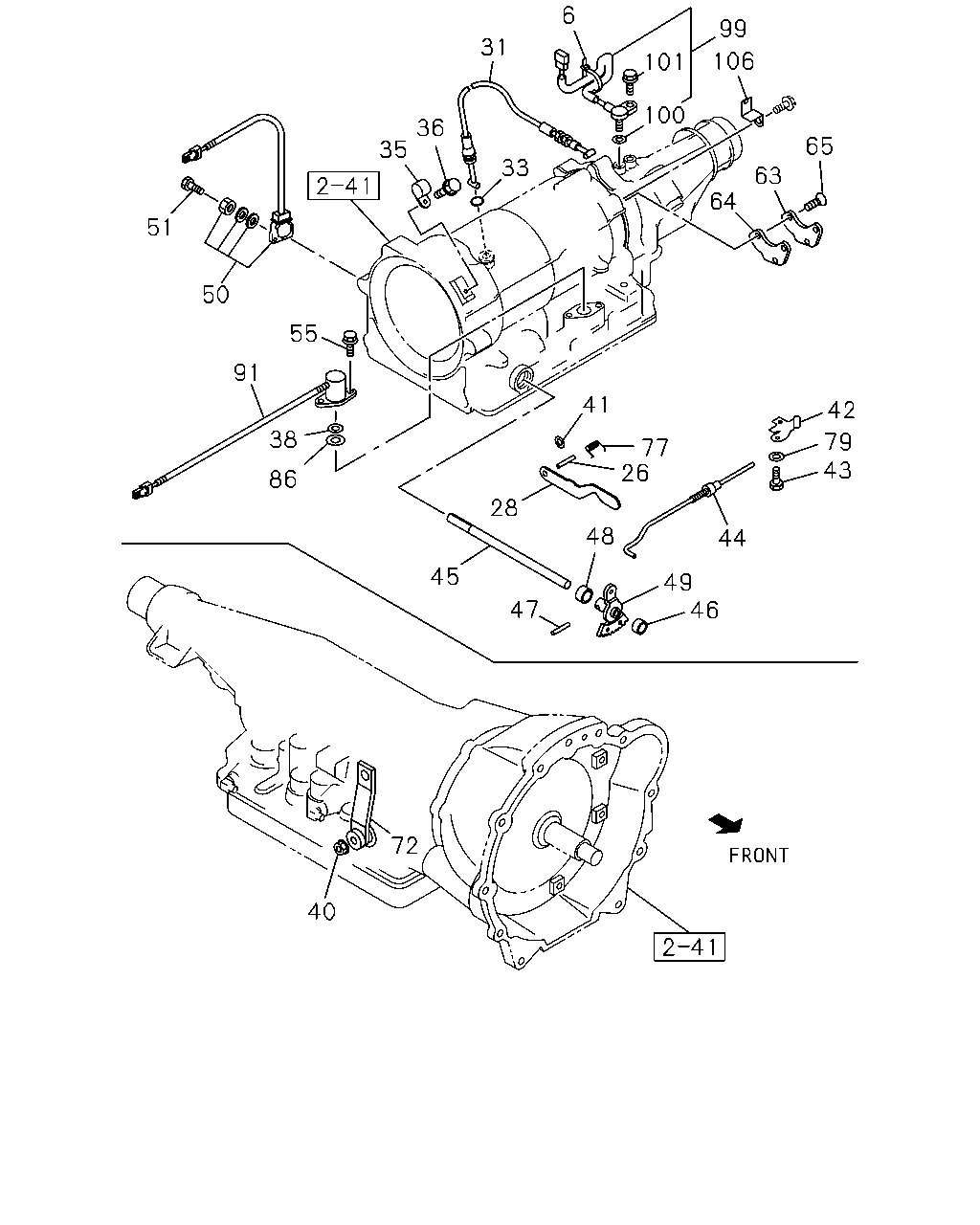

2-49 — AUTO TRANS INHIBITOR SWITCH
(#41898) — 34 parça
6
99
31
106
101
100
36
35
65
33
63
64
51
50
55
91
41
42
38
79
43
77
26
86
28
48
44
45
49
46
47
72
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
CLAMP; WIRING HARNESS,A/T
8-94473-565-0
01
1
0103-
26
SHAFT; PARKING PAWL,A/T
8-94473-587-0
01
1
0103-
28
PAWL; PARKING,A/T
8-97200-273-0
01
1
0103-
31
CABLE; THROTTLE,A/T
8-97264-784-1
01
1
0103-
33
GASKET; THROTTLE CABLE
8-94364-922-0
01
1
0103-
35
CLAMP; THROTTLE CABLE
8-97264-785-0
01
1
0103-
36
BOLT; CLAMP,THROTTLE CABLE
8-94252-680-0
01
1
0103-
38
GASKET; SOLENOID INNER
8-94479-719-0
01
1
0103-
40
NUT; LEVER TO SHAFT
M8 FLANGE
0-91150-108-0
01
1
0103-0602
40
NUT; LEVER TO SHAFT
M8 FLANGE
0-91180-108-0
01
1
0603-
41
RETAINER; SPR,SHAFT
5-34488-002-0
01
1
0103-
42
BRACKET; PARKING LOCK
8-94323-522-0
01
1
0103-
43
BOLT; BRKT
8-94323-523-0
02
1
0103-
44
ROD ASM; PARKING PAWL
8-94473-589-0
01
1
0103-
45
SHAFT; VALVE LEVER
8-97264-788-0
01
1
0103-
46
SEAL; OIL
8-97065-695-0
02
1
0103-
47
PIN; ROLL SHAFT
8-94257-081-0
01
1
0103-
48
COVER; SLEEVE
5-34125-002-0
01
1
0103-
49
LEVER ASM; CAM
8-97209-029-0
01
1
0103-
50
SWITCH; NEUTRAL,A/T
8-97209-145-0
01
1
0103-
51
SCREW; NEUTRAL SW,A/T
8-97200-272-0
01
1
0103-
55
BOLT; SOLENOID TO HSG,A/T
M8X14 W/WASHER
8-94480-043-0
01
1
0103-
63
COVER; OIL GALLERY
5-34125-001-0
01
1
0103-
64
GASKET; OIL GALLERY COVER
8-97032-926-0
01
1
0103-
65
SCREW; COVER TO CASE
5-34128-001-0
03
1
0103-
72
LEVER; SELECT CONT
8-97174-097-0
01
1
0103-
77
SPRING; TORSION,PARKING BRK LK,A/T
8-94473-588-0
01
1
0103-
79
WASHER; PARKING BRK LK,A/T
5-34169-002-0
02
1
0103-
86
PLATE; SAFETY DEVICE
8-94479-720-0
01
1
0103-
91
HARNESS ASM; CABLE,A/T CONT
8-97264-787-0
01
1
0103-
99
SENSOR; SPD
8-97184-423-0
01
1
0103-
100
GASKET; SPD SENSOR
8-97184-424-0
01
1
0103-
101
BOLT; SPD SENSOR
8-94244-565-0
01
1
0103-
106
BRACKET; HARNESS
8-97264-786-0
01
1
0103-
