2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#41896) — 26 parça

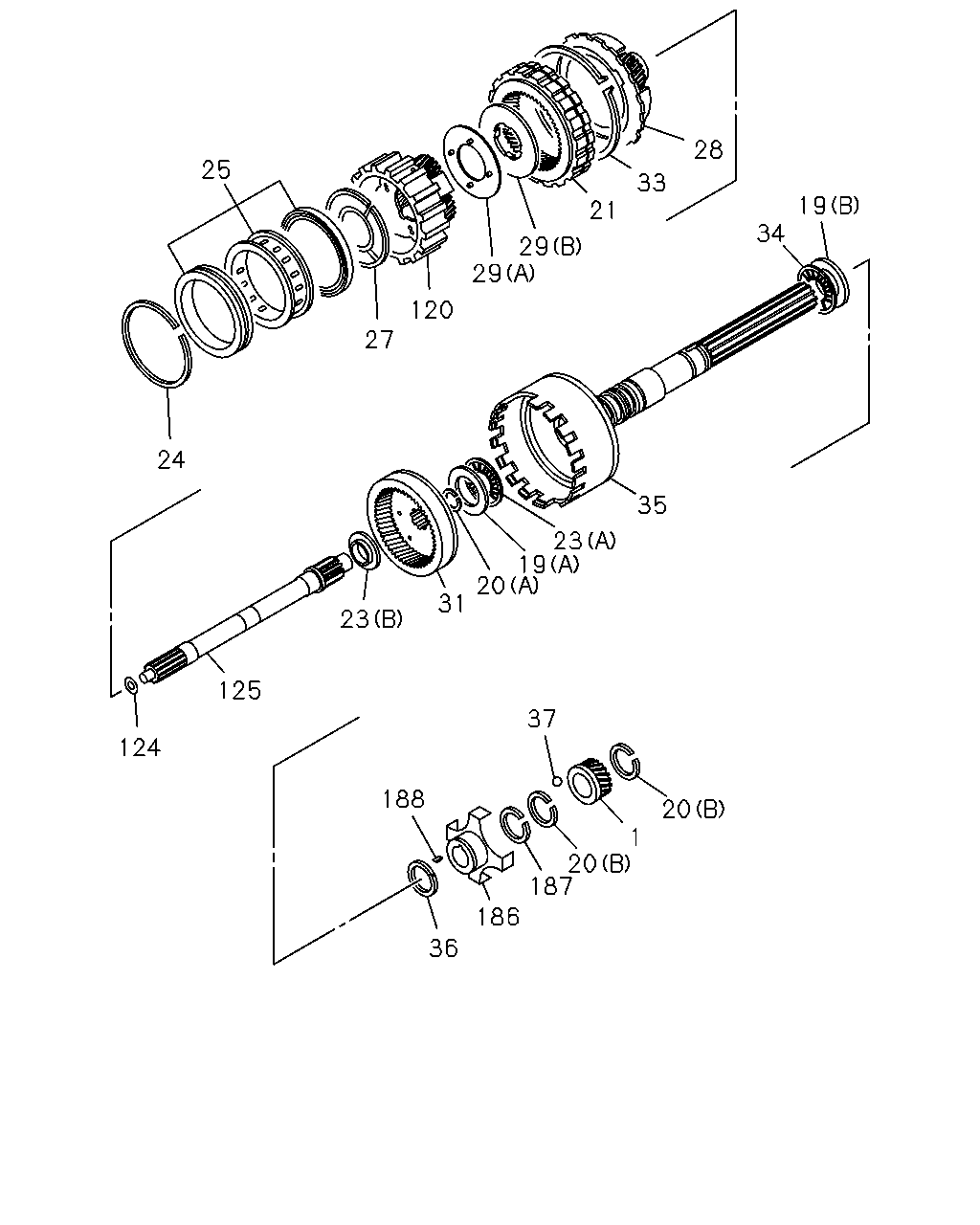

çizim 50128
28 25 33 19 34 21 29 29 120 27 24 35 23 19 20 31 23 125 37 124 188 20 1 20 187 186 36
BalonParca AdiParca NoAdetTipApplied Date
1 GEAR; SPEEDOMETER DRIVE,A/T
Z=4 		8-94428-205-0 01 1 0103-
19 RACE; THRUST BRG,PLANETARY SHAFT,A/T
(A) 		5-34258-003-0 01 1 0103-
19 RACE; THRUST BRG,PLANETARY SHAFT,A/T
(B) 		5-34379-003-0 01 1 0103-
20 RING; RET,PLANETARY GEAR,A/T
(A) 		5-34318-007-0 01 1 0103-
20 RING; RET,PLANETARY GEAR,A/T
(B) ID=27.9 		9-09180-030-0 02 1 0103-
21 GEAR; PLANETARY,INTERNAL FRT,A/T 8-94166-011-0 01 1 0103-
23 BEARING; THRUST,PLANETARY SHAFT,A/T
(A) 		5-34258-004-0 01 1 0103-
23 BEARING; THRUST,PLANETARY SHAFT,A/T
(B) 		8-94405-315-0 01 1 0103-
24 RING; RET,FRT PLANETARY,A/T 5-34368-003-0 01 1 0103-
25 CLUTCH ASM; ONEWAY,FRT PLANETARY,A/T 8-94405-368-0 01 1 0103-
27 WASHER; THRUST,FRT PLANETARY,A/T 8-94405-313-0 01 1 0103-
28 GEAR ASM; RR PLANETARY,A/T 8-94405-314-0 01 1 0103-
29 WASHER; THRUST,FRT PLANETARY,A/T
(A) 		5-34365-004-0 01 1 0103-
29 WASHER; THRUST,FRT PLANETARY,A/T
(B) 		8-94405-369-0 01 1 0103-
31 GEAR ASM; INTERNAL,PLANETARY,A/T 8-94166-014-0 01 1 0103-
33 RING; RET,PLANETARY GEAR,A/T 5-34368-004-0 01 1 0103-
34 BEARING; THRUST,FRT PLANETARY SHAFT,A/ 5-34379-002-0 01 1 0103-
35 SHAFT ASM; FRT PLANETARY,A/T 8-97264-835-0 01 1 0103-
36 RING; SEALING,FRT PLANETARY SHAFT,A/T 5-34378-001-0 01 1 0103-
37 BALL; SPD DRIVE 8-94167-674-0 01 1 0103-
120 GEAR SET; FRT PLANETARY,A/T 8-94405-312-0 01 1 0103-
124 RING; SLEEVE,OIL SEAL,RR PLANETARY GEA 8-94250-373-0 01 1 0103-
125 SHAFT ASM; INTERMEDIATE,PLANETARY GEAR 8-94166-013-0 01 1 0103-
186 ROTOR; SPEED SENSOR 8-97069-450-0 01 1 0103-
187 RING; SNAP,ROTOR,SPEED SENSOR 8-94479-905-0 01 1 0103-
188 KEY; SPEED SENSOR ROTOR 8-97264-836-0 01 1 0103-
