2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#41894) — 42 parça

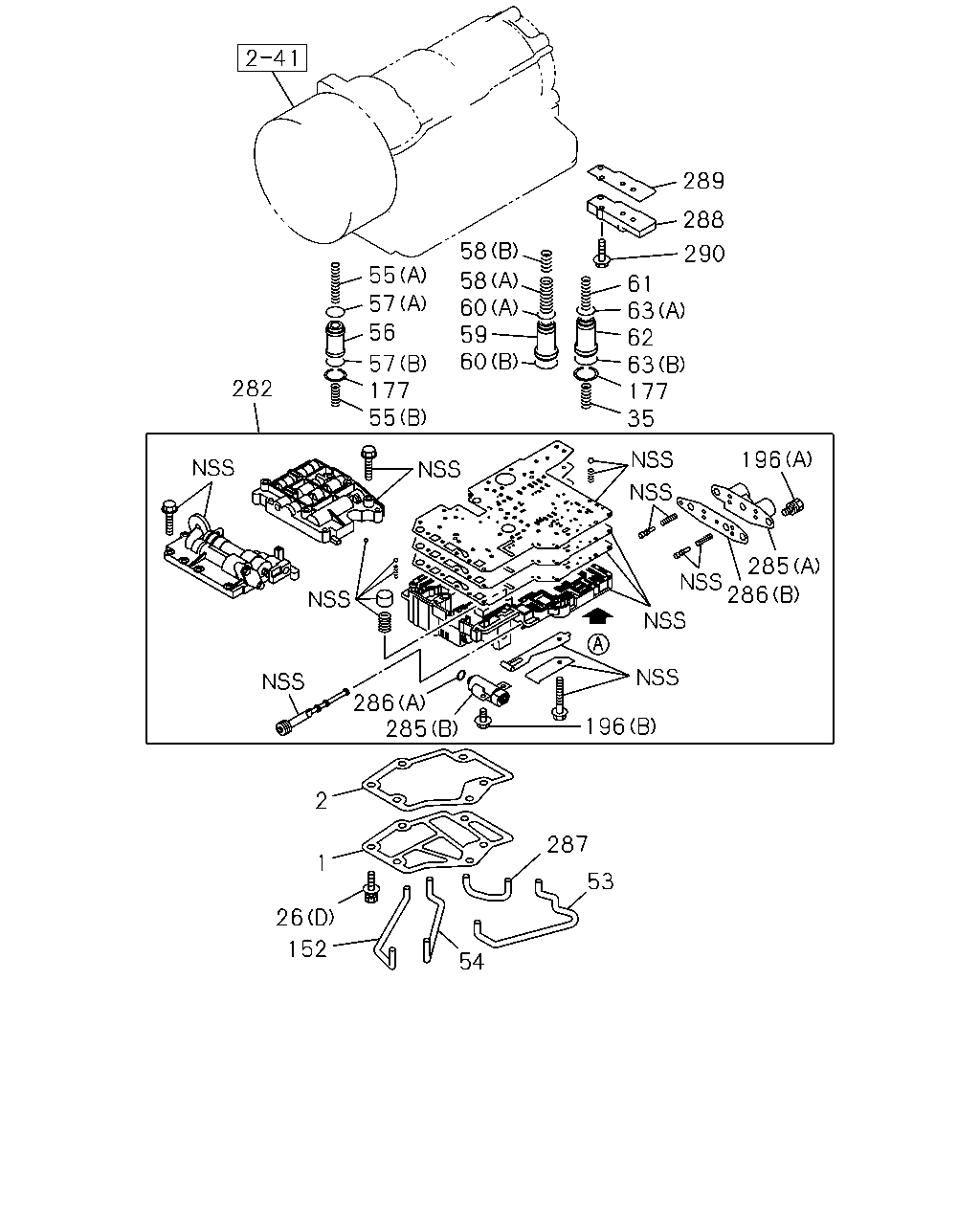

çizim 9473
289 288 58 290 55 58 60 59 60 61 63 62 63 177 35 57 56 57 177 55 282 196 285 286 286 285 196 2 287 1 53 26 152 54
BalonParca AdiParca NoAdetTipApplied Date
1 STRAINER ASM; OIL,A/T 8-97264-850-0 01 1 0103-
2 GASKET; OIL STRAINER,A/T 8-97264-849-0 01 1 0103-
26 BOLT; BODY FIX,VLV LWR,A/T
(A) M6X30 		8-94473-623-0 10 1 0103-
26 BOLT; BODY FIX,VLV LWR,A/T
(B) M6X25 		8-94473-624-0 01 1 0103-
26 BOLT; BODY FIX,VLV LWR,A/T
(C) M6X60 		8-94480-035-0 01 1 0103-
26 BOLT; BODY FIX,VLV LWR,A/T
(D) M6X10 		8-97264-807-0 06 1 0103-
26 BOLT; BODY FIX,VLV LWR,A/T
(E) M6X47 		8-97264-847-0 03 1 0103-
35 SPRING; LWR VLV BODY 8-97264-792-0 01 1 0103-
53 TUBE; FWD CLU,A/T 8-97264-839-0 01 1 0103-
54 TUBE; OVERDRIVE BRK,A/T 8-97264-860-0 01 1 0103-
55 SPRING; ACCUMLATOR PISTON
(A) 		8-97209-019-0 01 1 0103-
55 SPRING; ACCUMLATOR PISTON
(B) 		8-97209-020-0 01 1 0103-
56 PISTON; ACCUMLATOR 8-97209-148-0 01 1 0103-
57 GASKET; 2ND SPD PISTON,A/T
(A) 		8-97184-889-0 01 1 0103-
57 GASKET; 2ND SPD PISTON,A/T
(B) 		8-97264-842-0 01 1 0103-
58 SPRING; DIRECT CLU (C-2 ACCUM),A/T
(A) 		8-94405-360-0 01 1 0103-
58 SPRING; DIRECT CLU (C-2 ACCUM),A/T
(B) 		8-97209-021-0 01 1 0103-
59 PISTON; DIRECT CLU,A/T 8-94166-028-0 01 1 0103-
60 GASKET; DIRECT CLU PISTON,A/T
(A) 		8-97264-843-0 01 1 0103-
60 GASKET; DIRECT CLU PISTON,A/T
(B) 		8-97264-844-0 01 1 0103-
61 SPRING; FWD CLU,(C-1 ACUUM),A/T 8-97264-791-0 01 1 0103-
62 PISTON; FWD CLU,A/T 8-97264-861-0 01 1 0103-
63 GASKET; FWD CLU,A/T
(B) 		8-97264-844-0 01 1 0103-
63 GASKET; FWD CLU,A/T
(A) 		8-97264-845-0 01 1 0103-
152 TUBE; OIL,LWR VALVE BODY 8-97264-840-0 01 1 0103-
177 RING; SNAP 8-97025-821-0 02 1 0103-
196 BOLT; SOLENOID
(A) M6X19 		8-97264-802-0 03 1 0103-
196 BOLT; SOLENOID
(B) M6X10 		8-97264-807-0 01 1 0103-
282 BODY ASM; VLV,A/T 8-97264-796-0 01 1 0103-
285 SOLENOID; LWR VLV BODY
(A) 		8-97264-805-0 01 1 0103-
285 SOLENOID; LWR VLV BODY
(B) 		8-97264-806-0 01 1 0103-
286 GASKET; SOLENOID,LWR VLV BODY
(A) 		8-94480-101-0 01 1 0103-
286 GASKET; SOLENOID,LWR VLV BODY
(B) 		8-97264-803-0 01 1 0103-
287 TUBE; REV BRK,A/T 8-97264-841-0 01 1 0103-
288 PLATE; TUBE,A/T 8-97264-837-0 01 1 0103-
289 GASKET; PLATE,TUBE,A/T 8-97264-838-0 01 1 0103-
290 BOLT; PLATE,TUBE,A/T
M6X30 		8-94473-623-0 02 1 0103-
çizim 11295
26 26 26 26
BalonParca AdiParca NoAdetTipApplied Date
26 BOLT; BODY FIX,VLV LWR,A/T
(A) M6X30 		8-94473-623-0 10 1 0103-
26 BOLT; BODY FIX,VLV LWR,A/T
(B) M6X25 		8-94473-624-0 01 1 0103-
26 BOLT; BODY FIX,VLV LWR,A/T
(C) M6X60 		8-94480-035-0 01 1 0103-
26 BOLT; BODY FIX,VLV LWR,A/T
(D) M6X10 		8-97264-807-0 06 1 0103-
26 BOLT; BODY FIX,VLV LWR,A/T
(E) M6X47 		8-97264-847-0 03 1 0103-
