2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#41893) — 9 parça

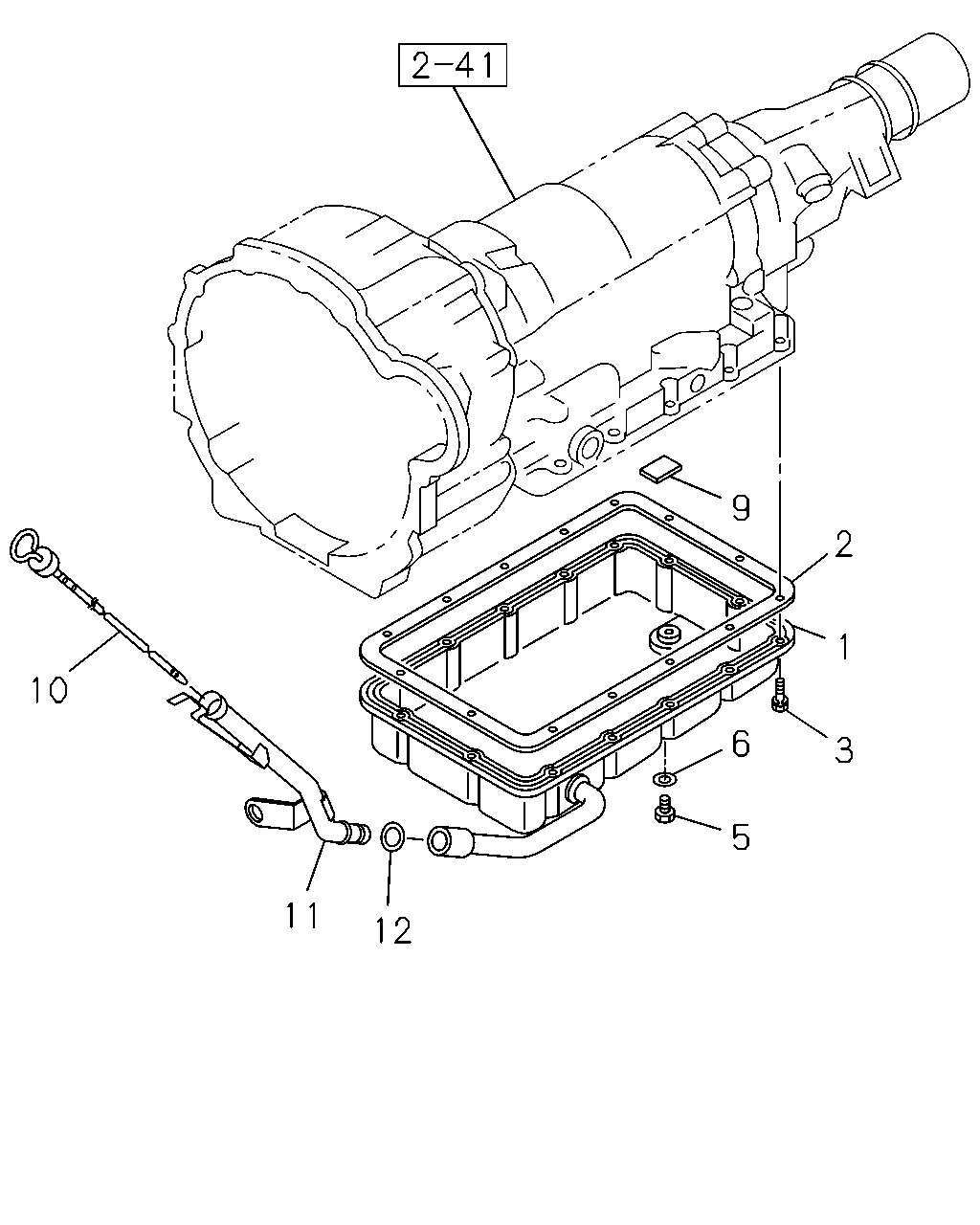

çizim 50348
9 2 1 10 6 3 5 11 12
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL,A/T 8-94323-524-0 01 1 0103-
2 GASKET; OIL PAN,A/T 5-34132-001-0 01 1 0103-
3 BOLT; OIL PAN TO CASE
M6 		5-34139-001-0 14 1 0103-
5 PLUG; OIL PAN 5-34132-003-0 01 1 0103-
6 GASKET; OIL PAN TO PLUG 5-34132-002-0 01 1 0103-
9 MAGNET; OIL PAN 5-34138-004-0 02 1 0103-
10 GAUGE; OIL LEVEL 8-97304-108-0 01 1 0103-
11 TUBE; OIL FILLER 8-97288-503-1 01 1 0103-
12 GASKET; OIL FILLER TUBE TO A/T
ID=9.8 		9-09561-110-0 01 1 0103-
