2 - Clutch, Transmission, Trans Axle
▶
2-41 - AUTO TRANS CASE,CONVERTER AND OIL PUMP
▶

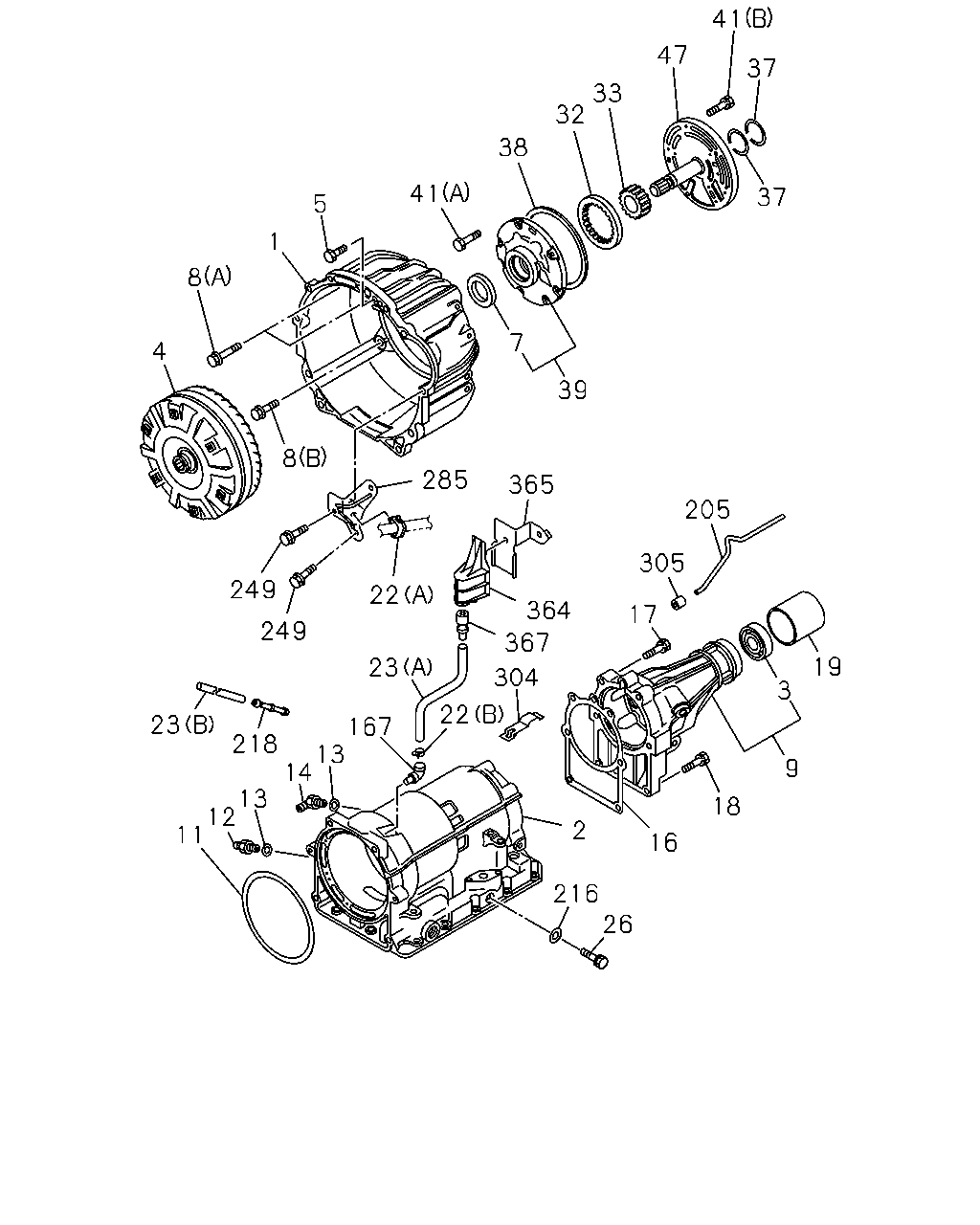

2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP
(#41892) — 42 parça
41
47
37
33
32
38
41
37
5
1
8
7
4
39
8
285
365
205
305
249
22
364
17
249
367
19
23
304
3
22
23
167
218
13
14
9
13
12
11
18
2
16
216
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOUSING; CONV,A/T
8-97264-783-0
01
1
0103-
2
CASE ASM; A/T
8-97264-793-0
01
1
0103-
3
SEAL; OIL,RR COVER,A/T
8-94473-633-0
01
1
0103-
4
CONVERTER ASM; TORQUE,A/T
8-94364-918-0
01
1
0103-
5
BOLT; RR PLATE TO TORQUE CONV
M8X10
8-94460-742-0
06
1
0103-
7
SEAL; OIL,LIP,A/T
8-97264-795-0
01
1
0103-
8
BOLT; HSG TO CASE
(A) M10X118
8-94473-572-0
04
1
0103-
8
BOLT; HSG TO CASE
(B) M12X97
8-94473-573-0
02
1
0103-
9
COVER ASM; RR,A/T
8-97264-851-0
01
1
0103-
11
RING; SEALING,TRANS CASE
8-97250-604-0
01
1
0103-
12
CONNECTOR; OIL COOLER OUTLET PIPE
8-94473-570-0
01
1
0103-
13
GASKET; OIL COOLER PIPE
5-34588-001-0
02
1
0103-
14
UNION; OIL COOLER RETURN PIPE
8-94479-970-0
01
1
0103-
16
GASKET; EXT HSG
8-97032-928-0
01
1
0103-
17
BOLT; REAR COVER TO CASE
M10X45
8-94473-632-0
04
1
0103-
18
BOLT; RR CVR TO CASE,LWR,A/T
M10X35
8-94479-951-0
02
1
0103-
19
COVER; DUST,REAR COVER
5-33138-007-0
01
1
0103-
22
CLIP; BREATHER HOSE,A/T
(A) ID=16
8-94413-325-0
01
1
0103-
22
CLIP; BREATHER HOSE,A/T
(B)
8-94479-730-0
01
1
0103-
23
HOSE; BREATHER,A/T
(A)
8-97264-789-0
01
1
0103-
23
HOSE; BREATHER,A/T
GRADE XTRM(RBG) (B) L=90 SERVICED BY L=3000
0-02857-300-0
01
1
0111-
26
PLUG; TRANS CASE
5-34119-002-0
02
1
0103-
32
GEAR; OUTER,OIL PUMP,A/T
8-97100-794-0
01
1
0103-
33
GEAR; INNER,OIL PUMP,A/T
8-97176-139-0
01
1
0103-
37
RING; SEAL,OIL PUMP,A/T
8-97128-812-0
02
1
0103-
38
GASKET; OIL PUMP,A/T
5-34165-003-0
01
1
0103-
39
BODY SUB ASM; FRT,OIL PUMP,A/T
8-94405-299-0
01
1
0103-
41
BOLT; OIL PUMP HSG,A/T
(A) M8X135
8-94473-574-0
07
1
0103-
41
BOLT; OIL PUMP HSG,A/T
(B) M6X15.5
8-97019-532-0
06
1
0103-
47
SHAFT; OIL PUMP,A/T
8-94405-302-0
01
1
0103-
167
CONNECTOR; CASE,A/T
8-94479-727-0
01
1
0103-
205
TUBE; EXT HSG
8-97264-853-0
01
1
0103-
216
GASKET; SOLENOID OUTER
5-34119-001-0
02
1
0103-
218
JOINT; BREATHER HOSE
GRADE XTRM(RBG)
8-97228-323-0
01
1
0111-
249
BOLT; BRKT
M6X10 FLANGE
0-28080-610-0
02
1
0103-0512
249
BOLT; BRKT
M6X10 FLANGE
0-28050-610-0
02
1
0601-
285
BRACKET; HARNESS
8-97261-998-0
01
1
0103-
304
SPRING; LEAF,A/T
8-97200-141-0
01
1
0103-
305
GASKET; TUBE,EXT HSG
8-97027-228-0
01
1
0103-
364
COVER; AIR BREATHER,A/T
8-97228-324-0
01
1
0103-
365
BRACKET; BREATHER HOSE,A/T
8-97306-128-1
01
1
0103-
367
BREATHER; AIR,MISSION
8-97164-362-0
01
1
0103-
