◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-33A - FAN AND FAN BELT ▶
0-33A — FAN AND FAN BELT (#4189) — 217 parça

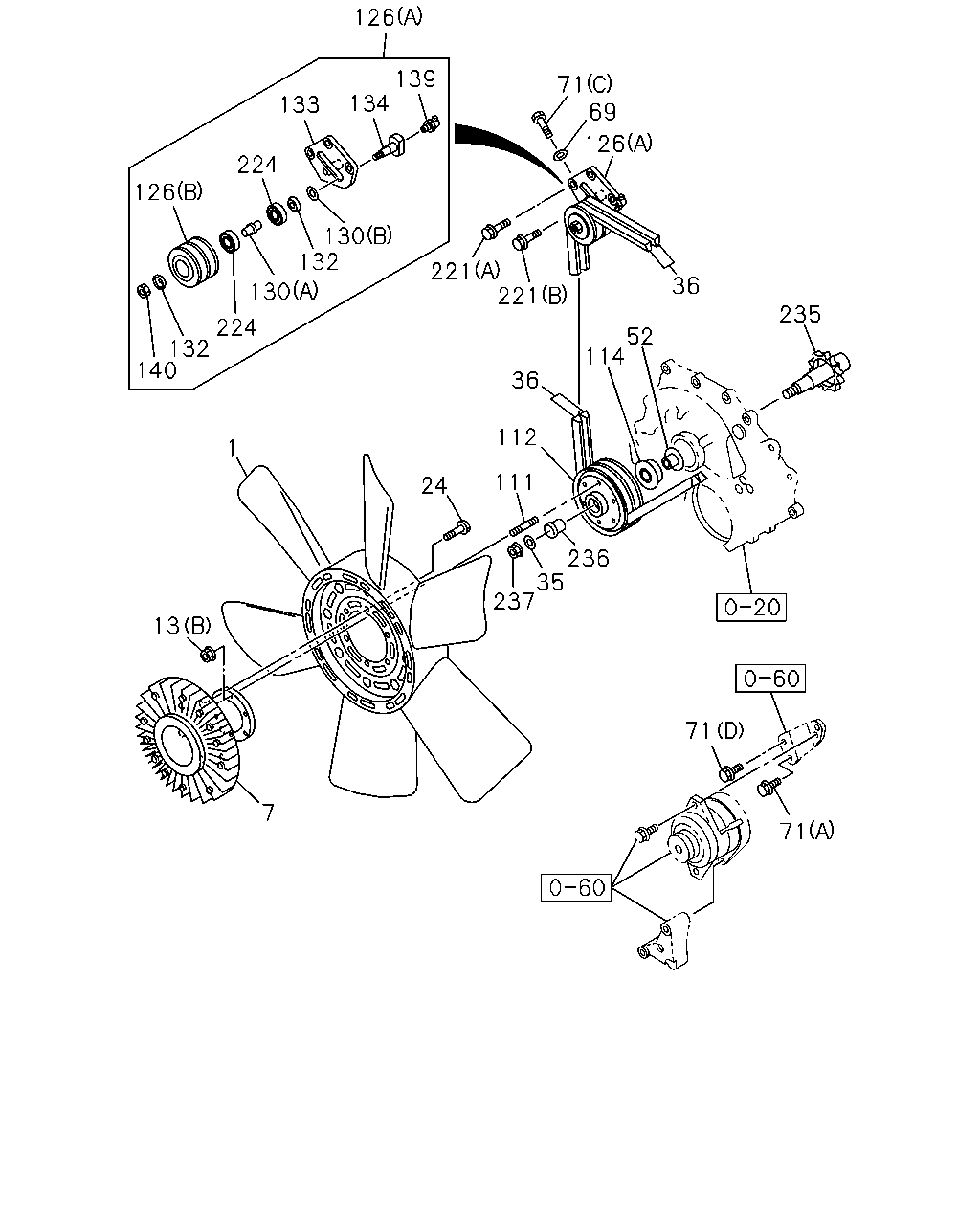

çizim 39517
126 139 134 71 69 133 126 224 126 130 132 221 36 130 221 235 224 132 140 52 114 36 112 1 111 24 236 35 237 13 71 7 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 FAN; COOLING 1-13660-224-0 01 1 9603-9801 ●
1 FAN; COOLING 1-13660-224-0 01 1 9802-9901 ●
1 FAN; COOLING 1-13660-224-0 01 1 9902-9904 ● ●
1 FAN; COOLING 1-13660-286-1 01 1 9905-9909 ●
1 FAN; COOLING 1-13660-286-1 01 1 9910- ● ●
1 FAN; COOLING 1-13660-224-0 01 1 9905- ● ● ●
7 COUPLING; FAN
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-21650-192-0 01 1 9603-9901 ●
7 COUPLING; FAN
EXC. CAB UP +110MM<TGG> 		1-21650-192-1 01 1 9902-9904 ●
7 COUPLING; FAN
INJ PUMP Q SET STD(T1B) EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. CAB UP +110MM<TGG> 		1-21650-192-1 01 1 9905- ●
7 COUPLING; FAN
ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> 		1-21650-192-1 01 1 9905- ●
7 COUPLING; FAN
EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT <TEH> 		1-21650-178-0 01 1 9603-9901 ●
7 COUPLING; FAN
CAB UP +110MM<TGG> 		1-21650-178-1 01 1 9902-9904 ●
7 COUPLING; FAN 1-21650-178-1 01 1 9902-9904 ●
7 COUPLING; FAN
INJ PUMP Q SET SPECIAL +5%Q(T1A) EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. CAB UP +110MM<TGG> 		1-21650-178-1 01 1 9905- ●
7 COUPLING; FAN
INJ PUMP Q SET STD(T1B) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, CABUP +110MM<TGG> 		1-21650-178-1 01 1 9905- ●
7 COUPLING; FAN
CAB UP +110MM<TGG> 		1-21650-178-1 01 1 9905- ●
7 COUPLING; FAN
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG> 		1-21650-178-1 01 1 9905- ●
7 COUPLING; FAN 1-21650-178-1 01 1 9905- ●
7 COUPLING; FAN 1-21650-204-0 01 1 9905- ●
7 COUPLING; FAN
CAB UP +110MM<TGG> 		1-21650-188-0 01 1 9910- ●
13 NUT; COOLING FAN
(A) M8 FLANGE 		0-91150-208-0 06 1 9603-9901 ●
13 NUT; COOLING FAN
(A) M8 FLANGE 		0-91150-208-0 06 1 9902-9904 ● ●
13 NUT; COOLING FAN
(A) M8 FLANGE 		0-91150-208-0 06 1 9905- ● ● ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91150-210-0 06 1 9603-9901 ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91150-210-0 06 1 9902-9904 ● ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91150-210-0 06 1 9905-9909 ● ● ● ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91150-210-0 06 1 9910- ● ● ● ● ●
24 BOLT; FAN
W/FLANGE M10X40 FLANGE 		0-28791-040-0 06 1 9905-9909 ●
24 BOLT; FAN
W/FLANGE M10X40 FLANGE 		0-28791-040-0 06 1 9910- ● ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 9603-9901 ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 9902-9904 ● ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 9905-9909 ● ● ● ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 9910- ● ● ● ● ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714310) MITSUBOSHI 		1-13671-430-0 01 1 9905-9909 ●
36 BELT; COOLING FAN
1 SET=2 PIECE(1136714310) MITSUBOSHI 		1-13671-430-0 01 1 9910- ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 9603-9901 ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 9902-9904 ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 9905-9909 ● ● ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 9910- ● ● ● ● ●
69 WASHER; PL,ADJ PLATE,GEN
ID=12.5 OD=32 		9-09160-712-0 01 1 9703-9901 ●
69 WASHER; PL,ADJ PLATE,GEN
ID=12.5 OD=32 		9-09160-712-0 01 1 9902-9904 ● ●
69 WASHER; PL,ADJ PLATE,GEN
ID=12.5 OD=32 		9-09160-712-0 01 1 9905- ● ● ●
69 WASHER; PL,ADJ PLATE,GEN
ID=10.5 OD=18 		9-09160-510-0 01 1 9905-9909 ●
69 WASHER; PL,ADJ PLATE,GEN
ID=10.5 OD=18 		9-09160-510-0 01 1 9910- ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X60 FLANGE 		0-28181-060-0 01 1 9603-9901 ●
71 BOLT; ADJ PLATE,GEN
(A) M10X60 FLANGE 		0-28181-060-0 01 1 9902-9904 ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X60 FLANGE 		0-28181-060-0 01 1 9905- ● ● ●
71 BOLT; ADJ PLATE,GEN
(B) M10X135 		1-09009-113-1 01 1 9603-9901 ●
71 BOLT; ADJ PLATE,GEN
(B) M10X135 		1-09009-113-1 01 1 9902-9904 ● ●
71 BOLT; ADJ PLATE,GEN
(B) M10X135 		1-09009-113-1 01 1 9905- ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28181-025-0 01 1 9608-9901 ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28181-025-0 01 1 9902-9904 ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28181-025-0 01 1 9905-9909 ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28181-025-0 01 1 9910- ● ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(D) M10X110 FLANGE 		0-28186-011-0 01 1 9608-9901 ●
71 BOLT; ADJ PLATE,GEN
(D) M10X110 FLANGE 		0-28186-011-0 01 1 9902-9904 ● ●
71 BOLT; ADJ PLATE,GEN
(D) M10X110 FLANGE 		0-28186-011-0 01 1 9905-9909 ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(D) M10X110 FLANGE 		0-28186-011-0 01 1 9910- ● ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(C) M10X140 		1-09000-104-1 01 1 9905-9909 ●
71 BOLT; ADJ PLATE,GEN
(C) M10X140 		1-09000-104-1 01 1 9910- ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 9603-9901 ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 9902-9904 ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 9905-9909 ● ● ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 9910- ● ● ● ● ●
112 PULLEY; FAN CENTER 1-13663-087-0 01 1 9603-9901 ●
112 PULLEY; FAN CENTER 1-13663-087-0 01 1 9902-9904 ● ●
112 PULLEY; FAN CENTER 1-13663-087-0 01 1 9905-0008 ● ● ●
112 PULLEY; FAN CENTER 1-13663-123-1 01 1 0009- ● ● ●
112 PULLEY; FAN CENTER 1-13663-088-0 01 1 9905-9909 ●
112 PULLEY; FAN CENTER 1-13663-088-0 01 1 9910-0008 ● ●
112 PULLEY; FAN CENTER 1-13663-124-0 01 1 0009- ● ●
114 SEAL; OIL 1-09625-570-0 01 1 9603-9901 ●
114 SEAL; OIL 1-09625-570-0 01 1 9902-9904 ● ●
114 SEAL; OIL 1-09625-570-0 01 1 9905-9909 ● ● ● ●
114 SEAL; OIL 1-09625-570-0 01 1 9910- ● ● ● ● ●
126 PULLEY; IDLE
(A) 		1-13660-263-2 01 1 9905-9909 ●
126 PULLEY; IDLE
(A) 		1-13660-263-2 01 1 9910-0008 ● ●
126 PULLEY; IDLE
(A) 		1-13660-358-1 01 1 0009- ● ●
126 PULLEY; IDLE
(B) 		1-13663-067-0 01 1 9905-9909 ●
126 PULLEY; IDLE
(B) 		1-13663-067-0 01 1 9910-0008 ● ●
126 PULLEY; IDLE
(B) 		1-13663-111-1 01 1 0009- ● ●
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 9905-9909 ●
130 SPACER; IDLE PULLEY BRG
(A) 		1-13666-007-0 01 1 9910- ● ●
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 9905-9909 ●
130 SPACER; IDLE PULLEY BRG
(B) 		1-13666-032-0 01 1 9910- ● ●
132 COVER; DUST 1-13664-009-1 02 1 9905-9909 ●
132 COVER; DUST 1-13664-009-1 02 1 9910- ● ●
133 BRACKET; IDLE PULLEY 1-13669-150-1 01 1 9905-9909 ●
133 BRACKET; IDLE PULLEY 1-13669-150-1 01 1 9910- ● ●
134 SPINDLE; IDLE PULLEY 1-13665-035-0 01 1 9905-9909 ●
134 SPINDLE; IDLE PULLEY 1-13665-035-0 01 1 9910- ● ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		9-09031-210-0 01 1 9905-9909 ●
139 NIPPLE; GREASE,IDLE PULLEY
PT1/8 ELBOW 		9-09031-210-0 01 1 9910- ● ●
140 NUT; IDLE PULLEY
M18 		9-99111-518-0 01 1 9905-9909 ●
140 NUT; IDLE PULLEY
M18 		9-99111-518-0 01 1 9910- ● ●
221 BOLT; IDLE PULLEY
(B) M10X80 FLANGE 		0-28181-080-0 01 1 9905-9909 ●
221 BOLT; IDLE PULLEY
(B) M10X80 FLANGE 		0-28181-080-0 01 1 9910- ● ●
221 BOLT; IDLE PULLEY
(A) M10X90 FLANGE 		0-28181-090-0 03 1 9905-9909 ●
221 BOLT; IDLE PULLEY
(A) M10X90 FLANGE 		0-28181-090-0 03 1 9910- ● ●
224 BEARING; IDLE PULLEY 1-09800-176-0 02 1 9905-9909 ●
224 BEARING; IDLE PULLEY 1-09800-176-0 02 1 9910- ● ●
235 SHAFT; FAN CENTER 1-13660-279-2 01 1 9603-9901 ●
235 SHAFT; FAN CENTER 1-13660-279-2 01 1 9902-9904 ● ●
235 SHAFT; FAN CENTER 1-13660-279-3 01 1 9905- ● ● ●
235 SHAFT; FAN CENTER 1-13660-278-3 01 1 9905-9909 ●
235 SHAFT; FAN CENTER 1-13660-278-3 01 1 9910- ● ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 9603-9901 ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 9902-9904 ● ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 9905-9909 ● ● ● ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 9910- ● ● ● ● ●
237 NUT; SHAFT
M27 FLANGE 		9-09844-662-1 01 1 9603-9808 ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 9809-9901 ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 9902-9904 ● ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 9905-9909 ● ● ● ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 9910- ● ● ● ● ●

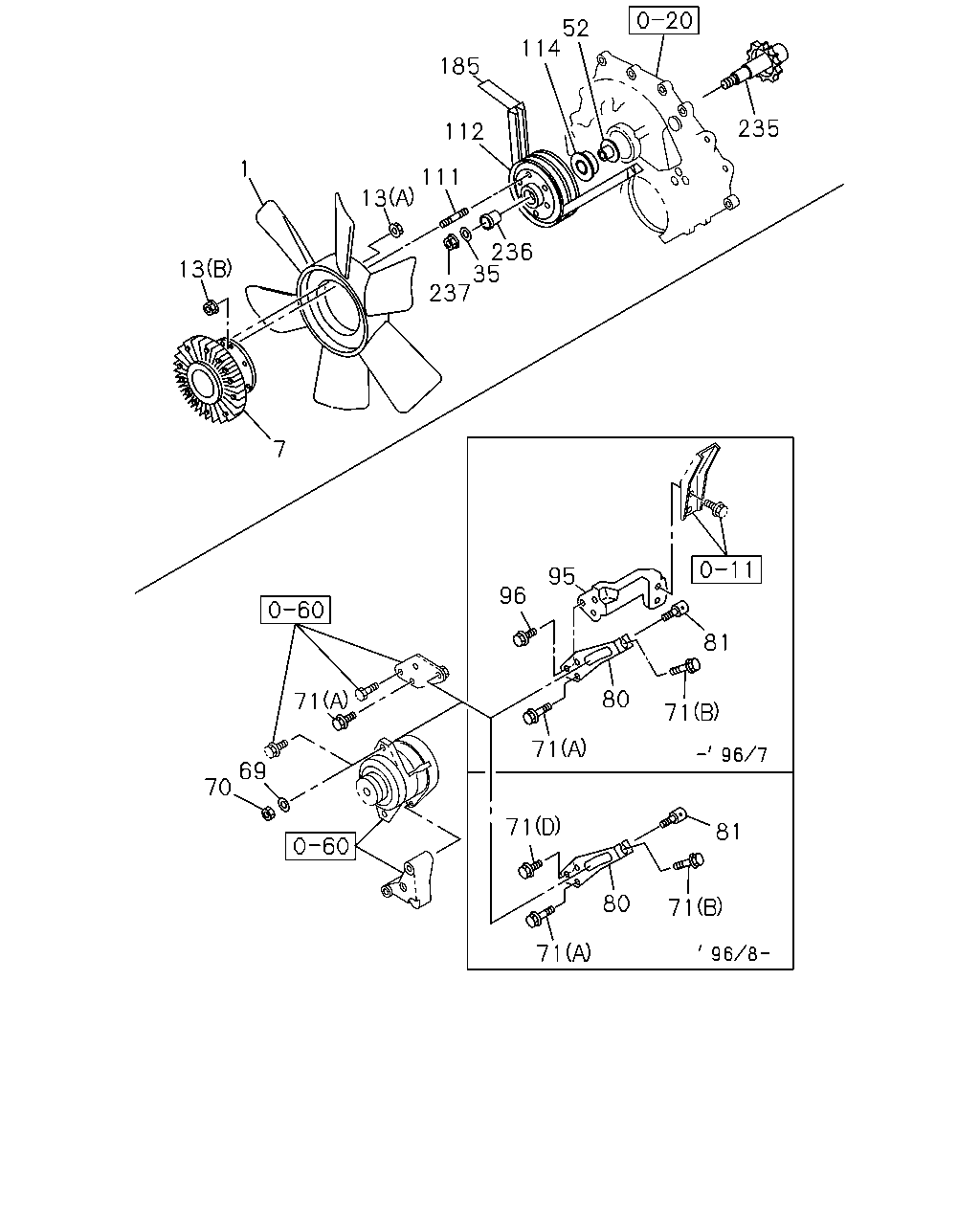

çizim 39521
52 114 185 235 112 1 111 13 236 35 237 13 7 95 96 81 80 71 71 71 69 70 71 81 80 71 71
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 FAN; COOLING 1-13660-224-0 01 1 9603-9801 ●
1 FAN; COOLING 1-13660-224-0 01 1 9802-9901 ●
1 FAN; COOLING 1-13660-224-0 01 1 9902-9904 ● ●
1 FAN; COOLING 1-13660-286-1 01 1 9905-9909 ●
1 FAN; COOLING 1-13660-286-1 01 1 9910- ● ●
1 FAN; COOLING 1-13660-224-0 01 1 9905- ● ● ●
7 COUPLING; FAN
EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-21650-192-0 01 1 9603-9901 ●
7 COUPLING; FAN
EXC. CAB UP +110MM<TGG> 		1-21650-192-1 01 1 9902-9904 ●
7 COUPLING; FAN
INJ PUMP Q SET STD(T1B) EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. CAB UP +110MM<TGG> 		1-21650-192-1 01 1 9905- ●
7 COUPLING; FAN
ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> 		1-21650-192-1 01 1 9905- ●
7 COUPLING; FAN
EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT <TEH> 		1-21650-178-0 01 1 9603-9901 ●
7 COUPLING; FAN
CAB UP +110MM<TGG> 		1-21650-178-1 01 1 9902-9904 ●
7 COUPLING; FAN 1-21650-178-1 01 1 9902-9904 ●
7 COUPLING; FAN
INJ PUMP Q SET SPECIAL +5%Q(T1A) EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. CAB UP +110MM<TGG> 		1-21650-178-1 01 1 9905- ●
7 COUPLING; FAN
INJ PUMP Q SET STD(T1B) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, CABUP +110MM<TGG> 		1-21650-178-1 01 1 9905- ●
7 COUPLING; FAN
CAB UP +110MM<TGG> 		1-21650-178-1 01 1 9905- ●
7 COUPLING; FAN
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG> 		1-21650-178-1 01 1 9905- ●
7 COUPLING; FAN 1-21650-178-1 01 1 9905- ●
7 COUPLING; FAN 1-21650-204-0 01 1 9905- ●
7 COUPLING; FAN
CAB UP +110MM<TGG> 		1-21650-188-0 01 1 9910- ●
13 NUT; COOLING FAN
(A) M8 FLANGE 		0-91150-208-0 06 1 9603-9901 ●
13 NUT; COOLING FAN
(A) M8 FLANGE 		0-91150-208-0 06 1 9902-9904 ● ●
13 NUT; COOLING FAN
(A) M8 FLANGE 		0-91150-208-0 06 1 9905- ● ● ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91150-210-0 06 1 9603-9901 ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91150-210-0 06 1 9902-9904 ● ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91150-210-0 06 1 9905-9909 ● ● ● ●
13 NUT; COOLING FAN
(B) M10 FLANGE 		0-91150-210-0 06 1 9910- ● ● ● ● ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 9603-9901 ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 9902-9904 ● ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 9905-9909 ● ● ● ●
35 WASHER; PL
ID=28 T=4 		1-09503-016-0 01 1 9910- ● ● ● ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 9603-9901 ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 9902-9904 ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 9905-9909 ● ● ● ●
52 SPACER; FAN DRIVE 1-13669-165-0 01 1 9910- ● ● ● ● ●
69 WASHER; PL,ADJ PLATE,GEN
ID=12.5 OD=32 		9-09160-712-0 01 1 9703-9901 ●
69 WASHER; PL,ADJ PLATE,GEN
ID=12.5 OD=32 		9-09160-712-0 01 1 9902-9904 ● ●
69 WASHER; PL,ADJ PLATE,GEN
ID=12.5 OD=32 		9-09160-712-0 01 1 9905- ● ● ●
69 WASHER; PL,ADJ PLATE,GEN
ID=10.5 OD=18 		9-09160-510-0 01 1 9905-9909 ●
69 WASHER; PL,ADJ PLATE,GEN
ID=10.5 OD=18 		9-09160-510-0 01 1 9910- ● ●
70 NUT; ADJ PLATE,GEN
M12 FLANGE 		0-91150-112-0 01 1 9603-9901 ●
70 NUT; ADJ PLATE,GEN
M12 FLANGE 		0-91150-112-0 01 1 9902-9904 ● ●
70 NUT; ADJ PLATE,GEN
M12 FLANGE 		0-91150-112-0 01 1 9905- ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X60 FLANGE 		0-28181-060-0 01 1 9603-9901 ●
71 BOLT; ADJ PLATE,GEN
(A) M10X60 FLANGE 		0-28181-060-0 01 1 9902-9904 ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X60 FLANGE 		0-28181-060-0 01 1 9905- ● ● ●
71 BOLT; ADJ PLATE,GEN
(B) M10X135 		1-09009-113-1 01 1 9603-9901 ●
71 BOLT; ADJ PLATE,GEN
(B) M10X135 		1-09009-113-1 01 1 9902-9904 ● ●
71 BOLT; ADJ PLATE,GEN
(B) M10X135 		1-09009-113-1 01 1 9905- ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28181-025-0 01 1 9608-9901 ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28181-025-0 01 1 9902-9904 ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28181-025-0 01 1 9905-9909 ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(A) M10X25 FLANGE 		0-28181-025-0 01 1 9910- ● ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(D) M10X110 FLANGE 		0-28186-011-0 01 1 9608-9901 ●
71 BOLT; ADJ PLATE,GEN
(D) M10X110 FLANGE 		0-28186-011-0 01 1 9902-9904 ● ●
71 BOLT; ADJ PLATE,GEN
(D) M10X110 FLANGE 		0-28186-011-0 01 1 9905-9909 ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(D) M10X110 FLANGE 		0-28186-011-0 01 1 9910- ● ● ● ● ●
71 BOLT; ADJ PLATE,GEN
(C) M10X140 		1-09000-104-1 01 1 9905-9909 ●
71 BOLT; ADJ PLATE,GEN
(C) M10X140 		1-09000-104-1 01 1 9910- ● ●
80 PLATE; ADJ 1-13674-240-0 01 1 9603-9607 ●
80 PLATE; ADJ 1-13674-241-0 01 1 9608-9901 ●
80 PLATE; ADJ 1-13674-241-0 01 1 9902-9904 ● ●
80 PLATE; ADJ 1-13674-241-0 01 1 9905- ● ● ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 9603-9608 ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 9609-9901 ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 9902-9904 ● ●
81 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 9905- ● ● ●
95 BRACKET; ADJ PLATE 1-19711-080-0 01 1 9603-9607 ●
96 BOLT; ADJ PLATE
M10X25 FLANGE 		0-28781-025-0 02 1 9603-9607 ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 9603-9901 ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 9902-9904 ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 9905-9909 ● ● ● ●
111 STUD; FAN DRIVE
M10X25 L=45 		9-04321-025-0 06 1 9910- ● ● ● ● ●
112 PULLEY; FAN CENTER 1-13663-087-0 01 1 9603-9901 ●
112 PULLEY; FAN CENTER 1-13663-087-0 01 1 9902-9904 ● ●
112 PULLEY; FAN CENTER 1-13663-087-0 01 1 9905-0008 ● ● ●
112 PULLEY; FAN CENTER 1-13663-123-1 01 1 0009- ● ● ●
112 PULLEY; FAN CENTER 1-13663-088-0 01 1 9905-9909 ●
112 PULLEY; FAN CENTER 1-13663-088-0 01 1 9910-0008 ● ●
112 PULLEY; FAN CENTER 1-13663-124-0 01 1 0009- ● ●
114 SEAL; OIL 1-09625-570-0 01 1 9603-9901 ●
114 SEAL; OIL 1-09625-570-0 01 1 9902-9904 ● ●
114 SEAL; OIL 1-09625-570-0 01 1 9905-9909 ● ● ● ●
114 SEAL; OIL 1-09625-570-0 01 1 9910- ● ● ● ● ●
185 BELT; GEN DRIVE
L=1105 1 SET=2 PIECE(1136713951) BANDO 		1-13671-393-1 01 1 9603-9604 ●
185 BELT; GEN DRIVE
L=1121 1 SET=2 PIECE(1136714290) MITSUBOSHI 		1-13671-428-0 01 1 9605-9901 ●
185 BELT; GEN DRIVE
L=1121 1 SET=2 PIECE(1136714290) MITSUBOSHI 		1-13671-428-0 01 1 9902-9904 ● ●
185 BELT; GEN DRIVE
L=1121 1 SET=2 PIECE(1136714290) MITSUBOSHI 		1-13671-428-0 01 1 9905- ● ● ●
235 SHAFT; FAN CENTER 1-13660-279-2 01 1 9603-9901 ●
235 SHAFT; FAN CENTER 1-13660-279-2 01 1 9902-9904 ● ●
235 SHAFT; FAN CENTER 1-13660-279-3 01 1 9905- ● ● ●
235 SHAFT; FAN CENTER 1-13660-278-3 01 1 9905-9909 ●
235 SHAFT; FAN CENTER 1-13660-278-3 01 1 9910- ● ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 9603-9901 ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 9902-9904 ● ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 9905-9909 ● ● ● ●
236 BUSHING; FAN CENTER 1-13669-160-2 01 1 9910- ● ● ● ● ●
237 NUT; SHAFT
M27 FLANGE 		9-09844-662-1 01 1 9603-9808 ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 9809-9901 ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 9902-9904 ● ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 9905-9909 ● ● ● ●
237 NUT; SHAFT
M27 FLANGE 		1-09440-058-0 01 1 9910- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
