2-30 — GEAR SHIFTER AND QUADRANT BOX
(#41889) — 37 parça
◀

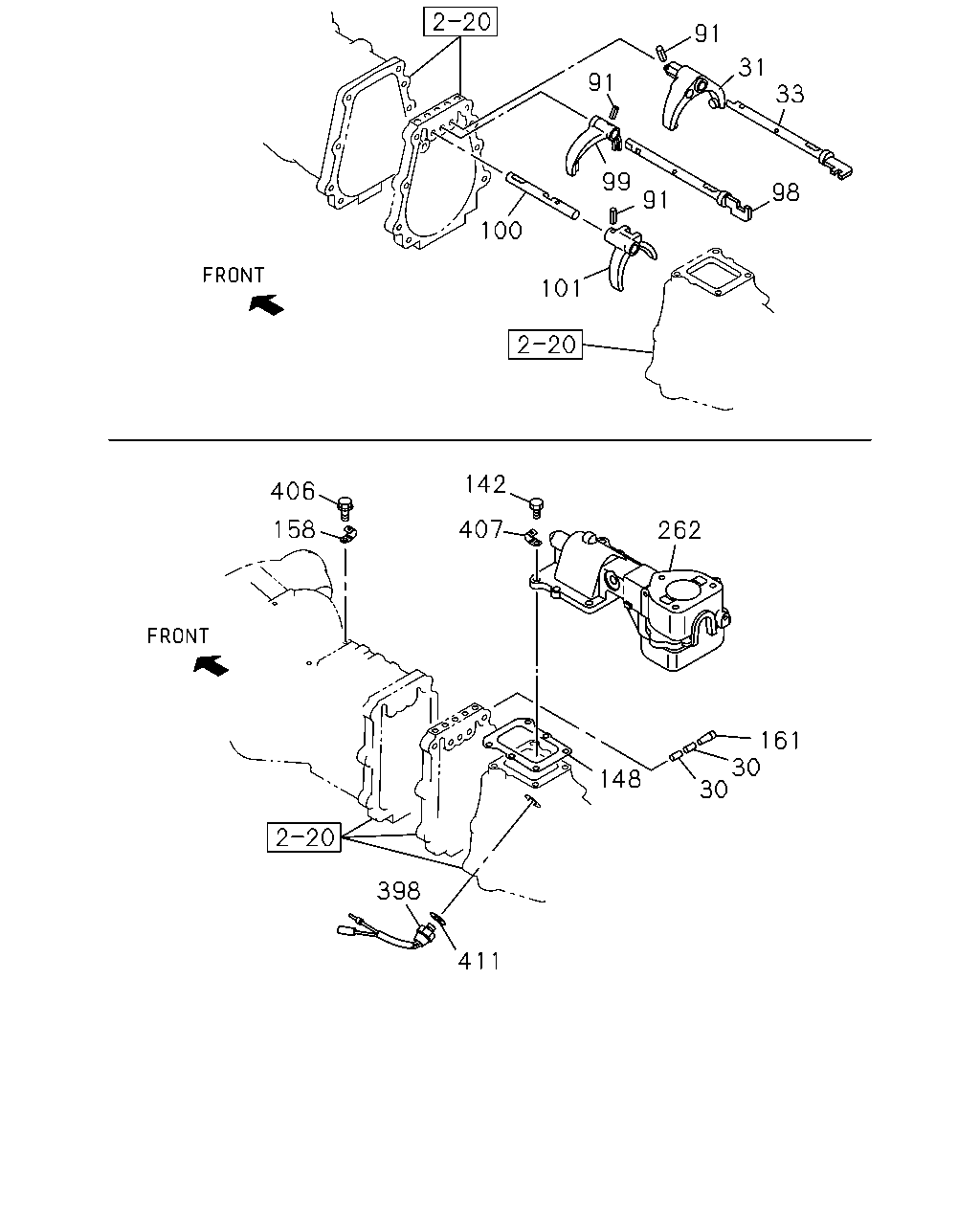

[230A] NO.1 (22 parça)
[230A] NO.2 (15 parça)
▶
91
31
91
33
99
98
91
100
101
142
406
158
407
262
161
30
30
148
398
411
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
30
PIN; INTER LK
5-33534-002-1
02
1
0103-
31
ARM; SHIFT,LOW & 2ND
8-97024-503-1
01
1
0103-
33
ROD; SHIFT,LOW & 2ND
8-97213-047-0
01
1
0103-
91
PIN; SPR,SHIFT ARM
D=4.2 L=25
8-94171-541-0
03
1
0103-
98
ROD; SHIFT,TOP & 3RD
8-97213-045-0
01
1
0103-
99
ARM; SHIFT,4TH & 3RD
8-94435-153-1
01
1
0103-
100
ROD; SHIFT,REV & 5TH
8-97115-185-0
01
1
0103-
101
ARM; SHIFT,REV & 5TH
8-94455-851-3
01
1
0103-
142
BOLT; QUAD BOX
M8X22 FLANGE
8-94448-815-3
04
1
0103-0604
142
BOLT; QUAD BOX
M8X22 FLANGE
8-97365-376-0
04
1
0605-
148
GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T).
8-97184-922-0
01
1
0103-
158
CLIP; HARNESS
ID=12
5-09700-350-0
02
1
0103-0604
158
CLIP; HARNESS
ID=12
8-97367-984-0
02
1
0605-
161
PLUG; INTER LK HOLE
8-94239-543-1
01
1
0103-
262
BOX ASM; SHIFT CONT
8-97201-493-1
01
1
0103-0603
262
BOX ASM; SHIFT CONT
8-98017-735-0
01
1
0604-
398
SWITCH; REV LAMP
8-94411-366-1
01
1
0103-0602
398
SWITCH; REV LAMP
8-98042-851-0
01
1
0603-
406
BOLT; HARNESS CLIP
M8X16 FLANGE
0-28080-816-0
01
1
0103-0512
406
BOLT; HARNESS CLIP
M8X16 FLANGE
0-28050-816-0
01
1
0601-
407
CLIP; SWITCH HARNESS
ID=12
5-09700-350-0
01
1
0103-
411
GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2
8-94462-114-0
01
1
0103-
262
288
271
271
289
22
22
132
261
174
248
459
268
274
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
CAP; RETURN SPR,SHIFT BLOCK
8-97181-326-0
02
1
0103-
132
SPRING; SELECT STOP
8-97181-395-0
01
1
0103-
174
SPRING; REV
8-97181-394-0
01
1
0103-
248
RETAINER; CONT BOX
8-97181-325-0
02
1
0103-
261
ROD; GEAR CONT
8-97257-825-0
01
1
0103-
262
BOX ASM; SHIFT CONT
8-97201-493-1
01
1
0103-0603
262
BOX ASM; SHIFT CONT
8-98017-735-0
01
1
0604-
268
LEVER; CONT,INTERNAL
8-97184-894-0
01
1
0103-
271
BUSHING; QUAD BOX
ID=14 L=12
8-97203-909-0
02
1
0103-0603
271
BUSHING; QUAD BOX
ID=14 L=12
8-98017-908-0
02
1
0604-
274
COVER; SHAFT,QUAD BOX
8-97181-324-1
01
1
0103-
288
PLUG; AIR BREATHER
9-00097-517-0
01
1
0103-
289
SEAL; OIL,CONT SHAFT,QUAD BOX
8-97181-327-0
01
1
0103-0603
289
SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T).
8-98017-744-0
01
1
0604-
459
PIN; SPR,ROD TO ARM
OD=5
8-97184-905-0
01
1
0103-
