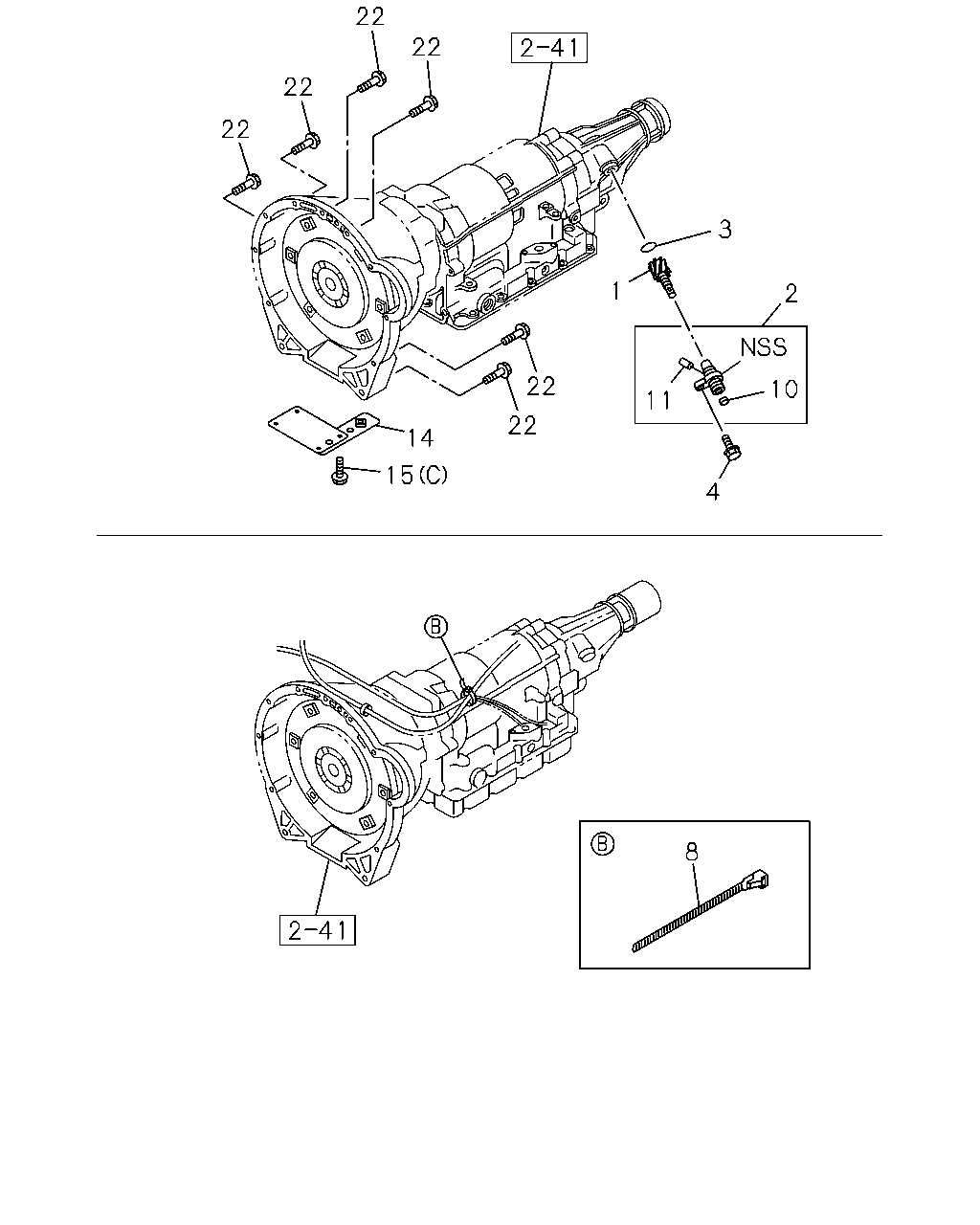

2-25 — SPEEDOMETER DRIVEN GEAR (#41887) — 72 parça

22 22 22 22 3 1 2 22 10 11 22 14 15 4 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD FRT&RR 185R14-6PR 5.0JJX14(BVJ),FRT&RR 205/65R15 6.0JJX15 ALUMI(BVK) Z=16	8-94473-308-2	01	1	0103-	●
1	GEAR; DRIVEN,SPD FRT&RR 205/70R15 6.5JJX15 ALUMI(BVL) Z=18	8-94473-304-2	01	1	0111-	●
1	GEAR; DRIVEN,SPD Z=15	8-94473-312-2	01	1	0103-		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-94463-608-4	01	1	0103-	●	●
3	GASKET; BUSHING	9-09921-100-0	01	1	0103-	●	●
4	BOLT; RET,DRIVEN GEAR M8X16 FLANGE	0-28080-816-0	01	1	0103-0512	●	●
4	BOLT; RET,DRIVEN GEAR M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
8	CLIP L=140	5-09707-031-1	01	1	0103-0110		●
8	CLIP L=140	5-09707-031-1	01	1	0111-		●
8	CLIP GRADE XTRM(RBG) L=140	5-09707-031-1	01	1	0111-		●
10	SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0103-	●	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA	8-94446-571-1	01	1	0103-	●	●
14	COVER; UNDER,TRANS	8-97061-582-0	01	1	0103-		●
15	BOLT; UNDER COVER TO TRANS (B) M10X30 FLANGE	0-28081-030-0	01	1	0103-0512	●
15	BOLT; UNDER COVER TO TRANS M10X30 FLANGE	0-28051-030-0	01	1	0601-	●
15	BOLT; UNDER COVER TO TRANS (A) M10X35 FLANGE	0-28081-035-0	01	1	0103-0512	●
15	BOLT; UNDER COVER TO TRANS M10X35 FLANGE	0-28051-035-0	01	1	0601-	●
15	BOLT; UNDER COVER TO TRANS (C) M6X12 FLANGE	0-28080-612-0	04	1	0103-0512		●
15	BOLT; UNDER COVER TO TRANS M6X12 FLANGE	0-28050-612-0	04	1	0601-		●
15	BOLT; UNDER COVER TO TRANS TURBOCHARGER<K51> M10X40 FLANGE	0-28051-040-0	01	1	0601-	●
22	BOLT; TRANS CASE TO ENG M10X35 FLANGE	0-28081-035-0	01	1	0103-0512	●
22	BOLT; TRANS CASE TO ENG M10X35 FLANGE	0-28051-035-0	01	1	0601-	●
22	BOLT; TRANS CASE TO ENG M10X40 FLANGE	0-28081-040-0	02	1	0103-0512	●
22	BOLT; TRANS CASE TO ENG M10X40 FLANGE	0-28051-040-0	02	1	0601-	●
22	BOLT; TRANS CASE TO ENG M12X90	0-28081-290-0	01	1	0103-0512	●
22	BOLT; TRANS CASE TO ENG M12X90 FLANGE	0-28051-290-0	01	1	0601-	●
22	BOLT; TRANS CASE TO ENG M10X55 FLANGE	8-94473-959-1	01	1	0103-	●
22	BOLT; TRANS CASE TO ENG M12X35 FLANGE	0-28081-235-0	01	1	0103-0512	●
22	BOLT; TRANS CASE TO ENG M12X35 FLANGE	0-28051-235-0	01	1	0601-	●
22	BOLT; TRANS CASE TO ENG M12X45 FLANGE	0-28081-245-0	02	1	0103-0512		●
22	BOLT; TRANS CASE TO ENG M12X45 FLANGE	0-28051-245-0	02	1	0601-		●
22	BOLT; TRANS CASE TO ENG M12X70 FLANGE	0-28081-270-0	02	1	0103-0512		●
22	BOLT; TRANS CASE TO ENG M12X70 FLANGE	0-28051-270-0	02	1	0601-		●
22	BOLT; TRANS CASE TO ENG M10X45 FLANGE	0-28091-045-0	03	1	0103-0512		●
22	BOLT; TRANS CASE TO ENG M10X45 FLANGE	0-28061-045-0	03	1	0601-		●
22	BOLT; TRANS CASE TO ENG M10X60	0-28091-060-0	01	1	0103-0512		●
22	BOLT; TRANS CASE TO ENG M10X60 FLANGE	0-28061-060-0	01	1	0601-		●
22	BOLT; TRANS CASE TO ENG TURBOCHARGER<K51> M10X45 FLANGE	0-28051-045-0	01	1	0601-	●

2 1 10 3 11 4 22 15 22 22 22 22 15 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD FRT&RR 185R14-6PR 5.0JJX14(BVJ),FRT&RR 205/65R15 6.0JJX15 ALUMI(BVK) Z=16	8-94473-308-2	01	1	0103-	●
1	GEAR; DRIVEN,SPD FRT&RR 205/70R15 6.5JJX15 ALUMI(BVL) Z=18	8-94473-304-2	01	1	0111-	●
1	GEAR; DRIVEN,SPD Z=15	8-94473-312-2	01	1	0103-		●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER	8-94463-608-4	01	1	0103-	●	●
3	GASKET; BUSHING	9-09921-100-0	01	1	0103-	●	●
4	BOLT; RET,DRIVEN GEAR M8X16 FLANGE	0-28080-816-0	01	1	0103-0512	●	●
4	BOLT; RET,DRIVEN GEAR M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
10	SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0103-	●	●
11	FILTER; BUSHING,SPEEDOMETER DRIVEN GEA	8-94446-571-1	01	1	0103-	●	●
15	BOLT; UNDER COVER TO TRANS (B) M10X30 FLANGE	0-28081-030-0	01	1	0103-0512	●
15	BOLT; UNDER COVER TO TRANS M10X30 FLANGE	0-28051-030-0	01	1	0601-	●
15	BOLT; UNDER COVER TO TRANS (A) M10X35 FLANGE	0-28081-035-0	01	1	0103-0512	●
15	BOLT; UNDER COVER TO TRANS M10X35 FLANGE	0-28051-035-0	01	1	0601-	●
15	BOLT; UNDER COVER TO TRANS (C) M6X12 FLANGE	0-28080-612-0	04	1	0103-0512		●
15	BOLT; UNDER COVER TO TRANS M6X12 FLANGE	0-28050-612-0	04	1	0601-		●
15	BOLT; UNDER COVER TO TRANS TURBOCHARGER<K51> M10X40 FLANGE	0-28051-040-0	01	1	0601-	●
22	BOLT; TRANS CASE TO ENG M10X35 FLANGE	0-28081-035-0	01	1	0103-0512	●
22	BOLT; TRANS CASE TO ENG M10X35 FLANGE	0-28051-035-0	01	1	0601-	●
22	BOLT; TRANS CASE TO ENG M10X40 FLANGE	0-28081-040-0	02	1	0103-0512	●
22	BOLT; TRANS CASE TO ENG M10X40 FLANGE	0-28051-040-0	02	1	0601-	●
22	BOLT; TRANS CASE TO ENG M12X90	0-28081-290-0	01	1	0103-0512	●
22	BOLT; TRANS CASE TO ENG M12X90 FLANGE	0-28051-290-0	01	1	0601-	●
22	BOLT; TRANS CASE TO ENG M10X55 FLANGE	8-94473-959-1	01	1	0103-	●
22	BOLT; TRANS CASE TO ENG M12X35 FLANGE	0-28081-235-0	01	1	0103-0512	●
22	BOLT; TRANS CASE TO ENG M12X35 FLANGE	0-28051-235-0	01	1	0601-	●
22	BOLT; TRANS CASE TO ENG M12X45 FLANGE	0-28081-245-0	02	1	0103-0512		●
22	BOLT; TRANS CASE TO ENG M12X45 FLANGE	0-28051-245-0	02	1	0601-		●
22	BOLT; TRANS CASE TO ENG M12X70 FLANGE	0-28081-270-0	02	1	0103-0512		●
22	BOLT; TRANS CASE TO ENG M12X70 FLANGE	0-28051-270-0	02	1	0601-		●
22	BOLT; TRANS CASE TO ENG M10X45 FLANGE	0-28091-045-0	03	1	0103-0512		●
22	BOLT; TRANS CASE TO ENG M10X45 FLANGE	0-28061-045-0	03	1	0601-		●
22	BOLT; TRANS CASE TO ENG M10X60	0-28091-060-0	01	1	0103-0512		●
22	BOLT; TRANS CASE TO ENG M10X60 FLANGE	0-28061-060-0	01	1	0601-		●
22	BOLT; TRANS CASE TO ENG TURBOCHARGER<K51> M10X45 FLANGE	0-28051-045-0	01	1	0601-	●
