2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

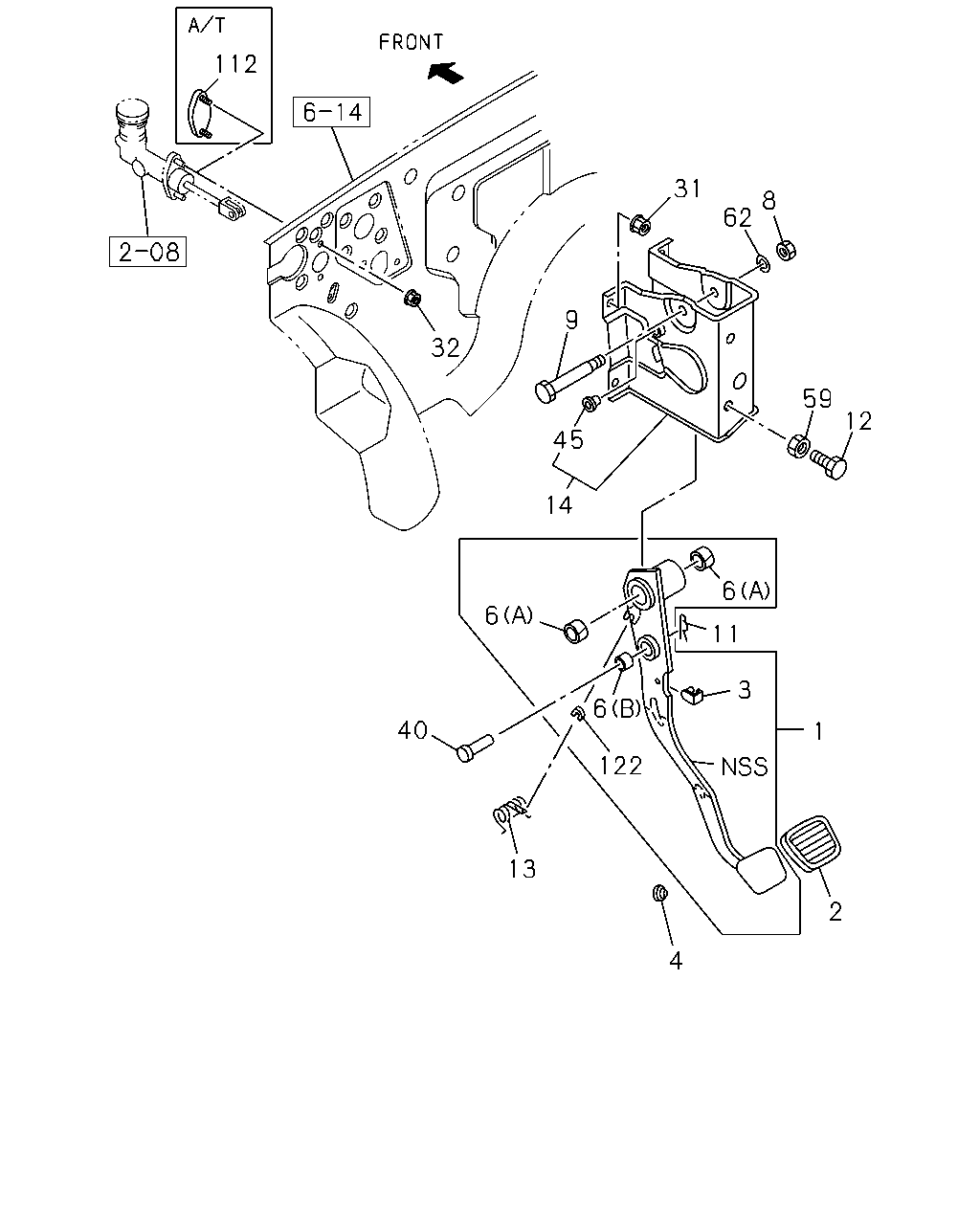

2-03 — CLUTCH PEDAL AND CONTROL
(#41881) — 26 parça
Tümü
A - M/T MSG 5 SPEED
B - A/T AISIN
112
31
8
62
9
32
59
12
45
14
6
6
11
6
3
40
1
122
13
2
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PEDAL; CLU
8-97071-835-0
01
1
0103-
●
2
COVER; CLU PEDAL
8-94222-524-1
01
1
0103-
●
3
RUBBER; STOPPER,CLU PEDAL
8-94463-258-0
01
1
0103-
●
4
STOPPER; CLU PEDAL
8-94103-675-0
01
1
0103-
●
6
BUSHING; CLU PEDAL
(A)
8-94244-439-0
02
1
0103-
●
6
BUSHING; CLU PEDAL
(B)
8-97035-885-0
01
1
0103-
●
8
NUT; PIN TO PEDAL
M10
9-09110-410-0
01
1
0103-0208
●
8
NUT; PIN TO PEDAL
M10 FLANGE
0-91150-110-0
01
1
0209-0602
●
8
NUT; PIN TO PEDAL
M10 FLANGE
0-91180-110-0
01
1
0603-
●
9
PIN; CLU PEDAL
8-94455-308-0
01
1
0103-
●
11
PIN; SNAP,PUSH ROD TO PEDAL
L=27.7
1-09747-005-0
01
1
0103-
●
12
BOLT; CLU PEDAL ADJ
M10X35
0-20801-035-0
01
1
0103-0512
●
12
BOLT; CLU PEDAL ADJ
M10X35
0-20851-035-0
01
1
0601-
●
13
SPRING; ASSIST,CLU PEDAL
8-97036-041-0
01
1
0103-0109
●
13
SPRING; ASSIST,CLU PEDAL
8-97312-882-0
01
1
0110-
●
14
BRACKET ASM; CLU PEDAL MTG
8-94315-200-3
01
1
0103-
●
31
NUT; MTG BRKT TO BODY
M8 FLANGE
5-09440-005-0
04
1
0103-
●
32
NUT; BRKT TO CLU M/CYL
M8 FLANGE
0-91150-108-0
02
1
0103-0602
●
●
32
NUT; BRKT TO CLU M/CYL
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
40
PIN; JOINT,CLU DAMPER
8-94432-133-1
01
1
0103-
●
45
BUSHING; ASSIST SPRING,CLU PEDAL
8-94175-433-0
02
1
0103-
●
59
NUT; CLU PEDAL ADJ
M10
9-09110-410-0
01
1
0103-0512
●
59
NUT; CLU PEDAL ADJ
M10
0-91110-510-0
01
1
0601-
●
62
WASHER; LK,PIN TO PEDAL
ID=10.2
9-09150-510-0
01
1
0103-0208
●
112
PLUG; METAL,M/CYL
8-97259-210-0
01
1
0103-
●
122
BUSHING; ASSIST PEDAL,CLU
8-94175-434-0
01
1
0103-
●
