0-32B — WATER PIPING; ENGINE (#4188) — 47 parça

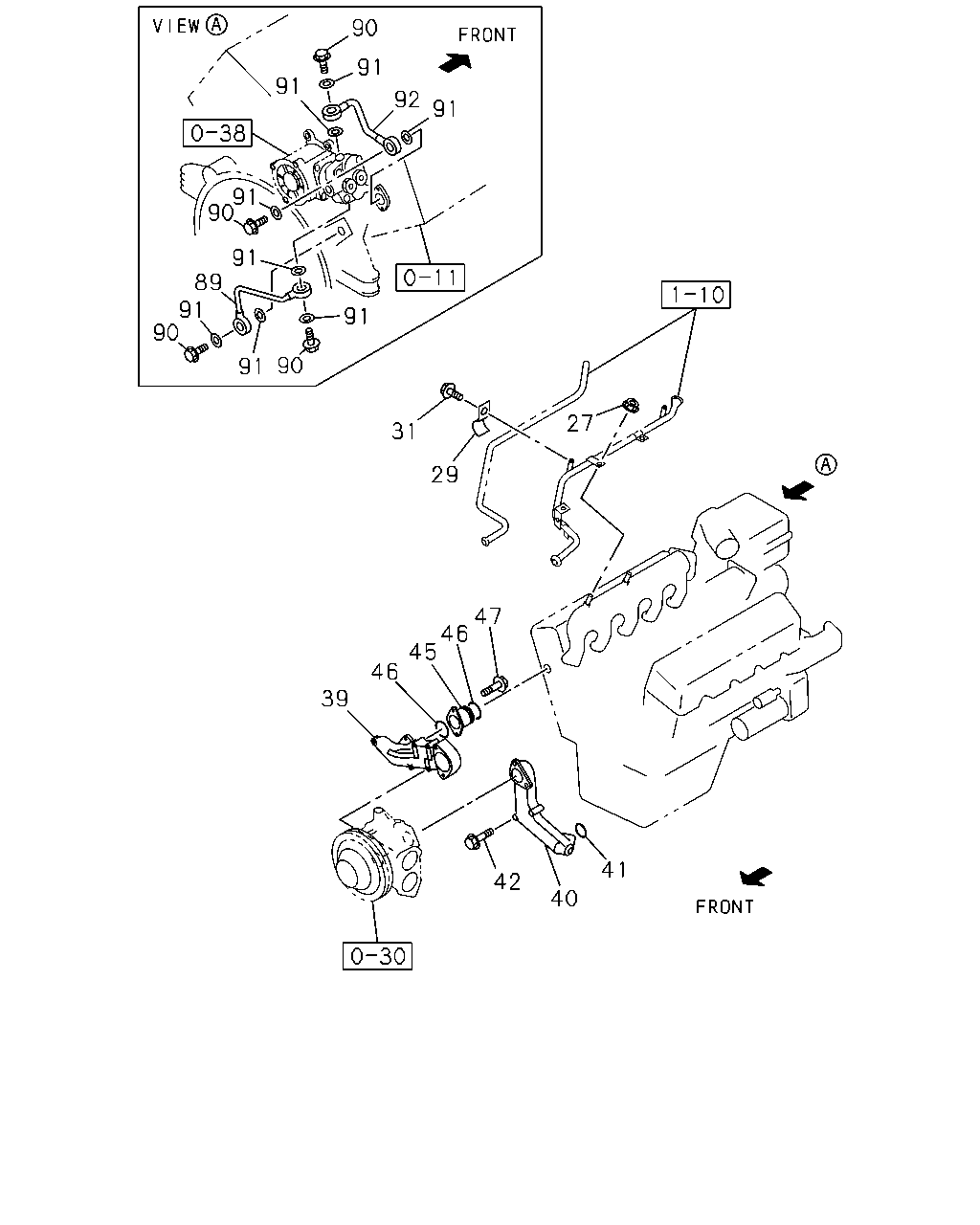

çizim 39523
90 91 91 92 91 38 91 90 91 11 89 91 90 1 10 91 90 91 27 31 29 47 46 45 46 39 41 42 40 30
BalonParca AdiParca NoAdetTipApplied Date A B C D
27 NUT; PIPE FIX
M8 FLANGE 		0-91150-108-0 02 1 9603-9901 ● ●
27 NUT; PIPE FIX
M8 FLANGE 		0-91150-108-0 02 1 9905- ● ● ● ●
29 CLIP; PIPE
ID=9.7 L=20 		1-09700-878-1 04 1 9603-9901 ● ●
29 CLIP; PIPE
ID=9.7 L=20 		1-09700-878-1 04 1 9905-0009 ● ● ● ●
29 CLIP; PIPE
ID=9.7 L=20 		1-09700-878-1 03 1 0010- ●
29 CLIP; PIPE
ID=9.7 L=20 		1-09700-878-1 04 1 0010- ● ● ●
31 BOLT; CLIP
M6X12 FLANGE 		0-28080-612-0 04 1 9603-9901 ● ●
31 BOLT; CLIP
M6X12 FLANGE 		0-28080-612-0 04 1 9905-0009 ● ● ● ●
31 BOLT; CLIP
M6X12 FLANGE 		0-28080-612-0 03 1 0010- ●
31 BOLT; CLIP
M6X12 FLANGE 		0-28080-612-0 04 1 0010- ● ● ●
39 DUCT ASM; WATER,PUMP OUT 1-13711-544-1 01 1 9603-9901 ● ●
39 DUCT ASM; WATER,PUMP OUT 1-13711-544-1 01 1 9905- ● ● ● ●
40 DUCT; WATER 1-13711-382-0 01 1 9603-9604 ● ●
40 DUCT; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13711-382-2 01 1 9605-9901 ● ●
40 DUCT; WATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13711-623-3 01 1 9605-9901 ● ●
40 DUCT; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13711-382-2 01 1 9905- ● ● ● ●
40 DUCT; WATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-13711-623-3 01 1 9905- ● ● ● ●
41 GASKET; WATER DUCT,PUMP OUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=52 		1-09623-425-0 01 1 9603-9901 ● ●
41 GASKET; WATER DUCT,PUMP OUT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=52 		1-09623-425-0 01 1 9905- ● ● ● ●
42 BOLT; DUCT,PUMP OUT
M10X30 FLANGE 		0-28181-030-0 04 1 9603-9901 ● ●
42 BOLT; DUCT,PUMP OUT
M10X30 FLANGE 		0-28181-030-0 04 1 9905- ● ● ● ●
45 DUCT; WATER,TO OIL COOLER 1-13711-381-2 01 1 9603-9901 ●
45 DUCT; WATER,TO OIL COOLER 1-13711-381-2 01 1 9905- ●
45 DUCT; WATER,TO OIL COOLER 1-13711-334-1 01 1 9603-9901 ●
45 DUCT; WATER,TO OIL COOLER 1-13711-334-1 01 1 9905- ● ● ●
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=52 		1-09623-425-0 02 1 9603-9901 ● ●
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=52 		1-09623-425-0 02 1 9905- ● ● ● ●
47 BOLT; DUCT,TO OIL COOLER
M10X25 FLANGE 		0-28081-025-0 02 1 9603-9901 ● ●
47 BOLT; DUCT,TO OIL COOLER
M10X25 FLANGE 		0-28081-025-0 02 1 9905- ● ● ● ●
89 PIPE; WATER,AIR CMPR,IN
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13721-223-0 01 1 9603-9901 ● ●
89 PIPE; WATER,AIR CMPR,IN
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13721-223-0 01 1 9905- ● ● ● ●
89 PIPE; WATER,AIR CMPR,IN
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13721-379-0 01 1 9603-9611 ●
89 PIPE; WATER,AIR CMPR,IN
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13721-379-0 01 1 9612-9901 ● ●
89 PIPE; WATER,AIR CMPR,IN
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13721-667-0 01 1 9905- ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT 		1-09675-193-0 04 1 9603-9901 ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT 		1-09675-193-0 04 1 9905-0004 ● ● ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT 		1-09675-193-0 04 1 0005- ● ● ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 08 1 9603-9901 ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 08 1 9905-9909 ● ● ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 08 1 9910-0001 ● ● ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 08 1 0002-0011 ● ● ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 08 1 0012- ● ● ● ●
92 PIPE; WATER,AIR CMPR,OUT
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13721-345-0 01 1 9603-9901 ● ●
92 PIPE; WATER,AIR CMPR,OUT
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13721-345-0 01 1 9905- ● ● ● ●
92 PIPE; WATER,AIR CMPR,OUT
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13721-376-0 01 1 9603-9611 ●
92 PIPE; WATER,AIR CMPR,OUT
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13721-376-0 01 1 9612-9901 ● ●
92 PIPE; WATER,AIR CMPR,OUT
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-13721-668-0 01 1 9905- ● ●
