1-41 — FUEL PIPING; CHASSIS
(#41877) — 25 parça
◀

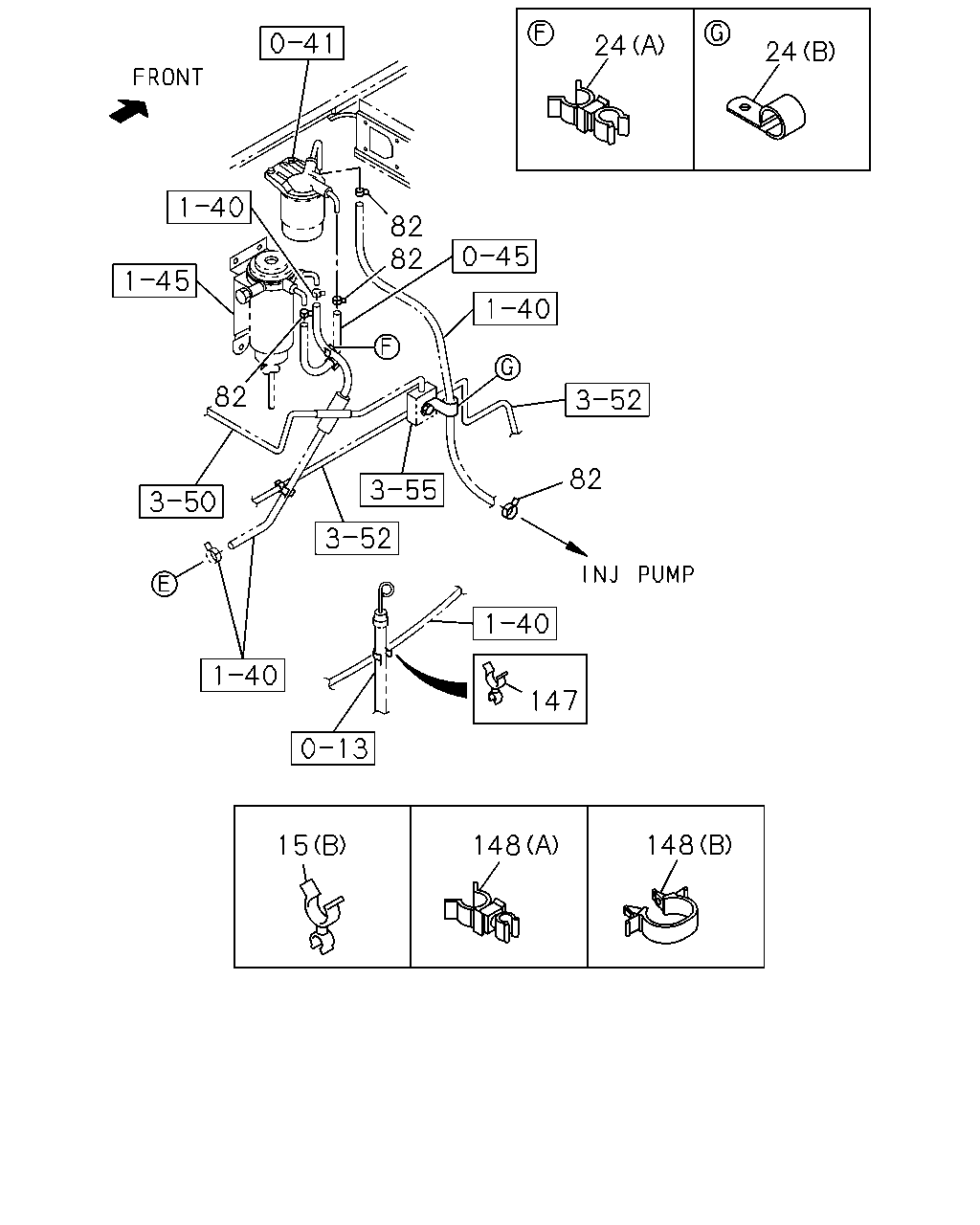

[141A] NO.2 (11 parça)
[141A] NO.1 (14 parça)
▶
24
24
82
82
82
82
147
148
15
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
CLIP; FUEL PIPE
(A)
8-94222-876-0
02
1
0103-
15
CLIP; FUEL PIPE
(B) ID=8 & 4.8
8-94430-297-0
01
1
0103-
24
CLIP; FUEL HOSE
(A) ID=13.2 & 14.5
8-94475-649-0
01
1
0103-
24
CLIP; FUEL HOSE
(B) ID=16 H=24 L=20
9-09527-015-0
01
1
0103-0606
24
CLIP; FUEL HOSE
ID=16 H=24 L=20
0-95207-315-0
01
1
0607-
82
CLIP; FUEL HOSE
ID=14
8-94238-572-0
04
1
0103-
147
CLIP; FUEL PIPE TO HOSE
A/T AISIN(RMD) ID=10 & 12
8-94155-296-0
01
1
0103-
147
CLIP; FUEL PIPE TO HOSE
M/T MSG 5 SPEED(M75) ID=10 & 12
8-94155-296-0
02
1
0103-
148
CLIP; HOSE,FUEL
(B) ID=20
8-94410-200-0
01
1
0103-
148
CLIP; HOSE,FUEL
A/T AISIN(RMD) (A) ID=14.5 & 6
8-94312-791-0
01
1
0103-
148
CLIP; HOSE,FUEL
M/T MSG 5 SPEED(M75) (A) ID=14.5 & 6
8-94312-791-0
02
1
0103-
306
289
306
393
135
393
47
147
45
210
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
CLIP; FUEL PIPE
(A)
8-94222-876-0
02
1
0103-
15
CLIP; FUEL PIPE
(B) ID=8 & 4.8
8-94430-297-0
01
1
0103-
45
PIPE; FUEL,DELIVERY
PHI
8-97975-979-2
01
1
0103-
47
PIPE; FUEL,RETURN
PHI
8-97975-978-2
01
1
0103-
135
HOSE; FUEL TANK TO FUEL PIPE
L=270 SERVICED BY L=3000
0-01258-300-0
01
1
0103-
147
CLIP; FUEL PIPE TO HOSE
A/T AISIN(RMD) ID=10 & 12
8-94155-296-0
01
1
0103-
147
CLIP; FUEL PIPE TO HOSE
M/T MSG 5 SPEED(M75) ID=10 & 12
8-94155-296-0
02
1
0103-
210
CLIP; FEED PIPE
8-97146-096-0
13
1
0103-
289
CLIP; BAND,HOSE
L=250
5-09707-030-1
03
1
0103-
306
HOSE; FUEL,FILTER
(B) PHI
8-97976-152-0
01
1
0103-
306
HOSE; FUEL,FILTER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (A) PHI
8-97976-517-0
01
1
0103-0110
306
HOSE; FUEL,FILTER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (A) PHI
8-97977-027-0
01
1
0111-
306
HOSE; FUEL,FILTER
GRADE XTRM(RBG) (A) PHI
8-97977-028-0
01
1
0111-
393
CLIP; HOSE,DELIVERY
ID=14
8-94238-572-0
02
1
0103-
