Isuzu WW
▶
AUV
▶
TBR
▶
50909 - TBR-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#41876) — 49 parça
◀

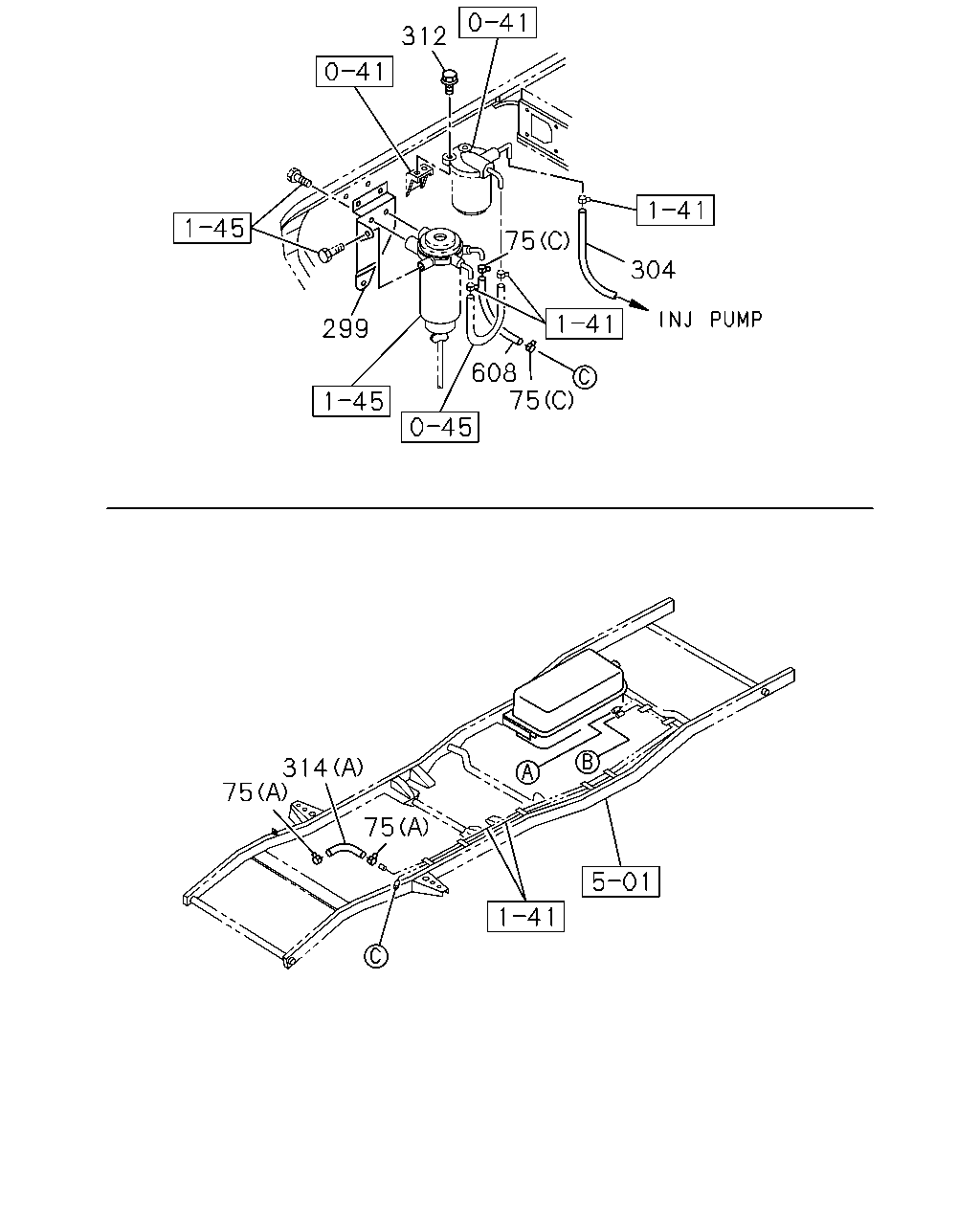

[140A] NO.2 (12 parça)

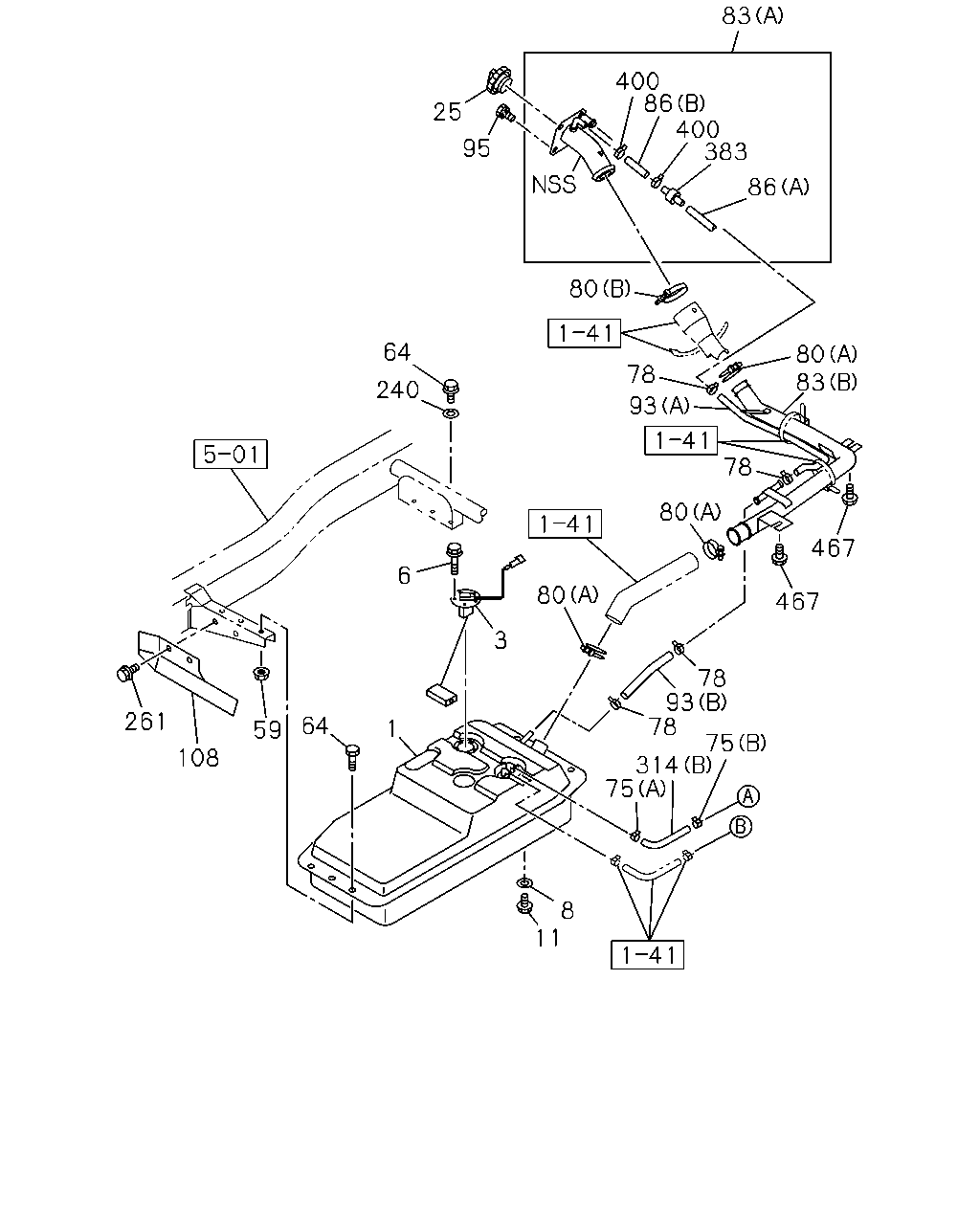

[140A] NO.1 (37 parça)
▶
312
75
304
299
608
75
314
75
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
75
CLIP; RUB HOSE
(A) ID=11
8-94238-570-0
03
1
0103-
75
CLIP; RUB HOSE
(B) ID=13
8-94238-571-0
01
1
0103-
75
CLIP; RUB HOSE
(C) ID=14
8-94238-572-0
02
1
0103-
299
BRACKET; FUEL FILTER
PHI
8-97976-158-0
01
1
0103-
304
HOSE; RUBBER,FUEL FILTER TO INJ PUMP
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) L=620
8-97307-277-0
01
1
0103-
304
HOSE; RUBBER,FUEL FILTER TO INJ PUMP
GRADE XTRM(RBG) L=650
8-97313-110-1
01
1
0111-
312
BOLT; FUEL FILTER CLAMP
M10X35 FLANGE
0-28681-035-0
02
1
0103-0512
312
BOLT; FUEL FILTER CLAMP
M10X35 FLANGE
0-28651-035-0
02
1
0601-
314
HOSE; RUBBER,FUEL RETURN
(B) L=230
8-94363-222-1
01
1
0103-
314
HOSE; RUBBER,FUEL RETURN
(A) L=510
8-97311-515-0
01
1
0103-
608
HOSE; RUBBER,PIPE TO FUEL FILTER
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) L=690
8-97306-697-0
01
1
0103-
608
HOSE; RUBBER,PIPE TO FUEL FILTER
GRADE XTRM(RBG) L=740
8-97306-698-1
01
1
0111-
83
400
86
400
383
25
95
86
80
64
80
83
78
240
93
78
80
467
6
80
467
3
78
93
78
261
64
1
59
75
314
75
108
8
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
IDN
8-97956-297-1
01
1
0103-0103
1
TANK; FUEL
PHI
8-97976-755-0
01
1
0103-
3
UNIT; FUEL TANK,SUB
8-97956-834-2
01
1
0103-
6
SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER
9-03910-510-0
05
1
0103-0604
6
SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER
0-36220-510-0
05
1
0605-
8
GASKET; DRAIN PLUG,FUEL TANK
IDN
9-09920-624-0
01
1
0103-
11
PLUG; DRAIN,FUEL TANK
M14X14 THA
8-94152-613-0
01
1
0103-
25
CAP; FILLER,FUEL TANK
8-94450-279-1
01
1
0103-0202
25
CAP; FILLER,FUEL TANK
8-94310-199-4
01
1
0203-
59
NUT; FUEL TANK
M8 FLANGE
8-94328-243-1
06
1
0103-
64
BOLT; FUEL TANK
M8X24
8-97034-130-1
06
1
0103-
75
CLIP; RUB HOSE
(A) ID=11
8-94238-570-0
03
1
0103-
75
CLIP; RUB HOSE
(B) ID=13
8-94238-571-0
01
1
0103-
75
CLIP; RUB HOSE
(C) ID=14
8-94238-572-0
02
1
0103-
78
CLIP; BREATHER HOSE
ID=16
8-94238-568-0
04
1
0103-
80
CLIP; FILLER HOSE
(A) ID=42 PHI
9-09915-042-1
03
1
0103-
80
CLIP; FILLER HOSE
(B) ID=60 PHI
9-09915-265-1
01
1
0103-
83
NECK; FUEL FILLER
(A)
8-97254-803-0
01
1
0103-
83
NECK; FUEL FILLER
(B) PHI
8-97956-838-2
01
1
0103-
86
HOSE; EVAP
(A) L=300 SERVICED BY L=3000
8-94128-826-0
01
1
0103-
86
HOSE; EVAP
(B) L=60 SERVICED BY L=3000
8-94128-826-0
01
1
0103-
93
HOSE; BREATHER,FUEL TANK
(A) L=680 SERVICED BY L=3000
0-01259-300-0
01
1
0103-
93
HOSE; BREATHER,FUEL TANK
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) (B) L=320 SERVICED BY L=3000
0-01259-300-0
01
1
0103-
93
HOSE; BREATHER,FUEL TANK
GRADE XTRM(RBG) (B) L=340
8-97314-006-0
01
1
0111-0401
93
HOSE; BREATHER,FUEL TANK
GRADE XTRM(RBG) (B) L=340 PHI
8-97977-337-0
01
1
0402-
95
SCREW; FILLER NECK
M6X16
8-94381-646-0
03
1
0103-
108
PROTECTOR; FUEL TANK
PHI
8-97975-405-0
01
1
0103-
240
WASHER; PL,FUEL TANK
ID=8.4 OD=22
9-09164-708-0
03
1
0103-0605
240
WASHER; PL,FUEL TANK
ID=8.4 OD=22
0-91614-708-0
03
1
0606-
261
BOLT; PROTECTOR
M8X20 FLANGE
0-28680-820-0
02
1
0103-0512
261
BOLT; PROTECTOR
M8X20 FLANGE
0-28650-820-0
02
1
0601-
314
HOSE; RUBBER,FUEL RETURN
(B) L=230
8-94363-222-1
01
1
0103-
314
HOSE; RUBBER,FUEL RETURN
(A) L=510
8-97311-515-0
01
1
0103-
383
VALVE; 2 WAY
8-97178-373-0
01
1
0103-
400
CLIP; HOSE,EVAP
ID=8.5
8-94166-071-0
02
1
0103-
467
BOLT
M8X25
8-97091-076-0
02
1
0103-0203
467
BOLT
M8X25
8-97327-634-0
02
1
0204-
