Isuzu WW
▶
AUV
▶
TBR
▶
50909 - TBR-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶

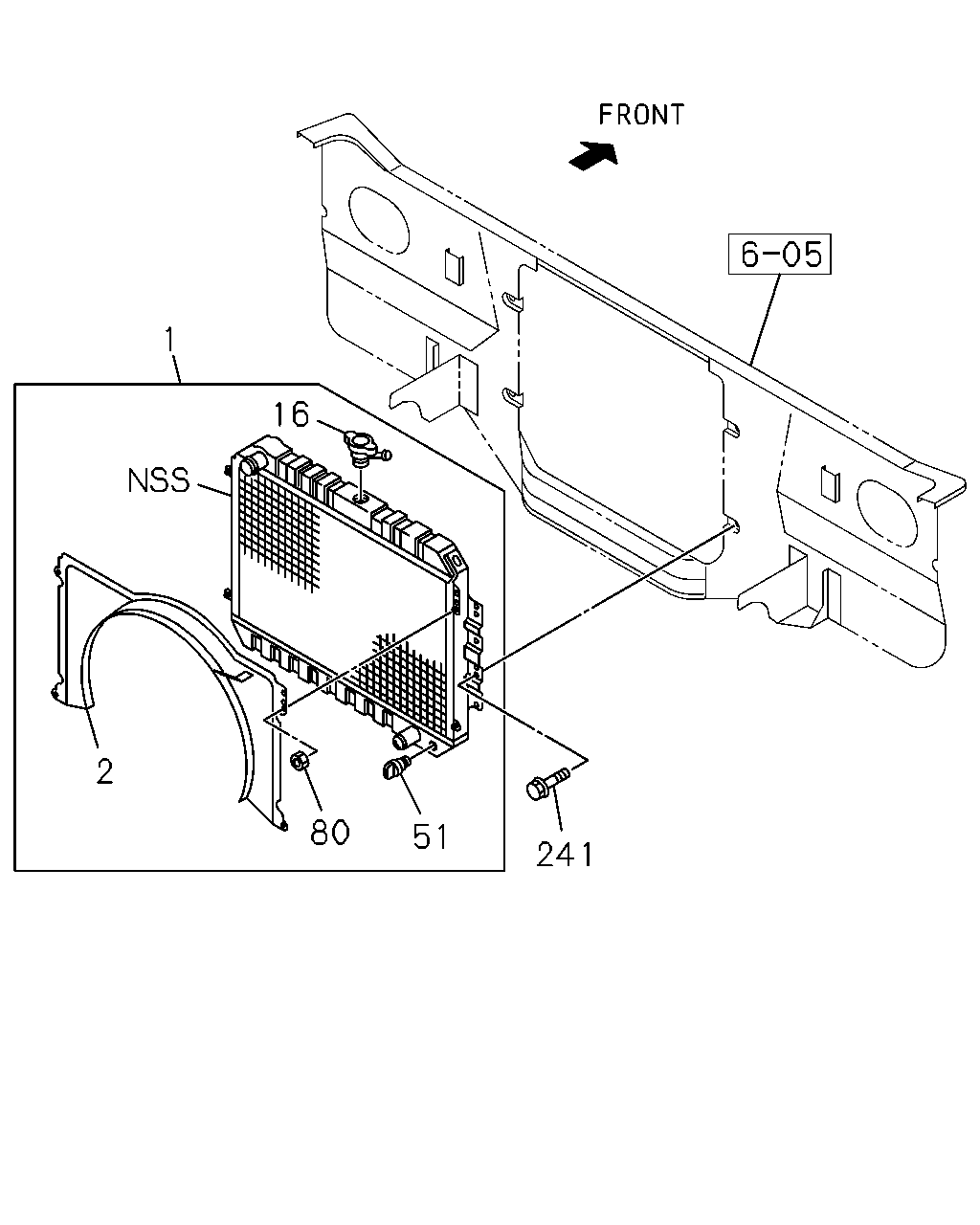

1-10 — RADIATOR
(#41872) — 16 parça
1
16
2
80
51
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
A/T AISIN(RMD) GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) PHI
8-97288-590-0
01
1
0103-0407
1
RADIATOR ASM
A/T AISIN(RMD) GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) PHI
8-97562-593-0
01
1
0408-
1
RADIATOR ASM
A/T AISIN(RMD) GRADE XTRM(RBG) PHI
8-97302-188-0
01
1
0111-0407
1
RADIATOR ASM
A/T AISIN(RMD) GRADE XTRM(RBG) PHI
8-97562-591-0
01
1
0408-
1
RADIATOR ASM
M/T MSG 5 SPEED(M75) GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) PHI
8-97288-583-0
01
1
0103-0407
1
RADIATOR ASM
M/T MSG 5 SPEED(M75) GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) PHI
8-97562-592-0
01
1
0408-
1
RADIATOR ASM
M/T MSG 5 SPEED(M75) GRADE XTRM(RBG) PHI
8-97302-187-1
01
1
0111-0407
1
RADIATOR ASM
M/T MSG 5 SPEED(M75) GRADE XTRM(RBG) PHI
8-97562-590-0
01
1
0408-
2
GUIDE; FAN
A/T AISIN(RMD) GRADE XTRM(RBG) PHI
8-97302-189-0
01
1
0111-
2
GUIDE; FAN
GRADE XL(RBA),GRADE XT(RBB),GRADE XTO(RBD) PHI
8-97288-584-0
01
1
0103-
2
GUIDE; FAN
M/T MSG 5 SPEED(M75) GRADE XTRM(RBG) PHI
8-97959-485-0
01
1
0111-
16
CAP; RAD
PHI
8-97300-187-0
01
1
0103-
51
PLUG; DRAIN
PHI
8-97300-188-0
01
1
0103-
80
BOLT; FAN GUIDE
PHI
8-97288-585-0
04
1
0103-
241
BOLT; RAD TO BODY
M8X12 FLANGE
0-28080-812-0
04
1
0103-0512
241
BOLT; RAD TO BODY
M8X12 FLANGE
0-28050-812-0
04
1
0601-
