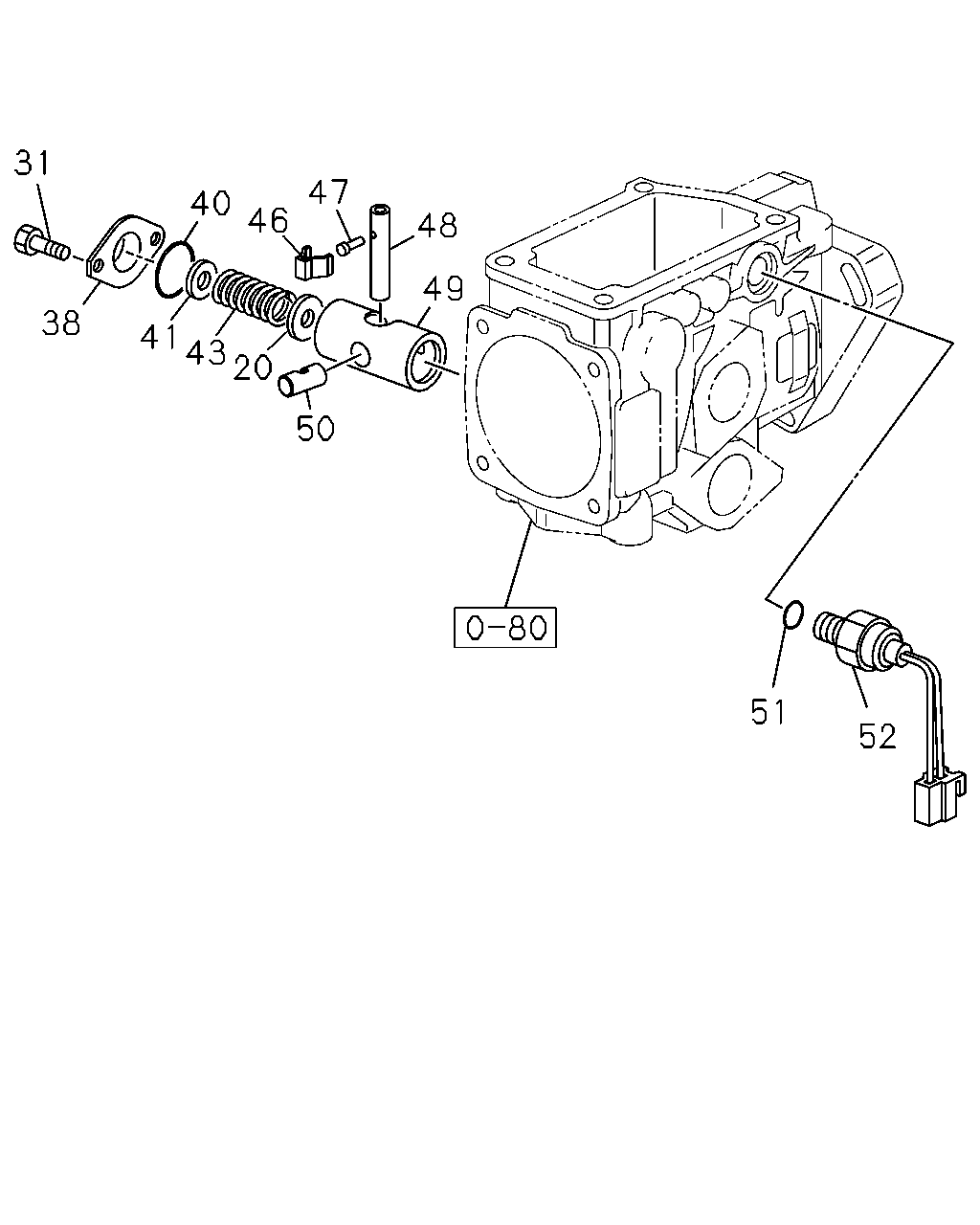

20 |
SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.60
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2,
C = 8-97300-207-1, D = 8-97300-208-1,
E = 8-97959-008-1, F = 8-97959-009-1
|
8-94227-495-0 |
01 |
1 |
- |
| |
31 |
SCREW; TIMER COVER,INJ PUMP
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2,
C = 8-97300-207-1, D = 8-97300-208-1,
E = 8-97959-008-1, F = 8-97959-009-1
|
8-94313-276-0 |
02 |
1 |
- |
| |
38 |
COVER; TIMER,INJ PUMP
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2,
C = 8-97300-207-1, D = 8-97300-208-1,
E = 8-97959-008-1, F = 8-97959-009-1
|
8-94473-120-0 |
01 |
1 |
- |
| |
40 |
GASKET; TIMER COVER,INJ PUMP
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2,
C = 8-97300-207-1, D = 8-97300-208-1,
E = 8-97959-008-1, F = 8-97959-009-1
|
8-94227-491-0 |
01 |
1 |
- |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=2.40
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2,
C = 8-97300-207-1, D = 8-97300-208-1,
E = 8-97959-008-1, F = 8-97959-009-1
|
8-94121-620-0 |
AR |
1 |
- |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.60
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2,
C = 8-97300-207-1, D = 8-97300-208-1,
E = 8-97959-008-1, F = 8-97959-009-1
|
8-94227-495-0 |
AR |
1 |
- |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.70
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2,
C = 8-97300-207-1, D = 8-97300-208-1,
E = 8-97959-008-1, F = 8-97959-009-1
|
8-94227-496-0 |
AR |
1 |
- |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.90
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2,
C = 8-97300-207-1, D = 8-97300-208-1,
E = 8-97959-008-1, F = 8-97959-009-1
|
8-94227-497-0 |
AR |
1 |
- |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=1.00
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2,
C = 8-97300-207-1, D = 8-97300-208-1,
E = 8-97959-008-1, F = 8-97959-009-1
|
8-94227-498-0 |
AR |
1 |
- |
| |
41 |
SHIM; OUTER SPRING,TIMER,INJ PUMP
T=1.20
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2,
C = 8-97300-207-1, D = 8-97300-208-1,
E = 8-97959-008-1, F = 8-97959-009-1
|
8-94227-499-0 |
AR |
1 |
- |
| |
43 |
SPRING; PISTON,TIMER,INJ PUMP
L=35.7 EFFECT TURN=5.1
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2,
C = 8-97300-207-1, D = 8-97300-208-1,
E = 8-97959-008-1, F = 8-97959-009-1
|
8-94313-200-0 |
01 |
1 |
- |
| |
43 |
SPRING; PISTON,TIMER,INJ PUMP
L=35.5 EFFECT TURN=4.9
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2,
C = 8-97300-207-1, D = 8-97300-208-1
|
8-94313-227-0 |
01 |
1 |
- |
| |
43 |
SPRING; PISTON,TIMER,INJ PUMP
L=35.6 EFFECT TURN=5.4
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2,
C = 8-97300-207-1, D = 8-97300-208-1,
E = 8-97959-008-1, F = 8-97959-009-1
|
8-94313-241-0 |
01 |
1 |
- |
| |
43 |
SPRING; PISTON,TIMER,INJ PUMP
L=35.8 EFFECT TURN=5.7
ASM PART: E = 8-97959-008-1, F = 8-97959-009-1
|
8-94386-591-0 |
01 |
1 |
- |
| |
46 |
CLIP; HOLDER PIN,TIMER,INJ PUMP
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2,
C = 8-97300-207-1, D = 8-97300-208-1,
E = 8-97959-008-1, F = 8-97959-009-1
|
8-94227-488-0 |
01 |
1 |
- |
| |
47 |
PIN; HOLDER PIN,TIMER,INJ PUMP
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2,
C = 8-97300-207-1, D = 8-97300-208-1,
E = 8-97959-008-1, F = 8-97959-009-1
|
8-94227-487-0 |
01 |
1 |
- |
| |
48 |
PIN; ROLLER HOLDER,TIMER,INJ PUMP
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2,
C = 8-97300-207-1, D = 8-97300-208-1,
E = 8-97959-008-1, F = 8-97959-009-1
|
8-94227-486-0 |
01 |
1 |
- |
| |
49 |
PISTON; TIMER,INJ PUMP
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2,
C = 8-97300-207-1, D = 8-97300-208-1
|
8-97119-169-0 |
01 |
1 |
- |
| |
49 |
PISTON; TIMER,INJ PUMP
ASM PART: E = 8-97959-008-1, F = 8-97959-009-1
|
8-97144-351-0 |
01 |
1 |
- |
| |
50 |
SLIDER; TIMER PISTON,INJ PUMP
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2,
C = 8-97300-207-1, D = 8-97300-208-1,
E = 8-97959-008-1, F = 8-97959-009-1
|
8-94227-493-0 |
01 |
1 |
- |
| |
51 |
GASKET; TIMING SENSOR,INJ PUMP
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2,
D = 8-97300-208-1, F = 8-97959-009-1
|
8-94227-671-0 |
01 |
1 |
- |
| |
52 |
SENSOR; TIMING,TACHOMETER,INJ PUMP
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2,
D = 8-97300-208-1, F = 8-97959-009-1
|
8-94403-289-1 |
01 |
1 |
- |
