0-84 — FEED PUMP; INJECTION PUMP (#41868) — 7 parça

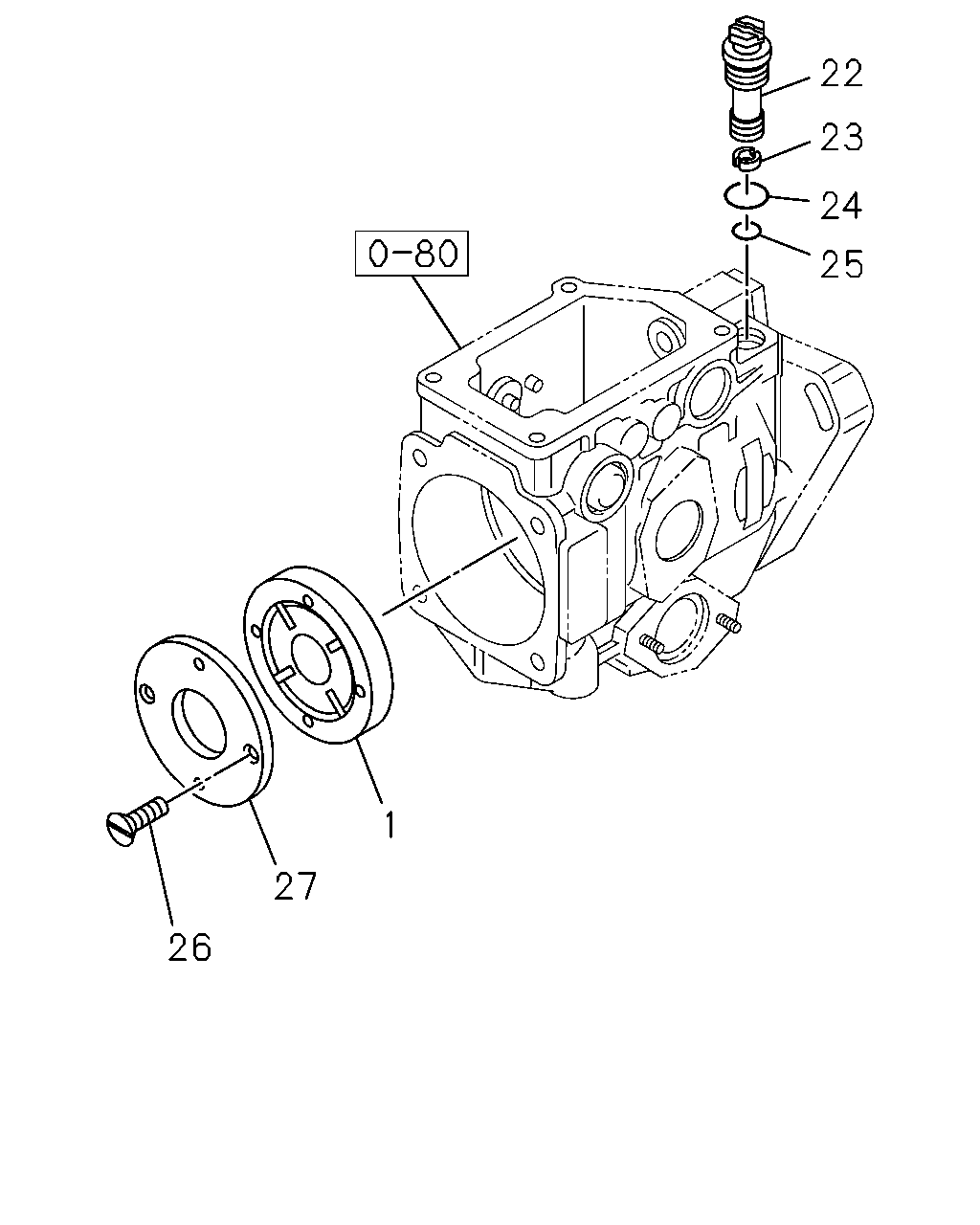

çizim 48081
22 23 24 25 1 27 26
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1 		8-94227-477-0 01 1 -
22 VALVE; REGULATING,INJ PUMP
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1 		8-94454-253-0 01 1 -
23 RING; SPRING,REGULATING VLV,INJ PUMP
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1 		8-94227-643-0 01 1 -
24 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1 		8-94227-641-0 01 1 -
25 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1 		8-94227-640-0 01 1 -
26 SCREW; COVER FIX,FUEL FEED PUMP
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1 		8-94227-479-0 02 1 -
27 COVER; FUEL FEED PUMP
ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1 		8-94227-478-0 01 1 -
