Sayfa 0-81 - Isuzu EPC

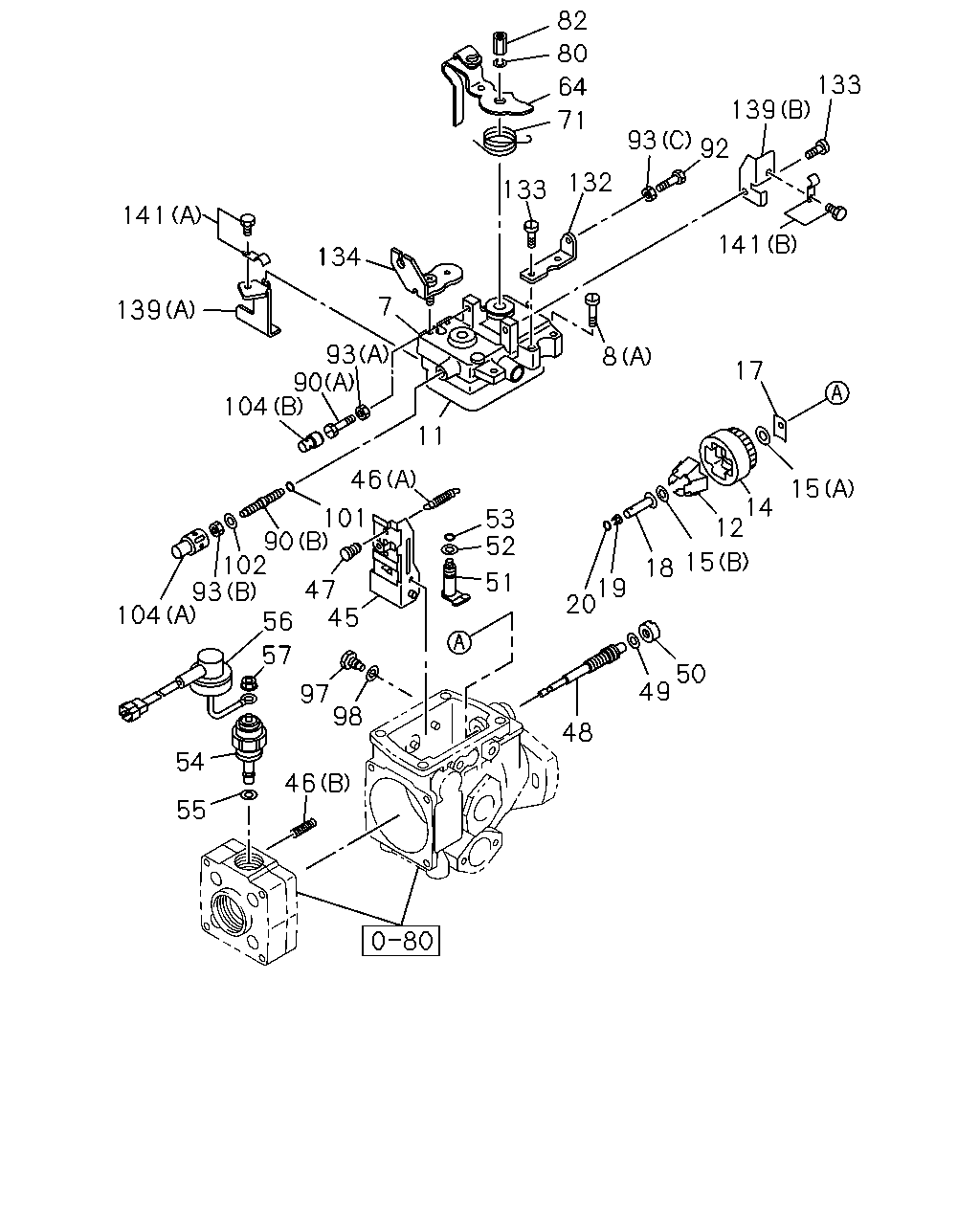

0-81 — GOVERNOR; INJECTION PUMP (#41866) — 254 parça

82 80 64 71 133 139 93 92 132 133 141 141 134 7 139 8 93 90 104 17 11 46 101 90 102 93 47 104 56 45 57 97 98 48 46 15 14 12 18 15 53 52 51 19 20 50 49 54 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	COVER; GOV HSG,INJ PUMP ASM PART: B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94316-269-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97191-860-2	8-97119-171-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: B = 8-97259-883-2	8-94227-636-0	03	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: A = 8-97191-860-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-636-0	04	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: B = 8-97259-883-2	8-94242-298-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97136-413-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94228-403-0	01	1	-
14	HOLDER; GOV FLYWEIGHT,INJ PUMP ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-613-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (A) ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-612-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (B) ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-614-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-607-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-608-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-609-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-610-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-611-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.15 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94231-123-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.35 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94231-124-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94231-125-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94231-126-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97214-475-0	01	1	-
19	CAP; GOV SLEEVE,INJ PUMP ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-519-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94372-499-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94372-500-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94372-501-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94372-502-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.10 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-520-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.30 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-521-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.50 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-522-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.70 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-523-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.90 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-524-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-525-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-526-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-527-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-528-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-529-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-530-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-531-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-532-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-533-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-534-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-535-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.20 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-868-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.40 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-869-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.60 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-870-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.80 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-871-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-872-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-873-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-874-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-875-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-876-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-877-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-878-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-879-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-880-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-881-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-882-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.60 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97163-167-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.70 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97163-168-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.80 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97163-169-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.90 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97163-170-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-97191-860-2	8-97173-748-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: E = 8-97959-008-1, F = 8-97959-009-1	8-97211-762-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: B = 8-97259-883-2	8-97211-768-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: C = 8-97300-207-1, D = 8-97300-208-1	8-97319-502-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94473-128-0	02	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97077-837-0	01	1	-
47	PIN; RET ASM PART: B = 8-97259-883-2	8-97096-706-0	01	1	-
47	PIN; RET ASM PART: C = 8-97300-207-1, D = 8-97300-208-1	8-97096-706-0	01	1	-0409
47	PIN; RET ASM PART: C = 8-97300-207-1, D = 8-97300-208-1	8-97223-413-0	01	1	0410-
47	PIN; RET ASM PART: E = 8-97959-008-1, F = 8-97959-009-1	8-97223-413-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94248-002-0	01	1	-
49	GASKET; GOV SHAFT,INJ PUMP ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-606-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94473-129-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94174-807-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97191-860-2	8-97119-180-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-590-0	01	1	-
53	GASKET; CONT SHAFT,GOV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-585-0	01	1	-
54	VALVE; MAG,ENG STOP,INJ PUMP ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94242-275-0	01	1	-
55	GASKET; MAG VLV,INJ PUMP ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94239-373-0	01	1	-
56	WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94470-582-0	01	1	-
57	NUT; VLV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97138-042-1	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 126 ASM PART: B = 8-97259-883-2	8-97139-479-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 127 ASM PART: B = 8-97259-883-2	8-97139-480-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 126 ASM PART: A = 8-97191-860-2	8-97166-957-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 127 ASM PART: A = 8-97191-860-2	8-97166-958-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 257 ASM PART: B = 8-97259-883-2	8-97314-672-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 258 ASM PART: B = 8-97259-883-2	8-97314-673-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 269 ASM PART: C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97317-176-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 270 ASM PART: C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97317-177-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 271 ASM PART: C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97317-178-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 272 ASM PART: C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97317-179-0	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97317-180-0	01	1	-
80	WASHER; LK,CONT LEVER,GOV ID=6.1 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	9-09150-506-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 8-97191-860-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	1-15729-006-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: B = 8-97259-883-2	8-97086-138-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=53.0 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94316-274-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=55.0 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94316-275-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=57.0 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94316-276-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A) ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94426-049-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94426-049-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	1-15729-006-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94316-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94426-047-1	01	1	-
97	BOLT; PIVOT,GOV LEVER ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-601-0	02	1	-
98	GASKET; PIVOT BOLT,GOV LEVER ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-602-0	02	1	-
101	GASKET; ADJ SPRING CAPSULE,GOV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-598-0	01	1	-
102	WASHER; FULL LOAD ADJ SCREW,GOV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-593-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A), L=16.5 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94316-262-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=18.0 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94316-263-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=21.0 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94316-264-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=24.0 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94316-265-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=27.0 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94316-266-0	01	1	-
132	BRACKET; ADJ SCREW,GOV ASM PART: A = 8-97191-860-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94457-165-0	01	1	-
132	BRACKET; ADJ SCREW,GOV ASM PART: B = 8-97259-883-2	8-97166-973-0	01	1	-
133	BOLT; BRKT FIX,GOV M6X12 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2	8-94313-267-0	02	1	-
133	BOLT; BRKT FIX,GOV M6X12 ASM PART: C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94313-267-0	03	1	-
134	BRACKET; CONT CABLE,GOV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97126-371-0	01	1	-
139	BRACKET; INJ PUMP (A) ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94313-665-0	01	1	-
139	BRACKET; INJ PUMP (B) ASM PART: C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94457-164-0	01	1	-
139	BRACKET; INJ PUMP (B) ASM PART: B = 8-97259-883-2	8-97182-234-0	01	1	-
141	PLATE ASM; PIPE BRKT (A) ASM PART: C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94174-822-0	01	1	-
141	PLATE ASM; PIPE BRKT (B) ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94454-254-0	01	1	-

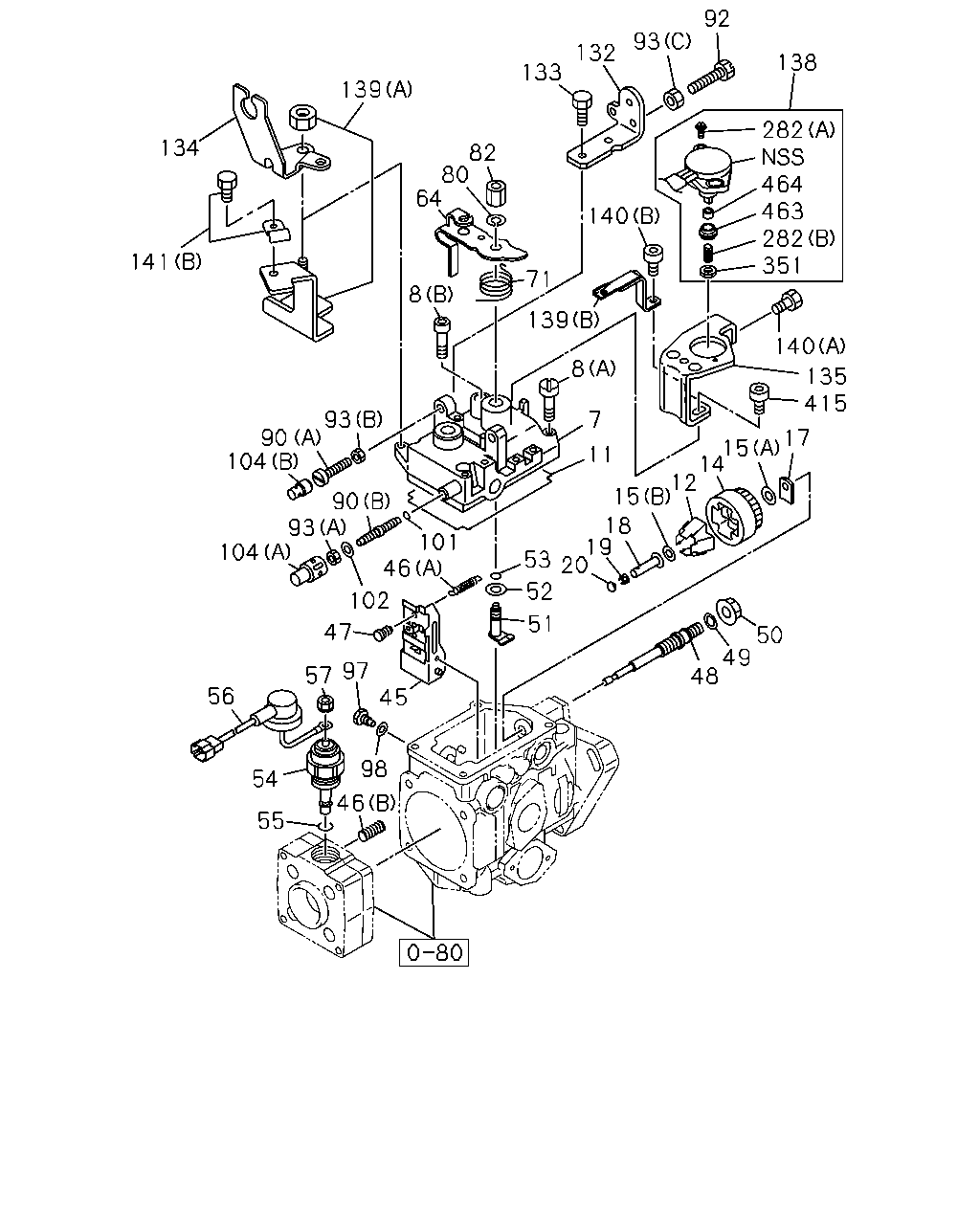

92 93 132 133 138 139 282 464 463 282 351 134 82 80 64 140 141 71 139 8 140 135 415 8 93 90 104 7 17 15 14 12 15 18 101 19 53 46 20 52 102 51 47 11 90 93 104 50 49 48 57 97 45 98 46 56 54 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	COVER; GOV HSG,INJ PUMP ASM PART: B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94316-269-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97191-860-2	8-97119-171-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: B = 8-97259-883-2	8-94227-636-0	03	1	-
8	BOLT; GOV COVER,INJ PUMP (A) ASM PART: A = 8-97191-860-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-636-0	04	1	-
8	BOLT; GOV COVER,INJ PUMP (B) ASM PART: B = 8-97259-883-2	8-94242-298-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97136-413-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94228-403-0	01	1	-
14	HOLDER; GOV FLYWEIGHT,INJ PUMP ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-613-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (A) ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-612-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV (B) ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-614-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-607-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-608-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-609-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-610-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-611-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.15 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94231-123-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.35 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94231-124-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94231-125-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94231-126-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97214-475-0	01	1	-
19	CAP; GOV SLEEVE,INJ PUMP ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-519-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94372-499-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94372-500-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94372-501-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94372-502-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.10 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-520-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.30 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-521-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.50 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-522-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.70 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-523-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.90 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-524-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-525-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-526-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-527-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-528-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-529-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-530-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-531-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-532-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-533-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-534-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94408-535-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.20 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-868-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.40 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-869-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.60 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-870-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=2.80 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-871-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-872-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-873-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-874-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-875-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-876-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-877-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-878-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-879-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-880-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-881-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94428-882-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.60 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97163-167-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.70 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97163-168-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.80 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97163-169-0	01	1	-
20	PLUG; CLOSING,GOV SLEEVE L=5.90 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97163-170-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-97191-860-2	8-97173-748-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: E = 8-97959-008-1, F = 8-97959-009-1	8-97211-762-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: B = 8-97259-883-2	8-97211-768-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: C = 8-97300-207-1, D = 8-97300-208-1	8-97319-502-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94473-128-0	02	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97077-837-0	01	1	-
47	PIN; RET ASM PART: B = 8-97259-883-2	8-97096-706-0	01	1	-
47	PIN; RET ASM PART: C = 8-97300-207-1, D = 8-97300-208-1	8-97096-706-0	01	1	-0409
47	PIN; RET ASM PART: C = 8-97300-207-1, D = 8-97300-208-1	8-97223-413-0	01	1	0410-
47	PIN; RET ASM PART: E = 8-97959-008-1, F = 8-97959-009-1	8-97223-413-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94248-002-0	01	1	-
49	GASKET; GOV SHAFT,INJ PUMP ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-606-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94473-129-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94174-807-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97191-860-2	8-97119-180-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-590-0	01	1	-
53	GASKET; CONT SHAFT,GOV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-585-0	01	1	-
54	VALVE; MAG,ENG STOP,INJ PUMP ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94242-275-0	01	1	-
55	GASKET; MAG VLV,INJ PUMP ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94239-373-0	01	1	-
56	WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94470-582-0	01	1	-
57	NUT; VLV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97138-042-1	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 126 ASM PART: B = 8-97259-883-2	8-97139-479-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 127 ASM PART: B = 8-97259-883-2	8-97139-480-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 126 ASM PART: A = 8-97191-860-2	8-97166-957-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 127 ASM PART: A = 8-97191-860-2	8-97166-958-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 257 ASM PART: B = 8-97259-883-2	8-97314-672-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 258 ASM PART: B = 8-97259-883-2	8-97314-673-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 269 ASM PART: C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97317-176-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 270 ASM PART: C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97317-177-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 271 ASM PART: C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97317-178-0	01	1	-
64	LEVER; LOAD CONT,GOV STAMP 272 ASM PART: C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97317-179-0	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97317-180-0	01	1	-
80	WASHER; LK,CONT LEVER,GOV ID=6.1 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	9-09150-506-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 8-97191-860-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	1-15729-006-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: B = 8-97259-883-2	8-97086-138-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=53.0 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94316-274-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=55.0 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94316-275-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B), L=57.0 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94316-276-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A) ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94426-049-0	01	1	-
92	BOLT; FULL LOAD STOPPER,GOV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94426-049-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	1-15729-006-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94316-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94426-047-1	01	1	-
97	BOLT; PIVOT,GOV LEVER ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-601-0	02	1	-
98	GASKET; PIVOT BOLT,GOV LEVER ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-602-0	02	1	-
101	GASKET; ADJ SPRING CAPSULE,GOV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-598-0	01	1	-
102	WASHER; FULL LOAD ADJ SCREW,GOV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94227-593-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (A), L=16.5 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94316-262-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=18.0 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94316-263-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=21.0 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94316-264-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=24.0 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94316-265-0	01	1	-
104	CAP; LOCK NUT,ADJ SCREW (B), L=27.0 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94316-266-0	01	1	-
132	BRACKET; ADJ SCREW,GOV ASM PART: A = 8-97191-860-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94457-165-0	01	1	-
132	BRACKET; ADJ SCREW,GOV ASM PART: B = 8-97259-883-2	8-97166-973-0	01	1	-
133	BOLT; BRKT FIX,GOV M6X12 ASM PART: A = 8-97191-860-2, B = 8-97259-883-2	8-94313-267-0	02	1	-
133	BOLT; BRKT FIX,GOV M6X12 ASM PART: C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94313-267-0	03	1	-
134	BRACKET; CONT CABLE,GOV ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-97126-371-0	01	1	-
135	BRACKET; POTENTIO METER ASM PART: B = 8-97259-883-2	8-97119-175-0	01	1	-
138	POTENTIO METER ASM PART: B = 8-97259-883-2	8-97173-749-0	01	1	-
139	BRACKET; INJ PUMP (A) ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94313-665-0	01	1	-
139	BRACKET; INJ PUMP (B) ASM PART: C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94457-164-0	01	1	-
139	BRACKET; INJ PUMP (B) ASM PART: B = 8-97259-883-2	8-97182-234-0	01	1	-
140	BOLT; BRKT,INJ PUMP (A) ASM PART: B = 8-97259-883-2	8-94313-203-0	01	1	-
140	BOLT; BRKT,INJ PUMP (B) ASM PART: B = 8-97259-883-2	8-97132-899-0	01	1	-
141	PLATE ASM; PIPE BRKT (A) ASM PART: C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94174-822-0	01	1	-
141	PLATE ASM; PIPE BRKT (B) ASM PART: A = 8-97191-860-2, B = 8-97259-883-2, C = 8-97300-207-1, D = 8-97300-208-1, E = 8-97959-008-1, F = 8-97959-009-1	8-94454-254-0	01	1	-
282	SCREW; POTENTIO METER (A) ASM PART: B = 8-97259-883-2	8-97148-143-0	02	1	-
282	SCREW; POTENTIO METER (B) ASM PART: B = 8-97259-883-2	8-97173-771-0	01	1	-
351	NUT; SCREW ASM PART: B = 8-97259-883-2	8-97173-772-0	01	1	-
415	BOLT; BRKT TO HOUSING ASM PART: B = 8-97259-883-2	1-09054-038-0	01	1	-
463	BOOT; POTENTIO METER ASM PART: B = 8-97259-883-2	8-97173-775-0	01	1	-
464	JOINT; POTENTIO METER ASM PART: B = 8-97259-883-2	8-97173-773-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
