0-52 — OIL AND VACUUM PIPING; ENGINE (#41861) — 75 parça

70 27 27 539 79 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; OIL PIPE FIX TURBOCHARGER<K51> M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	0103-0211
27	BOLT; OIL PIPE FIX TURBOCHARGER<K51> M6X20 W/LK&PL WASHER	0-50640-620-0	02	1	0212-
28	GASKET; OIL PIPE (B) ID=11 THA	5-09623-002-0	02	1	0103-
28	GASKET; OIL PIPE TURBOCHARGER<K51> (A) THA	8-97250-016-0	01	1	0103-
70	GASKET; OIL PIPE,TURBOCHARGER TURBOCHARGER<K51> THA	8-94362-672-1	01	1	0103-
79	NUT; OIL DRAIN PIPE TURBOCHARGER<K51> M8 FLANGE	5-09440-005-0	02	1	0103-0409
79	NUT; OIL DRAIN PIPE TURBOCHARGER<K51> M8 FLANGE PHI	8-97943-102-0	02	1	0410-
539	PIPE; OIL,TURBOCHARGER DRAIN TURBOCHARGER<K51>	8-97162-108-0	01	1	0103-

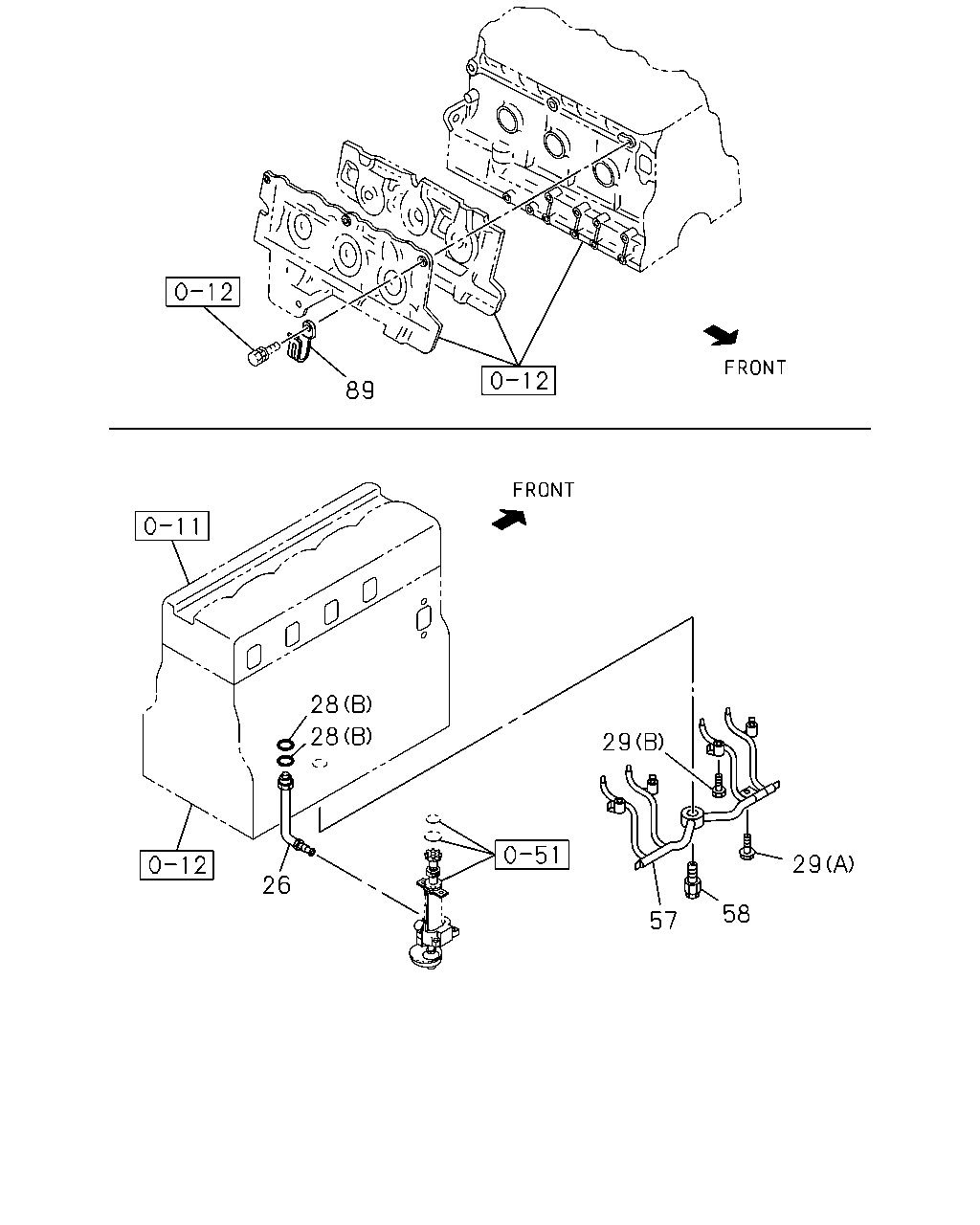

89 28 28 29 29 26 58 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	PIPE; OIL,PUMP TO C/BL THA	8-97235-800-0	01	1	0103-0308
26	PIPE; OIL,PUMP TO C/BL PHI	8-97920-470-0	01	1	0309-
28	GASKET; OIL PIPE (B) ID=11 THA	5-09623-002-0	02	1	0103-
28	GASKET; OIL PIPE TURBOCHARGER<K51> (A) THA	8-97250-016-0	01	1	0103-
29	BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	0103-0202
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE	0-28080-810-0	01	1	0203-0211
29	BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER	0-50540-812-0	01	1	0212-
29	BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	0103-0211
29	BOLT; OIL PIPE,OIL JET (B) M6X25 W/LK&PL WASHER	0-50640-625-0	04	1	0212-
57	PIPE; OIL,OIL JET THA	8-94469-992-2	01	1	0103-0308
57	PIPE; OIL,OIL JET THA	8-97912-536-2	01	1	0309-
58	VALVE; RELIEF,OIL JET,PISTON COOLING THA	8-97145-612-0	01	1	0103-
89	CLIP; VAC HOSE ID=12	5-09700-350-0	01	1	0103-

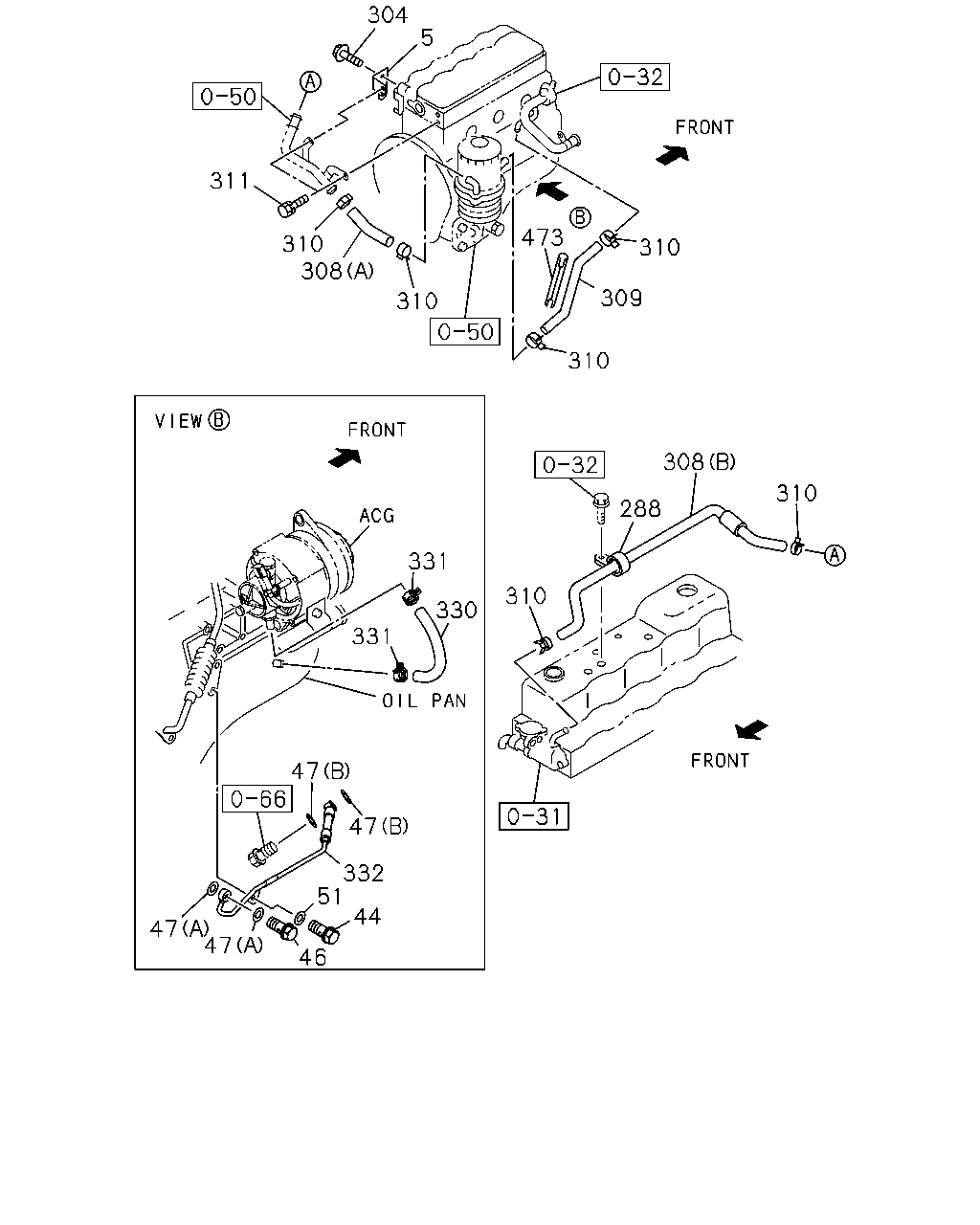

304 5 311 473 310 308 310 309 310 310 308 310 288 331 310 330 331 47 47 332 51 44 47 47 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	BRACKET; PIPE EXC. TURBOCHARGER<K51> THA	8-94453-529-2	01	1	0103-
44	BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	0-50040-816-0	01	1	0103-0211
44	BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	0-50540-816-0	01	1	0212-
46	BOLT; JOINT,OIL FEED PIPE,VAC PUMP M8X20 FLANGE THA	5-09675-018-1	01	1	0103-
47	GASKET; OIL PIPE (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0103-
47	GASKET; OIL PIPE (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0103-
51	WASHER; PL,OIL PIPE,VAC PUMP ID=8.4 OD=18	9-09164-608-0	01	1	0103-0605
51	WASHER; PL,OIL PIPE,VAC PUMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-
288	CLIP; HOSE,OIL COOLER EXC. TURBOCHARGER<K51> ID=22 L=32	1-09700-126-1	01	1	0103-
304	BOLT; BRKT,OIL PIPE EXC. TURBOCHARGER<K51> M8X20 FLANGE	0-28080-820-0	02	1	0103-0512
304	BOLT; BRKT,OIL PIPE EXC. TURBOCHARGER<K51> M8X20 FLANGE	0-28050-820-0	02	1	0601-
308	HOSE; OIL COOLER FEED TURBOCHARGER<K51> (C) THA	8-97043-720-1	01	1	0103-0211
308	HOSE; OIL COOLER FEED TURBOCHARGER<K51> (C) THA	8-97942-765-0	01	1	0212-
308	HOSE; OIL COOLER FEED TURBOCHARGER<K51> (D) THA	8-97213-918-0	01	1	0103-0211
308	HOSE; OIL COOLER FEED TURBOCHARGER<K51> (D) THA	8-97943-163-1	01	1	0212-
308	HOSE; OIL COOLER FEED EXC. TURBOCHARGER<K51> (A) L=220 THA	8-97119-575-1	01	1	0103-
308	HOSE; OIL COOLER FEED EXC. TURBOCHARGER<K51> (B) THA	8-97260-852-0	01	1	0103-
309	HOSE; OIL COOLER RETURN TURBOCHARGER<K51> THA	8-97213-919-2	01	1	0103-
309	HOSE; OIL COOLER RETURN EXC. TURBOCHARGER<K51> THA	8-97260-853-0	01	1	0103-
310	CLIP; WATER HOSE FIX ID=20.8	8-94125-862-1	06	1	0103-
311	BOLT; PIPE FIX M8X12 FLANGE	0-28080-812-0	02	1	0103-0211
311	BOLT; PIPE FIX M8X12 FLANGE	0-28050-812-0	02	1	0212-
330	HOSE; VAC PUMP,RETURN THA	8-97261-218-0	01	1	0103-
331	CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	0103-
332	PIPE; OIL,C/BL TO VAC PUMP THA	8-94437-668-1	01	1	0103-
473	INSULATOR; HOSE EXC. TURBOCHARGER<K51>	8-97102-426-0	01	1	0103-

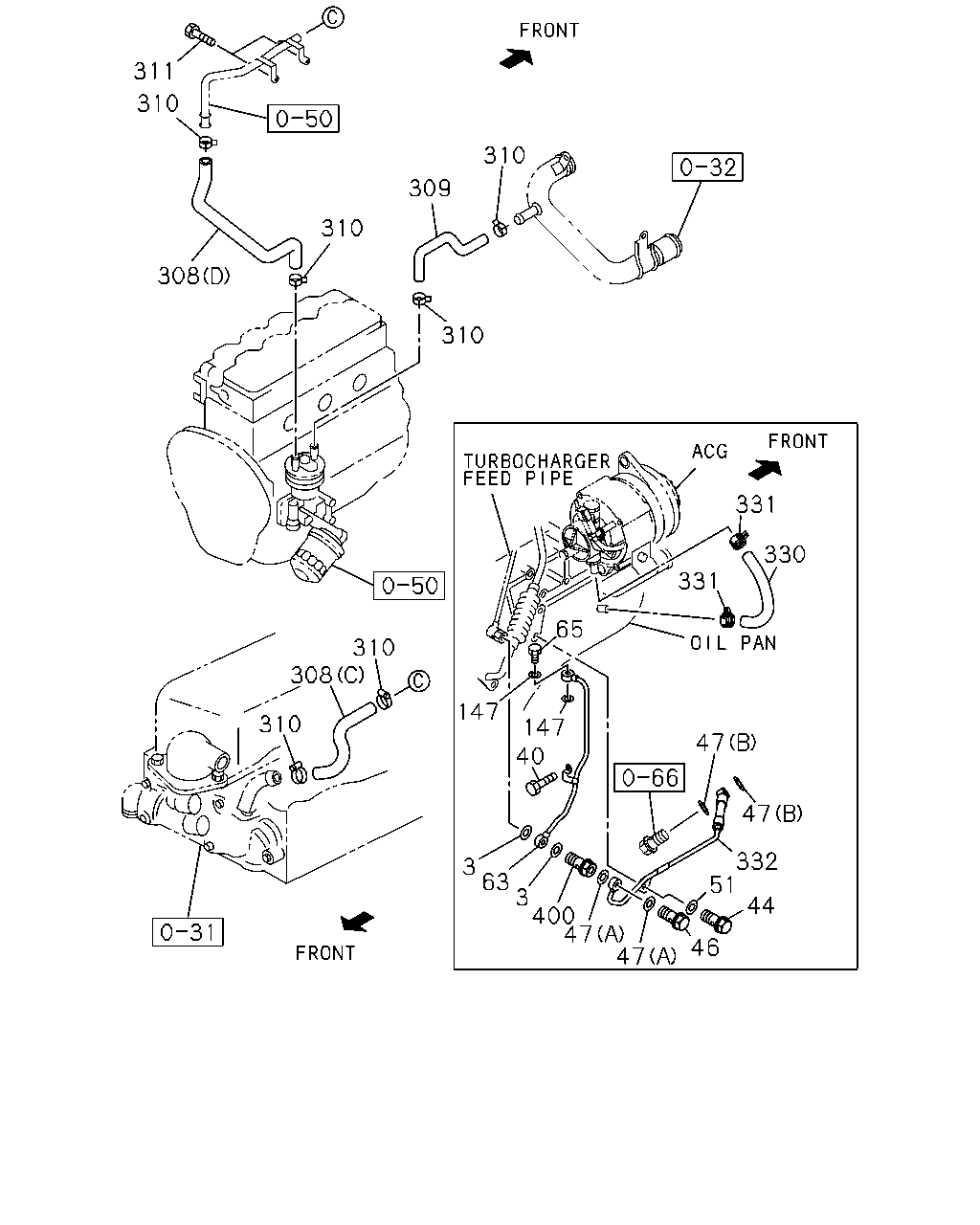

311 310 310 309 310 310 331 330 331 65 310 308 147 310 147 40 47 47 332 51 3 63 3 400 47 44 47 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	GASKET; EYE BOLT,OIL PIPE TURBOCHARGER<K51> ID=14.2 OD=20.0	9-09571-414-0	02	1	0103-
40	BOLT; OIL PIPE TURBOCHARGER<K51> M8X16 FLANGE	0-28480-816-0	01	1	0103-0409
40	BOLT; OIL PIPE TURBOCHARGER<K51> M8X16 FLANGE	0-28450-816-0	01	1	0410-
44	BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	0-50040-816-0	01	1	0103-0211
44	BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	0-50540-816-0	01	1	0212-
46	BOLT; JOINT,OIL FEED PIPE,VAC PUMP M8X20 FLANGE THA	5-09675-018-1	01	1	0103-
47	GASKET; OIL PIPE (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	0103-
47	GASKET; OIL PIPE (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0103-
51	WASHER; PL,OIL PIPE,VAC PUMP ID=8.4 OD=18	9-09164-608-0	01	1	0103-0605
51	WASHER; PL,OIL PIPE,VAC PUMP ID=8.4 OD=18	0-91614-608-0	01	1	0606-
63	PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER<K51>	8-97161-201-0	01	1	0103-
65	BOLT; JOINT,OIL PIPE TURBOCHARGER<K51> M10X27	8-94443-535-0	01	1	0103-
147	GASKET; OIL PIPE TO TURBOCHARGER TURBOCHARGER<K51> ID=10.2 OD=16.0	9-09571-410-0	02	1	0103-
308	HOSE; OIL COOLER FEED TURBOCHARGER<K51> (C) THA	8-97043-720-1	01	1	0103-0211
308	HOSE; OIL COOLER FEED TURBOCHARGER<K51> (C) THA	8-97942-765-0	01	1	0212-
308	HOSE; OIL COOLER FEED TURBOCHARGER<K51> (D) THA	8-97213-918-0	01	1	0103-0211
308	HOSE; OIL COOLER FEED TURBOCHARGER<K51> (D) THA	8-97943-163-1	01	1	0212-
308	HOSE; OIL COOLER FEED EXC. TURBOCHARGER<K51> (A) L=220 THA	8-97119-575-1	01	1	0103-
308	HOSE; OIL COOLER FEED EXC. TURBOCHARGER<K51> (B) THA	8-97260-852-0	01	1	0103-
309	HOSE; OIL COOLER RETURN TURBOCHARGER<K51> THA	8-97213-919-2	01	1	0103-
309	HOSE; OIL COOLER RETURN EXC. TURBOCHARGER<K51> THA	8-97260-853-0	01	1	0103-
310	CLIP; WATER HOSE FIX ID=20.8	8-94125-862-1	06	1	0103-
311	BOLT; PIPE FIX M8X12 FLANGE	0-28080-812-0	02	1	0103-0211
311	BOLT; PIPE FIX M8X12 FLANGE	0-28050-812-0	02	1	0212-
330	HOSE; VAC PUMP,RETURN THA	8-97261-218-0	01	1	0103-
331	CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	0103-
332	PIPE; OIL,C/BL TO VAC PUMP THA	8-94437-668-1	01	1	0103-
400	NIPPLE; VAC PUMP,OIL TURBOCHARGER<K51> M14X25	8-94315-336-1	01	1	0103-
